The concrete test hammer provides a quick, simple and inexpensive method for non-destructive evaluation of concrete compression strength and other masonry materials.

Concrete test hammers are one of the most widely used instruments in the field of non-destructive testing and Elcometer offer both mechanical and digital models, with Optional Calibration Certificate available. The Elcometer 181 Mechanical Concrete test hammer is comparable with the Schmidt Hammer, Type N.

This gauge consists of a spring loaded plunger which, when released, strikes the surface with fixed and constant impact energy. During the rebound stroke, the mass moves a pointer that indicates the maximum point of return and at the same time indicates a reference value called Rebound Number. This number, converted by the correlations available on the hammer, gives the compression resistance value in respect of the impact angle.

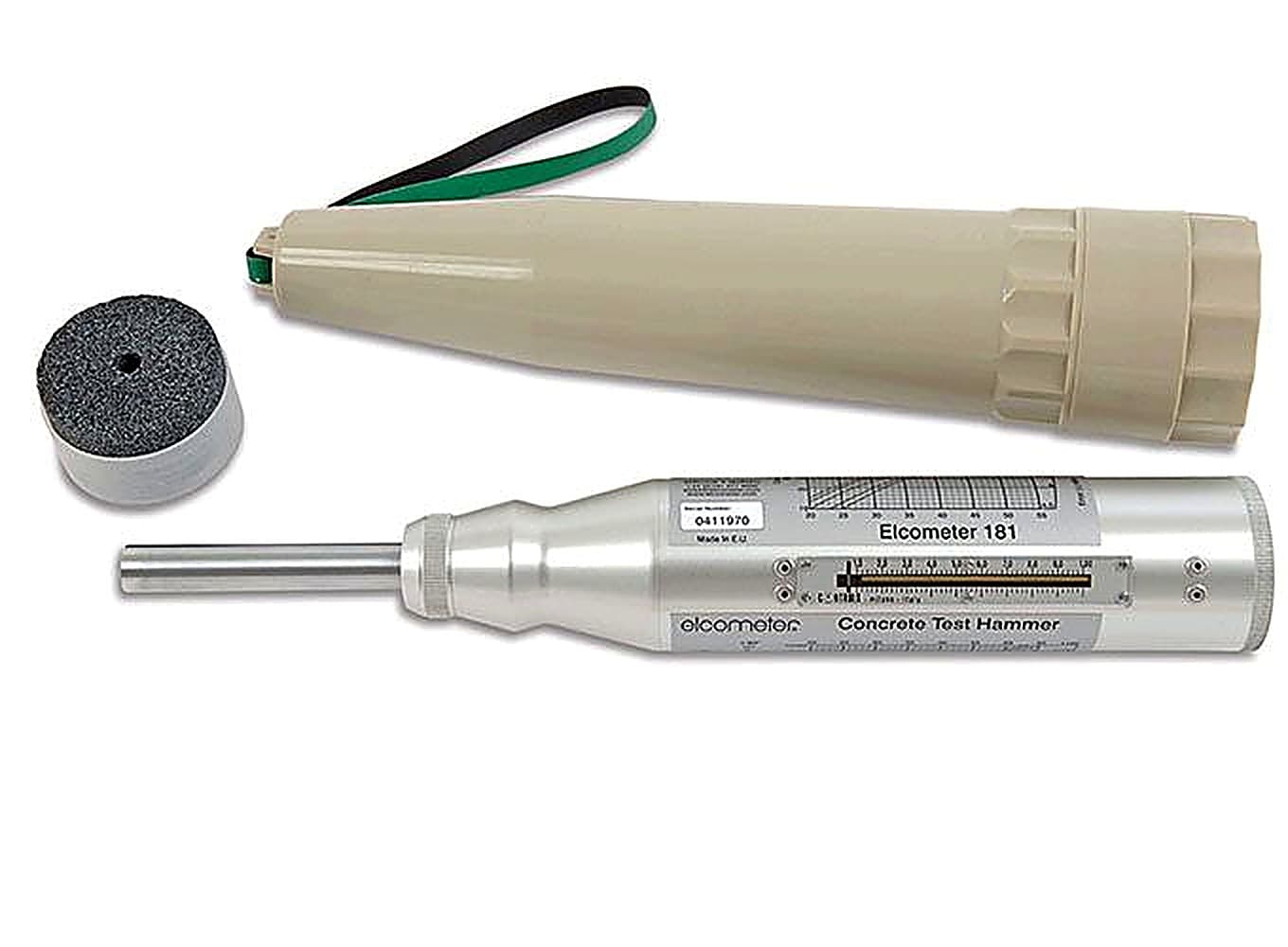

Features of the Elcometer 181 Mechanical Concrete Test Hammer

• Impact Energy 2.207 Nm
• Supplied with grinding stone to prepare test surface, Aluminium body
• Rebound value indicated on test hammer
• Rebound value chart on body, for quick calculation of compressive strength
• Curve selection on chart dependant on testing angle
• The concrete hammer, often called a rebound hammer, is supplied with plastic carrying case, grinding stone & instr.

The Elcometer 181 Mechanical Concrete Test Hammer can be used in accordance with:

• ASTM C805
• BS 1881:202
• DIN 1048
• EN 12504-2
• ISO 8045
• NFP18-417
• UNI 9189

ο Optional Calibration Certificate available

Packing List

• Elcometer 181 Analogue Concrete Test Hammer
• Plastic Storage Case
• Abrasive Stone & Operating Instructions

Elcometer 181 Mechanical Concrete Test Hammer Data Sheet

The Elcometer 181 Mechanical Concrete Test Hammer can be used in accordance with:

• ASTM C805
• BS 1881:202
• DIN 1048
• EN 12504-2
• ISO 8045
• NFP18-417
• UNI 9189

Elcometer 181 Mechanical Concrete Test Hammer – Instruction Manual
