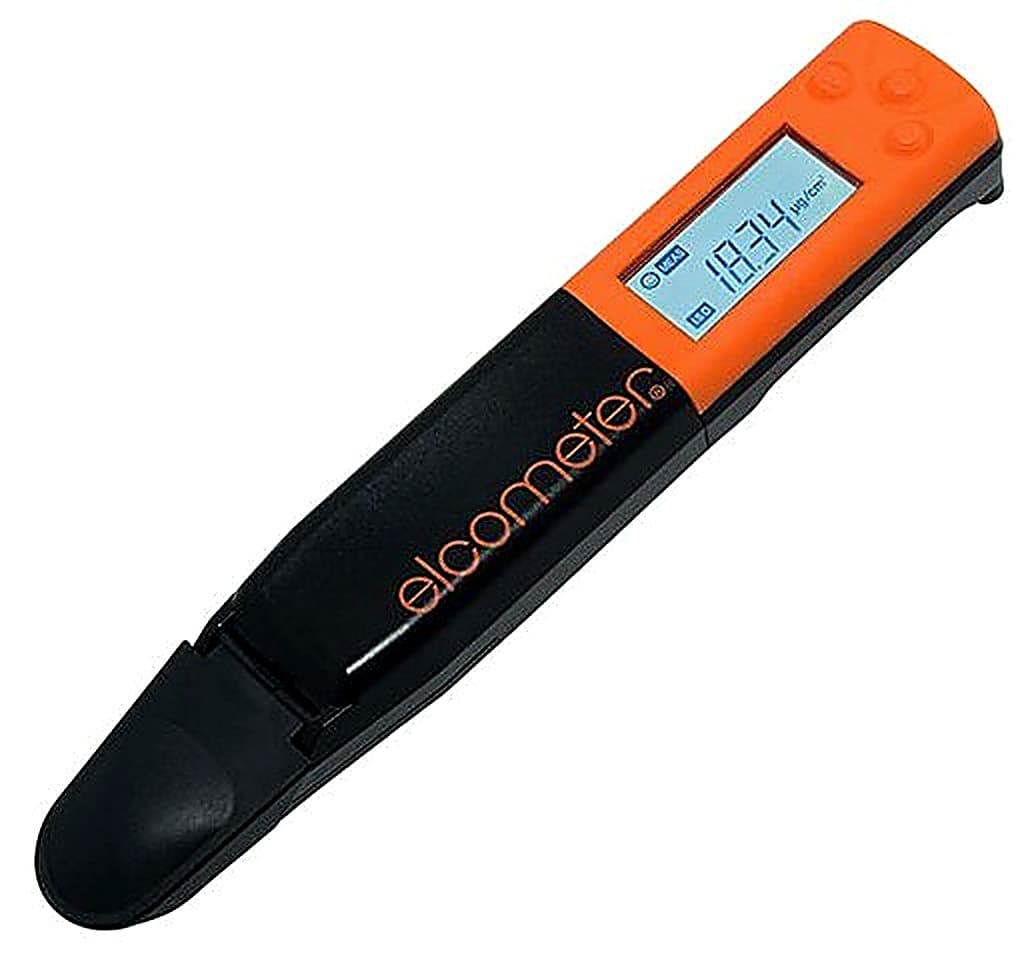

Elcometer 138 Bresle Salt Meter
Product Description
Incorporating a flat sensor, the Elcometer 138 Bresle Salt Meter measures the conductivity of a sample, then automatically converts this to show the density of salts, negating the need for the user to do a manual calculation when working in accordance with ISO 8502-6 or ISO 8502-9.
Features of the Elcometer 138 Bresle Salt Meter
• Highly precise measurements can be obtained
• Out of range and low battery alarms
• Visual indication when ambient temperature is outside the operating range
The Elcometer 138 Bresle Salt Meter can work in accordance with:
ISO 8502-6
ISO 8502-9
Specifications
Elcometer 138 Bresle Salt Meter – Specifications
| Part Number | Description | |
| E138-BSM | Elcometer 138 Bresle Salt Meter | |
| Measurement Principle | 2 Electrode Bipolar AC | |
| Minimum Sample Volume | 0.12ml | |
| Measurement Mode | ISO Mode | IMO Mode |
| Measurement Range | 0 – 2399µg/cm² | 0 – 2199µg/cm² |
| Conversion Factor | µS/cm to µg/cm²: 0.12 | µS/cm to µg/cm²: 0.11 |
| µS/cm to mg/m²: 1.2 | µS/cm to mg/m²: 1.1 | |
| Resolution | 0 – 239.9µg/cm²: 0.1µg/cm² | 0 – 219.9µg/cm²: 0.1µg/cm² |
| 240 – 2399µg/cm²: 1µg/cm² | 220 – 2199µg/cm²: 1µg/cm² | |
| Accuracy | ±2% full scale (for each range) | |
| Operating Temperature | 5°C to 40°C | |
| Operating Humidity | 85% or less relative humidity (no condensation) | |
| Battery Type | 2 x CR2032 lithium batteries | |
| Battery Life | approx. 200 hours of continuous use without backlight | |
| Weight | 50g – including sensor and batteries | |
| Dimensions | 164 x 29 x 20mm |
Packing List
- Elcometer 138 Bresle Salt Meter
- 14ml Bottle of Conditioning Solution
- 14ml Bottle of standard 1413μS/cm calibration solution
- 2 x CR2032 Lithium Batteries
- Operating Instructions
Data Sheet
Standards
Elcometer 138 Bresle Salt Meter – Standards
The Elcometer 138 Bresle Salt Meter can work in accordance with:
- ISO 8502-6
- ISO 8502-9
Accessories
Elcometer 138 Bresle Salt Meter – Accessories
| Part Number | Description |
| T13830628 | Replacement Sensor |
| T13830629-1 | Standard 84μS/cm Calibration Solution, 250ml Bottle |
