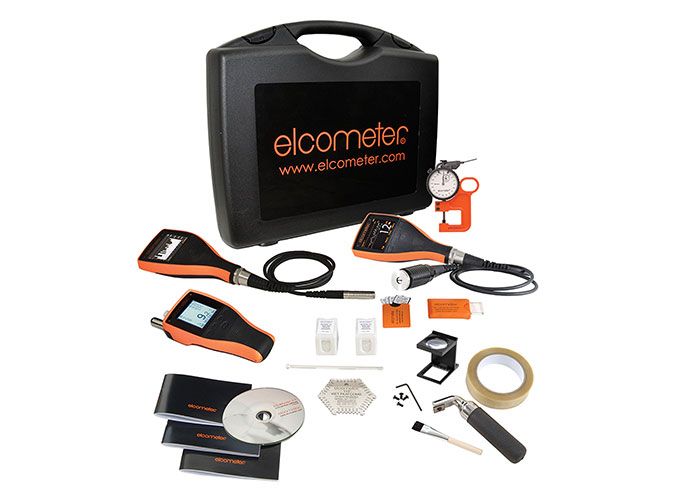

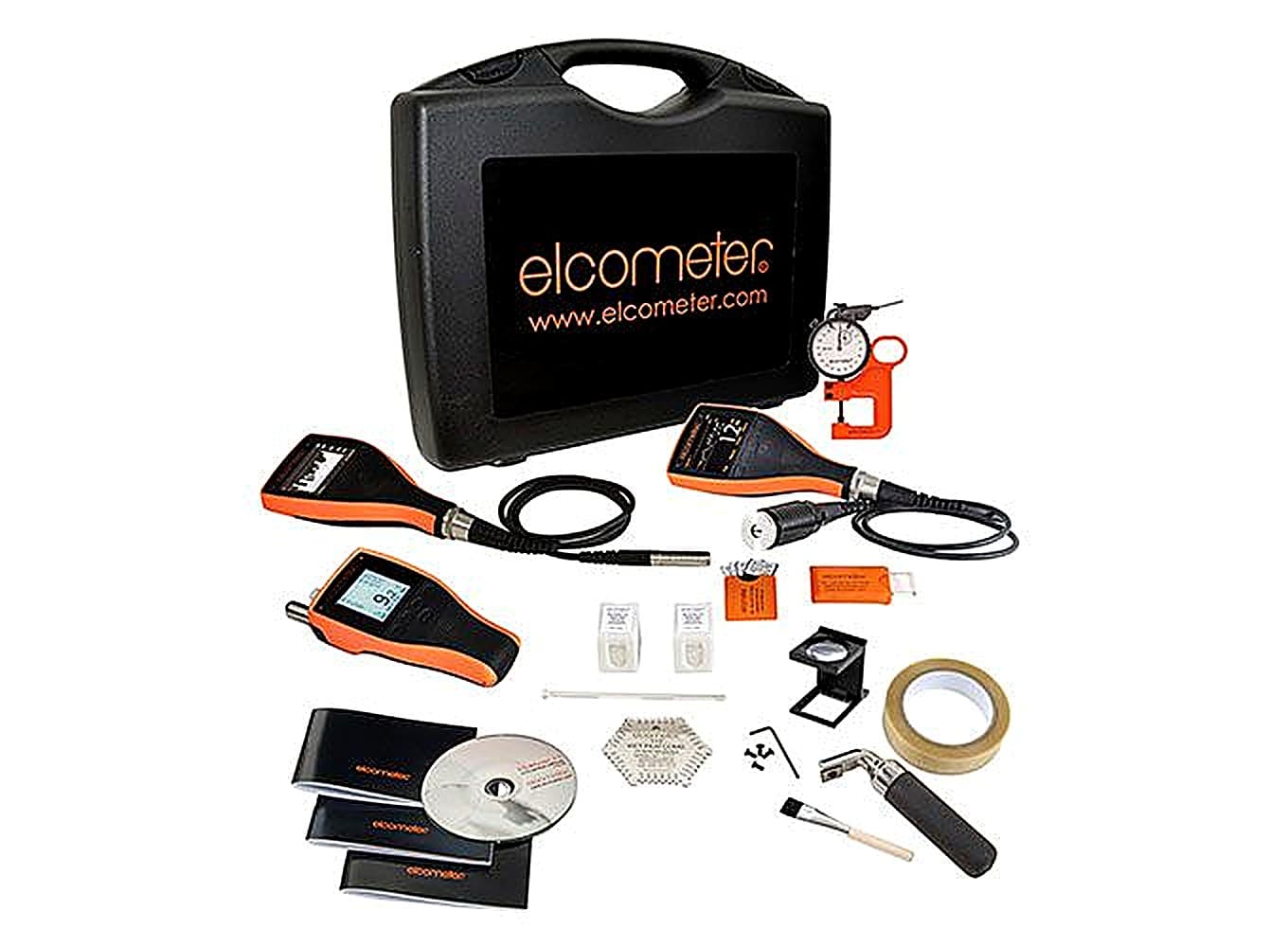

Elcometer Protective Coating Inspection Kit 2

Product Description

The Elcometer Protective Coatings Inspection Kit 2 provides a range of test equipment to help an inspector assess a substrate prior to the application of a coating. The Elcometer Protective Coatings Inspection Kit 2 measurement parameters include:

Surface profile
Climatic conditions
Coating thickness
Adhesion

The Elcometer Protective Coatings Inspection Kit 2 can be used in accordance with :

AS 1580.408.4
AS 2331.1.4
AS 3894.3-B
AS 3894.9
AS/NZS 1580.107.3
AS/NZS 1580.108.1
ASTM B 499
ASTM D 1186-B
ASTM D 1400
ASTM D 3359-B
ASTM D 4414-A
ASTM D 4417-C
ASTM D 7091
ASTM E 376
ASTM G 12
BS 3900-C5-6A
BS 3900-C5-6B
BS 3900-C5-7B

BS 3900-E6
BS 5411-11
BS 5411-3
BS 5599
BS 7079-C5
DIN 50981
DIN 50984
ECCA T1
ECCA T6
EN 13523-1
EN 13523-6
IMO MSC.215(82)
IMO MSC.244 (83)
ISO 1461, ISO 16276-2
ISO 19840
ISO 2063
ISO 2360
ISO 2409

ISO 2808-1A
ISO 2808-6A
ISO 2808-6B
ISO 2808-7B
ISO 2808-7C
ISO 2808-7D
ISO 2808-12
ISO 8503-5
JIS K 5600-5-6
NACE RP0287
NF T30-038
NF T30-124
NF T30-125
SS 184159
SSPC PA 2
US Navy PPI 63101-000
US Navy NSI 009-32

Standards not in bold have been superseded but are still recognised in some industries

Specifications

Elcometer Protective Coating Inspection Kit 2 – Specifications

Instruments included in the Elcometer Protective Coating Inspection Kit 2:

Elcometer 122 Testex Replica Tape – Coarse & X-Coarse
Elcometer 124 Dial Thickness Gauge
Elcometer 116 Whirling Hygrometer
Elcometer 114 Dewpoint Calculator
Elcometer 212 Digital Pocket Thermometer – Surface Probe
Elcometer 107 Cross Hatch Cutter
Elcometer 112 3236 Hexagonal Stainless Steel Wet Film Combs
Elcometer 456 Digital Coating Thickness Gauges Dry Film Thickness Gauge DFT

Kit Content / Part Number		YKIT-PROTECTIVE-
		1M	2SM	2TM	3SM	3TM	4M	5M	6M
Elcometer MTG2 Material Thickness Gauge		–	–	–	–	–	–	Y	Y
Elcometer 128 Pictorial Standards		–	–	–	–	–	Y	Y	Y
Elcometer 131/1C Telescopic Inspection Mirror		–	–	–	–	–	Y	Y	Y
Elcometer 137 Illuminated Magnifier		–	–	–	–	–	–	–	Y
Elcometer 144 Paint Safe Marker Pens (Pack of 3)		–	–	–	–	–	Y	Y	Y
Elcometer 147 Weld Gauge		–	–	–	–	–	Y	Y	Y
Elcometer 142 Dust Tape Test Kit		–	–	–	–	–	Y	Y	Y
Elcometer 138 Bresle Salt Kit²		–	–	–	–	–	Y	Y	Y
Elcometer 138/2 Surface Contamination Kit		–	–	–	–	–	–	Y	Y
Elcometer 122 Testex Replica Tape – Coarse & X-Coarse		Y	Y	Y	–	–	–	–	Y
Elcometer 124 Thickness Gauge		Y	Y	Y	–	–	–	Y	Y
Elcometer 224 Integral Digital Surface Profile Gauge		–	Basic	–	Basic	Top	Top	–	–
Elcometer 224 Separate Digital Surface Profile Gauge		–	–	Top	–	–	–	Top	Top
Elcometer 116 Whirling Hygrometer		Y	–	–	–	–	–	–	–
Elcometer 114 Dewpoint Calculator		Y	–	–	–	–	–	–	–
Elcometer 212 Digital Pocket Thermometer – Surface Probe		Y	–	–	–	–	–	–	–
Elcometer 319 Digital Dewpoint Meter		–	Std	Top	Std	Top	Top	Top	Top
Elcometer 107 Cross Hatch Cutter		Y	Y	Y	Y	Y	–	–	–
Elcometer 112 Hexagonal Wet Film Comb: 25 – 3000μm		Y	Y	Y	–	–	Y	Y	Y
Elcometer 115 Wet Film Comb (Set of 4)		–	–	–	Y	Y
Elcometer 456 Integral Digital F Coating Gauge, 0 – 1500μm		Basic	–	–	–	–	–	–	–
Elcometer 456 Separate Digital Coating Thickness Gauge		–	Std	Std	Top	Top	Top	Top	Top
Elcometer 456 Standard Separate Probe, 0 – 1500μm			Ferrous	Ferrous	FNF	FNF
Elcometer 456 Ferrous Standard Separate F2 Probe, 0-5mm							Ferrous	Ferrous	Ferrous
ElcoMaster® Software CD and USB Cable		–	Y	Y	Y	Y	Y	Y	Y
Elcometer 121 Paint Inspection Gauge with Cross Hatch		–	–	–	–	–	–	Top	Top
cutters 6 x 1, 2 & 3mm & ISO Adhesive Tape
Elcometer 270 Pinhole Detector (9, 67.5 & 90V)		–	–	–	–	–	–	–	Y
Dimensions of Inspection Kit Carry Case	Length (mm)	456	456	456	456	456	495	575	575
	Breadth (mm)	384	384	384	384	384	420	475	475
	Height (mm)	110	127	127	127	127	175	205	205

² Supplied with Bresle Samplers not Bresle Patches

Data Sheet

Elcometer Protective Coating Inspection Kit 2 – Data Sheet

Elcometer Protective Coating Inspection Kit 2 Data Sheet

Standards

Elcometer Protective Coating Inspection Kit 2 – Standards

The Elcometer Protective Coatings Inspection Kit 2 can be used in accordance with :

AS 1580.408.4
AS 2331.1.4
AS 3894.3-B
AS 3894.9
AS/NZS 1580.107.3
AS/NZS 1580.108.1
ASTM B 499
ASTM D 1186-B
ASTM D 1400
ASTM D 3359-B
ASTM D 4414-A
ASTM D 4417-C
ASTM D 7091
ASTM E 376
ASTM G 12
BS 3900-C5-6A
BS 3900-C5-6B
BS 3900-C5-7B

BS 3900-E6
BS 5411-11
BS 5411-3
BS 5599
BS 7079-C5
DIN 50981
DIN 50984
ECCA T1
ECCA T6
EN 13523-1
EN 13523-6
IMO MSC.215(82)
IMO MSC.244 (83)
ISO 1461, ISO 16276-2
ISO 19840
ISO 2063
ISO 2360
ISO 2409

ISO 2808-1A
ISO 2808-6A
ISO 2808-6B
ISO 2808-7B
ISO 2808-7C
ISO 2808-7D
ISO 2808-12
ISO 8503-5
JIS K 5600-5-6
NACE RP0287
NF T30-038
NF T30-124
NF T30-125
SS 184159
SSPC PA 2
US Navy PPI 63101-000
US Navy NSI 009-32

Standards not in bold have been superseded but are still recognised in some industries
