Elcometer 142 ISO 8502-3 Dust Tape Test kit
Product Description
The Elcometer 142 Dust Tape Test kit allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish.
Used in conjunction with the Elcometer 145 Dust Tape Roller the kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust.
The Elcometer 142 ISO 8502-3 Dust Tape Test Kit can be used in accordance with:
• AS3894.6-C
• IMO MSC.215 (82)
• IMO MSC.244 (83)
• ISO 8502-3
• US Navy PPI 63101-000
Specifications
Elcometer 142 ISO 8502-3 Dust Tape Test kit – Specifications
| Part Number | Description |
| E142—-1 | Elcometer 142 ISO 8502-3 Dust Tape Test Kit |
| E142-KIT | Elcometer 142 ISO 8502-3 Dust Tape Test Kit complete with cutting knife and carry case |
| Measuring Range | Chart with dust classes ranging from 0 – 5 with descriptions for accurate class placement |
| Dimensions | E142—-1: 210 x 297mm |
| E142-KIT: 346 x 292 x 84mm | |
| Weight | E142—-1: 250g |
| E142-KIT: 1.4kg |

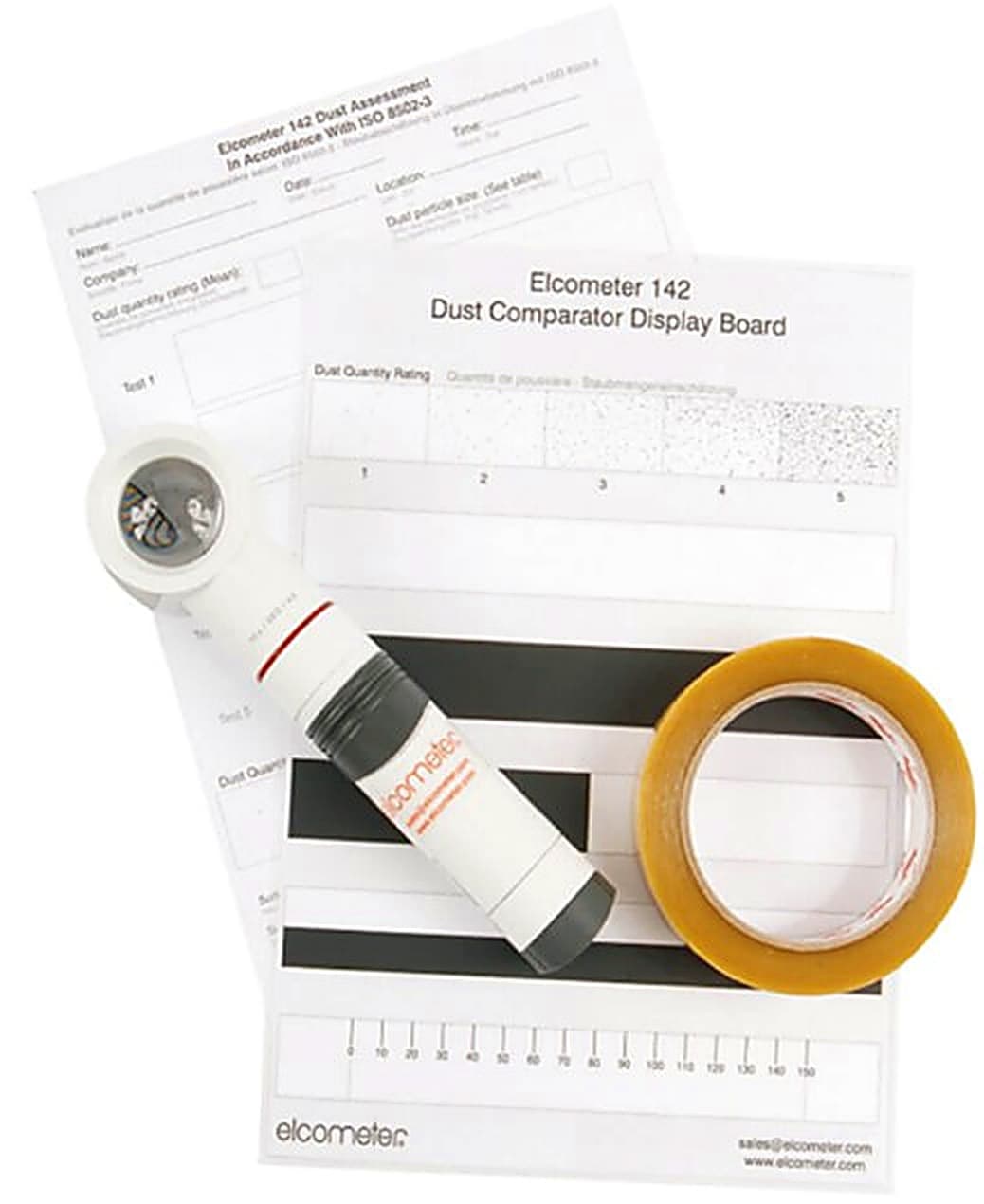

Packing List
- Microscope with 10 x Magnifier
- 2 batteries (LR14)
- Graticule
- Adhesive Tape to Specification ISO 8502-3
- Comparator Display Board
- Dust Assessment Plate
- Test record sheets (pack of 25)
- Cutting knife (E142-KIT)
- Transit case (E142-KIT)
- Operating instructions
Data Sheet
Elcometer 142 ISO 8502-3 Dust Tape Test kit – Data Sheet
Elcometer 142 ISO 8502-3 Dust Tape Test kit Data Sheet
Standards
Elcometer 142 ISO 8502-3 Dust Tape Test kit – Standards
The Elcometer 142 ISO 8502-3 Dust Tape Test Kit can be used in accordance with:
• AS3894.6-C
• IMO MSC.215 (82)
• IMO MSC.244 (83)
• ISO 8502-3
• US Navy PPI 63101-000
Accessories
Elcometer 142 ISO 8502-3 Dust Tape Test kit – Accessories
| Part Number | Description |
| T14219451 | Test Record Sheet |
| T14219454 | Display Board |
| T9999358-1 | Adhesive Tape 1 Roll Pack – ISO 8502-3 |
| T9999358-2 | Adhesive Tape 2 Roll Pack – ISO 8502-3 |
| T14219525 | Dust Assessment Plate |
