Elcometer 2350 to 2354 Viscosity Flow Cups - DIN, FORD/ASTM, ISO, BS, AFNOR
Product Description

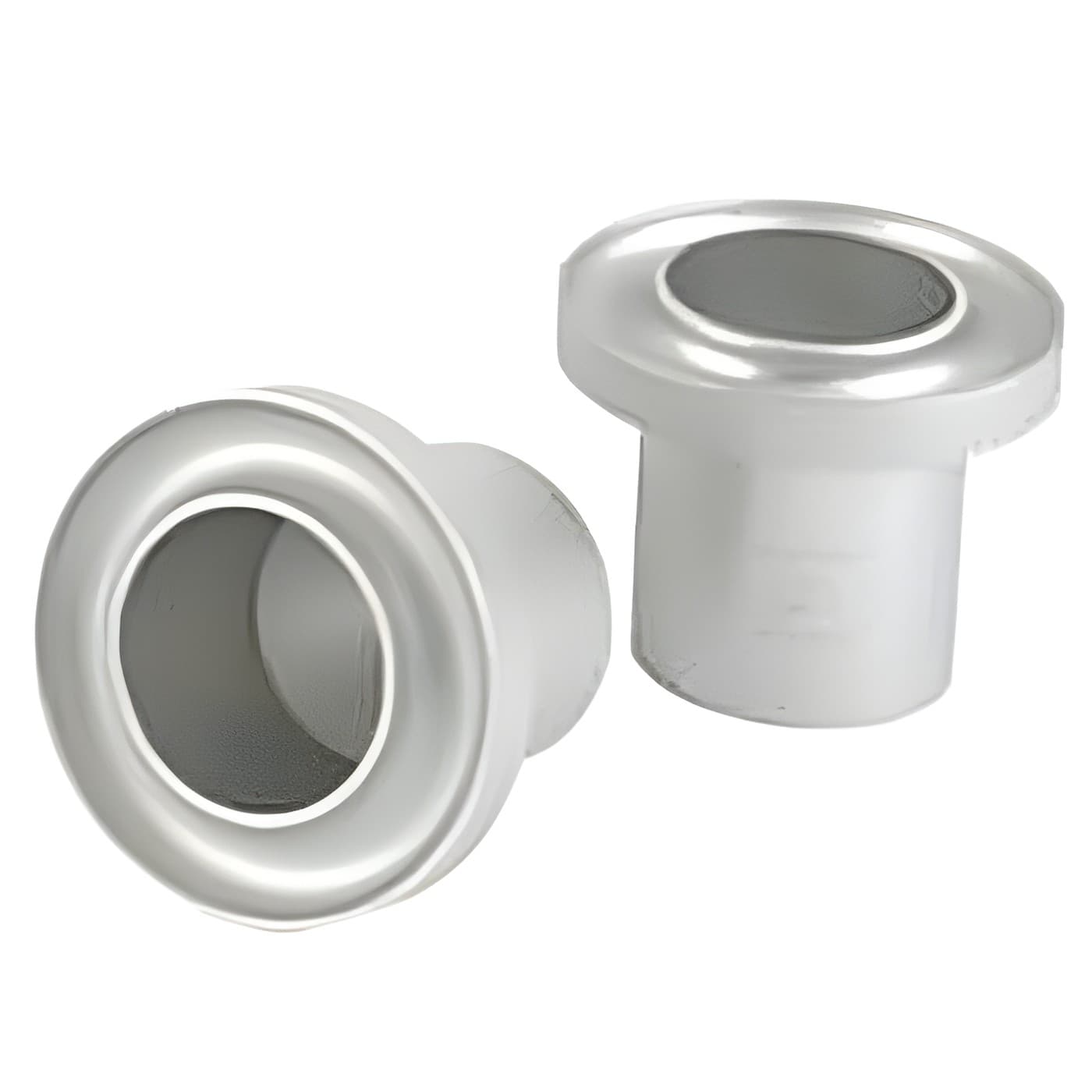

The Elcometer 2350 to 2354 Viscosity Flow cups are very easy to use instruments of anodized aluminium with a stainless steel orifice, for measuring the consistency of paints, varnishes and similar products. The measured kinematic viscosity is generally expressed in seconds(s) flow time. If the Standards stipulate conversion methods the flow time can be converted into Centistokes (cSt). Elcometer offers the option to order viscosity cups complete with calibration certificates which offer traceability and assurance that the viscosity cups have been individually tested and comply to Standards. The cups can be supplied separately or with an adjustable stand which includes a precision level and an overflow glass draw plate. The stand can also be supplied with a flow jacket or thermojacket for temperature control.
The Elcometer 2351 Ford/ASTM Viscosity Flow cups can be used in accordance with:
The Elcometer 2352 AFNOR Viscosity Flow cups can be used in accordance with:
The Elcometer 2353 ISO Viscosity Flow cups can be used in accordance with:
The Elcometer 2354 BS Viscosity Flow cups can be used in accordance with:
Standards in not in bold have been superseded but are still recognised in some industries. |
Specifications
Elcometer 2350 to 2354 Viscosity Flow Cups – DIN, FORD/ASTM, ISO, BS, AFNOR – Specifications
| DIN Viscosity Cups | ||||
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)1 |
| K0002350M001 | Elcometer 2350/1 DIN Viscosity Cup | 2 | 2mm | – |
| K0002350M002 | Elcometer 2350/2 DIN Viscosity Cup | 4 | 4mm | 96-683 |
| K0002350M003 | Elcometer 2350/3 DIN Viscosity Cup | 6 | 6mm | – |
| K0002350M004 | Elcometer 2350/4 DIN Viscosity Cup | 8 | 8mm | – |
| K0002350M001C | Elcometer 2350/1 with calibration certificate | 2 (e) | 2mm | – |
| K0002350M002C | Elcometer 2350/2 with calibration certificate | 4 (e) | 4mm | 96-683 |
| K0002350M003C | Elcometer 2350/3 with calibration certificate | 6 (e) | 6mm | – |
| K0002350M004C | Elcometer 2350/4 with calibration certificate | 8 (e) | 8mm | – |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
| FORD / ASTM Viscosity Cups | ||||
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)1 |
| K0002351M001 | Elcometer 2351/1 FORD/ASTM Viscosity Cup | 1 | 1.90mm | 13058 |
| K0002351M002 | Elcometer 2351/2 FORD/ASTM Viscosity Cup | 2 | 2.53mm | 25-120 |
| K0002351M003 | Elcometer 2351/3 FORD/ASTM Viscosity Cup | 3 | 3.40mm | 49-220 |
| K0002351M004 | Elcometer 2351/4 FORD/ASTM Viscosity Cup | 4 | 4.12mm | 70-370 |
| K0002351M005 | Elcometer 2351/5 FORD/ASTM Viscosity Cup | 5 | 5.20mm | 200-1200 |
| K0002351M001C | Elcometer 2351/1 with calibration certificate | 1 (e) | 1.90mm | 13058 |
| K0002351M002C | Elcometer 2351/2 with calibration certificate | 2 (e) | 2.53mm | 25-120 |
| K0002351M003C | Elcometer 2351/3 with calibration certificate | 3 (e) | 3.40mm | 49-220 |
| K0002351M004C | Elcometer 2351/4 with calibration certificate | 4 (e) | 4.12mm | 70-370 |
| K0002351M005C | Elcometer 2351/5 with calibration certificate | 5 (e) | 5.20mm | 200-1200 |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
| AFNOR Viscosity Cups | ||||
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)1 |
| K0002352M001 | Elcometer 2352/1 AFNOR Viscosity Cup | 2.5 | 2.46mm | 5-140 |
| K0002352M002 | Elcometer 2352/2 AFNOR Viscosity Cup | 4 | 4mm | 50-1100 |
| K0002352M003 | Elcometer 2352/3 AFNOR Viscosity Cup | 6 | 6mm | 510-5100 |
| K0002352M001C | Elcometer 2352/1 with Calibration Certificate | 2.5 (d) | 2.46mm | 5-140 |
| K0002352M002C | Elcometer 2352/2 with Calibration Certificate | 4 (d) | 4mm | 50-1100 |
| K0002352M003C | Elcometer 2352/3 with Calibration Certificate | 6 (d) | 6mm | 510-5100 |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
| ISO Viscosity Cups | ||||
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)1 |
| K0002353M001 | Elcometer 2353/1 ISO Viscosity Cup | 3 | 3mm | 15523 |
| K0002353M002 | Elcometer 2353/2 ISO Viscosity Cup | 4 | 4mm | 34-135 |
| K0002353M003 | Elcometer 2353/3 ISO Viscosity Cup | 5 | 5mm | 91-326 |
| K0002353M004 | Elcometer 2353/4 ISO Viscosity Cup | 6 | 6mm | 188-684 |
| K0002353M005 | Elcometer 2353/5 ISO Viscosity Cup | 8 | 8mm | – |
| K0002353M001C | Elcometer 2353/1 with calibration certifcate | 3 (e) | 3mm | 15523 |
| K0002353M002C | Elcometer 2353/2 with calibration certificate | 4 (e) | 4mm | 34-135 |
| K0002353M003C | Elcometer 2353/3 with calibration certificate | 5 (e) | 5mm | 91-326 |
| K0002353M004C | Elcometer 2353/4 with calibration certificate | 6 (e) | 6mm | 188-684 |
| K0002353M005C | Elcometer 2353/5 with calibration certificate | 8 (d) | 8mm | – |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
| Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory. | ||||
| BS Viscosity Cups | ||||
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)1 |
| K0002354M001 | Elcometer 2354/1 BS Viscosity Cup | 2 | 2.38mm | 15858 |
| K0002354M002 | Elcometer 2354/2 BS Viscosity Cup | 3 | 3.17mm | 28-150 |
| K0002354M003 | Elcometer 2354/3 BS Viscosity Cup | 4 | 3.97mm | 89-340 |
| K0002354M004 | Elcometer 2354/4 BS Viscosity Cup | 5 | 4.76mm | 79-441 |
| K0002354M005 | Elcometer 2354/5 BS Viscosity Cup | 6 | 7.14mm | 369-1302 |
| K0002354M001C | Elcometer 2354/1 with calibration certificate | 2 (d) | 2.38mm | 15858 |
| K0002354M002C | Elcometer 2354/2 with calibration certificate | 3 (d) | 3.17mm | 28-150 |
| K0002354M003C | Elcometer 2354/3 with calibration certificate | 4 (d) | 3.97mm | 89-340 |
| K0002354M004C | Elcometer 2354/4 with calibration certificate | 5 (d) | 4.76mm | 79-441 |
| K0002354M005C | Elcometer 2354/5 with calibration certificate | 6 (d) | 7.14mm | 369-1302 |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
| Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory. | ||||
| 1 For information only (d) Dimensional Certificate (e) Efflux Time Certificate | ||||
Data Sheet
Elcometer 2350 to 2354 Viscosity Flow Cups – DIN, FORD/ASTM, ISO, BS, AFNOR – Data Sheet
Elcometer 2350 & 2354 Viscosity Flow Cups – DIN, FORD/ASTM, ISO, BS, AFNOR Data Sheet
Standards
Elcometer 2350 to 2354 Viscosity Flow Cups – DIN, FORD/ASTM, ISO, BS, AFNOR – Standards
The Elcometer 2350 DIN Viscosity Flow cups can be used in accordance with:
- DIN 53211 (cup 4 only)
The Elcometer 2351 Ford / ASTM Viscosity Flow cups can be used in accordance with:
- ASTM D1200
The Elcometer 2352 AFNOR Viscosity Flow cups can be used in accordance with:
- NF T30-014
The Elcometer 2353 ISO Viscosity Flow cups can be used in accordance with:
- ASTM D 5125
- ISO 2431
The Elcometer 2354 BS Viscosity Flow cups can be used in accordance with:
- AS/NZS 1580.214.2 (cup 4 only)
- BS 3900-A6:1971
Standards in not in bold have been superseded but are still recognised in some industries.
Accessories
Elcometer 2350 to 2354 Viscosity Flow Cups – DIN, FORD/ASTM, ISO, BS, AFNOR – Accessories
 |
KT002400N001 | Stand with Bubble Level for Cup and Glass Draw Plate |
| KT002400P001 | Bubble Level for Viscosity Cup | |
| KT002400P999 | Viscosity Glass Draw Plate | |
 |
KT002400N002 | Double-walled Stand with Thermojacket |
 |
K0007300M201 | Elcometer 7300 High precision stopwatch. |
| Measuring intervals: 1/100 second for 30 minutes and 1 second for 24 hours. | ||
| Time calendar display, 12/24 hour mode. | ||
 |
KT002400N003 | Elcometer 2400 Conversion Disc allowing viscosity (cSt) and flow times of different cups to be compared. |
| Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2 | ||
| Back: No. 3-4-5-6 cups according to ISO and Zahn 3 | ||
 |
G212—-1 | Elcometer 212/1 Digital Pocket Thermometer (°C) with Needle/Liquid Probe |
| G213—-2 | Elcometer 213/2 Digital Thermometer (°C/°F) | |
| T1164441- | Spirit Thermometer in °C | |
| T9996390- | Elcometer 213/2 Liquid Probe |
