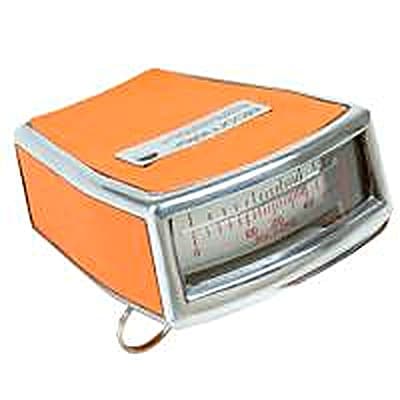

Elcometer 101 Magnetic Coating Thickness Gauge - Discontinued
Product Description
The original non – destructive dry film thickness gauge, the Elcometer 101 Magnetic Coating Thickness Gauge was the world’s first portable coating thickness gauge with the original being produced in 1947.
|
Specifications
Elcometer 101 Magnetic Coating Thickness Gauge – Specifications
Part Number | Description | Range |
A101A-05A | Elcometer 101 Mechanical Coating Thickness Gauge | 0 – 250µm |
A101A-01A | Elcometer 101 Mechanical Coating Thickness Gauge | 0 – 600µm |
Operating Plane | 90° to substrate | |
Minimum Measurement Area | 38 x 15mm | |
Minimum Measurement Diameter | 25mm (on bar material) | |
Accuracy | ±10% of the reading or 2.5µm whichever is the greater | |
Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. |
- Elcometer 101
- calibration foils
- carry case
- wrist harness
- operating instructions
Data Sheet
Elcometer 101 Magnetic Coating Thickness Gauge – Data Sheet
Elcometer 101 Magnetic Coating Thickness Gauge Data Sheet
Standards
Elcometer 101 Magnetic Coating Thickness Gauge – Standards
The Elcometer 101Magnetic Coating Thickness Gauge can be used in accordance with the following Standards:- ISO 2178
- AS 2331.1.3
- ASTM B 499
- ASTM G 12
- BS 5411-11
- ISO 2178
- SSPC PA2
