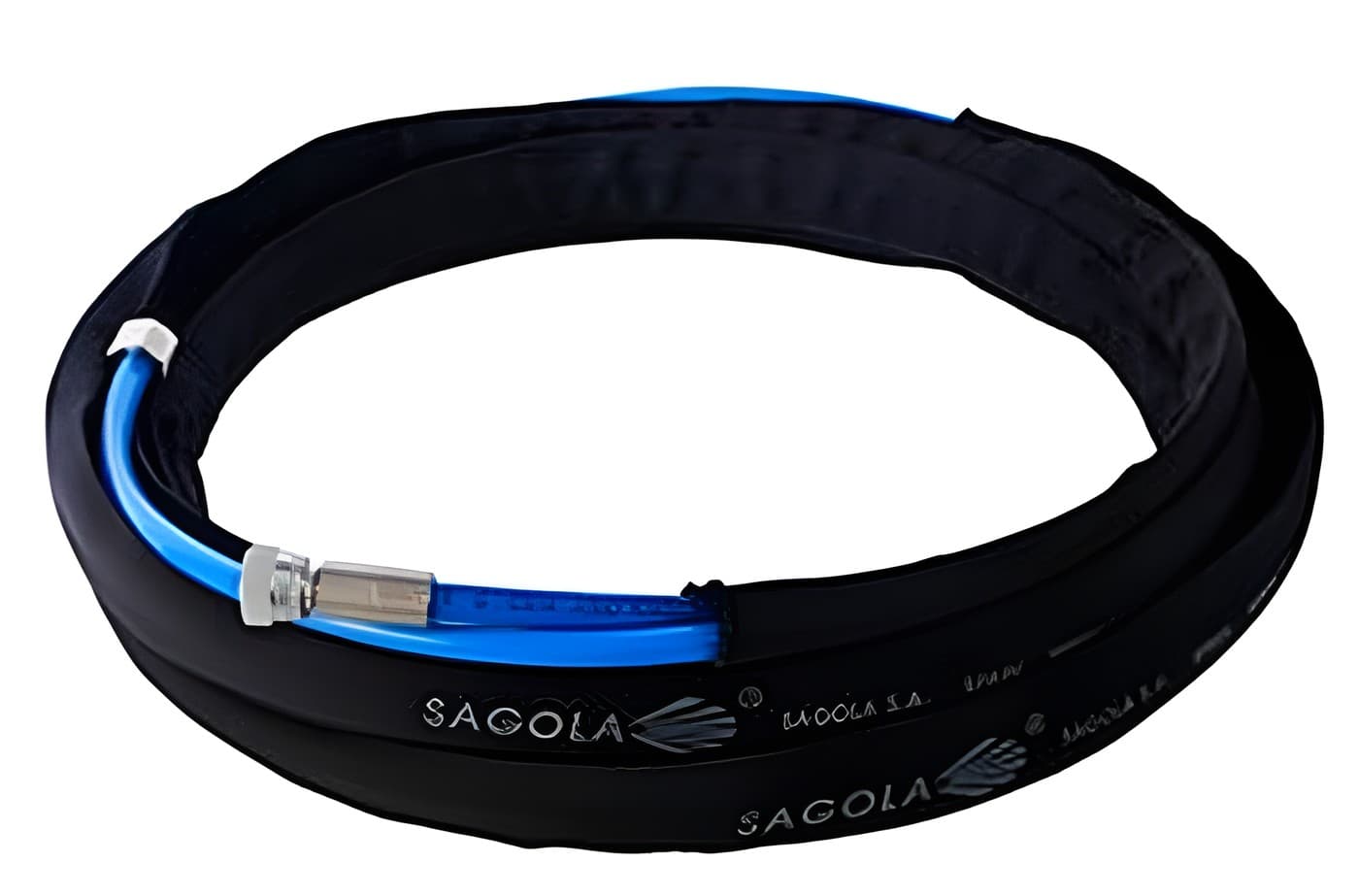

Sagola Combined Air and Product Hose
Product Description
The Sagola Combined Air and Product Hose is supplied with a cover and is ideal for low pressure pneumatic pumps.
Nylon product hose 6 x 8mm with quick connect terminals.
- Adapter 3/8” female for pressure spray guns.
- Special hose set for low pressure equipment.
- EPDM rubber anti-static air hose 8 x 15mm with high security crimped ends 1/4” F.
- Polyester protective cover of high resistance to friction and abrasion.
Specifications
| Product Hose | Air Hose | Protective Cover | |
| Working Pressure | 18bar | 20bar | – |
| Breakage Pressure | – | 60bar | – |
| Temperature Range | -20°C to 60°C | 40°C to 120°C | -60°C to 125°C |
| Dimensions (I/D x O/D) | 6 x 8mm | 8 x 15mm | – |
| Material (inside) | Polyamide PA12 | EPDM | Polyester |
| Material (outside) | Polyamide PA12 | Textile Reinforcement | Polyester |
| Colour | White | Blue | Black |
| Anti-Static | – | Yes | – |
| Connections | 9.53mm Female BSP | 6.35mm Female BSP | – |
| Compliance | DIN 73378 | 97/23/CE UNE – EN 559 |
RoHS, ISO 6945, MSHA |
Standards
Air hose: 97/23/CE, UNE EN-559
Product hose: DIN 73378
Cover: RoHS, ISO 6945, MSHA
Data Sheet
Part Numbers
 |
1.8m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 1.8m | |
| Part Number : PT56414130 | |
|
5m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 5m | |
| Part Number : PT56414039 | |
|
7.5m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 7.5m | |
| Part Number : PT56414044 | |
|
10m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 10m | |
| Part Number : PT56414040 | |
|
15m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 15m | |
| Part Number : PT56414041 | |
|
20m Covered Anti-Static Air & Nylon Product Hose |
| Hose Length: 20m | |
| Part Number : PT56414042 | |
