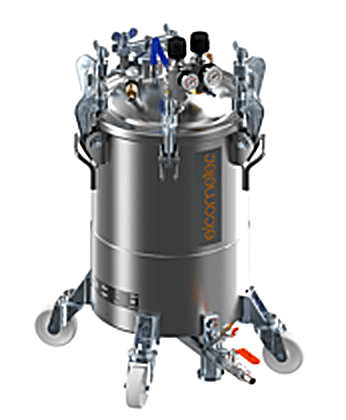

Elcometer P30B Lower Outlet Pressure Tank
Product Description
The Elcometer P30B Pressure Tank has a 30 Litre tank capacity and is suitable for material with high or standard viscosities and solvent and water-based paints.
- Body and lid in stainless steel.
- Safety compliant to International Standards.
- Lower outlet connection with two outlet ports.
- Dual air regulator with discharge valve, to regulate spray gun
and pot pressure safely. - Ideal for two spray guns.
- Lid port for faster refills and material level observation
- Robust castor wheels for easy transportation around site.
- Suitable for material with high or standard viscosities and
solvent and water-based paints.
Full equipment kit available:
Elcometer P30B Lower Outlet (x2) Pressure Pot; 30 Litre & 11m Air Hose
Compliance:
ATEX II 2G T60ºC X
Certificate No. AP 1035
Key Features
Ideal for use with DENSE products:

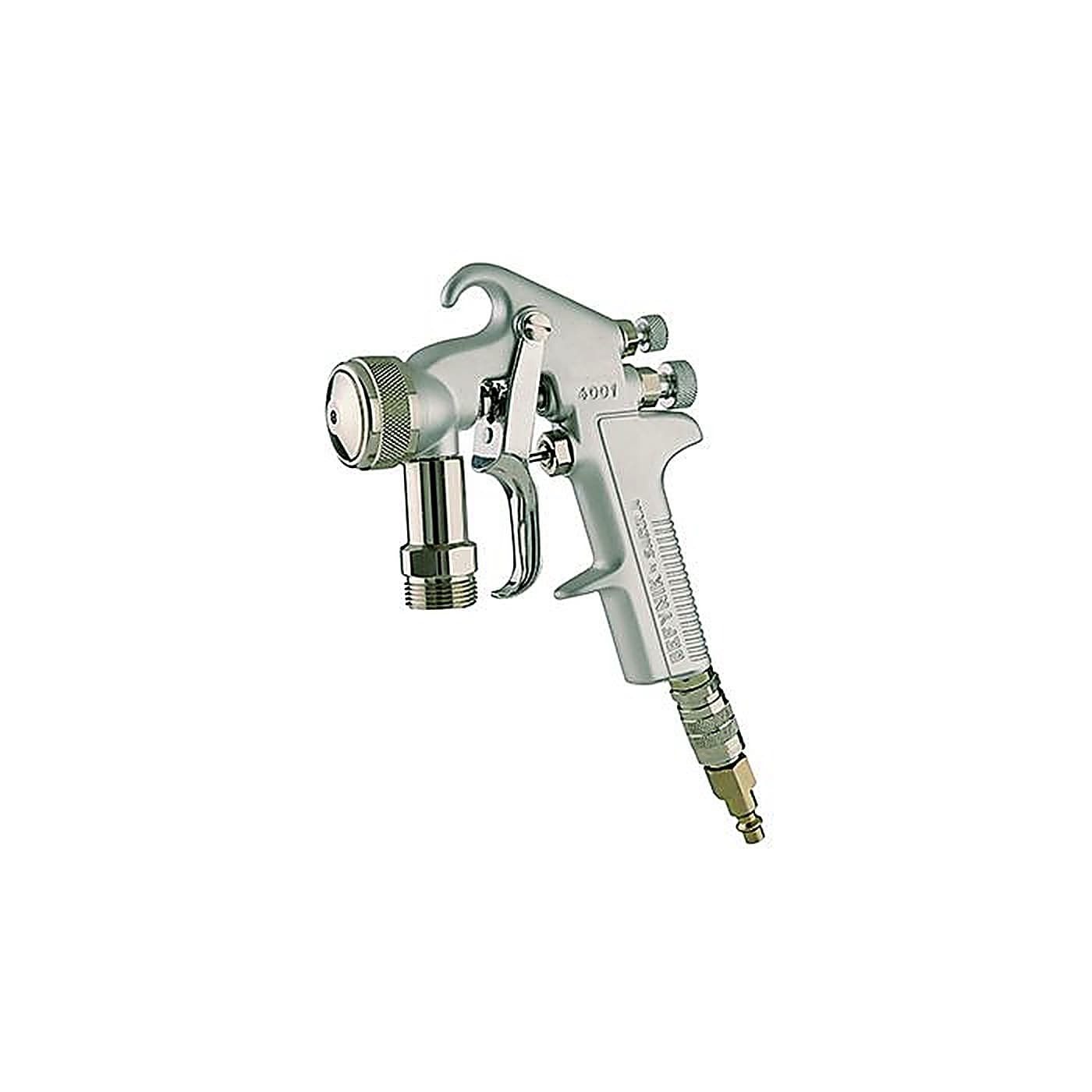

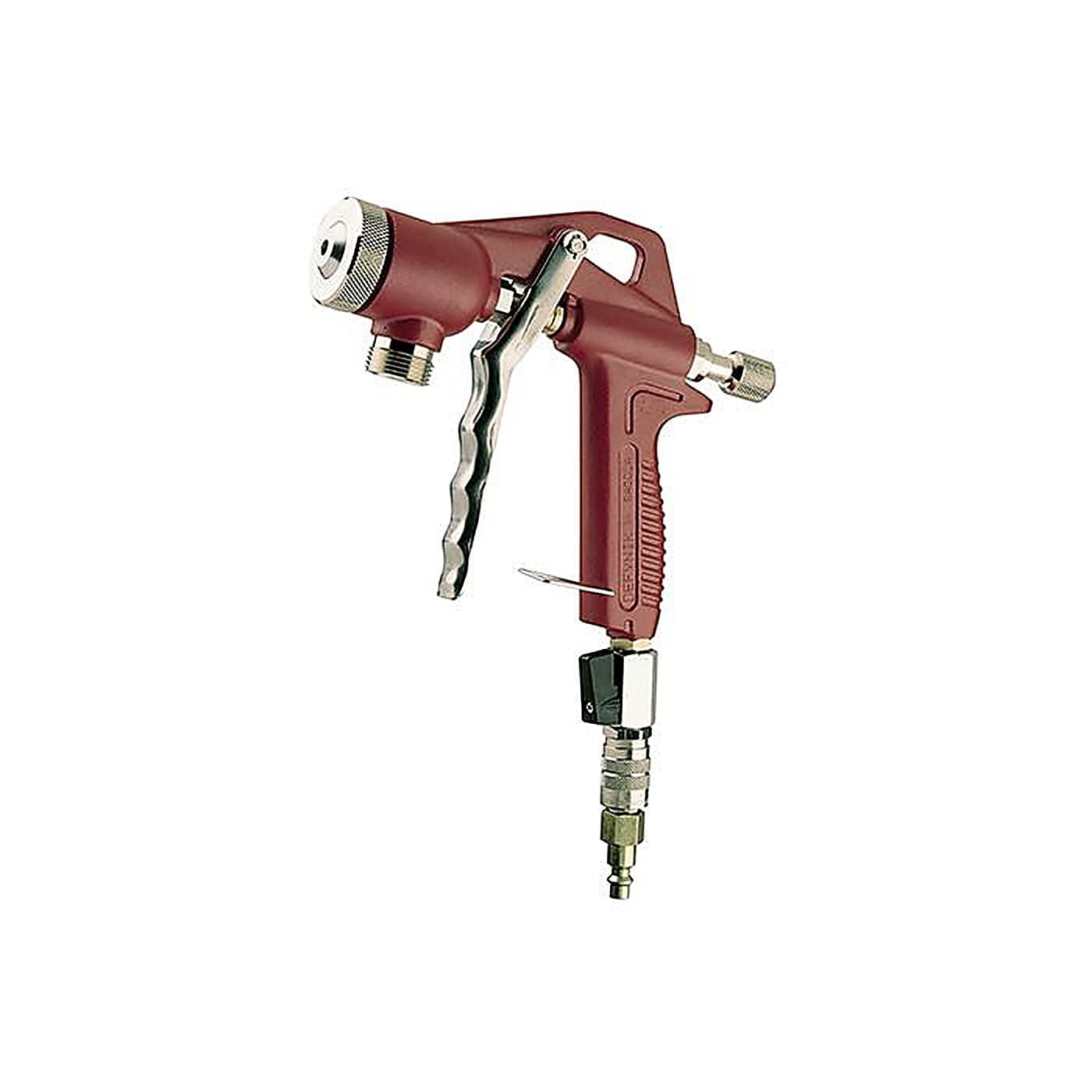

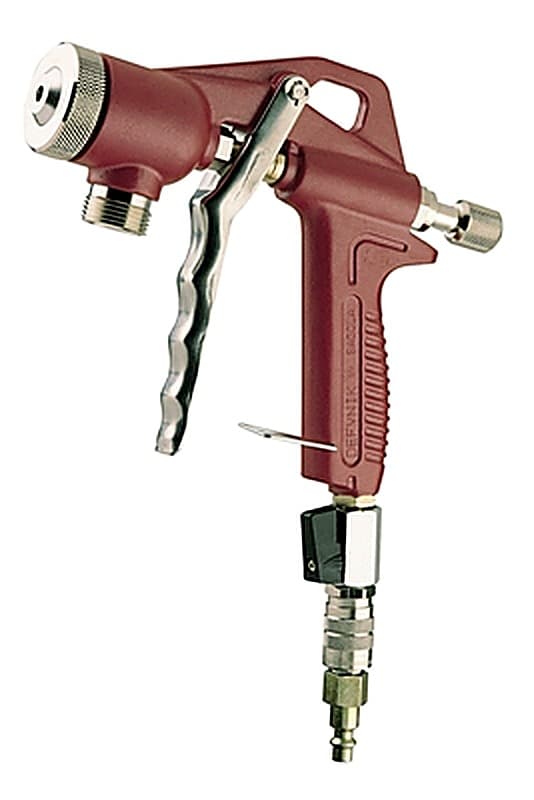

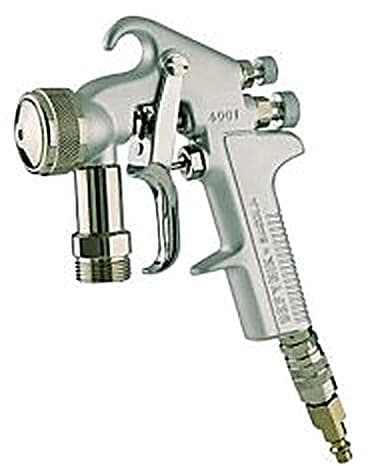

Sagola 419 Premium Pressure Spray Gun Sagola Stucco Pressure Spray Gun
Ideal for use with REGULAR products:

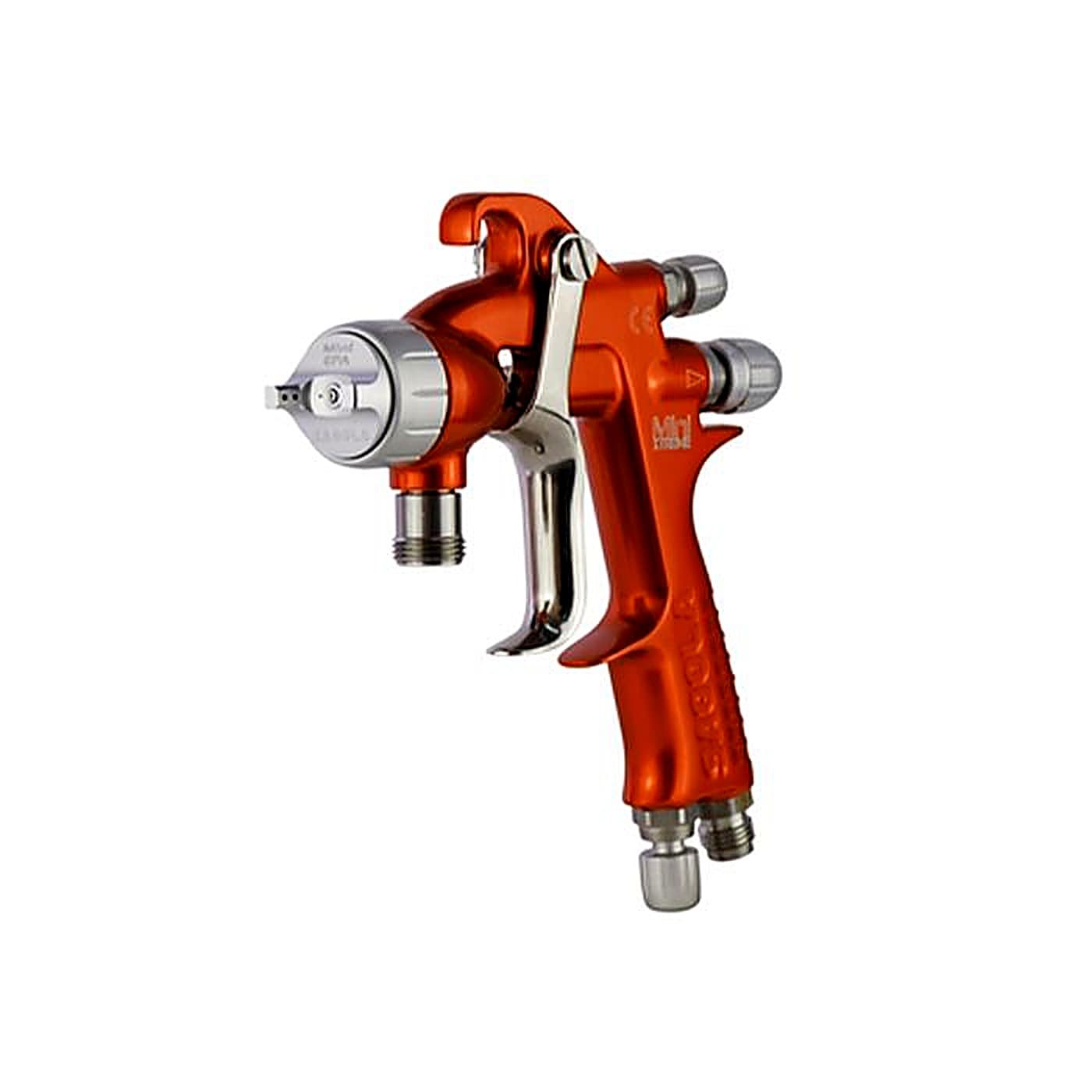

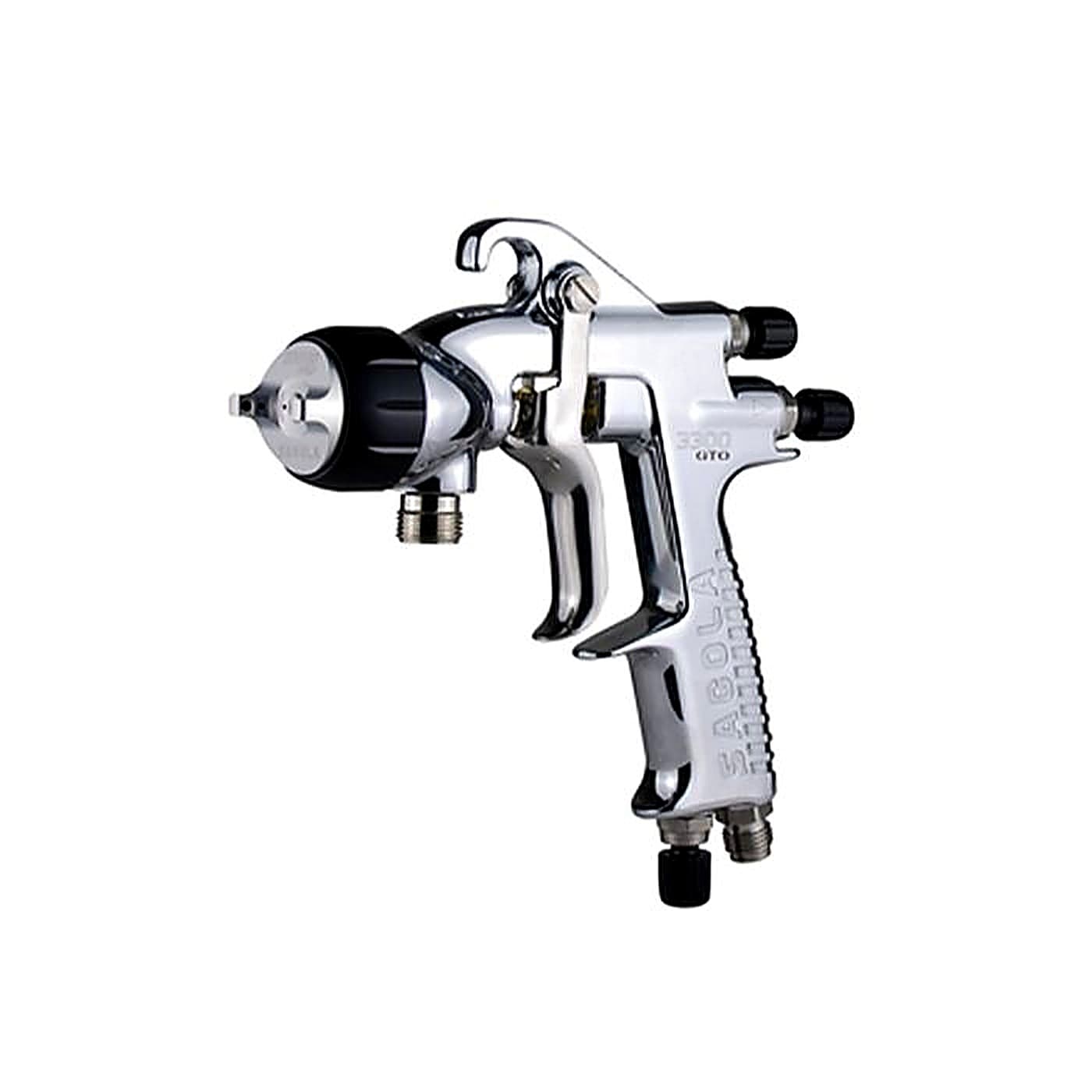

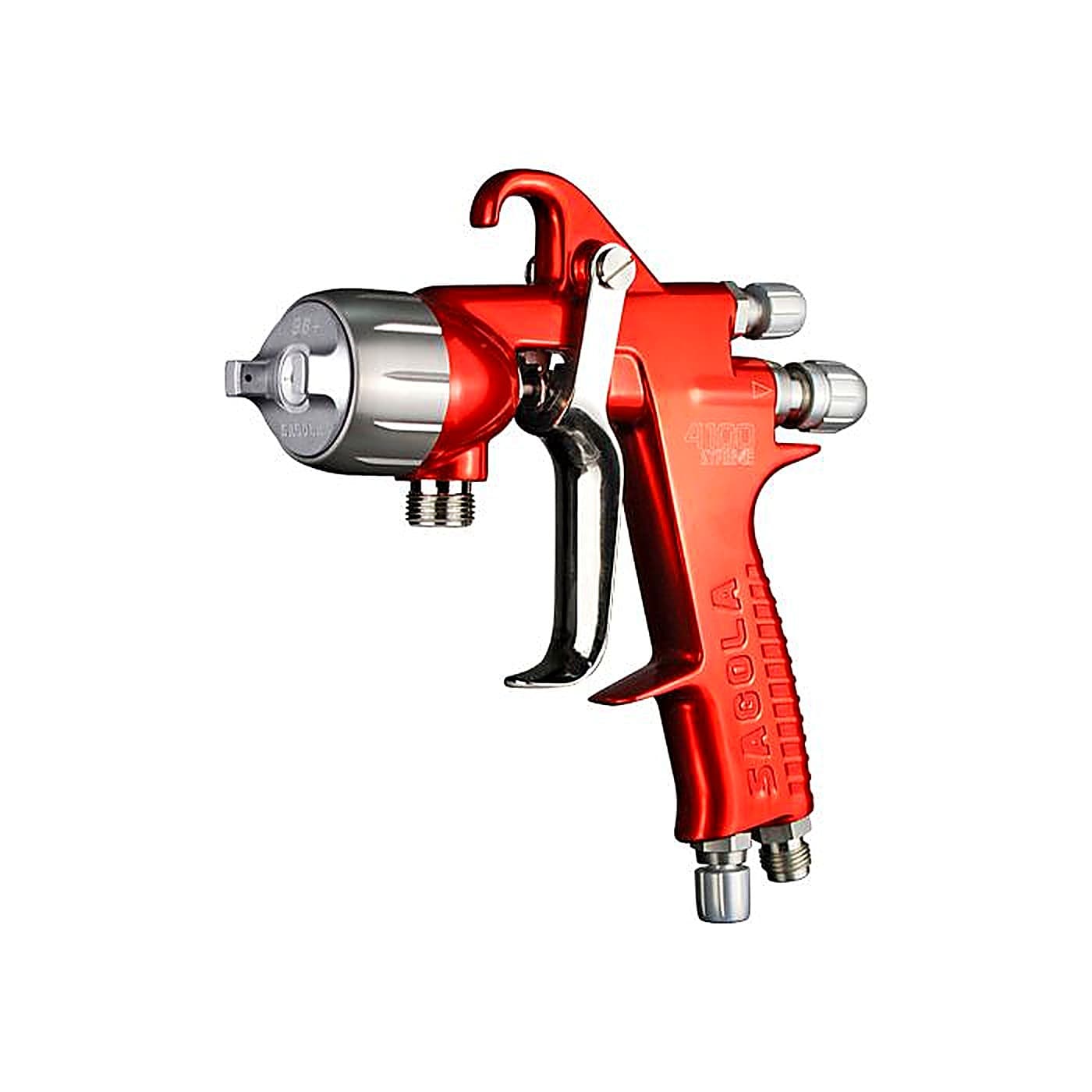

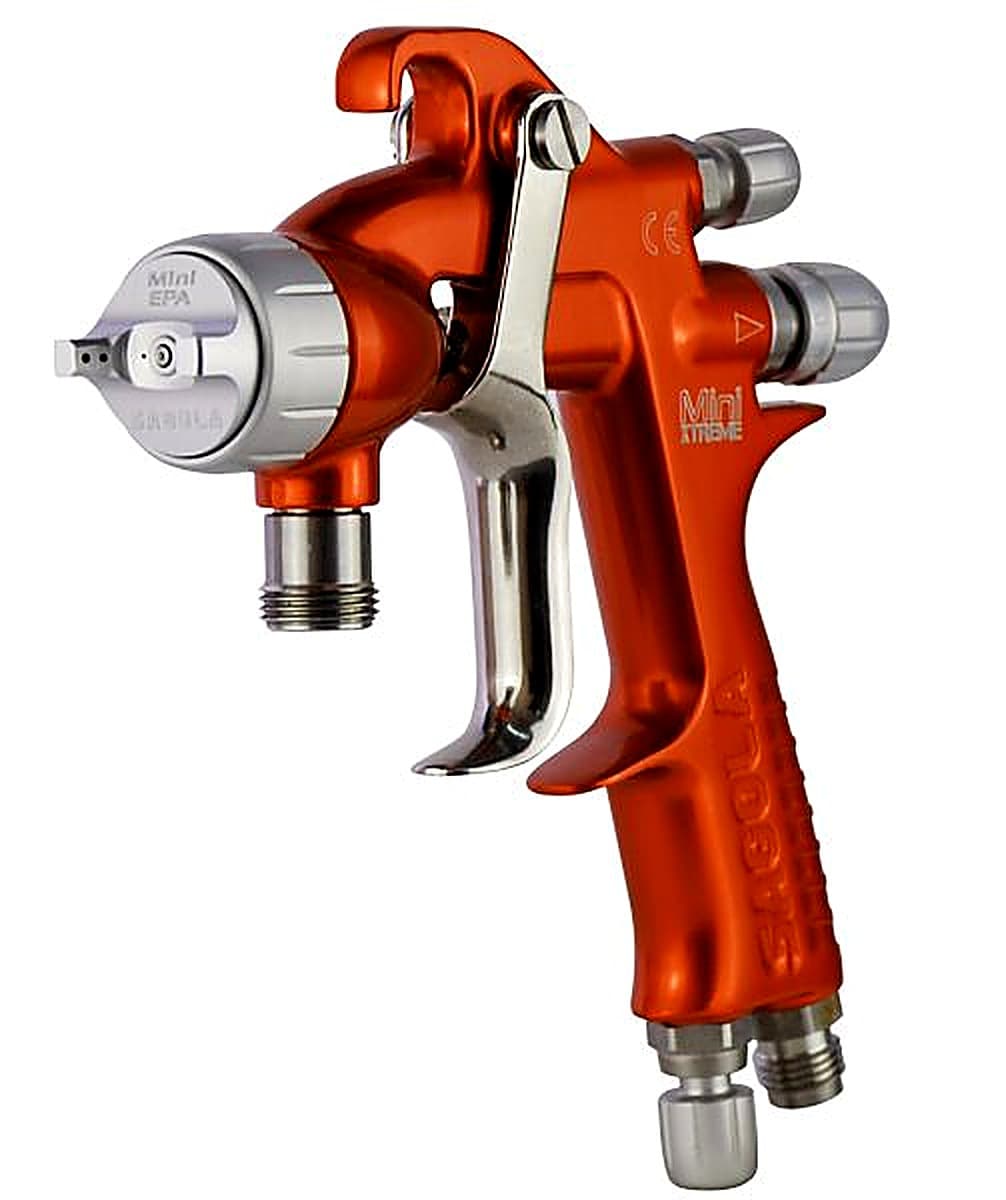

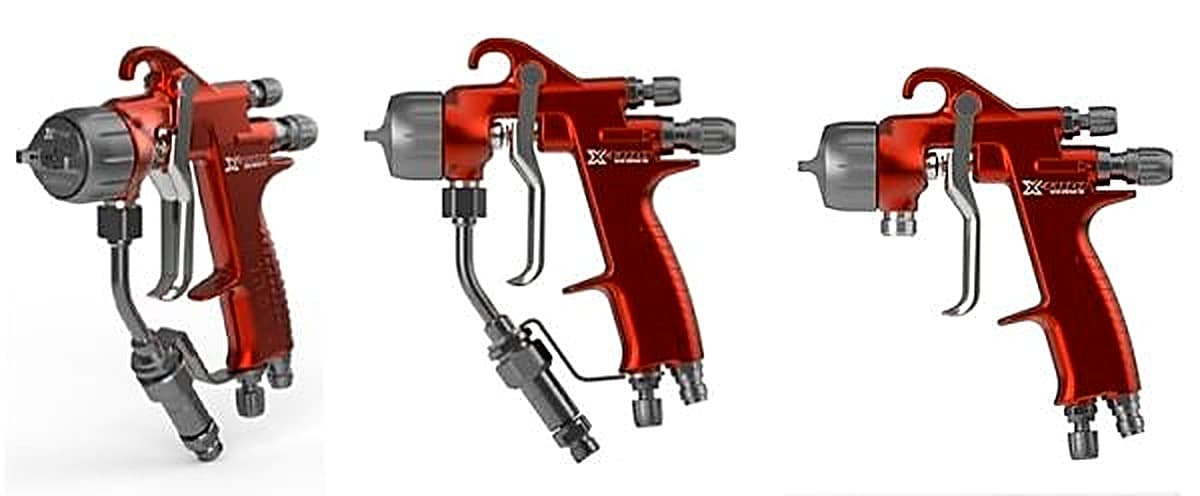

Sagola Mini Xtreme Pressure Spray Gun Sagola X 4100 Series Pressure Spray Gun Sagola 3300 GTO Pressure Spray Gun
Specifications
| Tank Capacity | 30 Litre |
| Agitator Type | None |
| Product Outlet Position | Lower outlet connection (x2) |
| Construction Material | Stainless Steel Body & Lid |
| Working Pressure (Max) | 7bar |
| Air Inlet Connection | 6.35mm BSP Male |
| Product Outlet Connection | 19mm or 9.52mm BSP Male |
| Air Pressure Gauge | 0 – 8bar |
| Product Pressure Gauge | 0 – 12bar |
| Operating Temperature | 0 – 50°C |
| Dimensions (with handle) | 620 x 620 x 850mm |
| Weight | 52kg |
| Packing List | Elcometer P30B Lower Outlet (x2) Pressure Pot; 30 Litre & 11m Air Hose2 |
Data Sheet
Part Numbers
 |
Elcometer P30B Lower Outlet (x2) Pressure Pot; 30 Litre |
| Part Number : PP30B | |
 |
ELCOMETER P30B 30L Stainless Steel Pressure Tank with Sagola Premium 419 spray gun, 4.5, 6 & 8 aircaps |
| Part Number : PP30B-419 | |
 |
Elcometer P30B 30L Stainless Steel Pressure Tank with Sagola Stucco spray gun, 2.8B aircap, 2.80 needle & nozzle |
| Part Number : PP30B-4001-28B28 | |
 |
10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections |
| Part Number : PT56414112 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
Part Number: | PT56414026 |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
Part Number: | PT56414028 |
