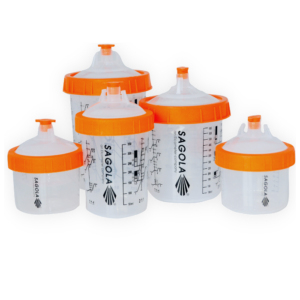

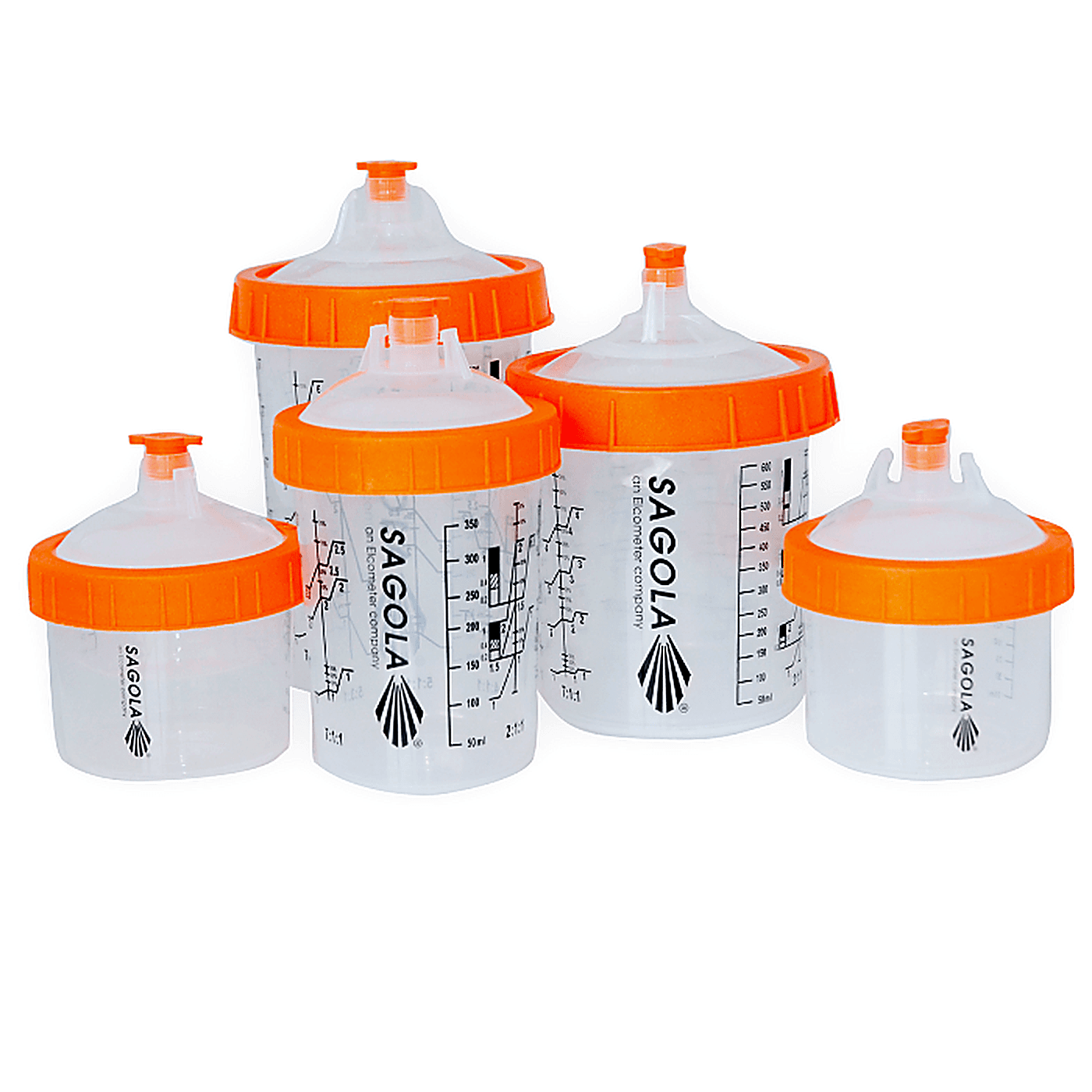

Sagola DPC™ Disposable Paint Cup System

Product Description


The Sagola DPC™ Disposable Paint Cup System by Elcometer offers a cost effective, time saving, quick colour change solution for today’s busy spray shop professionals.

  • Easy to Use: On-cup ratios and fill markings reduce the reliance on traditional mixing cups, just fill, mix and spray!
  • Easy to Store: To store unused paint between coats simply fit the Cup Seal Plug and store it upside down to keep the filter wet.

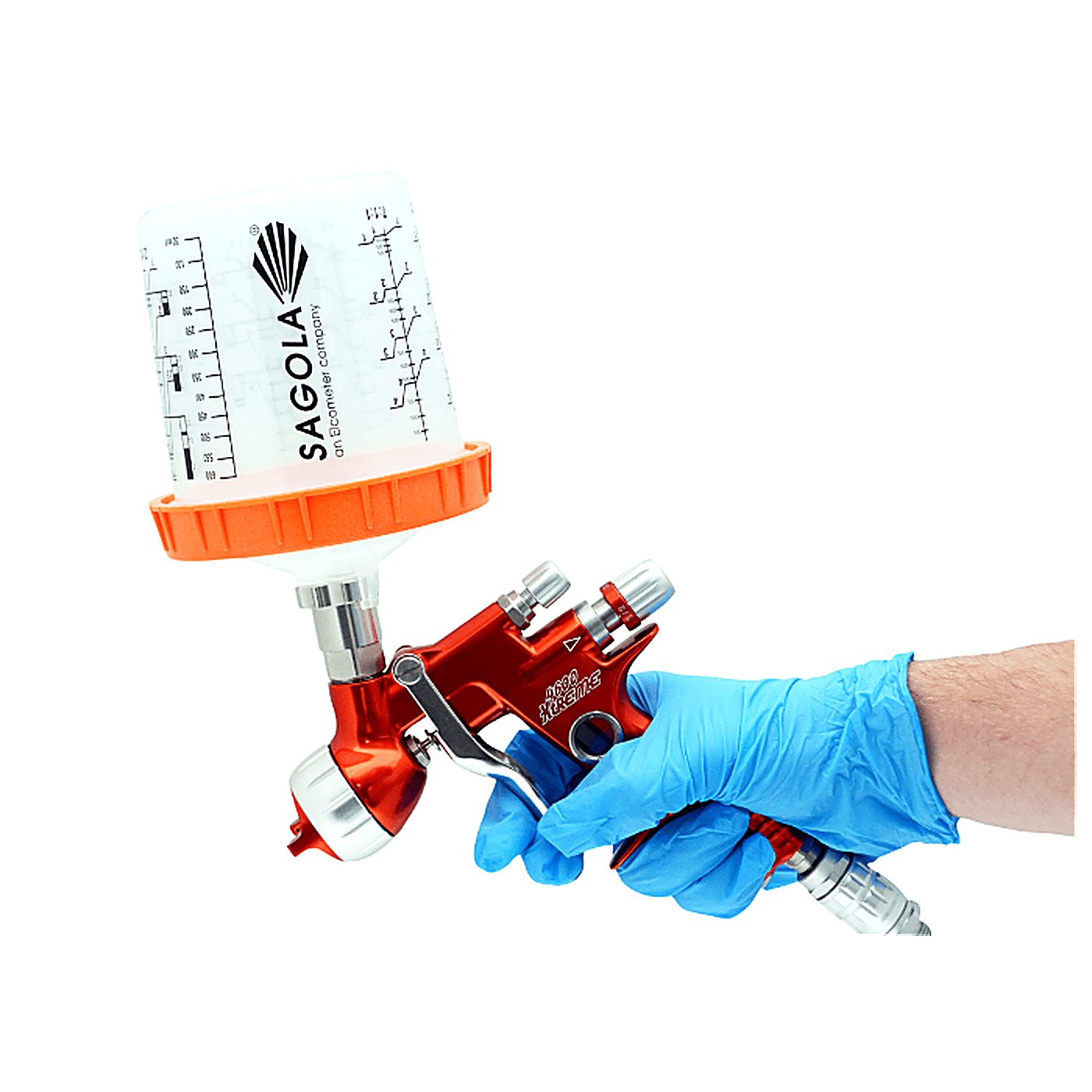

  • Easy to Change: With a range of adaptors to fit Sagola Gravity Spray Guns as well as other manufacturers’ guns, starting to use Sagola DPC™ System couldn’t be easier.
  • Easy to Clean: Compared to traditional gravity cups the Sagola DPC™ System significantly reduces cleaning time and solvent use.



Key Features



Sagola_DPC_Disposable_Paint_Cup_System_-_Exploded_2_

1 – Tough Plastic ABS Cup
with integrated measuring guides. Available in a range of volumes from 100ml – 800ml.

2 – Disposable Liner
recyclable and designed to collapse evenly.

3 – Screw Collar

with integrated cup seal.

4 – Domed Lid & Filter
integrated, full-diameter filter for consistent paint flow.

5 – Adaptor
with enhanced twist lock connector. Compatible with all Sagola spray guns as well as other manufacturers’ guns.

6 – Cup Seal Plug
for storing paint whilst not in use.





Cup Sizes



Sagola_DPC_-_Spot_Repairs_-_100ml    Sagola_DPC_-_1-2_Panel_Repairs_-_200ml   2-3_Panel_Repairs_-_400ml    Sagola_DPC_-_3-4_Panel_Repairs_-_600ml   4_Panel_Repairs_-_800ml

         100ml                          200ml                         400ml                         600ml                             800ml

          Spot Repairs                1-2 Panel Repairs         2-3 Panel Repairs        3-4 Panel Repairs        4+ Panel Repairs
spot_repair           1_panel           2_panels        3_panels         3plus_panels





Specifications

Part NumberLid with Integrated FilterPlastic Outer CupDisposable LinerCollarPlug
PTDPC-100-12550 x 125µm1 x 200ml50 x 100mlx1x20
PTDPC-100-19050 x 190µm1 x 200ml50 x 100mlx1x20
PTDPC-200-12550 x 125µm1 x 200ml50 x 200mlx1x20
PTDPC-200-19050 x 190µm1 x 200ml50 x 200mlx1x20
PTDPC-400-12550 x 125µm1 x 400ml50 x 400mlx1x20
PTDPC-400-19050 x 190µm1 x 400ml50 x 400mlx1x20
PTDPC-600-12550 x 125µm1 x 600ml50 x 600mlx1x20
PTDPC-600-19050 x 190µm1 x 600ml50 x 600mlx1x20
PTDPC-800-12550 x 125µm1 x 800ml50 x 800mlx1x20
PTDPC-800-19050 x 190µm1 x 800ml50 x 800mlx1x20

Adapters

Part Number*Thread
 Compatible With#
SagolaDevilbissAnest IwataSata
PTDPC-32364-*12mm M, 1.0mm
Sagola Classic Lux
PTDPC-32372-*12mm M, 1.5mm
Sagola 3300
Sagola X4100
Sagola Mini Xtreme
Sagola Classic Pro XD

PTDPC-32373-*18mm F 1.5mm
Sagola 4600 Xtreme
PTDPC-32374-*19mm, 1/4″ M

PTDPC-32376-*19mm, 1/4″ M

PTDPC-32375-*16mm F, 1.5mm
   (mini)
PTDPC-32377-*Trapezoidal Thread

PTDPC-32378-*19mm, 3/8″ M

PTDPC-32382-*16mm M, 1.5mm

PTDPC-32379-*14mm, 7/16″ M
  (mini)

Part Numbers


Sagola Disposable Paint Cup Kit: 100ml/125µm Filter


Part Number : PTDPC-100-125

Sagola Disposable Paint Cup Kit: 100ml/190µm Filter


Part Number : PTDPC-100-190

Sagola Disposable Paint Cup Kit: 200ml/125µm Filter


Part Number : PTDPC-200-125

Sagola Disposable Paint Cup Kit: 200ml/190µm Filter


Part Number : PTDPC-200-190

Sagola Disposable Paint Cup Kit: 400ml/125µm Filter


Part Number : PTDPC-400-125

Sagola Disposable Paint Cup Kit: 400ml/190µm Filter


Part Number : PTDPC-400-190

Sagola Disposable Paint Cup Kit: 600ml/125µm Filter


Part Number : PTDPC-600-125

Sagola Disposable Paint Cup Kit: 600ml/190µm Filter


Part Number : PTDPC-600-190

Sagola Disposable Paint Cup Kit: 800ml/125µm Filter


Part Number : PTDPC-800-125

Sagola Disposable Paint Cup Kit: 800ml/190µm Filter


Part Number : PTDPC-800-190


Accessories

Sagola Disposable Paint Cup System Stainless Steel Adapter: 12mm M, 1.0mm
Part Number:PTDPC-32364-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 12mm M, 1.5mm
Part Number:PTDPC-32372-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 18mm F 1.5mm
Part Number:PTDPC-32373-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 19mm, 1/4″ M
Part Number:PTDPC-32374-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 19mm, 1/4″ M
Part Number:PTDPC-32376-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 16mm F, 1.5mm
Part Number:PTDPC-32375-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: Trapezoidal Thread
Part Number:PTDPC-32377-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 19mm, 3/8″ M
Part Number:PTDPC-32378-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 16mm M 1.5mm
Part Number:PTDPC-32382-1





Sagola Disposable Paint Cup System Stainless Steel Adapter: 14mm, 7/16″ M
Part Number:PTDPC-32379-1
