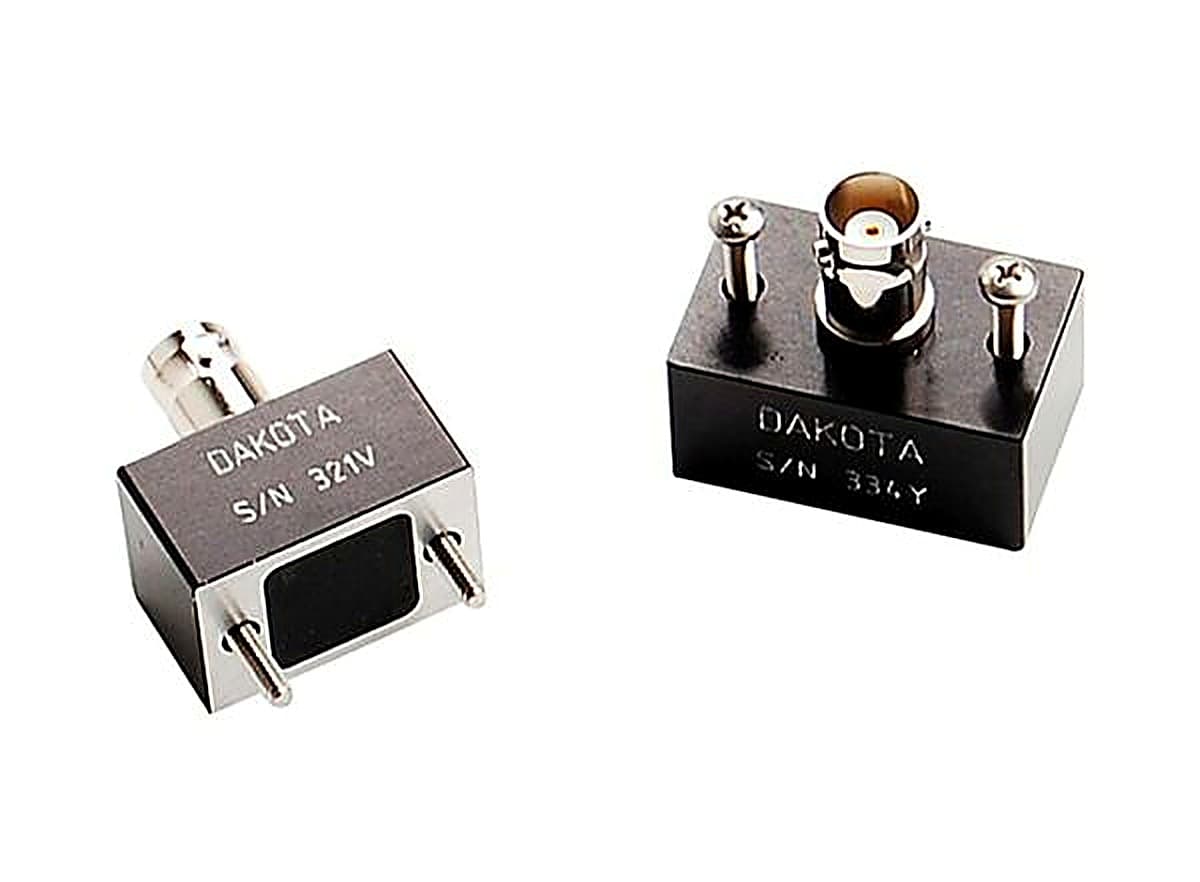

Dakota Shear Wave Standard Transducers

Product Description

Large single element transducers designed for use with angle beam wedges for a powerful flaw detection solution. Shear Wave Standard Transducers can be fixed to wedges of different angles to produce shear wave velocity measurements.

When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

Technical Specifications

				Connector Type		Suitable for measuring
Part Number	Probe Diameter	Probe Characteristic	Damping	Microdot	BNC	FX70	FX71	FX80	FX81
1.00 MHz Shear Wave Standard Transducers
PSS50501B	1/2 x 1/2"	Composite	S		■	■	■	■	■
PSS50101B	1/2 x 1"	Composite	S		■	■	■	■	■
PSS62621B	5/8 x 5/8"	Composite	S		■	■	■	■	■
PSS62751B	5/8 x 3/4"	Composite	S		■	■	■	■	■
PSS75751B	3/4 x 3/4"	Composite	S		■	■	■	■	■
PSS50501M	1/2 x 1/2"	Composite	S	■		■	■	■	■
PSS50101M	1/2 x 1"	Composite	S	■		■	■	■	■
PSS62621M	5/8 x 5/8"	Composite	S	■		■	■	■	■
PSS62751M	5/8 x 3/4"	Composite	S	■		■	■	■	■
PSS75751M	3/4 x 3/4"	Composite	S	■		■	■	■	■
2.25 MHz Shear Wave Standard Transducers
SSG50502B	1/2 x 1/2"	Standard	HG		■	■	■	■	■
SSG50102B	1/2 x 1"	Standard	HG		■	■	■	■	■
SSG62622B	5/8 x 5/8"	Standard	HG		■	■	■	■	■
SSG62752B	5/8 x 3/4"	Standard	HG		■	■	■	■	■
SSG75752B	3/4 x 3/4"	Standard	HG		■	■	■	■	■
SSG50502M	1/2 x 1/2"	Standard	HG	■		■	■	■	■
SSG50102M	1/2 x 1"	Standard	HG	■		■	■	■	■
SSG62622M	5/8 x 5/8"	Standard	HG	■		■	■	■	■
SSG62752M	5/8 x 3/4"	Standard	HG	■		■	■	■	■
SSG75752M	3/4 x 3/4"	Standard	HG	■		■	■	■	■
SSR50502B	1/2 x 1/2"	Standard	R		■	■	■	■	■
SSR50102B	1/2 x 1"	Standard	R		■	■	■	■	■
SSR62622B	5/8 x 5/8"	Standard	R		■	■	■	■	■
SSR62752B	5/8 x 3/4"	Standard	R		■	■	■	■	■
SSR75752B	3/4 x 3/4"	Standard	R		■	■	■	■	■
SSR50502M	1/2 x 1/2"	Standard	R	■		■	■	■	■
SSR50102M	1/2 x 1"	Standard	R	■		■	■	■	■
SSR62622M	5/8 x 5/8"	Standard	R	■		■	■	■	■
SSR62752M	5/8 x 3/4"	Standard	R	■		■	■	■	■
SSR75752M	3/4 x 3/4"	Standard	R	■		■	■	■	■
5.00 MHz Shear Wave Standard Transducers
SSG50505B	1/2 x 1/2"	Standard	HG		■	■	■	■	■
SSG50105B	1/2 x 1"	Standard	HG		■	■	■	■	■
SSG62625B	5/8 x 5/8"	Standard	HG		■	■	■	■	■
SSG62755B	5/8 x 3/4"	Standard	HG		■	■	■	■	■
SSG75755B	3/4 x 3/4"	Standard	HG		■	■	■	■	■
SSG50505M	1/2 x 1/2"	Standard	HG	■		■	■	■	■
SSG50105M	1/2 x 1"	Standard	HG	■		■	■	■	■
SSG62625M	5/8 x 5/8"	Standard	HG	■		■	■	■	■
SSG62755M	5/8 x 3/4"	Standard	HG	■		■	■	■	■
SSG75755M	3/4 x 3/4"	Standard	HG	■		■	■	■	■
SSR50505B	1/2 x 1/2"	Standard	R		■	■	■	■	■
SSR50105B	1/2 x 1"	Standard	R		■	■	■	■	■
SSR62625B	5/8 x 5/8"	Standard	R		■	■	■	■	■
SSR62755B	5/8 x 3/4"	Standard	R		■	■	■	■	■
SSR75755B	3/4 x 3/4"	Standard	R		■	■	■	■	■
SSR50505M	1/2 x 1/2"	Standard	R	■		■	■	■	■
SSR50105M	1/2 x 1"	Standard	R	■		■	■	■	■
SSR62625M	5/8 x 5/8"	Standard	R	■		■	■	■	■
SSR62755M	5/8 x 3/4"	Standard	R	■		■	■	■	■
SSR75755M	3/4 x 3/4"	Standard	R	■		■	■	■	■

Software

ElcoMaster®

It’s not all about taking readings, it’s what you do with them that counts – save up to 30% of your working week by producing professional reports in seconds with ElcoMaster® Software.

Download the software here.

Accessories

Description	Part Number
Ultrasonic Couplant; 120ml bottle	V-000-0001
Ultrasonic Couplant; 360ml bottle	V-000-0003
Ultrasonic Couplant; 4.5L	V-000-0004
High Temperature Ultrasonic Couplant; 60ml	V-000-0002
T/Cable: 1.2m Single Lemo 00 to BNC	N-104-0070
T/Cable: 1.2m Single Lemo 00 to Lemo 00	N-104-0000
T/Cable: 1.2m Single Lemo 00 to Microdot	N-104-0020
T/Cable: 1.2m Dual Lemo 00 to BNC	TL-24030-5
T/Cable: 1.2m Dual Lemo to Lemo	N-204-0000
T/Cable: 1.2m Dual Lemo to Microdot	N-204-0020
T/Cable: 1.2m Dual Lemo to Microdot Single	N-104-0021
RS232 Cable 1.8m ; DB-9 to Lemo	TL-24031
USB to Serial Converter	TL-24032
Cone Tip Delay Line: Acrylic; 1/8″	X-132-0000
Cone Tip Delay Line: Graphite; 3/16″	X-533-0000
Delay Line Tip (Pencil): Acrylic; 1/16″ Dia x 0.45″ L	X-152-0000
Delay Line Tip (Pencil): Acrylic; 1/8″ Dia x 0.45″ L	X-752-0000
Delay Line Tip: Acrylic; 1/4″ Dia x 1/2″ L	F-000-7103
Delay Line Tip: Acrylic; 1/4″ Dia x 3/8″ L	F-000-7102
Delay Line Tip: Graphite; 1/4″	X-633-0000
6″ Ext Wand for S/E Microdot Transducers	TZ-24035
