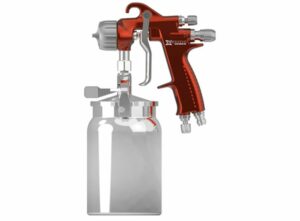

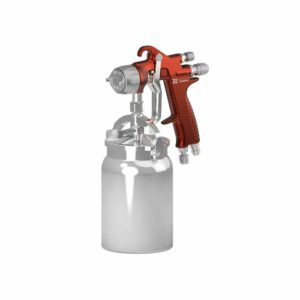

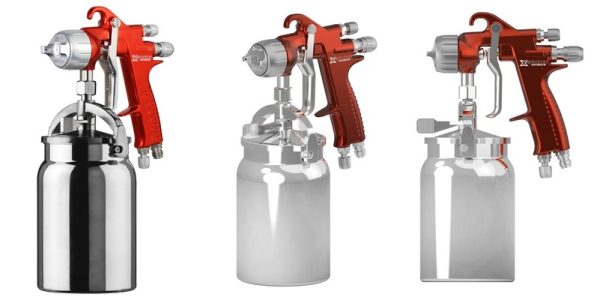

Sagola X 4100 Series Suction Spray Gun
Product Description
The Sagola X 4100 Series Suction Spray Gun provides high speed application with a high quality finish. Small, light and easy to use meaning reduced fatigue and improved usability the size and weight of the Sagola X 4100 has been reduced and the centre of gravity altered to make it more comfortable. Precision control, as well as the ‘soft flow’ air valve that provides the ultimate feeling of control on the trigger at any air inlet pressure, the product regulator allows fingertip adjustment of the amount of product you want to apply whilst the progressive fan regulator allows you to alter the pattern size to suit your needs. Metal on metal contact meaning no gaskets, rubber or plastic parts on product area. Designed without air diffusers. Extremely easy to maintain and clean. The large capacity and application speed of the Sagola X 4100 means its ideal for spraying large areas, machinery or industrial vehicles.
The large capacity and application speed of the Sagola X 4100 means its ideal for spraying large areas, machinery or industrial vehicles.
- Engineering excellence: all products are quality tested before they leave the factory
- Interchangeable aircaps, and needles & nozzles for a high quality spray, whatever the coating
With a range of aircaps to fit any spraying need the durable anodized aluminium aircaps are corrosion resistant – ideal for tough environments. The Sagola X 4100 Series is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted.
Key Features:
- Sagola X 4100 Series Kit Contents
Each Sagola X 4100 Series is supplied complete with:
1. Aircap, needle & nozzle kit (supplied fitted)
2. 1L (33.8fl oz) Suction Cup with Product Filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Cleaning Brush
5. Key Assembly for changing the air valve
Product Features
| X Series Conventional (CA) Aircap Ideal for basecoats, primers and fillers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.4mm [96] |
Basecoats | 2.0 – 2.2bar | 280LPM | 168g/min | 18 – 20cm | 235mm |
| 1.6mm [96] |
Clearcoats Single Stage |
2.0 – 2.5bar | 280LPM | 235g/min | 18 – 20cm | 295mm |
| 1.8mm [96] |
Primers & Fillers | 2.0 – 2.5bar | 280LPM | 228g/min | 18 – 20cm | 285mm |
| 1.6mm [XT01] |
Washprimers | 2.0 – 2.5bar | 295LPM | 241g/min | 18 – 20cm | 305mm |
| 1.8mm [XT01] |
Primers & Fillers | 2.0 – 3.0bar | 295LPM | 234g/min | 18 – 20cm | 295mm |
Specifications
| Model | Sagola X 4100 Series | ||
| Cup Capacity | 1 litre | Cup Type | Aluminium Suction Cup |
| Air Inlet Couplings | 6.35mm Male BSP | Paint Filter | 250 microns (9.8mils) |
| Weight with Supplied Cup | 895g | Weight without Cup | 502g |
| Dimensions without Cup (W x D x H) | 200 x 170 x 42mm | ||
| Compliance | ATEX II 2G x (Directive 2014/34/EU) | ||
Data Sheet
Part Numbers
 |
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.40mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121001 | |
|
|
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.60mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121006 | |
|
|
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.80mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121003 | |
|
|
Sagola X 4100 Series Suction Spray Gun, XT01 X Series Aircap – 1.60mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| X 4100 Series Aircap Type: XT01 X Series | |
| Part Number: PG10121007 | |
|
|
Sagola X 4100 Series Suction Spray Gun, XT01 X Series Aircap – 1.80mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| X 4100 Series Aircap Type: XT01 X Series | |
| Part Number: PG10121005 | |
Accessories
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Spray Gun & Accessories Locker | ||
 |
Part Number: | PT70000010 |
| Sagola X 4100 series: 1.80mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011124 |
| Paint Packing Nut | ||
 |
Part Number: | PT10011124 |
| Air Valve Kit | ||
 |
Part Number: | PT56418445 |
| Air Gasket Replacement Kit (x6) | ||
 |
Part Number: | PT56418441 |
| Reusable Suction Cup – Aluminium; 1 Litre | ||
 |
Part Number: | PT56418074 |
| Product Filter Kit (x10) | ||
 |
Part Number: | PT56418014 |
| Anti-drip Lid Kit (x5) | ||
 |
Part Number: | PT56418013 |
| Deposit Closure Flanged Washer | ||
|
|
Part Number: | PT56418509 |
| Sagola X 4100 Suction: 96 X Series Aircap | ||
|
|
Part Number: | PT56418573 |
| Sagola X 4100 Series: 1.40mm Needle & Nozzle Kit | ||
 |
Part Number: | PT56418565 |
| Sagola X 4100 Series: 1.60mm Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011155 |
