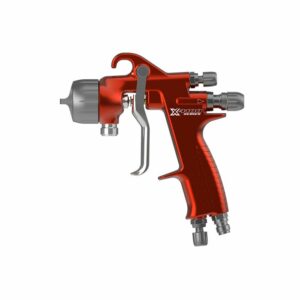

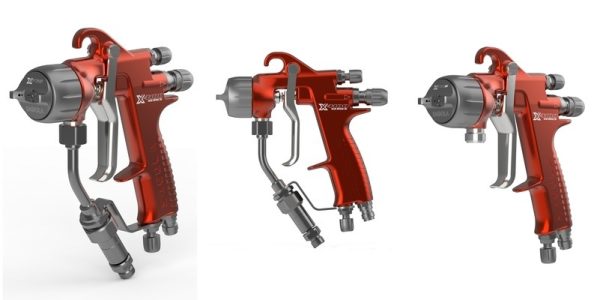

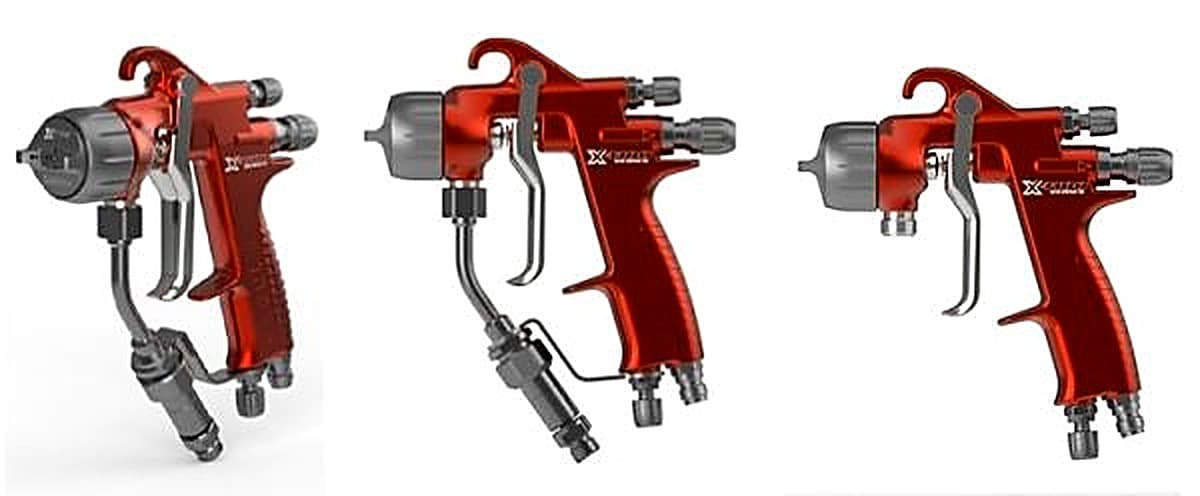

Sagola X 4100 Series Pressure Spray Gun
Product Description
Engineered for the most demanding industrial bodyshop the Sagola X 4100 Series Pressure Spray Gun is ergonomic, robust and offers unbeatable finish quality.
Ideal for continuous use the Sagola X 4100 Series Pressure Spray Gun offers a high quality spray, whatever the coating.
- Ergonomic and easy to use: Perfectly balanced and comfortable
use over long periods
- Minimal Maintenance: With no seals or plastic parts in the product area it is easy to clean and maintain
- Interchangeable aircaps and needles & nozzles: For high quality spraying, whatever the coating
With high product transfer efficiency giving better coverage saving paint and time, the Sagola X Series Aircaps offer one of the highest performances and lowest air consumption in their category. The Sagola X 4100 Series Aircap range consists of high transfer conventional (CA) and HVLP aircaps for perfect colour matching and finish for basecoats, clearcoats and one coat systems. The Sagola X 4100 Series is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted. Alternatively, as the spray gun is universal it can be used with any of the aircaps in the X Series, all items can be purchased separately to meet your specific requirements.
Key Features:
- Consistent quality finish guaranteed
1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.
2. Interchangeable colour coded aluminium aircaps available in high transfer Conventional (CA) and HVLP, perfect for colour matching and finish for basecoats, clearcoats and one coat systems.
3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.
4. High precision “soft flow” air valve allows accurate set up of air pressure without wasting paint.
NO PAINT SPRAYING IS REQUIRED- meaning no paint is wasted whilst setting up optimal spray pattern.
- Low maintenance
5. Manufactured without gaskets or seals in product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Easy to clean and maintain.
6. Manufactured with only one single piece automatic paint packing gland minimising potential damage and breakage and much easier to remove when cleaning the gun.
- Making the spray painter’s job easier
7. Anodized forged aluminium body; ergonomic, light and perfectly balanced. Great robustness and high protection against corrosion.
8. Ergonomically designed stainless steel trigger reducing operator discomfort and fatigue.
9. Product regulator. Great sensitivity in adjusting the amount of material to apply.
10. Optional filter holder with swivel coupling.
- Sagola X 4100 Series Kit Contents
Each Sagola X 4100 Series is supplied complete with:
1. Aircap, needle & nozzle kit (supplied fitted)
2. Wrench for removing and fitting the nozzle and all servicing needs
3. Cleaning Brush
4. Key Assembly for changing the air valve
Product Features
| X SERIES XT01 B Conventional (CA) Aircap Ideal for basecoats, primers and fillers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.00 (1.00mm) |
Basecoats | 1.8 – 2.2bar | 0.5 – 1.0bar | 295LPM | 18 – 20cm | |
| 1.20 (1.20mm) |
Washprimers | 2.0 – 2.5bar | 1.0 – 1.5bar | 295LPM | 18 – 20cm | |
| 1.40 (1.40mm) |
Primers & Fillers | 2.0 – 2.5bar | 2.0 – 2.5bar | 295LPM | 18 – 20cm | |
| X SERIES SUPER VIT Conventional (CA) Aircap Ideal for basecoats, primers and fillers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.00 (1.00mm) |
Basecoats | 1.8 – 2.2bar | 0.5 – 1.0bar | 380LPM | 18 – 20cm | |
| 1.20 (1.20mm) |
Washprimers | 2.0 – 2.5bar | 1.0 – 1.5bar | 380LPM | 18 – 20cm | |
| 1.40 (1.40mm) |
Primers & Fillers | 2.0 – 2.5bar | 2.0 – 2.5bar | 380LPM | 18 – 20cm | |
| X SERIES 3030 Conventional (CA) Aircap Ideal for primers and fillers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.40 (1.40mm) |
Primers & Fillers | 2.0 – 2.5bar | 1.0 – 2.0bar | 514LPM | 12 – 15cm | |
| X SERIES XT03 High Volume Low Pressure (HVLP) Aircap For high volume and low pressure applications – ideal for basecoats or washprimers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.00 (1.00mm) |
Basecoats | 1.8 – 2.2bar | 0.5 – 1.0bar | 460LPM | 12 – 15cm | |
| 1.20 (1.20mm) |
Washprimers | 2.0 – 2.5bar | 1.0 – 1.5bar | 460LPM | 12 – 15cm | |
| X SERIES 765 Conventional (CA) Aircap Ideal for basecoats and primers. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.20 (1.20mm) |
Basecoats | 1.8 – 2.5bar | 0.5 – 1.0bar | 315LPM | 18 – 20cm | |
| 1.40 (1.40mm) |
Washprimers | 2.0 – 2.5bar | 1.0 – 1.5bar | 315LPM | 18 – 20cm | |
| X SERIES 777 Conventional (CA) Aircap Ideal for clearcoats and single stage. |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.00 (1.00mm) |
MS Clear coats | 2.0 – 2.5bar | 0.8 – 1.5 bar | 345LPM | 18 – 20cm | |
| 1.20 (1.20mm) |
HS Clear coats UHS Clear coats Single Stage |
2.0 – 2.5bar | 0.8 – 1.5 bar | 345LPM | 18 – 20cm | |
| X SERIES 20A Conventional (CA) Aircap Ideal for primers and fillers |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Typical Paint Pressure | Air Consumption at 2bar | Application Distance | |
| 1.80 (1.80mm) |
Adhesives | 2.0 – 2.5bar | 1.0 – 2.0bar | 430lpm | 18 – 20cm | |
Specifications
| Model | Sagola X 4100 |
| Dimensions | 20 x 17 x 4.2cm |
| Weight (with Filter Holder) | 645g |
| Air Inlet Couplings | 6.35mm Male BSP |
| Paint Filter | 80 mesh |
| Product Inlet Coupling | 9.5mm Male BSP |
| Design Pressure | 8bar |
| Working Pressure | 2 – 3bar |
| Sound Pressure Level (Average) | 80 dB |
| Compliance | ATEX II 2G x (Directive 2014/34/EU) |
Data Sheet
Part Numbers
 |
Sagola X 4100 Series Pressure Spray Gun, XT01 B Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.00mm needle and nozzle kit and XT01 B X Series aircap. It is ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| X 4100 Series Aircap Type: XT01 B X Series | |
| Part Number: PG10152408 | |
|
Sagola X 4100 Series Pressure Spray Gun, XT01 B Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and XT01 B X Series aircap. It is ideal for use with washprimers. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: XT01 B X Series | |
| Part Number: PG10152409 | |
|
Sagola X 4100 Series Pressure Spray Gun, XT01 B Aircap – 1.40 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.40mm needle and nozzle kit and XT01 B X Series aircap. It is ideal for use with primers and fillers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: XT01 B X Series | |
| Part Number: PG10152410 | |
|
Sagola X 4100 Series Pressure Spray Gun, Super VIT Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.00mm needle and nozzle kit and Super VIT X Series aircap. It is ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| X 4100 Series Aircap Type: Super VIT X Series | |
| Part Number: PG10152413 | |
|
Sagola X 4100 Series Pressure Spray Gun, Super VIT Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and Super VIT X Series aircap. It is ideal for use with washprimers. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: Super VIT X Series | |
| Part Number: PG10152414 | |
|
Sagola X 4100 Series Pressure Spray Gun, Super VIT Aircap – 1.30 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.30mm needle and nozzle kit and Super VIT X Series aircap. It is ideal for use with primers and fillers. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| X 4100 Series Aircap Type: Super VIT X Series | |
| Part Number: PG10152415 | |
|
Sagola X 4100 Series Pressure Spray Gun, Super VIT Aircap – 1.40 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.40mm needle and nozzle kit and Super VIT X Series aircap. It is ideal for use with primers and fillers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: Super VIT X Series | |
| Part Number: PG10152416 | |
|
Sagola X 4100 Series Pressure Spray Gun, XT03 Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.00mm needle and nozzle kit and XT03 X Series aircap. It is ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| X 4100 Series Aircap Type: XT03 X Series | |
| Part Number: PG10152406 | |
|
Sagola X 4100 Series Pressure Spray Gun, XT03 Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and XT03 X Series aircap. It is ideal for use with washprimers. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: XT03 X Series | |
| Part Number: PG10152407 | |
|
Sagola X 4100 Series Pressure Spray Gun, 3030 Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and 3030 X Series aircap. It is ideal for use with primers and fillers. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: 3030 X Series | |
| Part Number: PG10152411 | |
|
Sagola X 4100 Series Pressure Spray Gun, 3030 Aircap – 1.40 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.40mm needle and nozzle kit and 3030 X Series aircap. It is ideal for use with primers and fillers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: 3030 X Series | |
| Part Number: PG10152412 | |
|
Sagola X 4100 Series Pressure Spray Gun, 777 Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.00mm needle and nozzle kit and 777 X Series aircap. It is ideal for use with MS clearcoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| X 4100 Series Aircap Type: 777 X Series | |
| Part Number: PG10152404 | |
|
Sagola X 4100 Series Pressure Spray Gun, 777 Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and 777 X Series aircap. It is ideal for use with HS clearcoats, UHS clearcoats and single stage. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: 777 X Series | |
| Part Number: PG10152405 | |
|
Sagola X 4100 Series Pressure Spray Gun, 777 Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and 777 X Series aircap. It is ideal for use with HS clearcoats, UHS clearcoats and single stage. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: 777 X Series | |
| Part Number: PG10152405 | |
|
Sagola X 4100 Series Pressure Spray Gun, 765 Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.00mm needle and nozzle kit and 765 X Series aircap. It is ideal for use with basecoats | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| X 4100 Series Aircap Type: 765 X Series | |
| Part Number: PG10152401 | |
|
Sagola X 4100 Series Pressure Spray Gun, 765 Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.20mm needle and nozzle kit and 765 X Series aircap. It is ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| X 4100 Series Aircap Type: 765 X Series | |
| Part Number: PG10152402 | |
|
Sagola X 4100 Series Pressure Spray Gun, 765 Aircap – 1.40 Needle & Nozzle Kit |
| This Sagola X 4100 Series Pressure Spray Gun is supplied with a 1.40mm needle and nozzle kit and 765 X Series aircap. It is ideal for use with washprimers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: 765 X Series | |
| Part Number: PG10152403 | |
Accessories
| RC1 Premium Air Flow Regulator with Analogue Pressure Gauge | ||
 |
Part Number: | PT56418020 |
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Spray Gun & Accessories Locker | ||
 |
Part Number: | PT70000010 |
| Sagola X 4100 series: 1.30 Needle & Nozzle Kit | ||
 |
Part Number: | PT10011121 |
| Sagola X 4100 series: 1.40 Needle & Nozzle Kit | ||
|
Part Number: | PT10011122 |
| 150mm Extension for 1.00mm Needle & Nozzle Kit | ||
 |
Part Number: | PT52411721 |
| 150mm Extension for 1.20mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411722 |
| 150mm Extension for 1.40mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411723 |
| 300mm Extension for 1.00mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411724 |
| 300mm Extension for 1.20mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411725 |
| 300mm Extension for 1.40mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411726 |
| 500mm Extension for 1.20mm Needle & Nozzle Kit | ||
|
Part Number: | PT52411727 |
| Paint Packing Nut | ||
 |
Part Number: | PT56411616 |
| Filter Holder with Swivel Coupling | ||
 |
Part Number: | PT56410110 |
| Filter Holder with Swivel Coupling & Product Tube | ||
 |
Part Number: | PT56418057 |
| Product Filter; 100 Mesh (x10) | ||
 |
Part Number: | PT56418053 |
| Product Filter; 60 Mesh (x10) | ||
 |
Part Number: | PT56418054 |
| Air Valve Kit | ||
| Part Number: | PT56418445 | |
| Air Gasket Replacement Kit (x6) | ||
| Part Number: | PT56418441 | |
| Sagola X 4100 Series: 1.00mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011252 |
| Sagola X 4100 Series: 1.20mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011253 |
| Sagola X 4100 Pressure: XT01 B X Series Aircap | ||
| Part Number: | PT56418564 | |
| Sagola X 4100 Pressure: XT03 X Series Aircap | ||
| Part Number: | PT56418566 | |
| Sagola X 4100 Pressure: 3030 X Series Aircap | ||
| Part Number: | PT56418572 | |
| Sagola X 4100 Pressure: 777 X Series Aircap | ||
| Part Number: | PT56418576 | |
| Sagola X 4100 Pressure: 765 X Series Aircap | ||
| Part Number: | PT56418571 | |
| Sagola X 4100 Pressure: Super VIT X Series Aircap | ||
| Part Number: | PT56418702 | |
