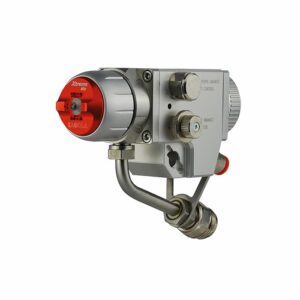

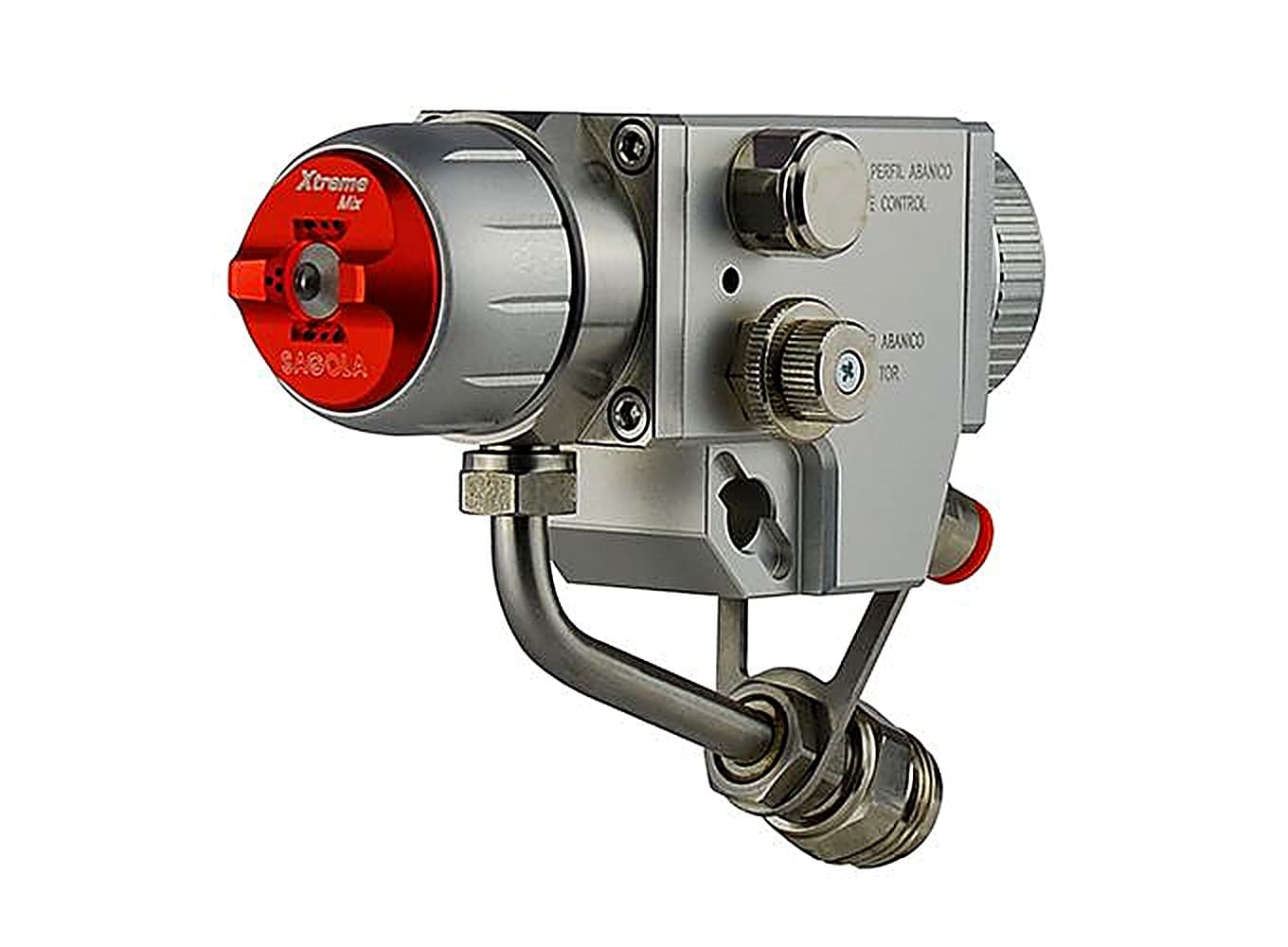

Sagola V7 Mix Air Assisted Airless Automatic Spray Gun
Product Description
The Sagola V7 is a high production automatic air assisted airless spray gun designed to reduce mist and improve work conditions on production lines.
High open and close rates
Tungsten carbide product closure mechanism, ideal for use with robots and specialist machinery.
High efficiency with low product consumption
Ensures minimal mist, lowering pollution, reducing product costs.
High pressure and application speed
Ideal for lacquers, clearcoats, UV paints, etc.
Specifications
| Dimensions | 169 x 60 x 120mm |
| Weight | 945g |
| Operation inlet connection | 4mm |
| Air Inlet Connection | 8mm |
| Product Inlet Connection | BSP 1/2″ H |
| Average sound pressure level | 79db |
| Minimum operational pressure | 3.5bar |
| Maximum Air Pressure | 30/150bar |
| Recommended maximum air pressure | 2 bar |
| Air Consumption | 150lpm |
| Materials in contact with the product | Stainless steel, tungsten carbide, Teflon, anodized aluminium, brass, nylon |
| Recommended application distance | 18 – 20cm |
| Packing List | Sagola V7 Mix Automatic Spray Guns supplied with Sagola V7 Mix Aircap & Air Assisted Airless Spray Tip (x1) |
Packing List
| Sagola V7 Mix Automatic Spray Gun |
| Sagola V7 Mix Aircap |
| Air Assisted Airless Spray Tip (x1) |
Application Guide
| Application | Spray Tip | Nozzle | Spray Angle | Spray width at 30cm | Air flow at 100bar | Part Number |
|---|---|---|---|---|---|---|
| Finishes | 09/25 Standard | 0.23mm | 25° | 140mm | 0.25lpm | PT81460518 |
| 09/40 Standard | 0.23mm | 40° | 178mm | 0.25lpm | PT81460519 | |
| 11/40 Standard | 0.28mm | 40° | 190mm | 0.37lpm | PT81460529 | |
| 11/65 Standard | 0.28mm | 65° | 254mm | 0.37lpm | PT81460531 | |
| Basecoats and Primers | 13/40 Standard | 0.33mm | 40° | 0.57lpm | PT81460540 | |
| 13/65 Standard | 0.33mm | 65° | 0.57lpm | PT81460542 | ||
| 13/80 Standard | 0.38mm | 80° | 0.57lpm | PT81460543 | ||
| 15/25 Standard | 0.38mm | 25° | 178mm | 0.72lpm | PT81460549 | |
| 15/40 Standard | 0.38mm | 40° | 216mm | 0.72lpm | PT81460550 | |
| 15/50 Standard | 0.38mm | 50° | 254mm | 0.72lpm | PT81460551 | |
| 15/65 Standard | 0.38mm | 65° | 279mm | 0.72lpm | PT81460552 | |
| 15/80 Standard | 0.38mm | 80° | 330mm | 0.72lpm | PT81460553 | |
| High viscosity products | 18/40 Standard | 0.46mm | 40° | 254mm | PT81460575 | |
| 18/65 Standard | 0.46mm | 65° | 330mm | PT81460577 | ||
| 21/40 Standard | 0.53mm | 40° | 279mm | 1.52lpm | PT81460590 | |
| 21/80 Standard | 0.53mm | 80° | 1.52lpm | PT81460593 | ||
| Extra Smooth Finishes | 11/40 Extra Finish | 0.28mm | 40° | 190mm | 0.37lpm | PT81461208 |
| 13/40 Extra Finish | 0.33mm | 40° | 0.57lpm | PT81461213 | ||
| 15/50 Extra Finish | 0.38mm | 50° | 254mm | 0.72lpm | PT81461219 | |
| 15/80 Extra Finish | 0.38mm | 80° | 330mm | 0.72lpm | PT81461221 |
Data Sheet
Part Numbers
 |
Sagola V7 Mix Standard Automatic Spray Gun with 13/40 Spray Tip |
| Part Number : PG35230101 | |
|
Sagola V7 Mix Robot Automatic Spray Gun with 13/40 Spray Tip |
| Part Number : PG35230102 | |
Accessories
| Lubricant Grease (SAE 10), 100ml | ||
 |
Part Number: | PT56418589 |
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| 09/25 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460518 | |
| 09/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460519 | |
| 11/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460529 | |
| 11/65 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460531 | |
| 13/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460540 | |
| 13/65 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460542 | |
| 13/80 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460543 | |
| 15/25 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460549 | |
| 15/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460550 | |
| 15/50 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460551 | |
| 15/65 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460552 | |
| 15/80 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460553 | |
| 18/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460575 | |
| 18/65 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460577 | |
| 21/40 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460590 | |
| 21/80 Standard Air Assisted Airless Spray Tip | ||
| Part Number: | PT81460593 | |
| 11/40 Extra Finish Air Assisted Airless Spray Tip | ||
| Part Number: | PT81461208 | |
| 13/40 Extra Finish Air Assisted Airless Spray Tip | ||
| Part Number: | PT81461213 | |
| 15/50 Extra Finish Air Assisted Airless Spray Tip | ||
| Part Number: | PT81461219 | |
| 15/80 Extra Finish Air Assisted Airless Spray Tip | ||
| Part Number: | PT81461221 | |
| Sagola V7 Mix Product Needle | ||
| Part Number: | PT56410210 | |
| Sagola V7 Mix Product Needle Head & Nozzle Kit | ||
| Part Number: | PT56418406 | |
| Air Assisted Airless Spray Tip Micro Filters (x10) – Use behind the spray tip to improve atomization quality | ||
| Part Number: | PT30010015 | |
| Air Assisted Airless Spray Tip 100 Layer Filter – Use behind the spray tip to improve atomization quality | ||
| Part Number: | PT83660037 | |
| Sagola V7 Mix Aircap | ||
| Part Number: | PT56418048 | |
