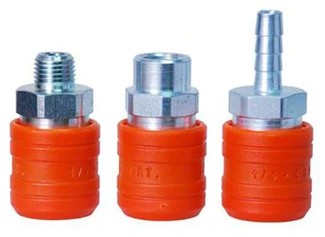

Sagola Quick Couplings
Product Description
Sagola Quick Couplings are ideal for use with spray guns and pneumatic tools from the workshop.
Sagola quick couplings are available in standard, safety and lightweight versions to suit your requirements.
Similarly, the couplings are available in US-Mil, Euro-Profile and Nitto
systems.
- Incorporate a handle made of composite, which gives a high resistance to both attrition and drag.
- The plug body and quick release collar are made of high strength aluminium, Pins made of high strength steel and the valve is made of brass, offering a life cycle of more than 1,500,000 uses.
- Wear resistance tested to more than 48,000 impacts and the equivalent to a 12km crawl.
Key Features
Connect and disconnect the standard plug
1. Press until coupled 2. Pull the body as indicated by the arrow 3. Disconnect the plug
Disconnect the safety plug
1. Move the plug and tool as 2. Push the plug 3. Pull the plug 4. Disconnect the plug
indicated by the arrows.
Specifications
| Weight | Ultra-light: 45g / Standard: 65g / Safety: 68g |
| Material: Quick Release Collar | Ultra-light: Aluminum / Standard & Safety: Composite |
| Material: | Joints (Nitrilo Butadiene), Body plug (Steel with anticorrosive treatment), Spring (stainless steel) |
| Air Coupling | 6.35mm |
| Temperature Range | -20°C to 100°C |
| Air Flow | 1,133LPM |
Standards
ISO 4414 (Safety Coupling)
Data Sheet
Part Numbers
 |
Quick Coupling – Aluminium Ultralight:, M-BSPT 6.35mm US-Mil |
| System: US-Mil | |
| Part Number : PT11010531 | |
|
Quick Coupling – Aluminium Ultralight: F-BSPP 6.35mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010431 | |
|
Quick Coupling – Aluminium Ultralight: Barbed 8mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010629 | |
 |
Quick Coupling – Steel, Standard: M-BSPT 6.35mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010524 | |
|
Quick Coupling – Steel, Standard: M-BSPT 9.53mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010525 | |
|
Quick Coupling – Steel, Standard: M-BSPT 12.7mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010526 | |
|
Quick Coupling – Steel, Standard: F-BSPP 6.35mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010424 | |
|
Quick Coupling – Steel, Standard: F-BSPP 9.53mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010425 | |
|
Quick Coupling – Steel, Standard: F-BSPP 12.7mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010426 | |
|
Quick Coupling – Steel, Standard: Barbed 8mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010624 | |
|
Quick Coupling – Steel, Standard: Barbed 10mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010625 | |
|
Quick Coupling – Steel, Safety: M-BSPT 6.35mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010528 | |
|
Quick Coupling – Steel, Safety: M-BSPT 9.53mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010529 | |
|
Quick Coupling – Steel, Safety: M-BSPT 12.7mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010530 | |
|
Quick Coupling – Steel, Safety: F-BSPP 6.35mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010428 | |
|
Quick Coupling – Steel, Safety: F-BSPP 9.53mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010429 | |
|
Quick Coupling – Steel, Safety: F-BSPP 12.7mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010430 | |
|
Quick Coupling – Steel, Safety: Barbed 8mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010627 | |
|
Quick Coupling – Steel, Safety: Barbed 10mm, US-Mil |
| System: US-Mil | |
| Part Number : PT11010628 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 3/8” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011324 | |
|
Quick Coupling- Steel Safety Plug: F-BSPP 1/4” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011423 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 1/2” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011325 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 1/4” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011323 | |
|
Quick Coupling- Steel Safety Plug: F-BSPP 3/8” Euro-Profile |
| Part Number : PT11011424 | |
|
Quick Coupling- Steel Safety Plug: F-BSPP 1/2” Euro-Profile |
| Part Number : PT11011425 | |
|
Quick Coupling – Steel, Standard: F-BSPP 1/4″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010723 | |
|
Quick Coupling – Steel, Standard: M-BSPT 1/2″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010825 | |
|
Quick Coupling – Steel, Standard: M-BSPT 1/4″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010823 | |
|
Quick Coupling – Steel, Standard: M-BSPT 3/8″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010824 | |
|
Quick Coupling – Steel, Standard: M-BSPT 6.35mm, US-Mil (x25) |
| System: US-Mil | |
| Part Number : PT11010527 | |
|
Quick Coupling – Steel, Standard: F-BSPP 1/4″, US-Mil (x25) |
| System: US-Mil | |
| Part Number : PT11010427 | |
|
Quick Coupling – Steel, Standard: BSPT 1/2″, US-Mil (x25) |
| System: US-Mil | |
| Part Number : PT11010626 | |
|
Quick Coupling – Steel, Standard: F-BSPP 3/8″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010724 | |
|
Quick Coupling – Steel, Standard: F-BSPP 1/2″, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010725 | |
|
Quick Coupling – Steel, Standard: Barbed 8mm, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010924 | |
|
Quick Coupling – Steel, Standard: Barbed 10mm, Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010923 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 1/4” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010323 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 3/8” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010324 | |
|
Quick Coupling- Steel Safety Plug: M-BSPT 1/2” Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11010325 | |
|
Quick Coupling- Steel Safety Plug: Barbed 8 mm Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011523 | |
|
Quick Coupling- Steel Safety Plug: Barbed 10 mm Euro-Profile |
| System: Euro Profile | |
| Part Number : PT11011524 | |
|
Quick Coupling – Steel, Standard: M-BSPT 1/4″, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010826 | |
|
Quick Coupling – Steel, Standard: M-BSPT 3/8″, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010827 | |
|
Quick Coupling – Steel, Standard: F-BSPP 1/4″, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010726 | |
|
Quick Coupling – Steel, Standard: F-BSPP 3/8″, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010727 | |
|
Quick Coupling – Steel, Standard: Barbed 8mm, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010925 | |
|
Quick Coupling – Steel, Standard: Barbed 10mm, Multi-Profile |
| System: Multi Profile | |
| Part Number : PT11010926 | |
|
Quick Coupling – Steel, Standard: M-BSPT 1/4″, Nitto |
| System: Nitto | |
| Part Number : PT11011701 | |
|
Quick Coupling – Steel, Standard: M-BSPT 3/8″, Nitto |
| System: Nitto | |
| Part Number : PT11011702 | |
|
Quick Coupling – Steel, Standard: F-BSPP 1/4″, Nitto |
| System: Nitto | |
| Part Number : PT11011801 | |
|
Quick Coupling – Steel, Standard: F-BSPP 3/8″, Nitto |
| System: Nitto | |
| Part Number : PT11011802 | |
|
Quick Coupling – Steel, Standard: Barbed 8mm, Nitto |
| System: Nitto | |
| Part Number : PT11011901 | |
|
Quick Coupling – Steel, Standard: Barbed 10mm, Nitto |
| System: Nitto | |
| Part Number : PT11011902 | |
