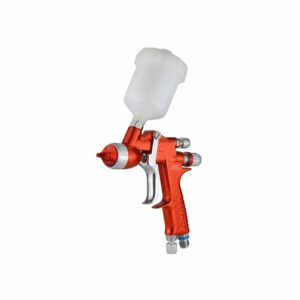

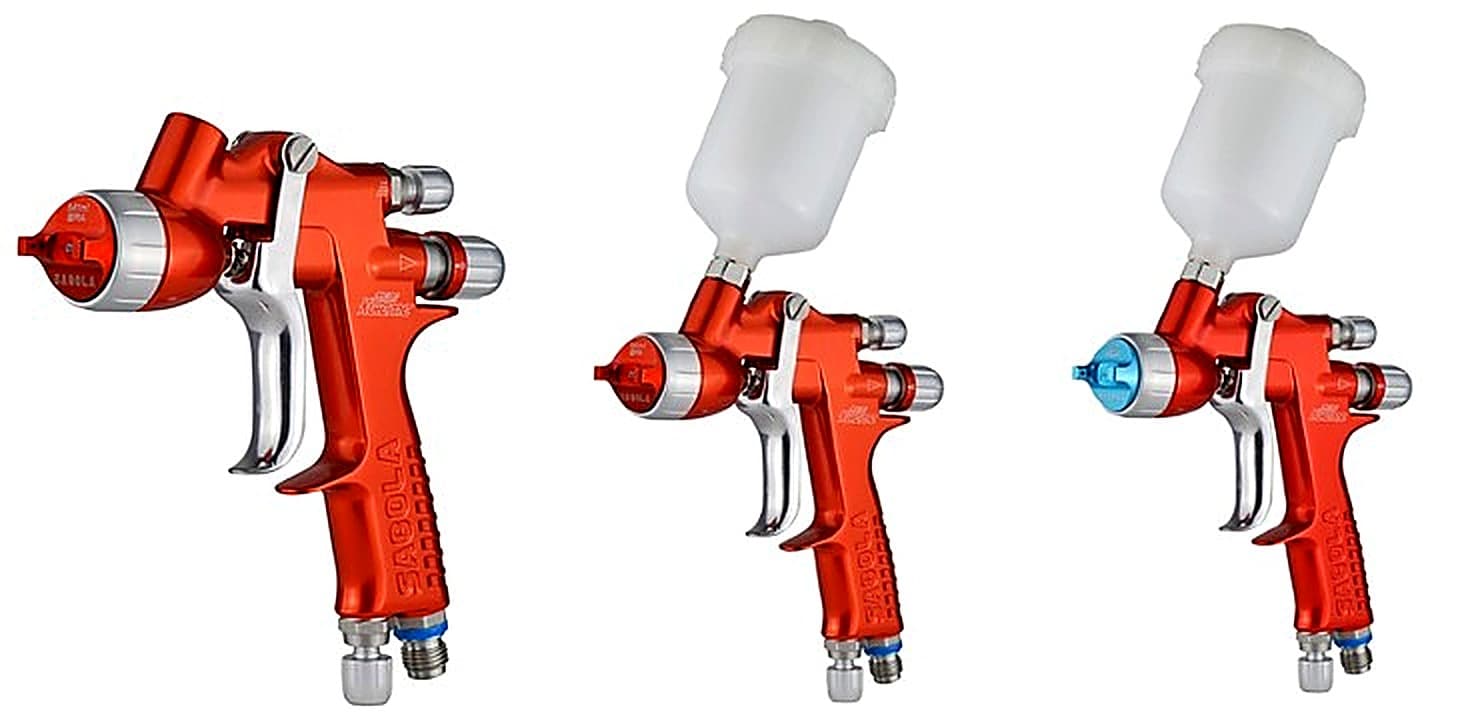

Sagola Mini Xtreme Spray Gun
Product Description
The Sagola Mini Xtreme Spray Gun includes all the functionality of the Sagola 4600 Xtreme in a lightweight, compact gun – ideal for spot repair. Specially design for spot repair, the Sagola Mini Xtreme with a range of aircap, needle & nozzle combinations, can also be used as a finishes gun, making the most of its lightness, ergonomics and low air consumption. With high product transfer efficiency giving better coverage saving paint and time, the Sagola Mini Xtreme Aircap range offer one of the highest performances in their category.
The 4600 Mini Xtreme includes:
- Fan width 26cm fan width from a compact gun
- Versatile
- The perfect gun for spot repairs but also ideal for spraying smaller parts and hard to reach areas
- Low air consumption Only 190l/min air consumption at 2bar of inlet pressure
The Sagola Mini Xtreme is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted.
Alternatively, as the spray gun is universal and can be used with any of the aircaps in the Mini range, all items can be purchased separately to meet your specific requirements.
Key Features:
- Four cup choices
Reusable white plastic 125ml and 200ml for spot repair, a larger 500ml for finishes and a black plastic 125ml specially designed for UV-cured paints.
- Consistent quality finish guaranteed
1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.
2. New product regulator with flow indicator ring for precise flow measurement.
3. No metallic or plastic external part is used for air distribution making the cleaning process easier.
4. High precision “soft flow” air valve allows accurate set up of air pressure without wasting paint.
NO PAINT SPRAYING IS REQUIRED- meaning no paint is wasted whilst
setting up optimal spray pattern.
5. Interchangeable aluminium aircaps. Identified with different colours.
Optional hand-tightened – no tools required – airflow regulator with analogue
pressure gauge. With precise, progressive adjustment and a conical enclosure designed to prevent air leaks.
- Low Maintenance
6. Manufactured without gaskets or seals in the product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Extremely easy to clean and maintain.
7. The only spray gun in the refinishing market with one single piece automatic paint packing gland minimising potential damage and breakage and easier to remove when cleaning the gun.
- Making the sprayer’s job easier
8. Anodized forged aluminium body; ergonomic, light and perfectly balanced.
9. Ergonomically designed stainless steel trigger reducing operator discomfort and fatigue. Smooth trigger action.
10. Colour coded identifiers perfect for differentiating spray guns when there are multiple spray painters..
11. Balanced, ergonomic handle.
12. Fan width regulator.
- Sagola Mini Xtreme Kit Contents
Each Sagola Mini Xtreme is Supplied with:
1. Aircap, needle & nozzle kit (supplied fitted)
2. 125ml or 500ml Reusable Plastic Gravity Cup with Product Filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Colour Code Identifiers perfect for identifying guns when there are multiple painters (x3)
5. Cleaning Brush
6. Key Assembly for changing the air valve
Product Features
| MINI TECH Conventional (CA) Aircap Ideal for express drying clearcoat and one coat systems. |
|||||||
|---|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) | Supplied Cup |
| 0.60 | Low viscosity primers Spot repair |
0.5 – 1.0bar | 52LPM | 96g/min | 18 – 20cm | 50mm | 500ml (White) |
| MINI EPA Conventional (CA) Aircap Designed for high speed and low viscosity applications – ideal for any type of clearcoats. |
|||||||
|---|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) | Supplied Cup |
| 0.80 | Solvent based coats Spot repair |
1.0 – 1.5bar | 190LPM | 49g/min | 18 – 20cm | 110mm | 500ml (White) |
| 1.00 | Express drying clearcoats HS clear coats Spot repair |
1.0 – 1.5bar | 190LPM | 97g/min | 18 – 20cm | 195mm | 500ml (White) |
| 1.00 | UHS clear coats Spot Repair |
1.2 – 2.0bar | 190LPM | 162g/min | 18 – 20cm | 260mm | 500ml (White) |

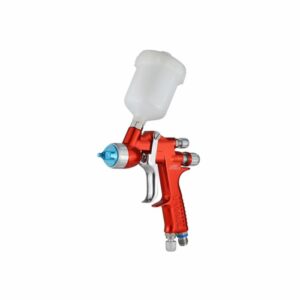

| MINI AQUA Conventional (CA) Aircap Offers enhanced application of waterborne products, regardless of the level of viscosity, for an even distribution of paint. |
|||||||
|---|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) | Supplied Cup |
| 0.80 | Solvent based coats Spot repair |
1.0 – 1.5bar | 190LPM | 49g/min | 18 – 20cm | 110mm | 125ml (White) |
| 1.00 | Solvent based coats Waterborne basecoats Spot repair |
1.0 – 1.5bar | 190LPM | 97g/min | 18 – 20cm | 195mm | 125ml (White) |
| 1.20 | Solvent based coats Waterborne basecoats UV primers Spot repair |
1.2 – 2.0bar | 190LPM | 162g/min | 18 – 20cm | 260mm | 125ml (Black) |
| MINI HVLP High Volume Low Pressure (HVLP) Aircap For high volume and low pressure applications – ideal for waterborne or express drying (HS) products. |
|||||||
|---|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) | Supplied Cup |
| 1.00 | Primers Sanding surfacers Spot repair |
1.8 – 2.0bar | 325LPM | 80g/min | 10-15cm | 155mm | 125ml (White) |
| 1.20 | Primers Sanding surfacers Spot repair |
1.8 – 2.0bar | 325LPM | 123g/min | 10-15cm | 195mm | 125ml (White) |
| 1.30 | Primers Sanding surfacers Spot repair |
1.8 – 2.0bar | 325LPM | 133g/min | 10-15cm | 215mm | 500ml (White) |
Specifications
| Model | Sagola Mini Xtreme |
| Cup Capacity | 125ml or 500ml |
| Cup Type | Removable Anti-Drip System |
| Air Inlet Couplings | 6.35mm Male BSP |
| Paint Filter | 100 mesh |
| Weight with Supplied Cup | 125ml Cup: 445.5g, 500ml Cup: 552.75g |
| Weight without Cup | 365g |
| Dimensions without Cup (W x D x H) | 156.4 x 18 x 158.8mm |
| Sound Pressure Level (Average) | 80 dB |
| Compliance | ATEX II 2G T60°C X (Directive 94/9/CE) |
Data Sheet
Part Numbers
 |
Sagola Mini Xtreme Spray Gun, CA Mini Tech Aircap – 0.60 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 0.60mm Needle and Nozzle and a MINI TECH Conventional (CA) Aircap which is Ideal for express drying clearcoat and one coat systems. | |
| Needle & Nozzle Size: 0.60 (0.60mm) | |
| DVR Aircap Type: Mini TECH | |
| Part Number : PG10111811 | |
|
Sagola Mini Xtreme Spray Gun, CA Mini EPA Aircap – 0.80 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 0.80mm Needle and Nozzle and a MINI EPA Conventional (CA) Aircap which is designed for high speed and low viscosity applications – ideal for use with solvent based basecoats and spot repair. | |
| Needle & Nozzle Size: 0.80 (0.80mm) | |
| DVR Aircap Type: Mini EPA | |
| Part Number : PG10111806 | |
|
Sagola Mini Xtreme Spray Gun, CA Mini EPA Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.00mm Needle and Nozzle and a MINI EPA Conventional (CA) Aircap which is designed for high speed and low viscosity applications – ideal for use with express drying clearcoats, HS clearcoats and spot repair. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| DVR Aircap Type: Mini EPA | |
| Part Number : PG10111807 | |
|
Sagola 4600 Mini Xtreme Spot Repair Spray Gun, CA Mini EPA Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Spot Repair Gun is supplied with a 1.20mm Needle and Nozzle and a MINI EPA Conventional (CA) Aircap which is Designed for high speed and low viscosity applications – ideal for use with UHS clearcoats and spot repair. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| DVR Aircap Type: Mini EPA | |
| Part Number : PG10111808 | |
|
Sagola Mini Xtreme Spray Gun, CA Mini AQUA Aircap – 0.80 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 0.80mm Needle and Nozzle and a MINI AQUA Conventional (CA) Aircap which offers enhanced application of Solvent based basecoats and spot repair. | |
| Needle & Nozzle Size: 0.80 (0.80mm) | |
| DVR Aircap Type: Mini AQUA | |
| Part Number : PG10111801 | |
|
Sagola Mini Xtreme Spray Gun, CA Mini AQUA Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.00mm Needle and Nozzle and a MINI AQUA Conventional (CA) Aircap which offers enhanced application of solvent based coats, waterborne basecoats and spot repair. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| DVR Aircap Type: Mini AQUA | |
| Part Number : PG10111802 | |
|
Sagola Mini Xtreme Spray Gun, CA Mini AQUA Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.20mm Needle and Nozzle and a MINI AQUA Conventional (CA) Aircap which offers enhanced application of solvent based coats, waterborne basecoats, UV primers and spot repair. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| DVR Aircap Type: Mini AQUA | |
| Part Number : PG10111803 | |
|
Sagola Mini Xtreme Spray Gun, Mini HVLP Aircap – 1.00 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.00mm Needle and Nozzle and a MINI HVLP High Volume Low Pressure (HVLP) Aircap for high volume and low pressure applications – ideal for use with primers, sanding surfacers and spot repair. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| DVR Aircap Type: Mini HVLP | |
| Part Number : PG10111809 | |
|
Sagola Mini Xtreme Spray Gun, Mini HVLP Aircap – 1.20 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.20mm Needle and Nozzle and a MINI HVLP High Volume Low Pressure (HVLP) Aircap for high volume and low pressure applications – ideal for use with primers, sanding surfacers and spot repair. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| DVR Aircap Type: Mini HVLP | |
| Part Number : PG10111810 | |
|
Sagola 4600 Mini Xtreme Spray Gun, Mini HVLP Aircap – 1.30 Needle & Nozzle Kit |
| This Sagola 4600 Mini Xtreme Gun is supplied with a 1.30mm Needle and Nozzle and a MINI HVLP High Volume Low Pressure (HVLP) Aircap for high volume and low pressure applications – ideal for use with primers, sanding surfacers and spot repair. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| DVR Aircap Type: Mini HVLP | |
| Part Number : PG10111804 | |
Accessories
| RC1 Premium Air Flow Regulator with Analogue Pressure Gauge | ||
 |
Part Number: | PT56418020 |
| Lubricant Grease (SAE 10), 100ml | ||
 |
Part Number: | PT56418589 |
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Magnetic Stand for One Spray Gun | ||
 |
Part Number: | PT40000245 |
| Magnetic Stand for Two Spray Guns | ||
 |
Part Number: | PT40000246 |
| Spray Gun & Accessories Locker | ||
 |
Part Number: | PT70000010 |
| Coupling for Disposable Gravity Cup – 3M PPS | ||
 |
Part Number: | PT55711612 |
| Coupling for Disposable Gravity Cup – MIPA-CARWOX | ||
 |
Part Number: | PT55711616 |
| Coupling for Disposable Gravity Cup – GERSON-NORTON | ||
 |
Part Number: | PT55711614 |
| Coupling for Disposable Gravity Cup – FLEXI-CUP | ||
 |
Part Number: | PT55711615 |
| Coupling for Disposable Gravity Cup – DEVILBISS-DEKUPS | ||
 |
Part Number: | PT55711618 |
| Coupling for Disposable Gravity Cup – SATA RPS | ||
 |
Part Number: | PT55711620 |
| SAGOLA 4600 Mini Xtreme Spray Gun: Mini Tech Aircap | ||
 |
Part Number: | PT56418598 |
| SAGOLA Mini Xtreme Gun: Mini EPA Aircap | ||
 |
Part Number: | PT56418525 |
| SAGOLA Mini Xtreme: Mini AQUA Aircap | ||
 |
Part Number: | PT56418524 |
| SAGOLA Mini Xtreme: Mini HVLP Aircap | ||
 |
Part Number: | PT56418526 |
| Sagola 4600 Mini Xtreme: 0.60mm Needle & Nozzle Kit (compatible with Mini TECH Aircap only) | ||
 |
Part Number: | PT10011216 |
| Sagola Mini Xtreme: 0.80mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011200 |
| Reusable Gravity Cup – Plastic; 125ml | ||
 |
Part Number: | PT56418081 |
| Reusable Gravity Cup – Plastic; 500ml | ||
|
Part Number: | PT56418080 |
| Sagola Mini Xtreme: 1.00 Needle & Nozzle Kit (not compatible with Mini TECH Aircap) | ||
 |
Part Number: | PT10011201 |
| Sagola Mini Xtreme: 1.20 Needle & Nozzle Kit | ||
|
Part Number: | PT10011202 |
| Sagola 4600 Mini Xtreme: 1.30 Needle & Nozzle Kit | ||
|
Part Number: | PT10011203 |
| Reusable Gravity Cup for UV-Cured Paint – Plastic; 125ml | ||
 |
Part Number: | PT56418099 |
| Product Filter (x6) for PT56418081, PT56418099, PT56418079 | ||
 |
Part Number: | PT56418061 |
| Product Filter (x10) for PT56418080 | ||
 |
Part Number: | PT56418059 |
| Coupling for Disposable Gravity Cup – COLAD | ||
 |
Part Number: | PT56418623 |
| 1.00mm Needle & Nozzle Kit for Mini TECH Aircap | ||
 |
Part Number: | PT10011217 |
| 1.40mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011204 |
| 1.60mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011205 |
| 1.80mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011206 |
| Reusable Gravity Cup – Plastic; 200ml | ||
 |
Part Number: | PT56418079 |
