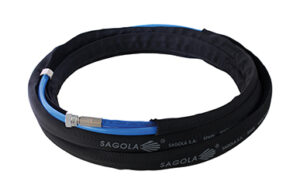

Sagola Combined Air & Product Hose For Air Assisted Airless Systems
Product Description
Combined Air & Product Hose For Air Assisted Airless Systems.
Air Hose (Blue): Polyurethane, ID: 6mm x OD:
8mm (compatible with 8mm quick connector)
• Product Hose (Blue): ID: 4mm x OD: 10.4mm with 1/4” Female Adaptor
• Protective Cover: Black Polyester
• Compatible with air assisted airless systems such as the Elcometer Baltic, Elcometer Riga V & Elcometer Riga H
Specifications
| Product Hose | Air Hose | Protective Cover | |
| Working Pressure | 18bar | 20bar | – |
| Breakage Pressure | – | 60bar | – |
| Temperature Range | -20°C to 60°C | -40°C to 120°C | -60°C to 125°C |
| Dimensions (I/D x O/D) | 4 / 10.4mm | 6 / 8mm | – |
| Material (inside) | Polyamide PA12 | EPDM | Polyester |
| Material (outside) | Polyamide PA12 | Textile Reinforcement | Polyester |
| Colour | Blue | Blue | Black |
| Anti-Static | – | Yes | – |
| Connections | 6.35mm F BSP | 6.35mm Female BSP | – |
| Compliance | DIN 73378 | 97/23/CE UNE – EN 559 | RoHS, ISO 6945, MSHA |
Standards
Product Hose: DIN 73378
Air Hose: 97/23/CE UNE – EN 559
Protective Cover: RoHS, ISO 6945, MSHA
Data Sheet
Part Numbers
 | Combined Air & Product Hose with Protective Cover; 7m |
| Part Number : PT56414036 | |
| Combined Air & Product Hose with Protective Cover; 11m |
| Part Number : PT56414037 | |
