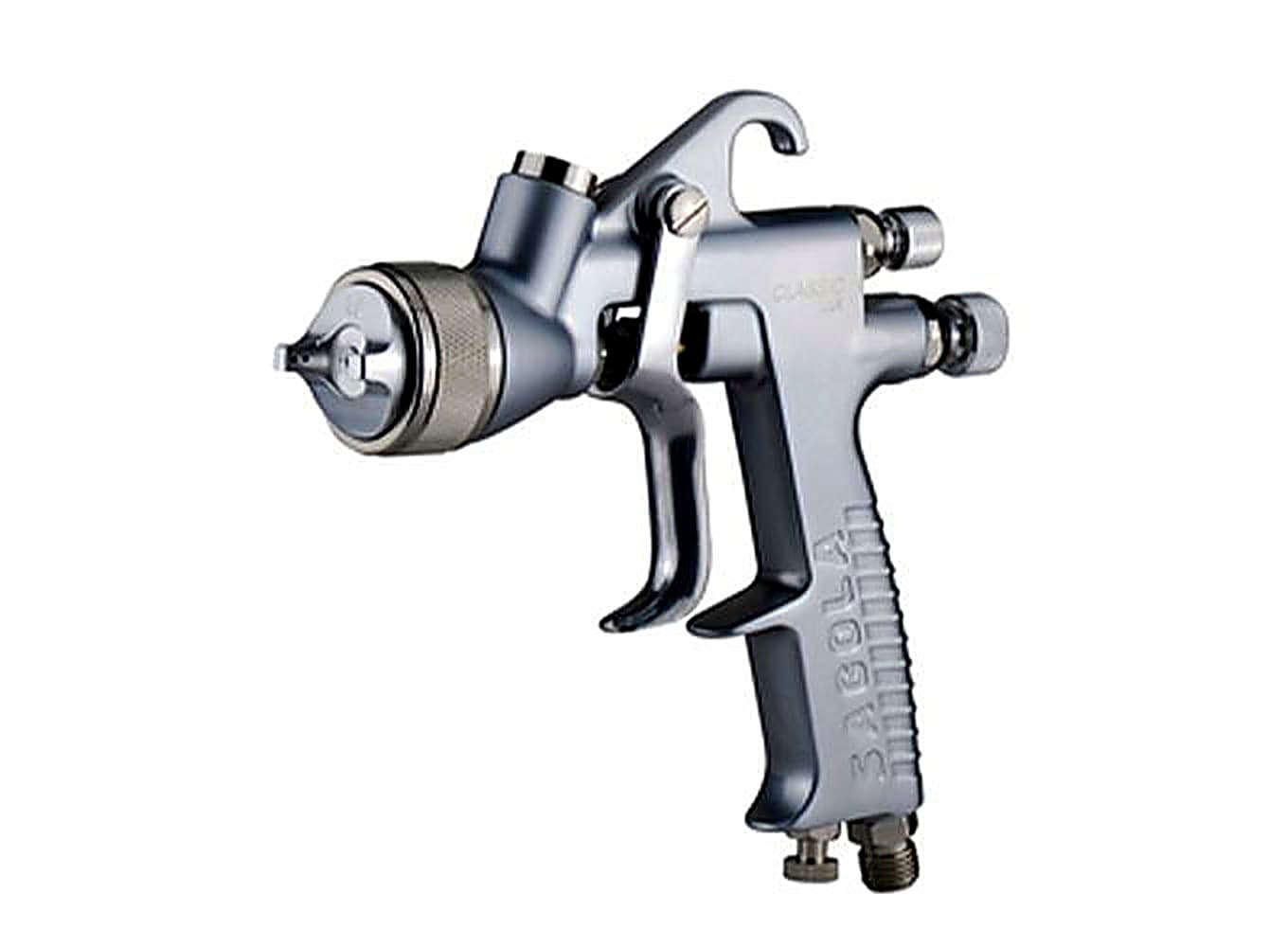

Sagola Classic LUX Gravity Spray Gun
Product Description
The Sagola Classic Lux is a versatile gravity spray gun with a low air consumption complete with air, paint and flow regulators, ideal for conventional spraying requirements.
- Low Air Consumption: High-quality nozzles with very low air consumption
- Ergonomic: Comfortable and easy to use
- Needle & Nozzle: Made of stainless steel
- Versatile: Ideal for sanding surfacers and fillers
- Cup: 650ml gravity cup with anti-drip system and paint filter
Product Features
| Classic LUX Conventional (CA) Aircap | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) | ||||||
| 1.40 [40] | Basecoats Clearcoats | 1.5 – 2.0bar | 190LPM | 218g/min | 18 – 20cm | 210mm | ||||||
| 1.60 [40] | Sanding surfacers | 1.5 – 2.0bar | 190LPM | 125g/min | 18 – 20cm | 215mm | ||||||
| 1.80 [40] | Sanding surfacers | 1.5 – 2.0bar | 190LPM | 217g/min | 18 – 20cm | 250mm | ||||||
| 2.00 [41] | Fillers | 1.8 – 2.5bar | 210LPM | 206g/min | 18 – 20cm | 255mm | ||||||
| 2.50 [42] | Fillers | 1.8 – 2.5bar | 220LPM | 144g/min | 18 – 20cm | 215mm | ||||||
Specifications
| Model | Sagola Classic Lux | ||
| Cup Capacity | 650ml | Cup Type | Removable Anti-Drip System |
| Air Inlet Couplings | 6.35mm Male BSP | Paint Filter | Not Supplied |
| Weight with Supplied Cup | 674g | Weight without Cup | 485.5g |
| Dimensions without Cup (W x D x H) | 177.19 x 19 x 171.33mm | ||
| Compliance | ATEX II 2G x (Directive 94/9/CE) | ||
| Packing List | Sagola Classic LUX Gravity Spray Gun with Aircap, Needle & Nozzle Kit (supplied fitted), 650ml Reusable Plastic Gravity Cup with Product Filter (x1), Hexagonal Wrench & Cleaning Brush | ||
Data Sheet
Part Numbers
 | Sagola Classic LUX Gravity Spray Gun, 40 Aircap – 1.40 Needle & Nozzle Kit |
| This Sagola Classic LUX Gravity Spray Gun is supplied with a 1.40mm Needle and Nozzle size and a 40 Classic LUX Aircap, which is ideal for basecoats and clearcoats. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| Classic LUX Aircap Type: 40 Aircap | |
| Part Number: PG20141406 | |
| Sagola Classic LUX Gravity Spray Gun, 40 Aircap – 1.60 Needle & Nozzle Kit |
| This Sagola Classic LUX Gravity Spray Gun is supplied with a 1.60mm Needle and Nozzle size and a 40 Classic LUX Aircap, which is ideal for sanding surfacers. | |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| Classic LUX Aircap Type: 40 Aircap | |
| Part Number: PG20141401 | |
| Sagola Classic LUX Gravity Spray Gun, 40 Aircap – 1.80 Needle & Nozzle Kit |
| This Sagola Classic LUX Gravity Spray Gun is supplied with a 1.80mm Needle and Nozzle size and a 40 Classic LUX Aircap, which is ideal for sanding surfacers. | |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| Classic LUX Aircap Type: 40 Aircap | |
| Part Number: PG20141402 | |
| Sagola Classic LUX Gravity Spray Gun, 41 Aircap – 2.00 Needle & Nozzle Kit |
| This Sagola Classic LUX Gravity Spray Gun is supplied with a 2.00mm Needle and Nozzle size and a 41 Classic LUX Aircap, which is ideal for filler. | |
| Needle & Nozzle Size: 2.00 (2.00mm) | |
| Classic LUX Aircap Type: 41 Aircap | |
| Part Number: PG20141404 | |
| Sagola Classic LUX Gravity Spray Gun, 42 Aircap – 2.50 Needle & Nozzle Kit |
| This Sagola Classic LUX Gravity Spray Gun is supplied with a 2.50mm Needle and Nozzle size and a 42 Classic LUX Aircap, which is ideal for filler. | |
| Needle & Nozzle Size: 2.50 (2.50mm) | |
| Classic LUX Aircap Type: 42 Aircap | |
| Part Number: PG20141403 | |
Accessories
| RC2 Economy Air Flow Regulator with Analogue Pressure Gauge | ||
 | Part Number: | PT40000335 |
| Gravity Cup Product Filter; 650ml | ||
 | Part Number: | PT56418017 |
| Sagola Classic Lux: 1.40 Needle & Nozzle Kit | ||
 | Part Number: | PT10011380 |
| Sagola Classic Lux: 1.60 Needle & Nozzle Kit | ||
| Part Number: | PT10011370 |
| Sagola Classic Lux: 1.80 Needle & Nozzle Kit | ||
| Part Number: | PT10011371 |
| Sagola Classic Lux: 2.50 Needle & Nozzle Kit | ||
| Part Number: | PT10011373 |
| Sagola Classic Lux: 2.00 Needle & Nozzle Kit | ||
| Part Number: | PT10011372 |
| Reusable Gravity Cup – Plastic; 650ml | ||
| Part Number: | PT56418420 |
