Sagola Anti-Static Hose
Product Description

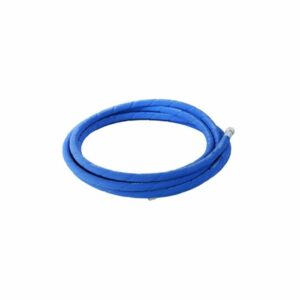

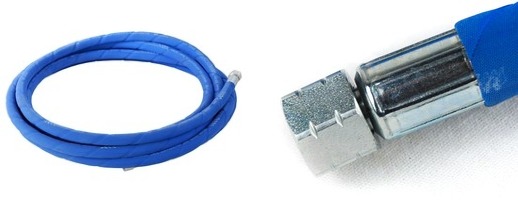

The Sagola Anti-Static Hose light, flexible, manageable and twist free.
- Anti-static EPDM rubber hose.
- Exterior textile reinforcement.
- Ideal for spraying in the booth.

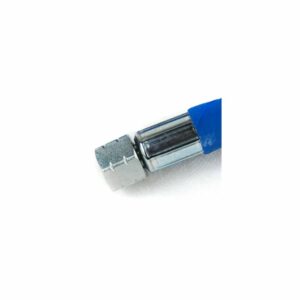

- High security crimped ends able to bear the high temperatures of the booth.
- No need to use flanges, avoiding that they release or cause leaks due to dilation.
Specifications
| Max Working Pressure | 20bar |
| Breakage Pressure | 60bar |
| Temperature Range | -40°C to 120°C |
| Dimensions (I/D x O/D) | 6 x 12mm and 8 x 15mm |
| Material (inside) | EPDM Rubber |
| Material (outside) | Textile Reinforcement |
| Colour | Blue |
| Connections | 6.35mm female couplings with conical closure and flare fitting for easy assembly of the push connector |
| Conducting Pipe | < 1 M Ω |
| Hoses Compliance | 97/23/CE, UNE – EN 559 |
Standards
- 97/23/CE
- UNE EN-559
Data Sheet
Part Numbers
 |
Anti-static Air Hose – 2.5m Ø 6x12mm |
| Hose Length: 2.5m | |
| Part Number : PT56414014 | |
|
Anti-static Air Hose – 6m Ø 8x15mm |
| Hose Length: 6m | |
| Part Number : PT56414024 | |
|
Anti-static Air Hose – 11m Ø 8x15mm |
| Hose Length: 11m | |
| Part Number : PT56414025 | |
|
Anti-static Air Hose – 16m Ø 8x15mm |
| Hose Length: 16m | |
| Part Number : PT56414027 | |
|
Anti-static Air Hose – 26m Ø 8x15mm |
| Hose Length: 26m | |
| Part Number : PT56414026 | |
|
Anti-static Air Hose – 21m Ø 8x15mm |
| Hose Length: 21m | |
| Part Number : PT56414028 | |
