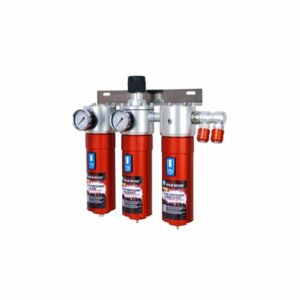

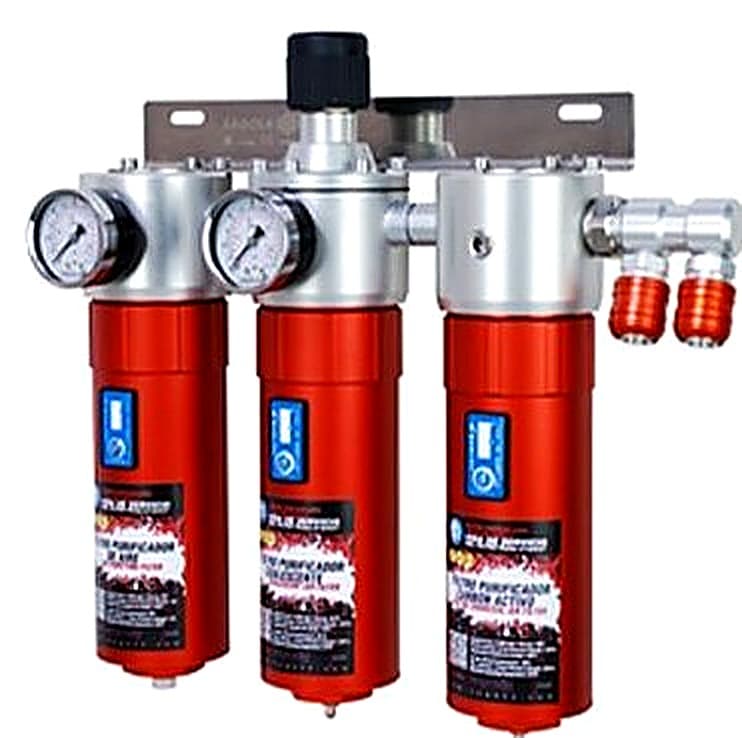

Sagola 5300X 3 Stage Regulator Filter
Product Description
The Sagola 5300X 3 Stage Regulator Filter offers the maximum filtration level in spray booths and spraying lines where finishing is highly demanding.
- 3 Stage Regulator Filter with coalescent filter and wide surface activated carbon filter.
- Sinterised brass 8 micron pre filtration is incorporated, followed by a 0.01 micron coalescent filter and final filtration by a wide surface active carbon filter.
- This process eliminates, in addition to water and impurities, organic fumes and foul air.
- Ideal for waterborne paint lines and where organic fumes in the network are a problem.
- Tough heavy duty construction for long service.
Stage 1
Centrifugal force for large particulates, water & oil.
Stage 2
Coalescent filtration down to 0.01 micron.
Stage 3
Activated carbon filter for oil vapours, smells & hydrocarbons.
Specifications
| Air Flow (at 7bar) | 2870LPM | Air inlet | 12.7 mm BSP | Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar | Maximum operating temperature | 90°C | ||
| Drain system | Automatic & Semi-Automatic | ||||
| Dimensions | Weight | ||||
| Sagola 5300X | 383 x 123 x 372mm | 6.8kg | |||
| Packing List | Sagola 5300X Air Regulator Filter – 3 Stage containing Brass Filter (8μm), Coalescent Filter (0.01μm) and Active Carbon Filter all with Integrated “Life” Timer, Male BSPT 6.35mm Coupling (x2)*, Analogue Pressure Gauge (x2) and Support Bracket | ||||
Data Sheet
Part Numbers
 |
Sagola 5300X Air Regulator Filter – 3 Stage Filter; Euro-Profile Couplings |
| Connection Type: Euro-Profile | |
| Filter Type: Stage 3 | |
| Part Number : PT10730308 | |
|
Sagola 5300X Air Regulator Filter – 3 Stage Filter; US-MIL Couplings |
| Connection Type: US-MIL | |
| Filter Type: Stage 3 | |
| Part Number : PT10730305 | |
|
Sagola 5300X Air Regulator Filter – 3 Stage Filter; NITTO Couplings |
| Connection Type: NITTO | |
| Filter Type: Stage 3 | |
| Part Number : PT10730351 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
Part Number: | PT56414026 |
| Optional Double Outlet Kit | ||
 |
Part Number: | PT56418704 |
| Sagola 5000 Series Stage 1 Brass Filter (8 micron) – not compatible with the 5000X | ||
 |
Part Number: | PT56418719 |
| Sagola 5000 Series Stage 2 Coalescent Filter (0.01 micron) | ||
 |
Part Number: | PT56418071 |
| Sagola 5000 Series Stage 3 Active Carbon Filter | ||
 |
Part Number: | PT56418070 |
| Sagola 5000 Series Stage 1 Brass Filter (40 micron) | ||
| Part Number: | PT56418532 | |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
Part Number: | PT56414028 |
