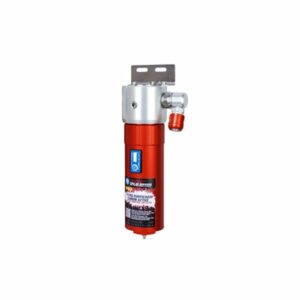

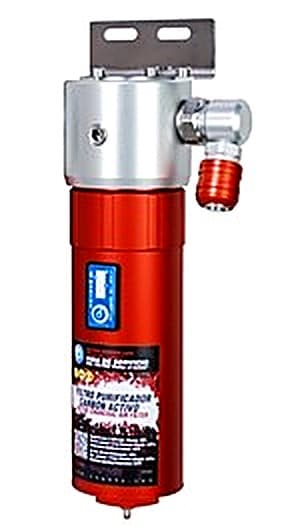

Sagola 5050X Air Pre-Filter – Stage 1

Product Description

The Sagola 5050X Air Pre-Filter is an air regulator filter, ideal for the pre-filtration in industrial air lines.

The Sagola 5050X Air Pre Filter is supplied with a single outlet.

The Sagola 5050X is an air regulator filter, ideal for the pre-filtration in industrial air lines.
Designed for the outlet of medium compressors (inlet 1/2”) and ideal
for changes in height levels in the line network, booths inlets, etc.
Semi-automatic draining system.
Tough machined aluminium casing.
Friction and centrifugal filtration with 8 micron porous brass filter to retain water, oil and other impurities.
Tough heavy duty construction for long service life.

5000-diagram

Stage 1 Air Filtration Systems

Centrifugal force for large particulates, water & oil

1. The friction of the compressed air against the walls of the unit produces a decanting of solid and liquid particles which fall to the bottom of the unit’s vessel.

2. The compressed air is forced through the porous brass filter, in a downward flow, generating an increase in speed which then sharply changes to an upward direction that produces a further decanting of the liquid particles that were in condensation.

Specifications

Air Flow (at 7bar)	>3000LPM
Air inlet	12.7 mm BSP
Air outlet	6.35 mm BSP
Maximum working pressure	12bar
Maximum operating temperature	90°C
Drain system	Semi-automatic
Dimensions	114 x 119 x 339mm
Weight	1.95kg
Packing List	Sagola 5050X Air Pre-Filter – Single Stage containing Brass Filter (8μm) with Integrated “Life” Timer, Male BSPT 6.35mm Coupling (x1)* & Support Bracket
