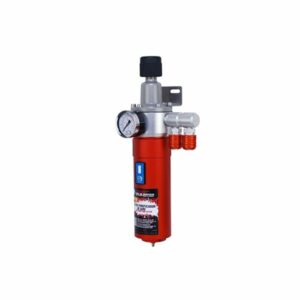

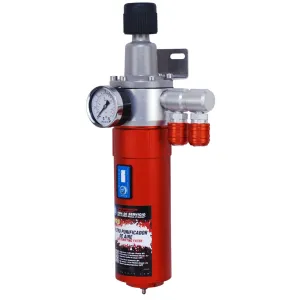

Sagola 5000X Air Regulator Filter – Stage 1
Product Description
The Sagola 5000X Air Regulator Filter is ideal for booths working with solvent-based paints and preparation areas.
The Sagola 5000X Air Regulator Filter is supplied with two outlets, a pressure regulator and pressure gauge.
- High performance filtration for maximum air quality with minimum pressure loss.
- Ideal for booths working with solvent-based paints and preparation areas.
- Semi-automatic draining system.
- It has two outlets allowing you to use two tools at once.
- Tough machined aluminium casing.
- Membrane mechanical regulator.
- Friction and centrifugal filtration with 40 micron porous brass filter toretain water, oil and other impurities.
- Tough heavy duty construction for long service life.
Stage 1 Air Filtration Systems
Centrifugal force for large particulates, water & oil
1. The friction of the compressed air against the walls of the unit produces a decanting of solid and liquid particles which fall to the bottom of the unit’s vessel.
2. The compressed air is forced through the porous brass filter, in a downward flow, generating an increase in speed which then sharply changes to an upward direction that produces a further decanting of the liquid particles that were in condensation.
Specifications
| Air Flow (at 7bar) | >3000LPM |
| Air inlet | 12.7 mm BSP |
| Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar |
| Maximum operating temperature | 90°C |
| Drain system | Semi-automatic |
| Dimensions | 148 x 119 x 384mm |
| Weight | 2.3kg |
| Packing List | Sagola 5000X Air Regulator Filter – Single Stage containing Brass Filter (40μm) with Integrated “Life” Timer, Male BSPT 6.35mm Coupling (x2)*, Analogue Pressure Gauge (x1) & Support Bracket |
Data Sheet
Part Numbers
 |
Sagola 5000X Air Regulator Filter – 1 Stage Filter; Euro-Profile Couplings |
| Connection Type: Euro-Profile | |
| Filter Type: Stage 1 | |
| Part Number : PT10730205 | |
|
Sagola 5000X Air Regulator Filter – 1 Stage Filter; US-MIL Couplings |
| Connection Type: US-MIL | |
| Filter Type: Stage 1 | |
| Part Number : PT10730204 | |
|
Sagola 5000X Air Regulator Filter – 1 Stage Filter; NITTO Couplings |
| Connection Type: NITTO | |
| Filter Type: Stage 1 | |
| Part Number : PT10730207 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
Part Number: | PT56414026 |
| Optional Double Outlet Kit | ||
 |
Part Number: | PT56418704 |
| Sagola 5000 Series Stage 1 Brass Filter (40 micron) | ||
| Part Number: | PT56418532 | |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
Part Number: | PT56414028 |
