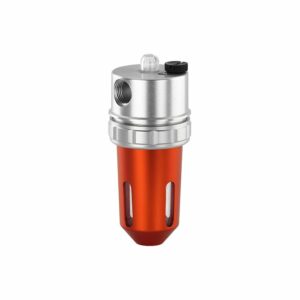

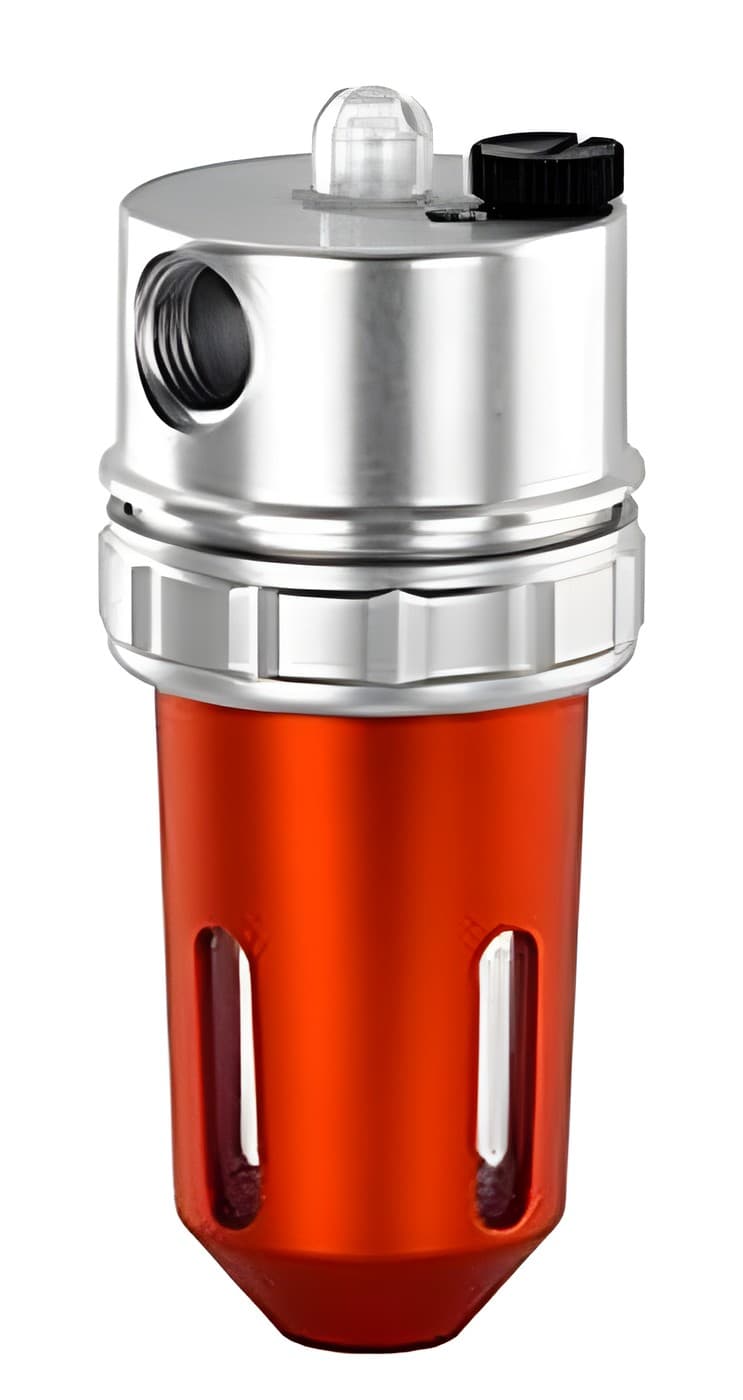

Sagola 437 Plus Air Lubricator
Product Description
The Sagola 437 Plus is ideal for the proper lubrication of pneumatic tools.
- Safe operation from 3l/min.
- Minimum flow restrictions.
- Multiple inlet and outlet dimensions (1/2”, 3/8” and 1/4”). ft
- Oil level check window.
- Manual oil regulator by level check window, drop by drop system.
- CNC machined in solid aluminium.
- Made in aluminium.
- Minimum maintenance.
Specifications
| Air Flow (at 7bar) | 1920l/min |
| Maximum working pressure | 10bar |
| Maximum operating temperature | 90°C |
| Dimensions | 165 x 73 x 73 mm without coupling |
| Weight | 446g |
| Packing List | Sagola 437 Plus Air Lubricator |
Data Sheet
Part Numbers
 | Sagola 437 Plus Air Lubricator – ¼” Inlet |
| Part Number : PT10710303 | |
| Sagola 437 Plus Air Lubricator – ⅜” Inlet |
| Part Number : PT10710302 | |
| Sagola 437 Plus Air Lubricator – ½” Inlet |
| Part Number : PT10710301 | |
