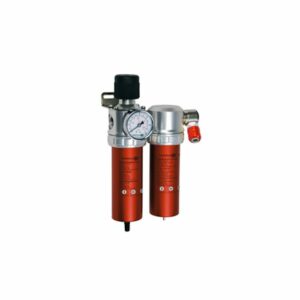

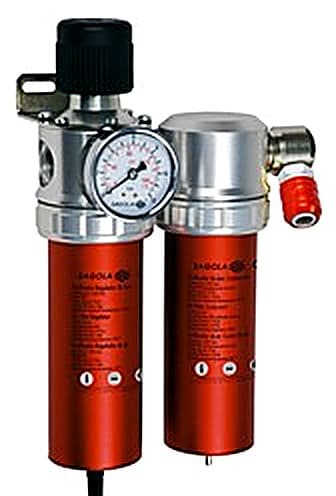

Sagola 4220 Plus Air Purifying Filter – 2 Stage
Product Description
The Sagola 4220 Plus Air Purifying Filter is an effective solution for compressed air filtration in professional paint booths.
The Sagola 4220 Plus includes two air purifying stages, mechanical and coalescent, a pressure regulator and a line pressure gauge.
- Effective solution for compressed air filtration in professional paint booths.
- Ideal for waterborne or HS paints providing high quality spray, whatever the coating
- Highly reliable air regulation system.
- Manufactured from a solid aluminum block.
- Eliminates air, oil and particles down to 0.01 micron.
- Friction and centrifugal filtration.
- Automatic drain of condensed liquids.
- High air flow.
- High quality analogue pressure gauge.
- Tough heavy duty construction for long service life.
Stage 1
Centrifugal force for large particulates, water & oil.
Stage 2
Coalescent filtration down to 0.01 micron.
Specifications
| Air Flow (at 7bar) | 2415LPM (85CFM) |
| Air inlet | 12.7 mm BSP |
| Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar |
| Maximum operating temperature | 90°C |
| Drain system | Automatic & Semi-Automatic |
| Dimensions | 178 x 117 x 279mm without coupling |
| Weight | 2kg |
| Packing List | Sagola 4220 Plus Air Purifying Filter – 2 Stage containing Brass Filter (24μm) and Coalescent Filter (0.01μm), Male BSPT 6.35mm Coupling (x1)*, Analogue Pressure Gauge (x1) and Support Bracket |
Data Sheet
Part Numbers
 | Sagola 4220 Plus Air Purifying Filter – 2 Stage Filter; Euro-Profile Coupling |
| Connection Type: Euro-Profile | |
| Filter Type: Stage 2 | |
| Part Number : PT10750404 | |
| Sagola 4220 Plus Air Purifying Filter – 2 Stage Filter; US-MIL Coupling |
| Connection Type: US-MIL | |
| Filter Type: Stage 2 | |
| Part Number : PT10750402 | |
| Sagola 4220 Plus Air Purifying Filter – 2 Stage Filter; NITTO Coupling |
| Connection Type: NITTO | |
| Filter Type: Stage 2 | |
| Part Number : PT10750403 | |
Accessories
| Sagola Anti-Static Hose | ||
 | Part Number: | Sagola Anti-Static Air Hose |
| Sagola Quick Couplings | ||
 | Part Number: | Sagola Quick Couplings |
| Optional Double Outlet Kit | ||
 | Part Number: | PT56418704 |
| Automatic Drain | ||
 | Part Number: | PT56450010 |
| Sagola 4220 Plus Gasket Kit | ||
 | Part Number: | PT56418588 |
| Sinterised Brass Filter Kit (24 microns) | ||
 | Part Number: | PT56418721 |
| Coalescent Filter Kit (0.01 Microns) | ||
 | Part Number: | PT56418722 |
| Sagola 4220 Filter Display | ||
 | Part Number: | PT70000007 |
| Semi Automatic Drain Valve (Sagola 4220 Plus only) | ||
 | Part Number: | PT56418533 |
