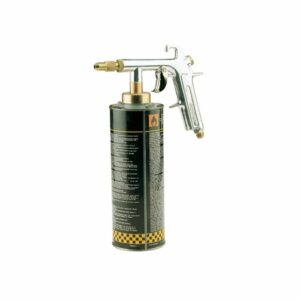

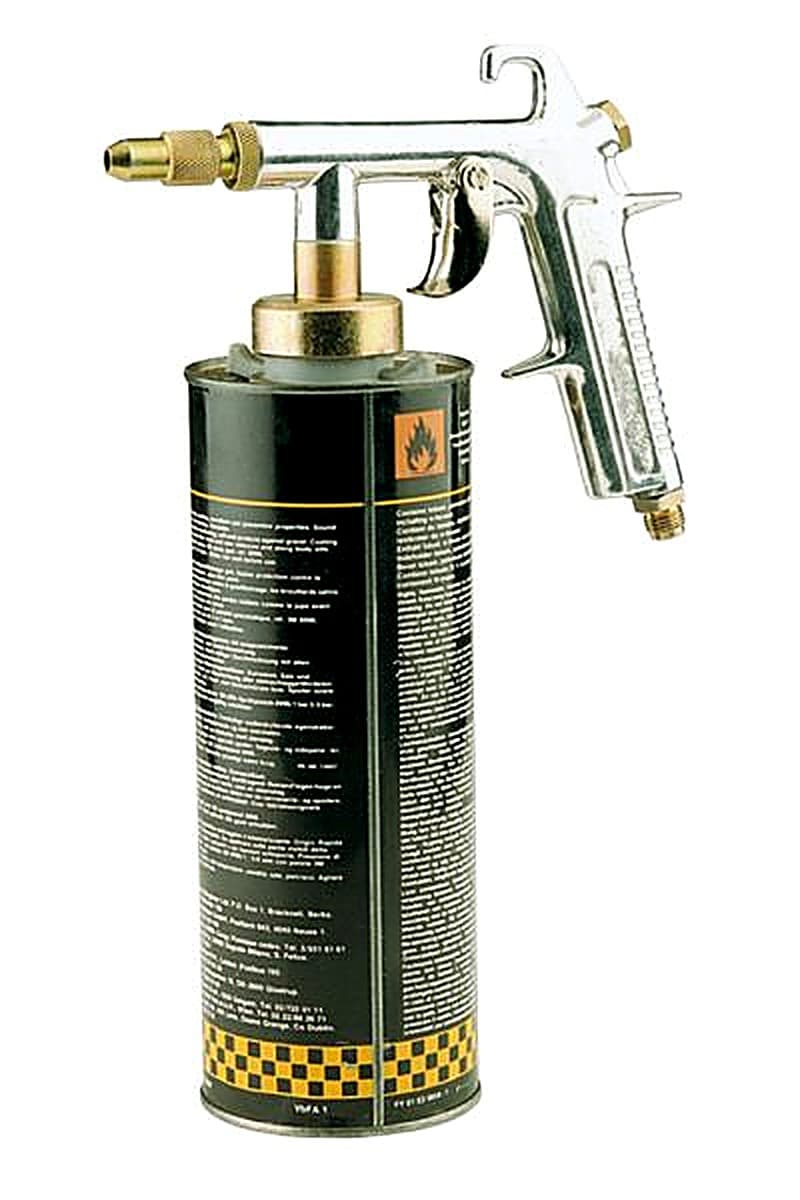

Sagola 416 Suction Pneumatic Gun
Product Description
Sagola 416 Suction Pneumatic Gun for 1litre standard acoustic insulation, anti-gravel or underbodies protection cartridges that screw directly on to the gun.
- Working pressure of 3 – 10bar
- Gun designed for the application of standardised 1-litre cartridges
- Adjustable metallic aircap to control the quantity and texture of the product
Specifications
| Part Number | Description | ||
| Dimensions | 186.7 x 45 x 311.2mm | ||
| Weight (empty) | 520g | ||
| Air Inlet Coupling | 6.35mm Male BSP | ||
| Air Consumption | 160l/min / 5.6cfm | ||
| Maximum Pressure | 10bar | ||
| Working Pressure | 3 – 10bar | ||
| Packing List | Sagola 416 Suction Pneumatic Gun with Aircap (supplied fitted) | ||
| PG20330401 | Sagola 416 Suction Pneumatic Gun | ||
Data Sheet
Part Numbers
| Model | Description |
| Part Number | PG20330401 |
| Dimensions | 186.7 x 45 x 311.2mm |
| Air Inlet Coupling | 6.35mm Male BSP |
| Air Consumption | 160l/min (at 3.5bar) |
| Maximum Pressure | 10bar |
| Working Pressure | 3 – 10bar |
| Weight (empty) | 520g |
