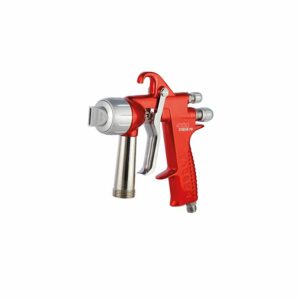

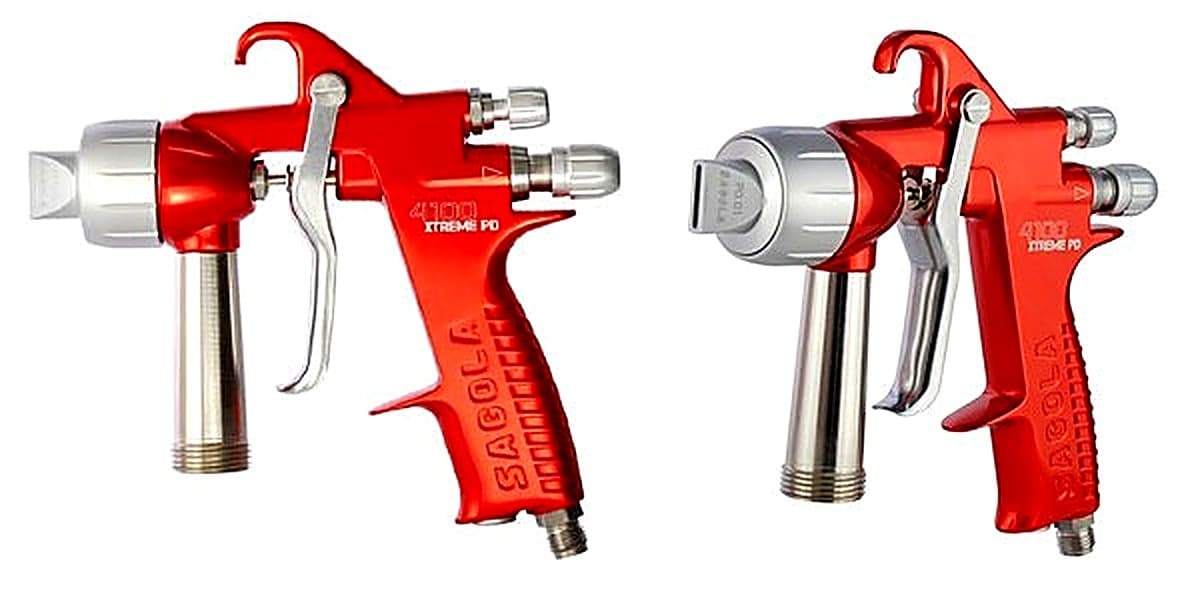

Sagola 4100 Xtreme PD Pressure Spray Gun
Product Description
The Sagola 4100 Xtreme PD Pressure Spray Gun is designed for dense products and is ideal for road marking paints, primers, waterproofing, intumescent and soil stabilising coatings.
Cost Effective
An affordable alternative to applying visocse materials.
Versatile Applications
Can be used for a wide range of applications from warehouse floors to road marking paints, cementitious intumescent coatings, sound deadening materials and more.
Duck Bill Air Cap
Allows sharp edges on road lines and is ideal for spraying into hard to reach areas.
Specifications
| Model | Sagola 4100 Xtreme PD Pressure Spray Gun | ||
| Dimensions | 200 x 190 x 420 mm | ||
| Weight | 552g | ||
| Air Inlet Coupling | 19mm BSP Male | ||
| Product Inlet Coupling | 6.35mm BSP Male | ||
| Design Pressure | 8bar | ||
| Working Pressure | 2 – 3bar | ||
| Air Consumption (2bar inlet) | 147lpm | ||
| Average Sound Pressure Level | 80 dB | ||
| Materials in contact with product | INOX, POM, Teflon and Nylon | ||
| Compliance | ATEX II 2G x (Directive 2014/34/EU) | ||
Data Sheet
Part Numbers
 |
Sagola 4100 Xtreme PD Pressure Spray Gun with PD01 Aircap and 6.00mm Needle & Nozzle Kit |
| Part Number : PG10152301 | |
| Sagola 4100 Xtreme PD: 6.00mm Needle & Nozzle Kit | |
| Part Number : PT10011135 | |
| Sagola 4100 Xtreme PD: PD01 Aircap | |
| Part Number : PT56418184 | |
Accessories
| Coupling for Disposable Gravity Cup – COLAD | ||
| Part Number: | PT56418623 | |
| Paint Packing Nut | ||
 |
Part Number: | PT56411616 |
| Air Gasket Replacement Kit (x6) | ||
 |
Part Number: | PT56418494 |
| Aircap Gasket & Spring Clip Kit | ||
| Part Number: | PT56418678 | |
| Aircap Gasket, Pack of 5 | ||
| Part Number: | PT56418681 | |
| Air Valve Seat | ||
| Part Number: | PT54110012 | |
