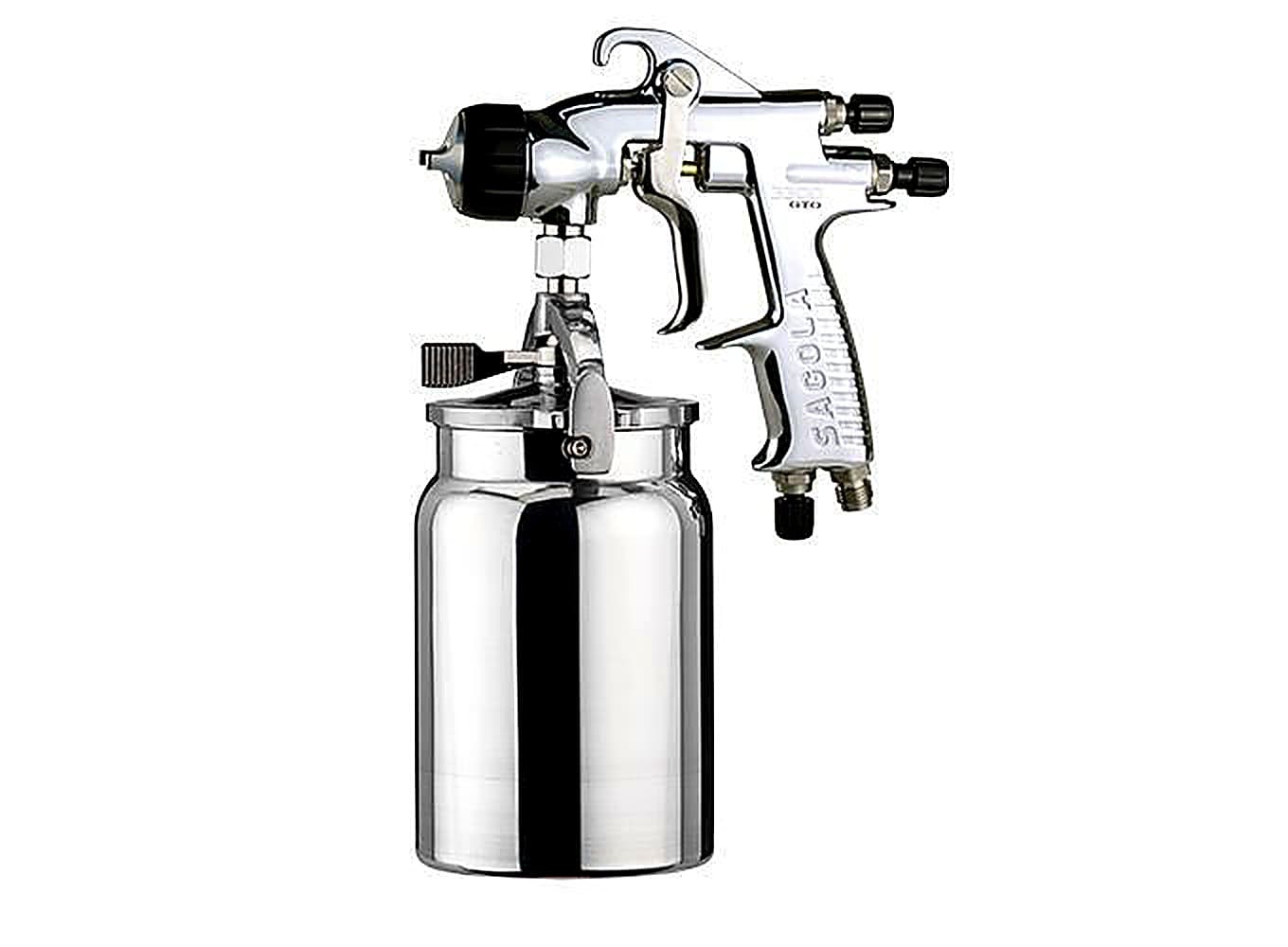

Sagola 3300 GTO Suction Spray Gun
Product Description
Designed to be light, robust and ergonomic, the Sagola 3300 GTO Suction Spray Gun is ideal for enamels, varnishes, primers and basecoats.
High speed application and large fan size
With low air consumption.
Minimal maintenance
No gaskets, rubber or plastic parts in the product area, just metal in contact with metal.
EPA aircaps, stainless steel needles and nozzles
Enables a high quality spray, whatever the coating.
Specifications
| Model | Sagola 3300 GTO Suction Spray Gun | ||
| Cup Capacity | 1 litre | ||
| Cup Type | Aluminium Suction Cup | ||
| Product Inlet Coupling | 9.5mm BSP Male | ||
| Air Inlet Coupling | 6.35mm BSP Male | ||
| Average Sound Pressure Level | 80 dB | ||
| Design Pressure | 8bar | ||
| Working Pressure | 2 – 3bar | ||
| Compliance | ATEX II 2G Ex ia IIC T4 Gb (Directive 2014/34/EU), EN 1953, CE | ||
| Dimensions without Cup | 173 x 172 x 42mm | ||
| Weight | 504g | ||
| Packing List | Sagola 3300 GTO Suction Spray Gun with aircap, needle & nozzle kit (supplied fitted), Hexagonal Wrench & Cleaning Brush | ||
Packing List
| Sagola 3300 GTO Suction Spray Gun with Aircap |
| Needle & Nozzle Kit (supplied fitted) |
| Hexagonal Wrench |
| Cleaning Brush |
Application Guide
| Needle & Nozzle Size | Suitable For | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
|---|---|---|---|---|---|---|
| 1.40 (1.40mm) | High quality finished, dyes, metallics | 2.0 – 3.0bar | 240LPM | 179g/min | 15 – 18cm | 245mm |
| 1.60 (1.60mm) | General finishes | 2.0 – 3.0bar | 240LPM | 156g/min | 15 – 18cm | 225mm |
| 1.80 (1.80mm) | Primers & finishes | 2.0 – 3.0bar | 240LPM | 184g/min | 15 – 18cm | 245mm |
Data Sheet
Part Numbers
 |
Sagola 3300 GTO Suction Spray Gun supplied with a GTO EPA Aircap and 1.40mm needle and nozzle kit |
| Part Number : PG10120910 | |
|
Sagola 3300 GTO Suction Spray Gun supplied with a GTO EPA Aircap and 1.60mm needle and nozzle kit |
| Part Number : PG10120911 | |
|
Sagola 3300 GTO Suction Spray Gun supplied with a GTO EPA Aircap and 1.80mm needle and nozzle kit |
| Part Number : PG101520912 | |
Accessories
| Sagola 3300 GTO: 1.40mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011181 |
| Sagola 3300 GTO: 1.60mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011182 |
| Sagola 3300 GTO: 1.80mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011183 |
| RC2 Economy Air Flow Regulator with Analogue Pressure Gauge | ||
 |
Part Number: | PT40000335 |
| Sagola 3300 GTO: EPA Aircap | ||
 |
Part Number: | PT56418645 |
| Air Valve Kit | ||
 |
Part Number: | PT56418669 |
| Air Gasket Replacement Kit (x6) | ||
 |
Part Number: | PT56418494 |
| Reusable Suction Cup – Aluminium; 1 Litre | ||
 |
Part Number: | PT56418074 |
| Product Filter Kit (x10) | ||
 |
Part Number: | PT56418014 |
| Anti-drip Lid Kit (x5) | ||
 |
Part Number: | PT56418013 |
