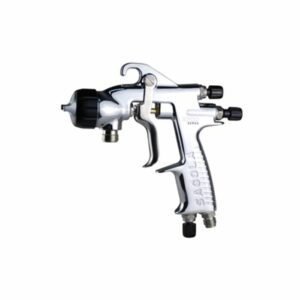

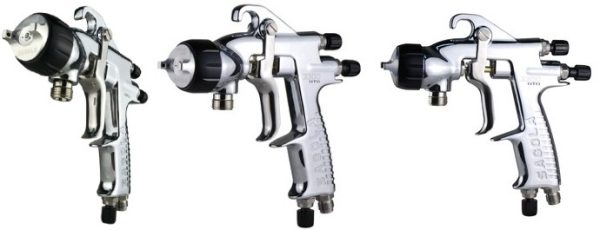

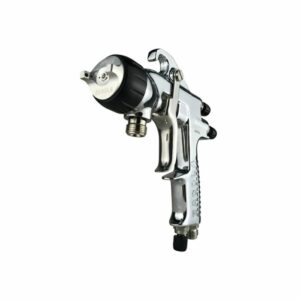

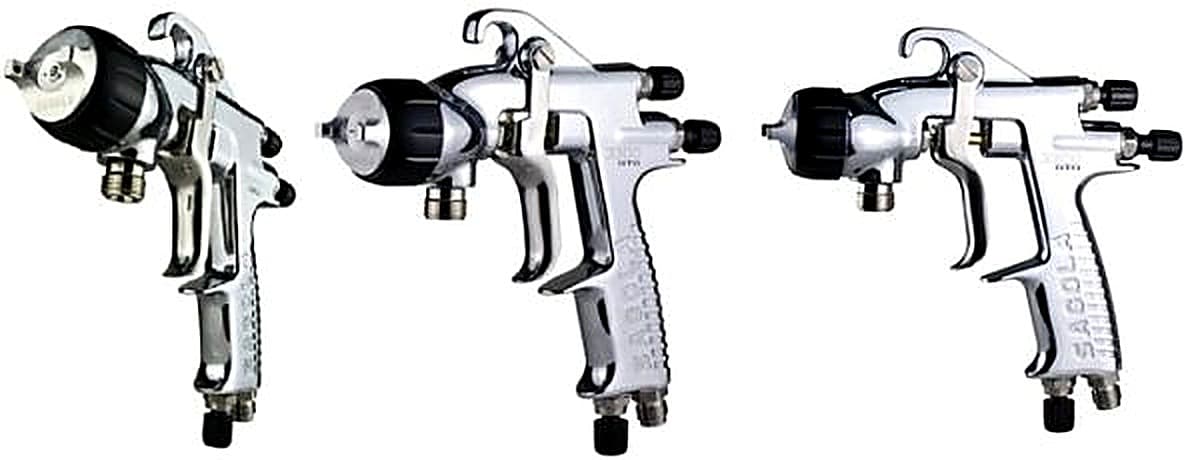

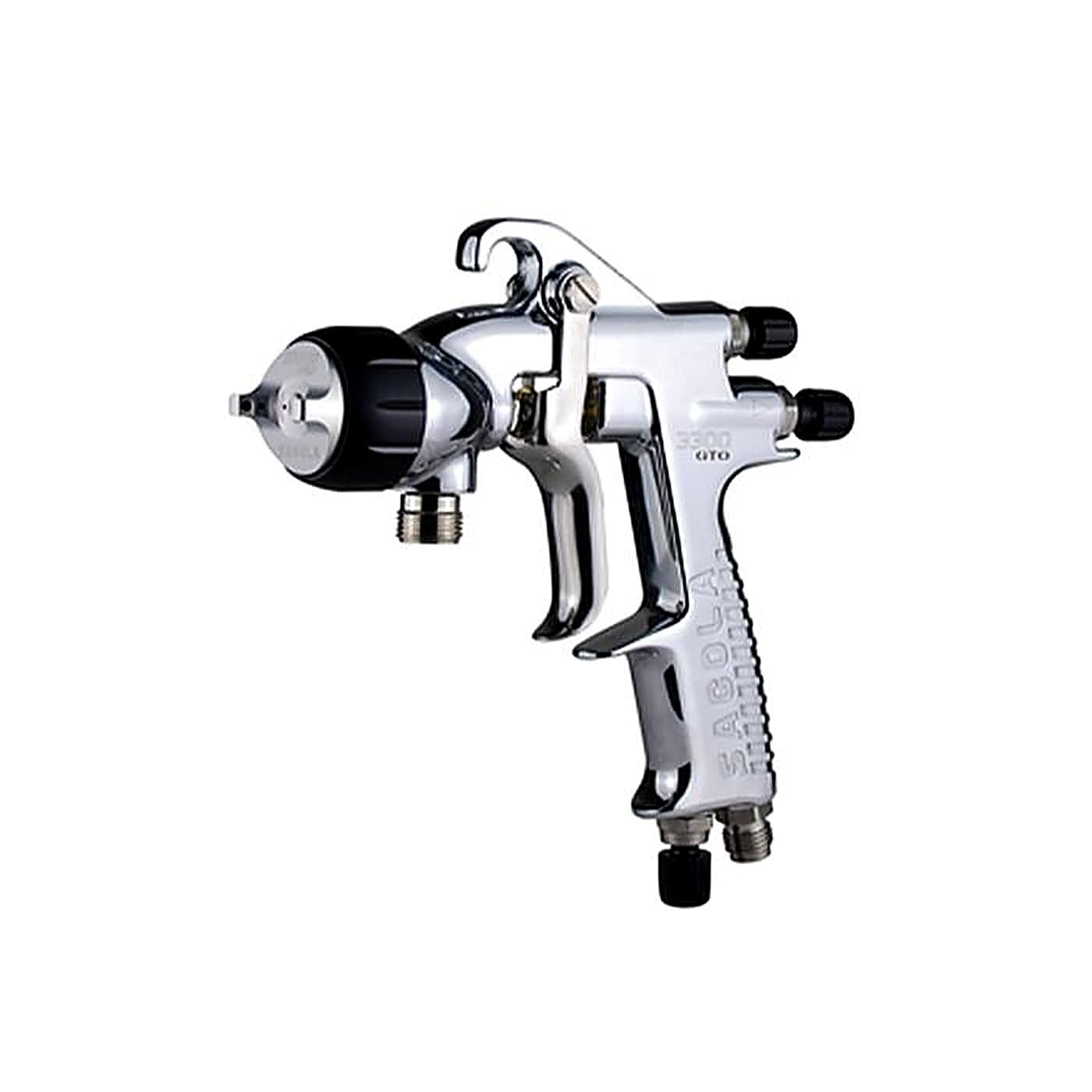

Sagola 3300 GTO Pressure Spray Gun
Product Description
With improved ergonomics and suitable for a wide range of applications, the Sagola 3300 GTO Pressure Spray Guns comply with the strictest safety and solvent emissions standards.
The Sagola 3300 GTO Pressure Spray guns are designed with a built-in air distributor and no joints between air and paint. With just metal in contact with metal, it is extremely easy to clean and maintain.
- Range of aircaps to suit many applications
- Needle & Nozzle made of stainless steel
- Provides high performance and atomization
- Designed with minimal parts; single axis system and one single piece automatic paint packing gland.
Product Features
| Application Guide |
||||
|---|---|---|---|---|
| Aircap / Needle & Nozzle Combination | GTO EPA | GTO HVLP | ||
| Clearcoats | 1.0 – 1.2 | – | ||
| Basecoats | 1.0 | 1.0 – 1.2 | ||
| Sanding Surfacers | 1.4 | 1.4 | ||
| Wet / Wet Primers | 1.4 | 1.4 | ||
| Fillers | 1.4 | 1.4 | ||
Specifications
| Model | 3300 GTO |
| Dimensions | 178.18 x 19 x 175.5mm |
| Weight | 474g |
| Air Inlet Coupling | 6.35mm Male BSP |
| Product Inlet Coupling | 9.5mm Male BSP |
| Design Pressure | 8bar |
| Working Pressure | 2 – 3bar |
| Compliance | ATEX II 2G x (Directive 2014/34/EU) |
Packing List
| Sagola 3300 GTO Pressure Spray Gun with Aircap |
| Needle & Nozzle Kit (supplied fitted) |
| Hexagonal Wrench |
| Cleaning Brush |
Data Sheet
Part Numbers
 |
Sagola 3300 GTO Pressure Spray Gun, GTO HVLP Aircap – 1.00mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.00mm needle & nozzle size and GTO HVLP aircap, ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number: PG10152210 | |
|
Sagola 3300 GTO Pressure Spray Gun, GTO HVLP Aircap – 1.20mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.20mm needle & nozzle size and GTO HVLP aircap, ideal for use with basecoats. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10152211 | |
|
Sagola 3300 GTO Pressure Spray Gun, GTO HVLP Aircap – 1.40mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.40mm needle & nozzle size and GTO HVLP aircap, ideal for use with sanding surfacers, wet/ wet primers and fillers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10152212 | |
|
Sagola 3300 GTO Pressure Spray Gun, GTO EPA Aircap – 1.00mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.00mm needle & nozzle size and GTO EPA aircap, ideal for use with clearcoats and basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10152214 | |
|
Sagola 3300 GTO Pressure Spray Gun, GTO EPA Aircap – 1.20mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.20mm needle & nozzle size and GTO EPA aircap, ideal for use with clearcoats. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10152215 | |
|
Sagola 3300 GTO Pressure Spray Gun, GTO EPA Aircap – 1.40mm Needle & Nozzle Kit |
| This Sagola 3300 GTO Pressure Spray Gun is supplied with a 1.40mm needle & nozzle size and GTO EPA aircap, ideal for use with sanding surfacers, wet/ wet primers and fillers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10152216 | |
Accessories
| Sagola 3300 GTO: 1.40mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011181 |
| Sagola 3300 GTO: EPA Aircap | ||
 |
Part Number: | PT56418645 |
| Sagola 3300 GTO: 1.00mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011187 |
| Sagola 3300 GTO: 1.20mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011180 |
| Sagola 3300 GTO: HVLP Aircap | ||
|
Part Number: | PT56418477 |
