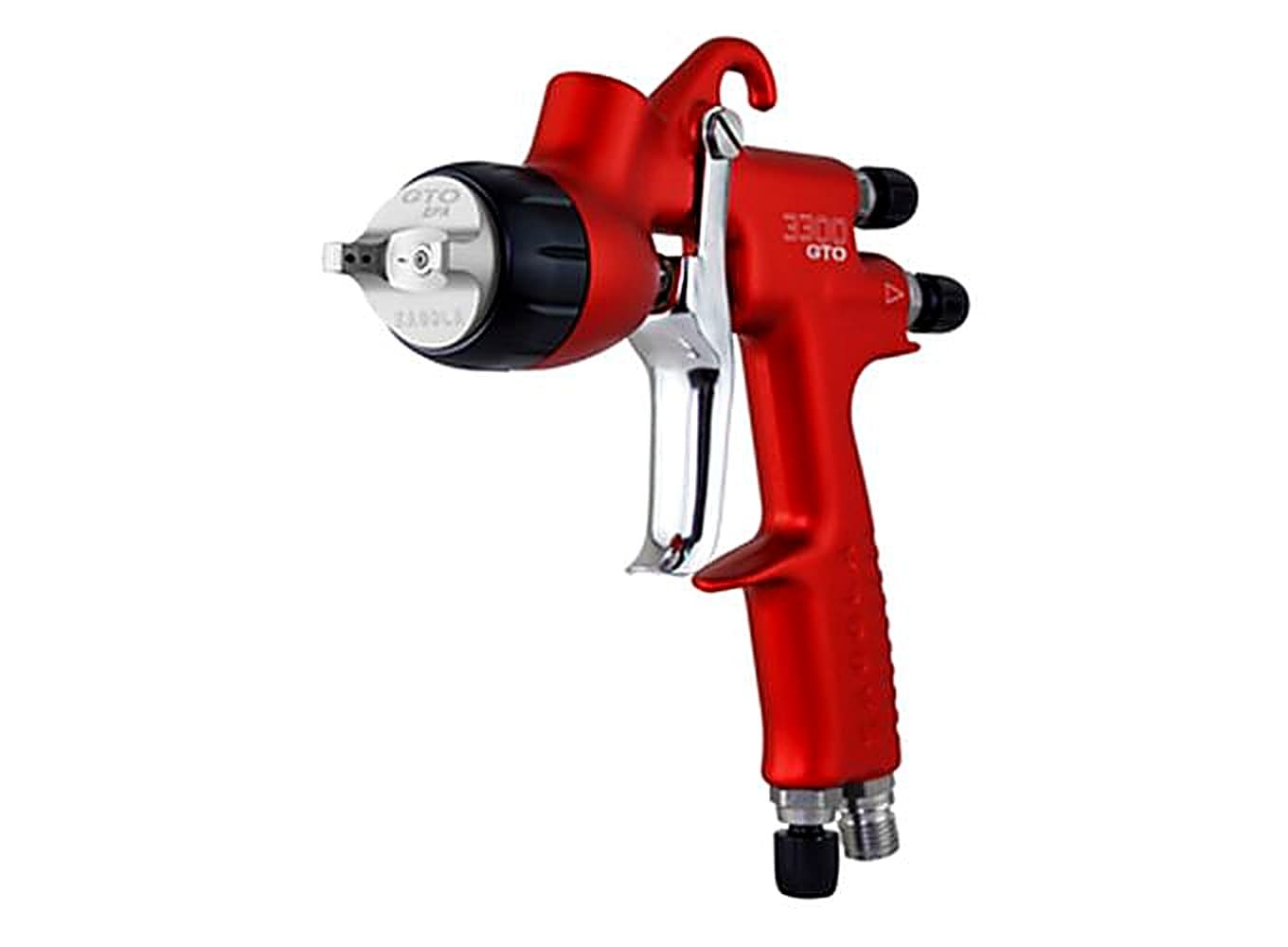

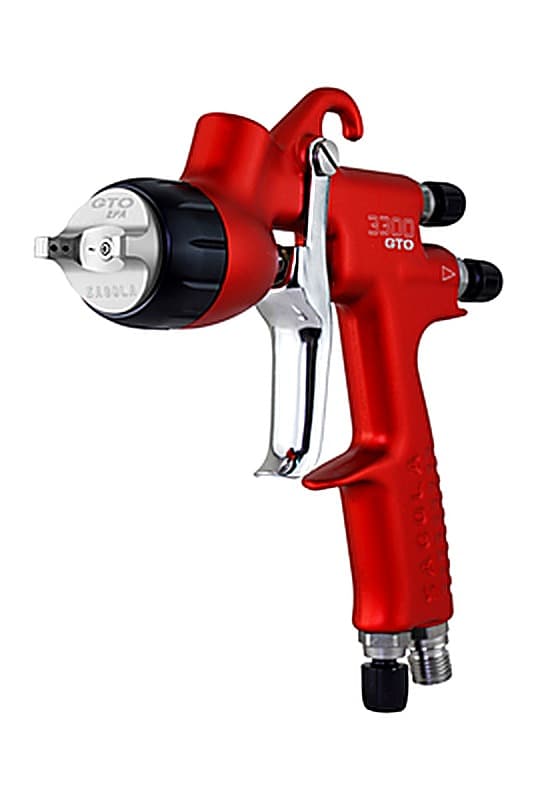

Sagola 3300 GTO Gravity Spray Gun
Product Description
The Sagola 3300 GTO Gravity Spray Gun is an incredibly versatile spray gun, ideal for primers and fillers. Extremely easy to maintain and clean, the Sagola 3300 GTO has no gaskets or air diffusers, rubber or plastic parts in product area – just metal in contact with metal, making it virtually maintenance free. Thanks to its forged anodized aluminium body and stainless steel ergonomic trigger, the Sagola 3300 GTO is lightweight and comfortable for use over long periods. Through its redesigned regulators for air flow, paint flow and fan control, the Sagola 3300 GTO puts precision control at your fingertips.
Key Features:
• One single piece automatic paint packing gland
Having a single gland makes it easier to remove for a thorough cleaning of the paint area, avoiding manipulation and breakage.
• Versatile to suit your application
Whether you are working with primers or high tech finishes the Sagola 3300 GTO is available with a flow regulator and range of aircaps, needle and nozzle kits to meet the needs of any application.
• Consistent quality finish guaranteed

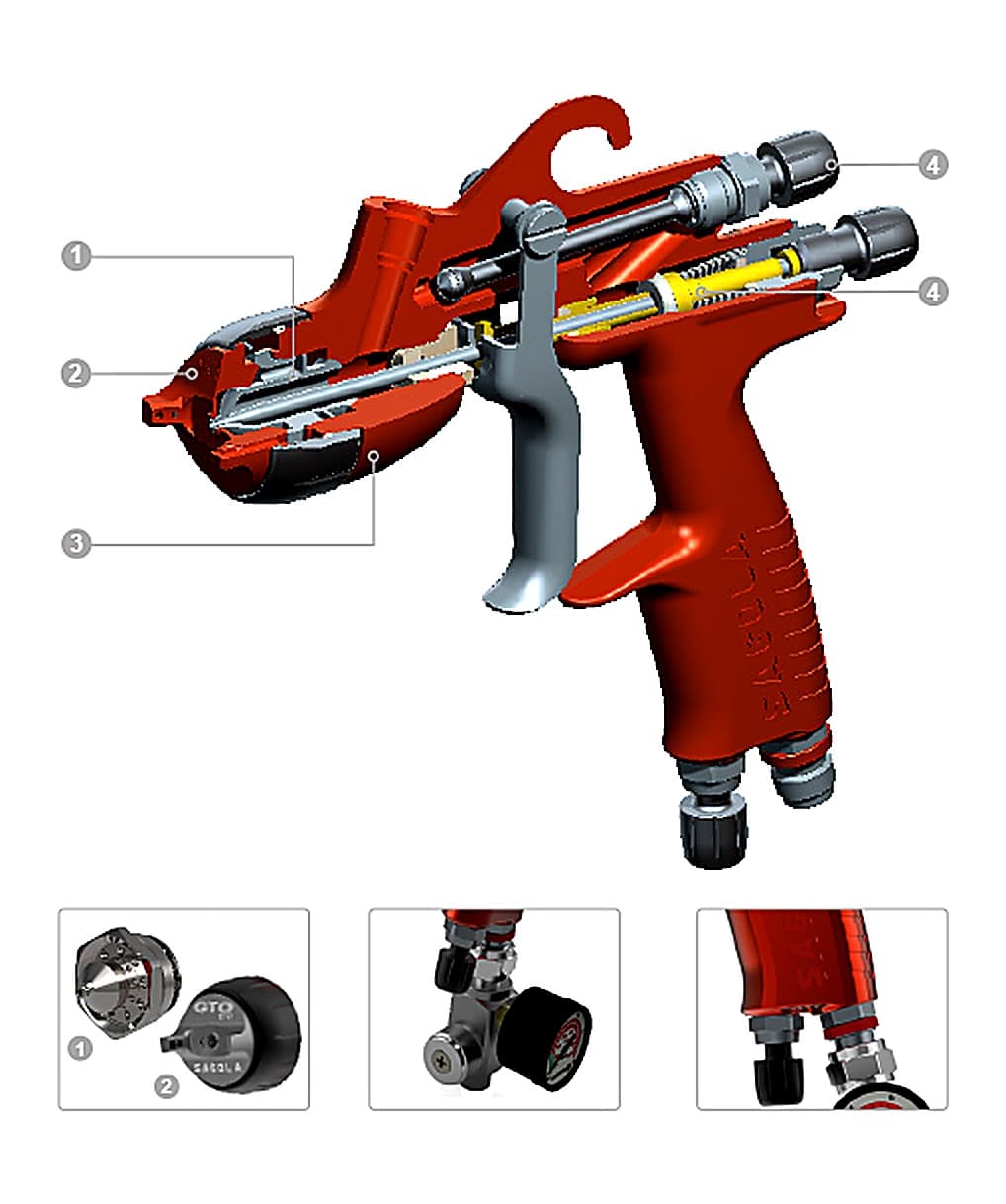

1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.
2. Interchangeable aluminium aircaps. Identified with different colours.
3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.
4. New spray fan regulator design with less travel and greater precision. Suitable for left and right handed operation.
• Low maintenance
5. The only spray gun in the refinishing market with one single piece automatic paint packing gland – minimising potential damage and breakage and making it easier to remove when cleaning the gun.
6. Manufactured without gaskets or seals in product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Extremely easy to clean and maintain.
• Making the sprayer’s job easier
7. Color coded identifiers perfect for differentiating spray guns when there are multiple painters.
8. Forged aluminium body; ergonomic, light and perfectly balanced. Soft and silky touch finish.
9. Ergonomically designed, round and comfortable handle for balanced and smooth strokes for a consistent, better quality finish.
10. Ergonomically designed trigger reducing operator discomfort and fatigue.
11. Fan width regulator.

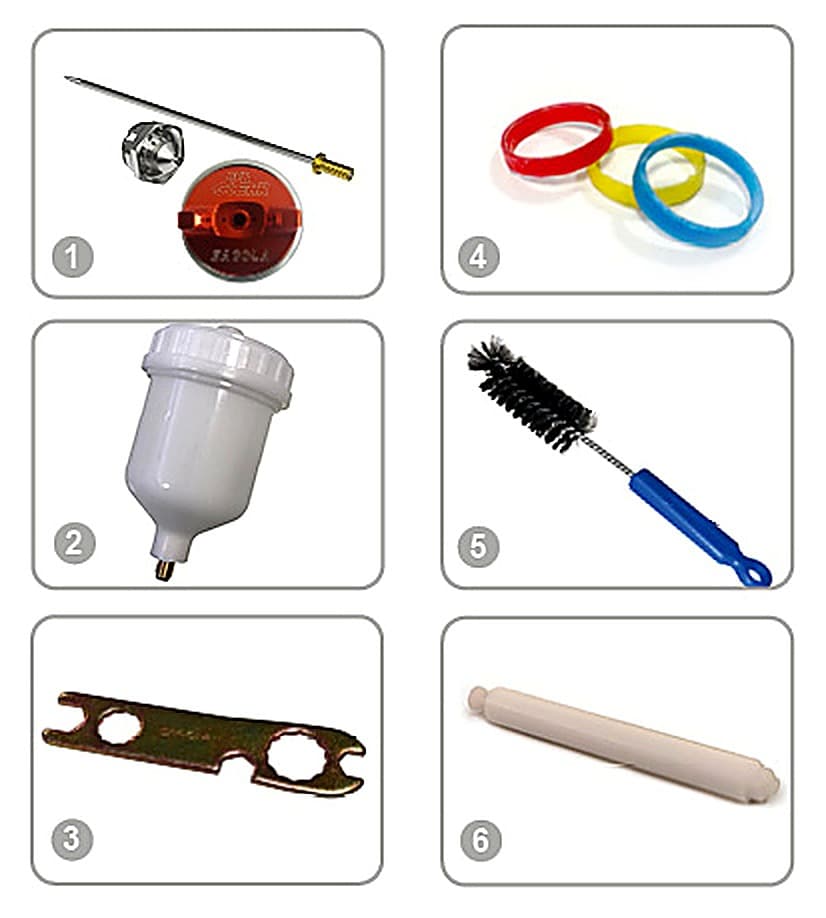

Sagola 3300 GTO Kit Contents
Each Sagola 3300 GTO is supplied complete with:
1. Aircap, needle & nozzle kit (supplied fitted)
2. 650ml Reus
able plastic gravity cup with product mini-filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Colour Code Identifiers perfect for identifying guns when there are multiple painters (x3) – This is supplied with Sagola 3300 GTO Car versions only
5. Cleaning Brush
6. Key Assembly for changing the air valve
Product Features
| GTO EPA Conventional (CA) Aircap Ideal for primed surfacers. | ||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.40 (1.40mm) | Sanding surfacers | 1.5 – 2.0bar | 250LPM | 179g/min | 18 – 20cm | 245mm |
| 1.60 (1.60mm) | Sanding surfacers | 1.5 – 2.0bar | 250LPM | 156g/min | 18 – 20cm | 225mm |
| 1.80 (1.80mm) | Sanding surfacers | 1.5 – 2.0bar | 250LPM | 184g/min | 18 – 20cm | 245mm |
| GTO EVO Conventional (CA) Aircap Ideal for wet on wet primers. | ||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.30 (1.30mm) | Wet on wet primers | 1.8 – 2.0bar | 255LPM | 172g/min | 18 – 20cm | 260mm |
| 1.40 (1.40mm) | Wet on wet primers | 1.8 – 2.0bar | 255LPM | 179g/min | 18 – 20cm | 280mm |
| GTO 64S/62S Conventional (CA) Aircap Ideal for fillers. | ||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 62S (2.80mm) | Fillers | 2.0 – 2.5bar | 270LPM | 397g/min | 18 – 20cm | 250mm |
| 64S (2.20mm) | Fillers | 2.0 – 2.5bar | 310LPM | 300g/min | 18 – 20cm | 300mm |
| GTO HVLP High Volume Low Pressure (HVLP) Aircap Ideal for sanding surfacers basecoats. | ||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.20 (1.20mm) | Basecoats | 1.8 – 2.0bar | 360LPM | 149g/min | 18 – 20cm | 265mm |
| 1.30 (1.30mm) | Basecoats | 1.8 – 2.0bar | 360LPM | 145g/min | 18 – 20cm | 245mm |
| 1.40 (1.40mm) | Basecoats | 1.8 – 2.0bar | 360LPM | 161g/min | 18 – 20cm | 250mm |
| 1.60 (1.60mm) | Sanding surfacers | 1.5 – 2.0bar | 360LPM | 172g/min | 18 – 20cm | 260mm |
| 1.80 (1.80mm) | Sanding surfacers | 1.5 – 2.0bar | 360LPM | 193g/min | 18 – 20cm | |
| GTO TECH Conventional (CA) Aircap Ideal for clearcoats. | ||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.20 (1.20mm) | Basecoats Clearcoats | 1.8 – 2.2bar | 285LPM | 154g/min | 18 – 20cm | 295mm |
| 1.30 (1.30mm) | Basecoats Clearcoats | 1.8 – 2.2bar | 285LPM | 169g/min | 18 – 20cm | 305mm |
| 1.40 (1.40mm) | Basecoats Clearcoats | 1.8 – 2.2bar | 285LPM | 179g/min | 18 – 20cm | 315mm |
Specifications
| Model | Sagola 3300 GTO |
| Cup Capacity | 650ml |
| Cup Type | Removable Anti-Drip System |
| Air Inlet Couplings | 6.35mm Male BSP |
| Paint Filter | 80 mesh |
| Weight with Supplied Cup | 662.4g |
| Weight without Cup | 474.8g |
| Dimensions without Cup (W x D x H) | 181.4 x 19 x 178.99mm |
| Sound Pressure Level (Average) | 80 dB |
| Pressure Gauge Range | 0 – 10bar |
| Compliance | ATEX II 2G x (Directive 2014/34/EU) |
Data Sheet
Part Numbers
 | SAGOLA 3300 GTO Gravity Spray Gun, GTO EPA Aircap – 1.40 Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.40m needle and nozzle size and GTO EPA Conventional (CA) Aircap. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10141562 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO EPA Aircap – 1.60 Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.60mm needle and nozzle size and GTO EPA Conventional (CA) Aircap. | |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10141563 | |
| Sagola 3300 GTO Gravity Spray Gun, GTO EPA Aircap – 1.80mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.80mm needle and nozzle size and GTO EPA Conventional (CA) Aircap. | |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| 3300 GTO Aircap Type: GTO EPA | |
| Part Number : PG10141564 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO EVO Aircap – 1.30mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.30mm needle and nozzle size and a GTO EVO Conventional (CA) Aircap, ideal for wet on wet primers. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| 3300 GTO Aircap Type: GTO EVO | |
| Part Number : PG10141559 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO EVO Aircap – 1.40mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.40mm needle and nozzle size and a GTO EVO Conventional (CA) Aircap, ideal for wet on wet primers. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO EVO | |
| Part Number : PG10141560 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap – 1.20mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.20mm needle and nozzle size and a GTO HVLP Aircap. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141569 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap – 1.30mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.30mm needle and nozzle size and a GTO HVLP Aircap. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141570 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap – 1.40mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.40mm needle and nozzle size and a GTO HVLP Aircap. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141555 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap – 1.60mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.60mm needle and nozzle size and a GTO HVLP Aircap. | |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141556 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap – 1.80mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.80mm needle and nozzle size and a GTO HVLP Aircap | |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141557 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO 64S Aircap – 2.20mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 2.20mm needle and nozzle size and a GTO 64S Conventional (CA) Aircap, ideal for fillers | |
| Needle & Nozzle Size: 2.20 (2.20mm) | |
| DVR Aircap Type: 64S | |
| Part Number : PG10141572 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO 62S Aircap – 2.80mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 2.80mm needle and nozzle size and a GTO 62S Conventional (CA) Aircap, ideal for fillers | |
| Needle & Nozzle Size: 2.80 (2.80mm) | |
| 3300 GTO Aircap Type: GTO 62S | |
| Part Number : PG10141574 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO TECH Aircap – 1.20mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.20mm needle and nozzle size and GTO TECH Conventional (CA) Aircap. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141566 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO TECH Aircap – 1.30mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.30mm needle and nozzle size and GTO TECH Conventional (CA) Aircap. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141567 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO TECH Aircap – 1.40mm Needle & Nozzle Kit |
| Sagola 3300 GTO Gravity Spray Gun supplied with a 1.40mm needle and nozzle size and GTO TECH Conventional (CA) Aircap | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141568 | |
| SAGOLA 3300 GTO Car Gravity Spray Gun, GTO HVLP Aircap – 1.20mm Needle & Nozzle Kit (Supplied with RC2 Flow Regulator) |
| Sagola 3300 GTO Car Gravity Spray Gun supplied with a 1.20mm needle and nozzle size and a GTO HVLP Aircap. This product comes with a RC2 Flow Regulator. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141553 | |
| SAGOLA 3300 GTO Car Gravity Spray Gun, GTO HVLP Aircap – 1.30mm Needle & Nozzle Kit (Supplied with RC2 Flow Regulator) |
| Sagola 3300 GTO Car Gravity Spray Gun supplied with a 1.30mm needle and nozzle size and a GTO HVLP Aircap. This product comes with a RC2 Flow Regulator | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| 3300 GTO Aircap Type: GTO HVLP | |
| Part Number : PG10141554 | |
| SAGOLA 3300 GTO Car Gravity Spray Gun, GTO TECH Aircap – 1.20mm Needle & Nozzle Kit (Supplied with RC2 Flow Regulator) |
| Sagola 3300 GTO Car Gravity Spray Gun supplied with a 1.20mm needle and nozzle size and a GTO TECH Aircap. This product comes with a RC2 Flow Regulator. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141550 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO TECH Aircap – 1.30mm Needle & Nozzle Kit (Supplied with RC2 Flow Regulator) |
| Sagola 3300 GTO Car Gravity Spray Gun supplied with a 1.30mm needle and nozzle size and a GTO TECH Aircap. This product comes with a RC2 Flow Regulator. | |
| Needle & Nozzle Size: 1.30 (1.30mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141551 | |
| SAGOLA 3300 GTO Gravity Spray Gun, GTO TECH Aircap – 1.40mm Needle & Nozzle Kit (Supplied with RC2 Flow Regulator) |
| Sagola 3300 GTO Car Gravity Spray Gun supplied with a 1.40mm needle and nozzle size and a GTO TECH Aircap. This product comes with a RC2 Flow Regulator. | |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| 3300 GTO Aircap Type: GTO TECH | |
| Part Number : PG10141552 |
Accessories
| Reusable Gravity Cup – Aluminium | ||
 | Part Number: | PT56418082 |
| 1 Litre | ||
| Product Mini FIlter (x10) | ||
 | Part Number: | PT56418438 |
| Can be used with: | PT56418084, PT56418432, PT56418082 & PT56418433 | |
| Lubricant Grease (SAE 10) | ||
 | Part Number: | PT56418589 |
| 100ml | ||
| Spray Gun Cleaning Kit | ||
 | Part Number: | PT40000086 |
| Magnetic Stand for One Spray Gun | ||
 | Part Number: | PT40000245 |
| Magnetic Stand for Two Spray Guns | ||
 | Part Number: | PT40000246 |
| Spray Gun & Accessories Locker | ||
 | Part Number: | PT70000010 |
| Sagola 3300 GTO: 1.30mm Needle & Nozzle Kit | ||
 | Part Number: | PT10011191 |
| Sagola 3300 GTO: 1.40mm Needle & Nozzle Kit | ||
| Part Number: | PT10011181 |
| Sagola 3300 GTO: 1.60mm Needle & Nozzle Kit | ||
| Part Number: | PT10011182 |
| Sagola 3300 GTO: 1.80mm Needle & Nozzle Kit | ||
| Part Number: | PT10011183 |
| Sagola 3300 GTO: 2.20mm Needle & Nozzle Kit | ||
| Part Number: | PT10011192 |
| Sagola 3300 GTO: 2.80mm Needle & Nozzle Kit | ||
| Part Number: | PT10011190 |
| RC2 Economy Air Flow Regulator with Analogue Pressure Gauge | ||
 | Part Number: | PT40000335 |
| Coupling for Disposable Gravity Cup – 3M PPS | ||
 | Part Number: | PT55711612 |
| Coupling for Disposable Gravity Cup – MIPA-CARWOX | ||
 | Part Number: | PT55711616 |
| Coupling for Disposable Gravity Cup – GERSON-NORTON | ||
 | Part Number: | PT55711614 |
| Coupling for Disposable Gravity Cup – FLEXI-CUP | ||
 | Part Number: | PT55711615 |
| Coupling for Disposable Gravity Cup – DEVILBISS-DEKUPS | ||
 | Part Number: | PT55711618 |
| Coupling for Disposable Gravity Cup – SATA RPS | ||
 | Part Number: | PT55711620 |
| Gravity Cup Pressure Kit | ||
 | Part Number: | PT56418513 |
| Sagola 3300 GTO: EPA Aircap | ||
 | Part Number: | PT56418645 |
| Sagola 3300 GTO: EVO Aircap | ||
 | Part Number: | PT56418558 |
| Sagola 3300 GTO: HVLP Aircap | ||
 | Part Number: | PT56418552 |
| Sagola 3300 GTO: 62S Aircap | ||
 | Part Number: | PT56418647 |
| Sagola 3300 GTO: TECH Aircap | ||
 | Part Number: | PT56418551 |
| Sagola 3300 GTO: 1.20mm Needle & Nozzle Kit | ||
 | Part Number: | PT10011180 |
| Sagola 3300 GTO: 2.00mm Needle & Nozzle Kit | ||
| Part Number: | PT10011188 |
| Sagola 3300 GTO: 2.50mm Needle & Nozzle Kit | ||
| Part Number: | PT10011189 |
