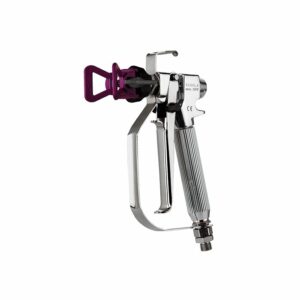

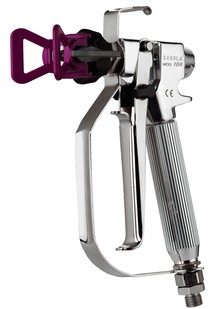

Sagola 104 PSAM Airless Pressure Spray Gun
Product Description
Designed for pneumatic and electric airless system up to 250bar, the Sagola 104 PSAM Airless Pressure Spray Gun is ideal for all types of medium viscosity products.
Ideal for continuous use
Lightweight and comfortable design ensures the gun can be used over a prolonged performance.
Robust and durable
Seats and closures within the spray gun are manufactured in tungsten carbide.
Easy to use
Incorporates a ¼” revolving coupling and filter holder.
Specifications
| Model | Sagola 104 PSAM Airless Pressure Spray Gun | ||
| Dimensions | 210 x 19 x 130 mm | ||
| Weight | 464g | ||
| Product Inlet Coupling | 6.35mm BSP Male | ||
| Product Filter | White (50 Mesh); Yellow (100 Mesh); Red (200 Mesh) | ||
| Maximum Working Pressure | 250bar | ||
| Average Sound Pressure Level | 80 dB | ||
| Materials in contact with product | Anodized aluminium, chromed aluminium, POM, INOX, Teflon and Nylon | ||
Packing List
| Sagola 104 PSAM Pressure Spray Gun |
| Cleaning Needle |
| Wrench (x2) |
| Reversible Airless Spray Tip Guard |
| Spray Gun Product Filter – 100 Mesh (Yellow x 1) |
| Airless Spray Tip not included |
Application Guide
Reversible Airless Tips
| Application | Reversible Tip | Nozzle | Spray Angle | Spray width at 30cm | Air flow at 100bar | Part Number | Product Filter |
|---|---|---|---|---|---|---|---|
| Finishes | 09/20 | 0.23mm | 20° | 140mm | 0.25lpm | PT81461105 | |
| 09/40 | 0.23mm | 40° | 178mm | 0.25lpm | PT81461106 | ||
| 11/20 | 0.28mm | 20° | 153mm | 0.37lpm | PT81461108 | ||
| 11/40 | 0.28mm | 40° | 190mm | 0.37lpm | PT81461109 | ||
| Basecoats and Primers | 13/20 | 0.33mm | 20° | 140mm | 0.57lpm | PT81461111 | |
| 13/40 | 0.33mm | 40° | 178mm | 0.57lpm | PT81461112 | ||
| 15/20 | 0.38mm | 20° | 148mm | 0.57lpm | PT81461115 | ||
| 15/40 | 0.38mm | 40° | 178mm | 0.72lpm | PT81461116 | ||
| 16/40 | 0.38mm | 40° | 178mm | 0.80lpm | PT81461120 | ||
| High viscosity products | 17/40 | 0.43mm | 40° | 254mm | 0.98lpm | PT81461124 | |
| 17/60 | 0.43mm | 60° | 320mm | 0.98lpm | PT81461125 | ||
| 18/40 | 0.46mm | 40° | 254mm | 1.10lpm | PT81461128 | ||
| 18/60 | 0.46mm | 60° | 330mm | 1.10lpm | PT81461129 | ||
| 19/40 | 0.48mm | 40° | 254mm | 1.30lpm | PT81461133 | ||
| 21/40 | 0.53mm | 40° | 279mm | 1.52lpm | PT81461138 | ||
| Thick Coats | 23/40 | 0.58mm | 40° | 280mm | 1.83lpm | PT81461143 | |
| 25/40 | 0.63mm | 40° | 305mm | 2.13lpm | PT81461148 | ||
| 25/60 | 0.63mm | 60° | 406mm | 2.13lpm | PT81461149 | ||
| 31/60 | 0.78mm | 60° | 400mm | 2.42lpm | PT81461164 |
Airless Fixed Tips
| Application | Fixed Tip | Nozzle | Spray Angle | Spray width at 30cm | Air flow at 100bar | Part Number | Product Filter |
|---|---|---|---|---|---|---|---|
| Finishes | 09/25 | 0.23mm | 25° | 140mm | 0.25lpm | PT81460641 | |
| 09/40 | 0.23mm | 40° | 178mm | 0.25lpm | PT81460642 | ||
| 09/65 | 0.23mm | 65° | 235mm | 0.25lpm | PT81460644 | ||
| 11/40 | 0.28mm | 40° | 190mm | 0.37lpm | PT81460650 | ||
| High viscosity products | 13/25 | 0.33mm | 25° | 140mm | 0.57lpm | PT81460661 | |
| 13/40 | 0.33mm | 40° | 178mm | 0.57lpm | PT81460662 | ||
| 13/65 | 0.33mm | 65° | 254mm | 0.57lpm | PT81460665 | ||
| 13/80 | 0.33mm | 80° | 292mm | 0.57lpm | PT81460666 | ||
| 15/25 | 0.38mm | 25° | 178mm | 0.98lpm | PT81460672 | ||
| 15/40 | 0.38mm | 40° | 216mm | 0.98lpm | PT81460673 | ||
| 15/50 | 0.38mm | 50° | 254mm | 0.98lpm | PT81460674 | ||
| 15/65 | 0.38mm | 65° | 279mm | 0.98lpm | PT81460675 | ||
| 15/80 | 0.38mm | 80° | 330mm | 0.98lpm | PT81460676 | ||
| Thick Coats | 17/100 | 0.43mm | 100° | 380mm | 1.30lpm | PT81460627 | |
| 18/40 | 0.46mm | 40° | 254mm | 1.12lpm | PT81460698 | ||
| 18/65 | 0.46mm | 65° | 330mm | 1.12lpm | PT81460701 | ||
| 21/40 | 0.53mm | 40° | 279mm | 1.52lpm | PT81460714 |
Data Sheet
Sagola 104 PSAM Airless Pressure Spray Gun Data Sheet
Sagola 104 PSAM Airless Pressure Spray Gun Accessories Data Sheet
Part Numbers
 |
Sagola 104 PSAM Airless Spray Gun with Reversible Tip Spray Guard |
| Part Number : PG30170109 | |
| Sagola 104 PSAM Product Needle & Nozzle Kit (including washers) | |
| Part Number : PT56418230 | |
Accessories
| Lubricant Grease (SAE 10), 100ml | ||
 |
Part Number: | PT56418589 |
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Magnetic Stand for One Spray Gun | ||
 |
Part Number: | PT40000245 |
| Magnetic Stand for Two Spray Guns | ||
 |
Part Number: | PT40000246 |
| Spray Gun Product Filter (White) 50 Mesh, Pack of 10 | ||
 |
Part Number: | PT30010008 |
| Spray Gun Product Filter (Yellow) 100 Mesh, Pack of 10 | ||
 |
Part Number: | PT30010009 |
| Spray Gun Product Filter (Red) 200 Mesh, Pack of 10 | ||
 |
Part Number: | PT30010010 |
| Reversible Airless Tip Spray Guard | ||
 |
Part Number: | PT81461101 |
| Fixed Airless Tip Spray Guard | ||
 |
Part Number: | PT56418698 |
| Sagola 500 PSAM GRACO RAC Tip Adapter | ||
 |
Part Number: | PT49000353 |
| Airless Spray Tip Cleaning Needles, Pack of 12 | ||
 |
Part Number: | PT30010207 |
| Sagola 104 & 107 PSAM Angular Head | ||
 |
Part Number: | PT30990371 |
| Airless Spray Gun Extension: 300mm | ||
 |
Part Number: | PT30010302 |
| Airless Spray Gun Extension: 500mm | ||
 |
Part Number: | PT30010303 |
| Airless Spray Gun Extension: 1000mm | ||
 |
Part Number: | PT30010304 |
| Airless Spray Gun Extension: 150mm / 45 Degree | ||
 |
Part Number: | PT30010301 |
| 09/20 Sagola Reversible Airless Pressure Spray Gun Tips | ||
 |
Part Number: | PT81461105 |
| 09/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461106 |
| 11/20 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461108 |
| 11/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461109 |
| 13/20 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461111 |
| 13/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461112 |
| 15/20 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461115 |
| 15/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461116 |
| 16/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461120 |
| 17/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461124 |
| 17/60 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461125 |
| 18/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461128 |
| 18/60 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461129 |
| 19/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461133 |
| 21/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461138 |
| 23/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461143 |
| 25/40 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461148 |
| 25/60 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461149 |
| 31/60 Sagola Reversible Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81461164 |
| 09/25 Sagola Fixed Airless Pressure Spray Gun Tips | ||
 |
Part Number: | PT81460641 |
| 09/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460642 |
| 09/65 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460644 |
| 11/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460650 |
| 13/25 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460661 |
| 13/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460662 |
| 13/65 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460665 |
| 13/80 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460666 |
| 15/25 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460672 |
| 15/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460673 |
| 15/50 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460674 |
| 15/65 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460675 |
| 15/80 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460676 |
| 17/100 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460627 |
| 18/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460698 |
| 18/65 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460701 |
| 21/40 Sagola Fixed Airless Pressure Spray Gun Tips | ||
|
Part Number: | PT81460714 |
