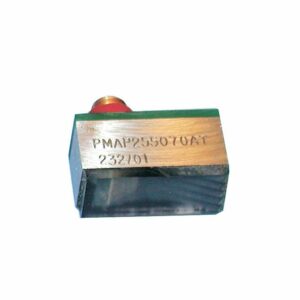

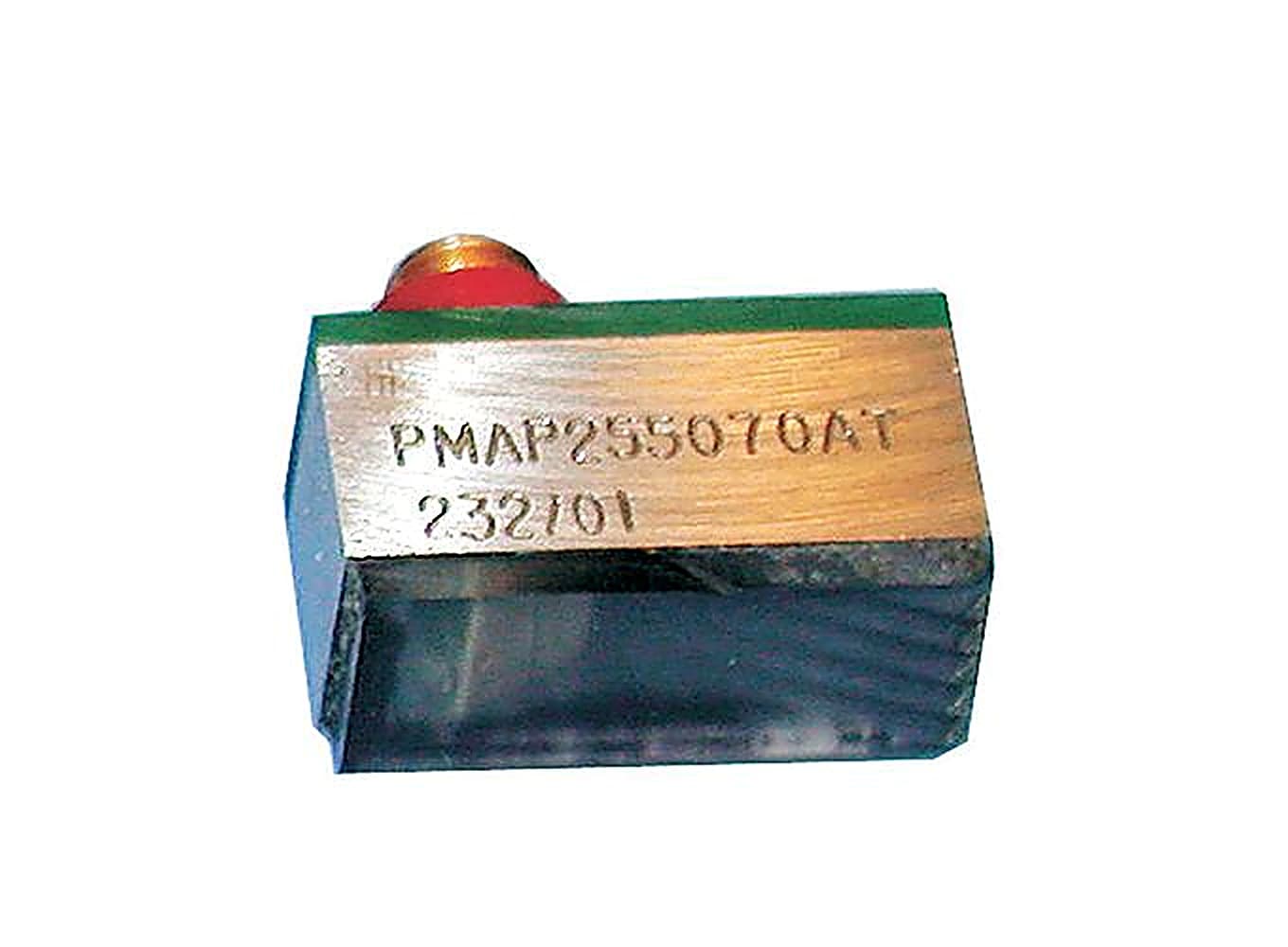

Dakota Mini Angle Beam Potted – Mini Transducers
Product Description
Mini Angle Beam Potted – Mini Transducers are single element, designed with stainless steel housing for durability. Available in a variety of fixed angles, including 45°, 60° or 70°, to produce the required shear waves. These transducers are used in conjunction with the ‘Trigonometry’ function of the gauge.
Technical Specifications
| Connector Type | Suitable for | ||||||||
| Part Number | Probe Diameter | Angle | Damping | Microdot | Side | FX70 | FX71 | FX80 | FX81 |
| 5.00 MHz Mini Angle Beam Potted – Mini Transducers | |||||||||
| MMAP185045 | 3/16″ | 45° | M | ■ | ■ | ■ | ■ | ■ | ■ |
| MMAP185060 | 3/16″ | 60° | M | ■ | ■ | ■ | ■ | ■ | ■ |
| MMAP185070 | 3/16″ | 70° | M | ■ | ■ | ■ | ■ | ■ | ■ |
| 10.00 MHz Mini Angle Beam Potted – Mini Transducers | |||||||||
| MMAP181045 | 3/16″ | 45° | M | ■ | ■ | ■ | ■ | ■ | ■ |
| MMAP181060 | 3/16″ | 60° | M | ■ | ■ | ■ | ■ | ■ | ■ |
| MMAP181070 | 3/16″ | 70° | M | ■ | ■ | ■ | ■ | ■ | ■ |
M – Medium Damped Transducer
Accessories
| Description | Part Number |
| Ultrasonic Couplant; 120ml bottle | V-000-0001 |
| Ultrasonic Couplant; 360ml bottle | V-000-0003 |
| Ultrasonic Couplant; 4.5L | V-000-0004 |
| High Temperature Ultrasonic Couplant; 60ml | V-000-0002 |
| T/Cable: 1.2m Single Lemo 00 to BNC | N-104-0070 |
| T/Cable: 1.2m Single Lemo 00 to Lemo 00 | N-104-0000 |
| T/Cable: 1.2m Single Lemo 00 to Microdot | N-104-0020 |
| T/Cable: 1.2m Dual Lemo 00 to BNC | TL-24030-5 |
| T/Cable: 1.2m Dual Lemo to Lemo | N-204-0000 |
| T/Cable: 1.2m Dual Lemo to Microdot | N-204-0020 |
| T/Cable: 1.2m Dual Lemo to Microdot Single | N-104-0021 |
| RS232 Cable 1.8m; DB-9 to Lemo | TL-24031 |
| USB to Serial Converter | TL-24032 |
| Cone Tip Delay Line: Acrylic; 1/8″ | X-132-0000 |
| Cone Tip Delay Line: Acrylic; 3/16″ | X-532-0000 |
| Cone Tip Delay Line: Graphite; 3/16″ | X-533-0000 |
| Delay Line Tip (Pencil): Acrylic; 1/16″ Dia x 0.45″ L | X-152-0000 |
| Delay Line Tip (Pencil): Acrylic; 1/8″ Dia x 0.45″ L | X-752-0000 |
| Delay Line Tip: Acrylic; 1/4″ Dia x 1/2″ L | F-000-7103 |
| Delay Line Tip: Acrylic; 1/4″ Dia x 3/8″ L | F-000-7102 |
| Delay Line Tip: Graphite; 1/4″ | X-633-0000 |
| 6″ Ext Wand for S/E Microdot Transducers | TZ-24035 |
Part Numbers
| Description | Part Numbers |
| 5.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP185045 |
| 5.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP185060 |
| 5.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP185070 |
| 10.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP181045 |
| 10.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP181060 |
| 10.00 MHz Mini Angle Beam Potted – Mini Transducers | MMAP181070 |
| 2.25 MHz Mini Angle Beam Potted Transducers | MAP182570 |
| 2.25 MHz Mini Angle Beam Potted Transducers | MAP252570 |
| 2.25 MHz Mini Angle Beam Potted Transducers | MAP372570 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP375045 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP185045 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP255045 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP185060 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP255060 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP375060 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP185070 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP255070 |
| 5.00 MHz Mini Angle Beam Potted Transducer | MAP375070 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP181045 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP251045 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP371045 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP181060 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP251060 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP371060 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP181070 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP251070 |
| 10.0 MHz Mini Angle Beam Potted Transducers | MAP371070 |
