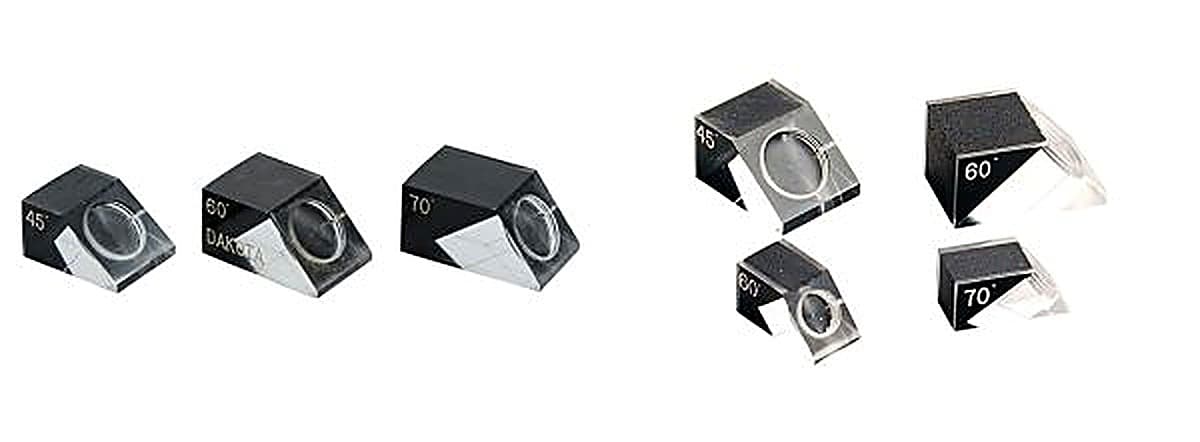

Dakota Transducer Wedges
Product Description

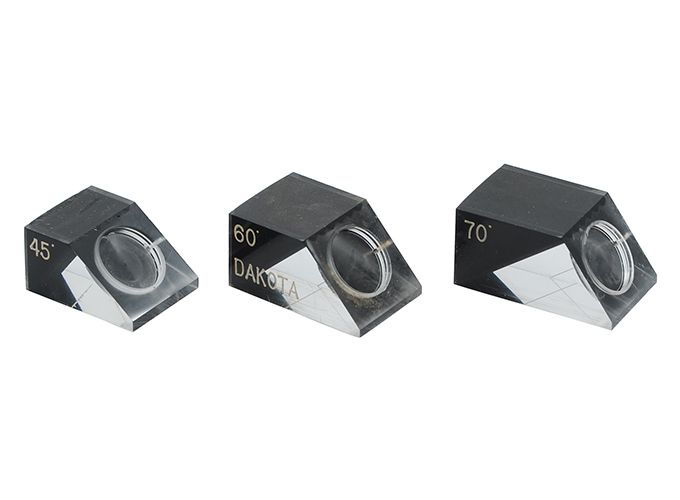

Transducer Wedges are designed for use with the Shear Wave Standard Transducers and Shear Wave Quick Change Transducers.

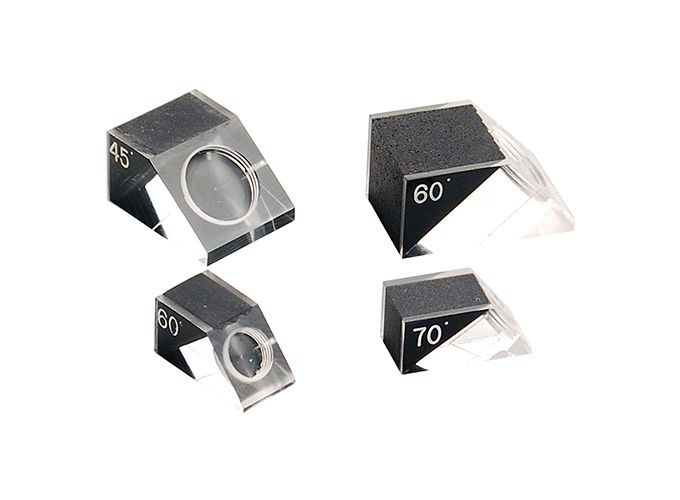

The transducer wedges for the Shear Wave Standard Transducers are fixed to the transducer with two screws, whilst the quick change wedges for the Shear Wave Quick Change Transducers are threaded.
The transducer wedges increase the versatility of the transducer enabling it to become an angle transducer of 45°, 60° or 70°. This allows the transducer to produce shear waves and can be used with the ‘Trigonometry’ function of the gauge.
Technical Specifications
Part Number | Probe Diameter | Angle |
Wedge – Standard Transducers | ||
Angle beam wedge for standard shear wave transducers. | ||
SW5045 | 1/2 x 1/2″ | 45° |
SW5145 | 1/2 x 1″ | 45° |
SW6245 | 5/8 x 5/8″ | 45° |
SW5060 | 1/2 x 1/2″ | 60° |
SW5160 | 1/2 x 1″ | 60° |
SW6260 | 5/8 x 5/8″ | 60° |
SW5070 | 1/2 x 1/2″ | 70° |
SW5170 | 1/2 x 1″ | 70° |
SW6270 | 5/8 x 5/8″ | 70° |
Wedge – Snail Transducers | ||
Angle beam wedge meeting American Welding society standards for use with standard shear wave transducers. | ||
SNW6245 | 5/8 x 5/8″ | 45° |
SNW6260 | 5/8 x 5/8″ | 60° |
SNW6270 | 5/8 x 5/8″ | 70° |
Wedge – Standard Quick Change Transducers | ||
Angle beam wedge designed for quick change transducers | ||
QW2545 | 1/4″ | 45° |
QW3745 | 3/8” | 45° |
QW5045 | 1/2″ | 45° |
QW2560 | 1/4″ | 60° |
QW3760 | 3/8” | 60° |
QW5060 | 1/2″ | 60° |
QW2570 | 1/4″ | 70° |
QW3770 | 3/8” | 70° |
QW5070 | 1/2″ | 70° |
Wedge – Serrated Square | ||
SQW6245 | 5/8 x 5/8″ | 45° |
SQW6260 | 5/8 x 5/8″ | 60° |
SQW6270 | 5/8 x 5/8″ | 70° |
Wedge – Quick Change Prove Up | ||
QAW6245 | 5/8 x 5/8″ | 45° |
QAW6260 | 5/8 x 5/8″ | 60° |
QAW6270 | 5/8 x 5/8″ | 70° |
Part Numbers
Wedge – Standard Transducers | ||
![]() | Part Number: | SW6270 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5170 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5070 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW6260 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5160 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5060 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW6245 |
Wedge – Snail Transducers | ||
![]() | Part Number: | SNW6245 |
Wedge – Snail Transducers | ||
![]() | Part Number: | SNW6260 |
Wedge – Snail Transducers | ||
![]() | Part Number: | SNW6270 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW5070 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW3770 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW2570 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW5060 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW3760 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW2560 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW5045 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW3745 |
Wedge – Standard Quick Change Transducers | ||
![]() | Part Number: | QW2545 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5145 |
Wedge – Standard Transducers | ||
![]() | Part Number: | SW5045 |
Wedge – Serrated Square | ||
![]() | Part Number: | SQW6245 |
Wedge – Serrated Square | ||
![]() | Part Number: | SQW6260 |
Wedge – Serrated Square | ||
![]() | Part Number: | SQW6270 |
Wedge – Quick Change Prove Up | ||
![]() | Part Number: | QAW6245 |
Wedge – Quick Change Prove Up | ||
![]() | Part Number: | QAW6260 |
Wedge – Quick Change Prove Up | ||
![]() | Part Number: | QAW6270 |
