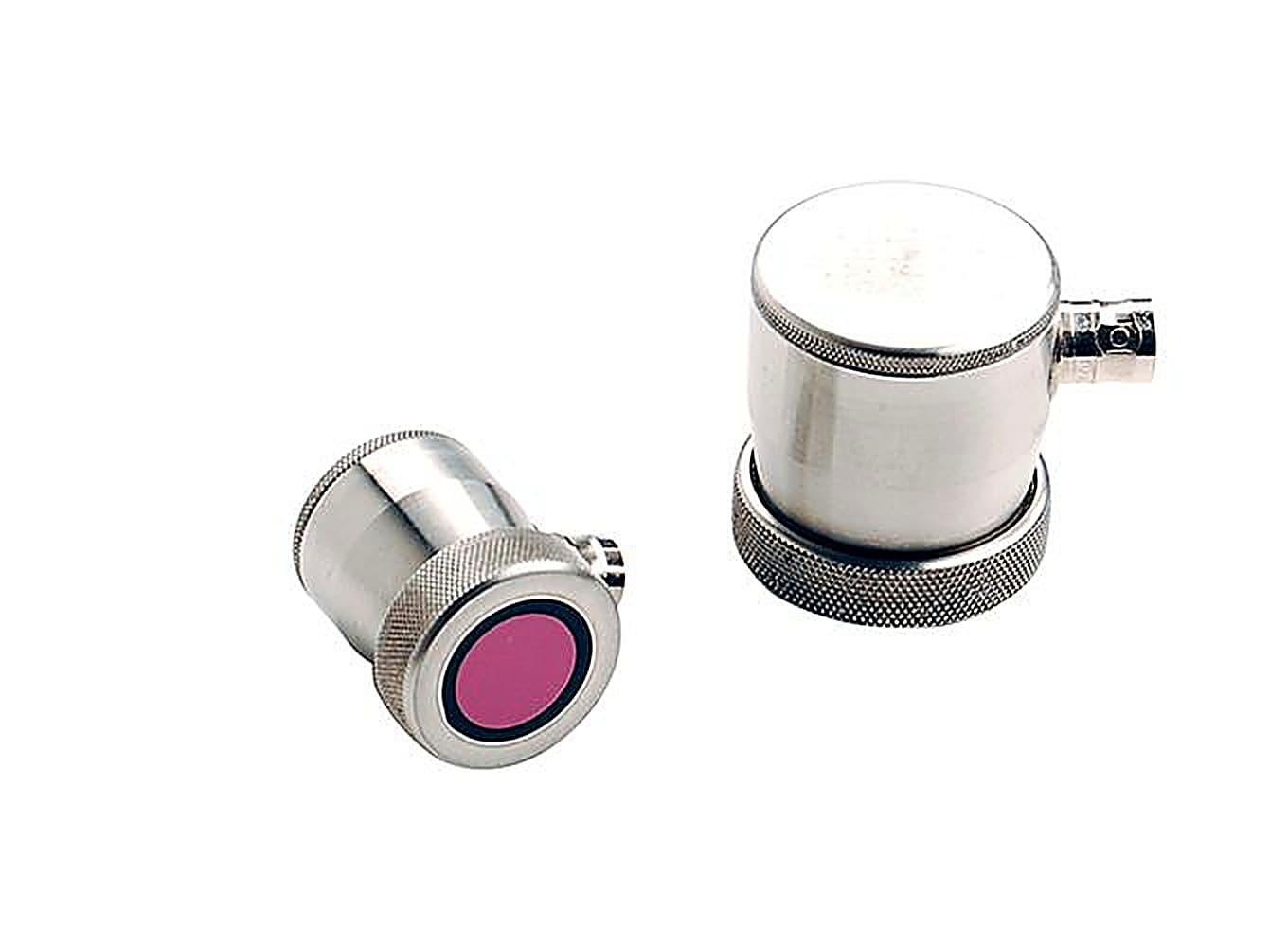

Dakota Single Element Contact Transducers
Product Description
Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials.
Single Element Contact transducers are longitudinal wave transducers that are designed to be used in direct contact with the part or component being inspected.
They are available in multiple configurations, including high wear, fingertip for difficult-to-access areas and membrane in a variety of frequencies.
Technical Specifications
| Connector Type | Suitable for | |||||||||||||
| Part Number | Probe Diameter | Element Type | Probe Characteristic | Damping | Microdot | Lemo | BNC | Top | Side | PZX | PMX | PMX4 | FX70 | FX80 |
| 500kHz Single Element Contact Transducer | ||||||||||||||
| T-857-8608 | 1″ | Single Element Contact | High Penetration | M | ♦ | ♦ | ♦ | |||||||

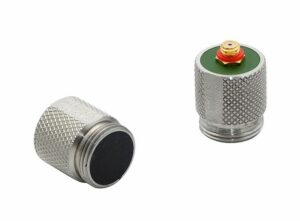

| 1.00MHz Single Element Contact Transducers | ||||||||||||||
| PSLM501B | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM501L | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8041-0868 | 1/2″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-0865 | 1/2″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5043-0865 | 1/2″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM751B | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM751L | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM101B | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM101L | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8071-0868 | 1″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| Dakota 2.25MHz 1/4″ Single Element Contact Non-Magnetic Transducer | ||||||||||||||
| T-4023-1855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-1855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4023-1845 | 1/4″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-1845 | 1/4″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| T-4033-1855 | 3/8” | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5033-1855 | 3/8” | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4033-1845 | 3/8” | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5033-1845 | 3/8” | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM5025B | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM5025L | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8041-1878 | 1/2″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-1855 | 1/2″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5043-1855 | 1/2″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-1845 | 1/2″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5043-1845 | 1/2″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM7525B | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM7525L | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM1025B | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM1025L | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8071-1878 | 1″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| 3.50 MHz Single Element Contact Transducers | ||||||||||||||
| T-4023-9865 | 1/4″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-9865 | 1/4″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4033-9865 | 3/8” | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5033-9865 | 3/8” | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM5035B | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM5035L | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8041-9868 | 1/2″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-9865 | 1/2″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| T-5043-9865 | 1/2″ | Single Element Contact | Finger Tip | S | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| PSLM7535B | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM7535L | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM1035B | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| PSLM1035L | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8071-9868 | 1″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| Dakota 5.00MHz 1/8″ Single Element Contact Non-Magnetic Transducer | ||||||||||||||
| T-4903-2875 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5903-2875 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4023-2855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-2855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4023-2845 | 1/4″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-2845 | 1/4″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4033-2855 | 3/8” | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5033-2855 | 3/8” | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4033-2845 | 3/8” | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5033-2845 | 3/8” | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM5050B | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM5050L | 1/2″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8041-2878 | 1/2″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-2855 | 1/2″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5043-2855 | 1/2″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4043-2845 | 1/2″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5043-2845 | 1/2″ | Single Element Contact | Finger Tip | HG | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM7550B | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM7550L | 3/4″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM1050B | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| SLM1050L | 1″ | Single Element Contact | High Wear | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-8071-2878 | 1″ | Single Element Contact | Membrane | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| 10.00MHz Single Element Contact Transducers | ||||||||||||||
| T-4023-4855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5023-4855 | 1/4″ | Single Element Contact | Finger Tip | R | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-4903-4875 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| T-5903-4875 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |||
| 15.00MHz Single Element Contact Transducers | ||||||||||||||
| FCSL1215 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
| 20.00MHz Single Element Contact Transducers | ||||||||||||||
| FCSL1220 | 1/8” | Single Element Contact | Finger Tip Slim | H | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||||
HG – High Gain Damping Transducers
H – Highly Damped Transducer
S – Standard Undamped Transducer
R – Resolution Transducer
