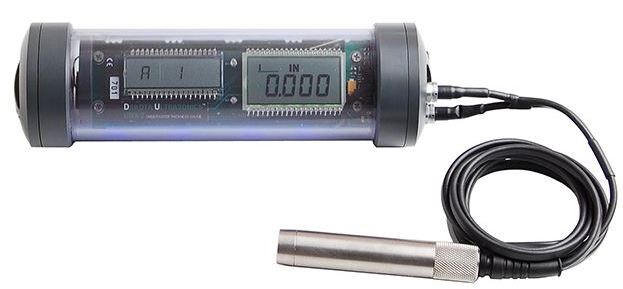

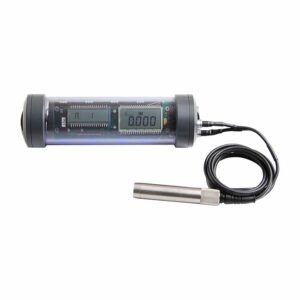

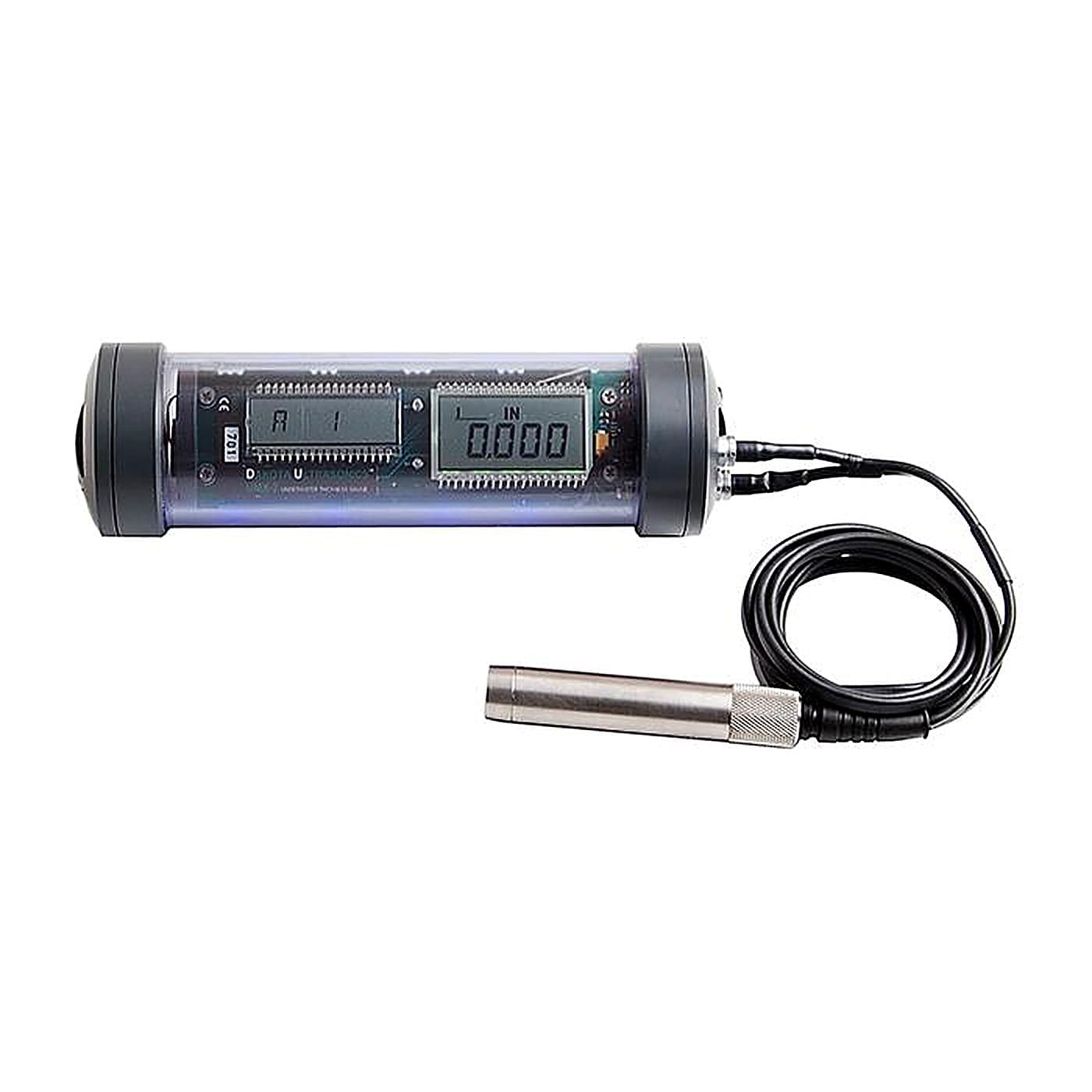

Dakota UX2 Underwater Thickness Gauge
Product Description
The Dakota UX2 Underwater Corrosion Thickness Gauge offers many features and benefits of the CMX series in an easy-to-use brightly lit gauge.
Offering both dual & single element transducers the Dakota UX2 underwater thickness gauge memory allows users to store up to 5,000 individual readings, together with the A-Scan waveform which can be downloaded to the data management software for further analysis on dry land.
Product Features
| Model | UX-2 |
| Display Mode | |
| Material thickness digits display | ♦ |
| Measurement Range | PE: 0.63 – 500mm EE (ThruPaint): 2.54 – 102mm PECT: 0.63 – 500mm PECT: 0.01 – 2.54mm EEV (ThruPaint): 1.00 – 152mm |
| Measurement Resolution | 0.01mm |
| Velocity Calibration Range | 1250 to 13995m/s |
| Manual | 4 readings per second |
| Measurement Rate | |
| Additional Features | – |
| A-Scan | Stored in memory with each reading for review on PC |
| Calibration Setups | 1 user programmable & 8 pre-calibrated velocities for: aluminium, cast iron, iron, PVC, polyurethane, polystyrene, stainless steel & steel |
| Waterproof – depth rating | Maximum depth 300 metres – equivalent to IP68 |
| Pulser Type | Dual square wave pulsers |
| Gain | Manual or automatic gain control (AGC) with 100dB range, or selectable gain: very low (vlow), low, medium, hi (high) or vhi (very high) |
| Timing | Precision temperature-controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer |
| Data Logging | Logging 5,000 with A-scan image & gauge settings in one batch sequential and grid logging alpha-numeric batch identification |
| Data Output | RS232 |
| Calibration Options | Velocity & material type |
| Transducer Probe Type | Dual and Single Element |
| Transducer Frequency Range | 1 – 10MHz |
| Transducer Recognition | Custom automatic (dual transducers) & manual – selectable from a list |
| V-path / dual path error correction | Automatic |
| Probe Zero | Automatic (dual transducers) & manual (via integrated probe disk) |
| Display | 12.7mm 4.5 digit LCD |
| Display Refresh Rate | 25Hz |
| Units (selectable) | mm |
| Backlight | on / off / auto |
| Repeatability / Stability Indicator | ♦ |
| Low Battery Indicator | ♦ |
Technical Specifications
| Part Number | Description |
| Z-185-0001 | Dakota UX2 Underwater Corrosion Thickness Gauge (UMX-2) |
| Operating Temperature | -29 to 60ºC |
| Power Supply | 3 x AA batteries |
| Battery Life | 50 hours on alkaline and 20 hours on NiCad (backlight off), 15 hours on alkaline and 8 hours on NiCad (backlight on) |
| Gauge Weight | 680g – including batteries |
| Gauge Dimensions | 229.0 x 60.33mm |
● Certificate of Calibration supplied as standard
Factory calibration: Traceable to national standards.
Data Sheet
Part Numbers
| Dakota UX2 Underwater Corrosion Thickness Gauge (UMX-2) | ||
 | Part Number: | Z-185-0001 |
Packing List
| Part Description | Z-185-0001 |
| Unit | ♦ |
| Selectable Transducer | ♦ |
| Couplant | ♦ |
| Manual | ♦ |
| Plastic Carrying Case | ♦ |
| Cerificate of Calibration | ♦ |
| AA Batteries | ♦ |
| PC Software | ♦ |
| Data Transfer Cable | ♦ |
| Data Logging Gauges | ♦ |
