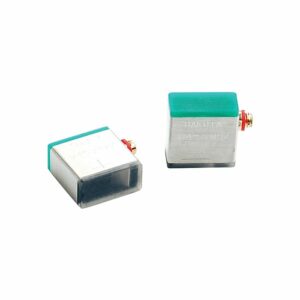

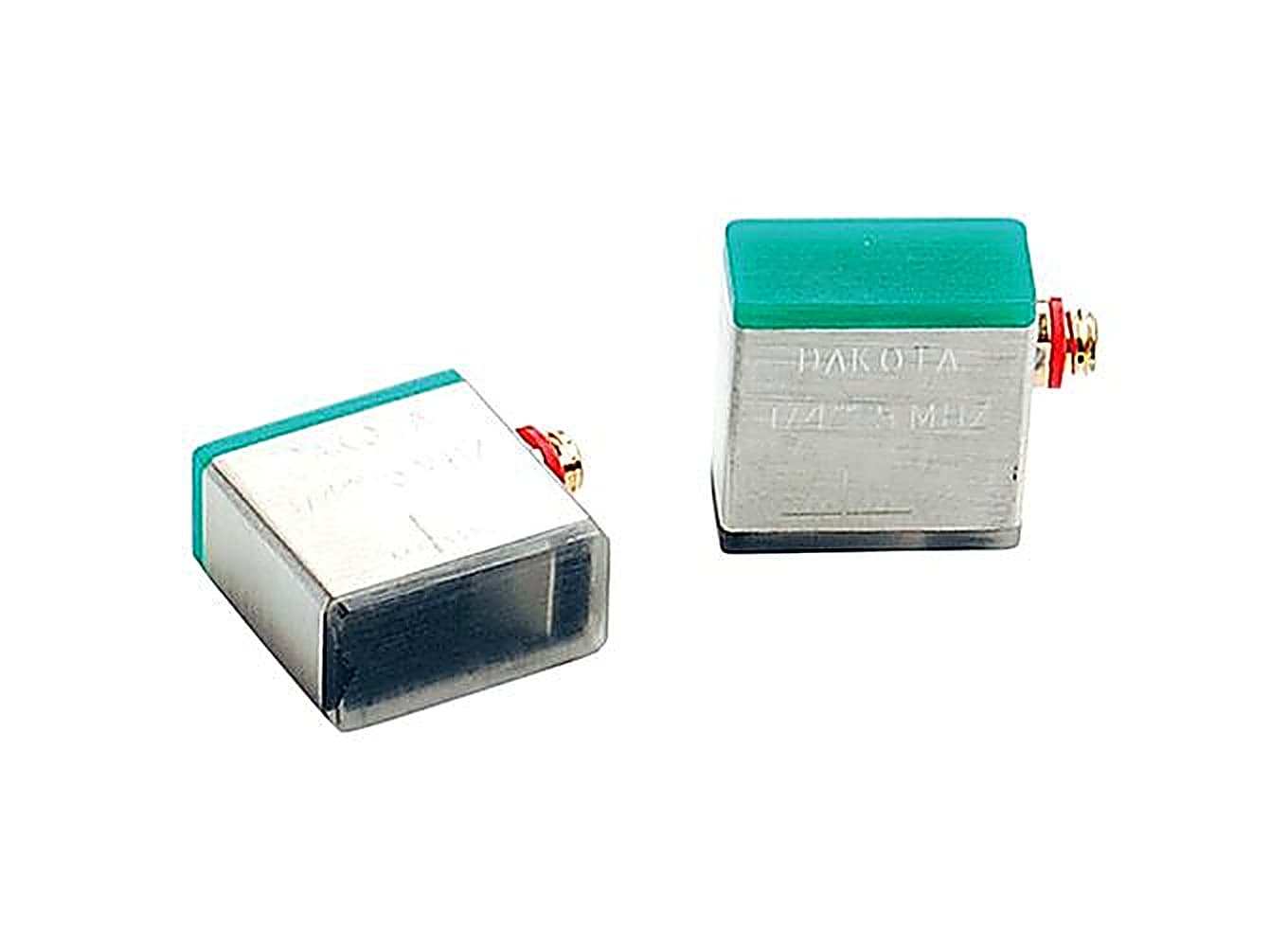

Dakota Mini Angle Beam Potted Transducers
Product Description
Mini Angle Beam Potted Transducers are designed with durable cast housing and are ideal for inspecting general weld, tubes, pipes and smaller objects. Mini Angle Beam Potted Transducers are single element and are available in a variety of fixed angles, including 45°, 60° or 70°, for producing the required shear wave measurements.
The Mini Angle Beam Potted Transducers are used in conjunction with the ‘Trigonometry’ function of the gauge.
Technical Specifications
Connector Type | Suitable for | ||||||||
Part Number | Probe Diameter | Angle | Damping | Microdot | Side | FX70 | FX71 | FX80 | FX81 |
2.25 MHz Mini Angle Beam Potted Transducers | |||||||||
MAP182545 | 3/16″ | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP252545 | 1/4″ | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP372545 | 3/8” | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP182560 | 3/16″ | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP252560 | 1/4″ | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP372560 | 3/8” | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP182570 | 3/16″ | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP252570 | 1/4″ | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP372570 | 3/8” | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
5.00 MHz Mini Angle Beam Potted Transducer | |||||||||
MAP185045 | 3/16″ | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP255045 | 1/4″ | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP375045 | 3/8” | 45° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP185060 | 3/16″ | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP255060 | 1/4″ | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP375060 | 3/8” | 60° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP185070 | 3/16″ | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP255070 | 1/4″ | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
MAP375070 | 3/8” | 70° | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
M – Medium Damped Transducer
Accessories
Ultrasonic Couplant; 120ml bottle | ||
![]() | Part Number: | V-000-0001 |
Ultrasonic Couplant; 360ml bottle | ||
![]() | Part Number: | V-000-0003 |
Ultrasonic Couplant; 4.5L | ||
![]() | Part Number: | V-000-0004 |
High Temperature Ultrasonic Couplant; 60ml | ||
![]() | Part Number: | V-000-0002 |
T/Cable: 1.2m Single Lemo 00 to BNC | ||
![]() | Part Number: | N-104-0070 |
T/Cable: 1.2m Single Lemo 00 to Lemo 00 | ||
![]() | Part Number: | N-104-0000 |
T/Cable: 1.2m Single Lemo 00 to Microdot | ||
![]() | Part Number: | N-104-0020 |
T/Cable: 1.2m Dual Lemo 00 to BNC | ||
![]() | Part Number: | TL-24030-5 |
T/Cable: 1.2m Dual Lemo to Lemo | ||
![]() | Part Number: | N-204-0000 |
T/Cable: 1.2m Dual Lemo to Microdot | ||
![]() | Part Number: | N-204-0020 |
T/Cable: 1.2m Dual Lemo to Microdot Single | ||
![]() | Part Number: | N-104-0021 |
RS232 Cable 1.8m; DB-9 to Lemo | ||
![]() | Part Number: | TL-24031 |
USB to Serial Converter | ||
![]() | Part Number: | TL-24032 |
Cone Tip Delay Line: Acrylic; 1/8″ | ||
![]() | Part Number: | X-132-0000 |
Cone Tip Delay Line: Acrylic; 3/16″ | ||
![]() | Part Number: | X-532-0000 |
Cone Tip Delay Line: Graphite; 3/16″ | ||
![]() | Part Number: | X-533-0000 |
Delay Line Tip (Pencil): Acrylic; 1/16″ Dia x 0.45″ L | ||
![]() | Part Number: | X-152-0000 |
Delay Line Tip (Pencil): Acrylic; 1/8″ Dia x 0.45″ L | ||
![]() | Part Number: | X-752-0000 |
Delay Line Tip: Acrylic; 1/4″ Dia x 1/2″ L | ||
![]() | Part Number: | F-000-7103 |
Delay Line Tip: Acrylic; 1/4″ Dia x 3/8″ L | ||
![]() | Part Number: | F-000-7102 |
Delay Line Tip: Graphite; 1/4″ | ||
![]() | Part Number: | X-633-0000 |
6″ Ext Wand for S/E Microdot Transducers | ||
![]() | Part Number: | TZ-24035 |
Part Numbers
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP182545 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP252545 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP372545 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP182560 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP252560 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP372560 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP182570 |
2.25 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP372570 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP375045 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP185045 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP255045 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP185060 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP255060 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP375060 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP185070 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP255070 |
5.00 MHz Mini Angle Beam Potted Transducer | ||
![]() | Part Number: | MAP375070 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP181045 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP251045 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP371045 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP181060 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP251060 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP371060 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP181070 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP251070 |
10.0 MHz Mini Angle Beam Potted Transducers | ||
![]() | Part Number: | MAP371070 |
