Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle
Product Description

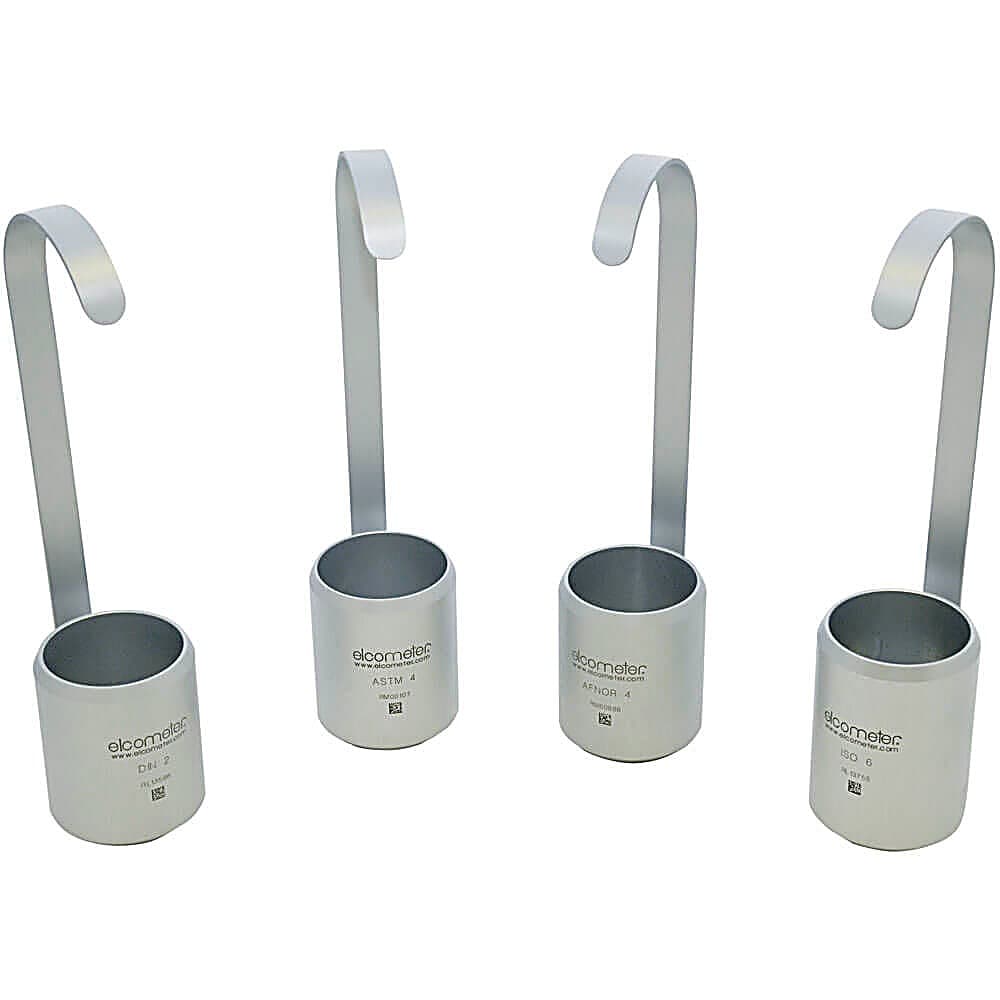

Thanks to its handle, the Elcometer Frikmar Dip Cups are very easy to use to perform checks on site or during the manufacturing process. It is ideal for measuring the consistency of paints, varnishes and similar products.The cup is first dipped into the product to be measured, then the contents empty through the orifice. The measured kinematic viscosity is generally expressed in seconds (s) flow time, which can be converted to Centistokes (cSt) if the Standard stipulates a conversion method.Several ranges are available, according to the Standards being used; from 7 to 1100 cSt.
Specifications
Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Specifications
| DIN VISCOSITY DIP CUPS | |||||
| Part Number | Description | Cup Number | Orifice Diameter |
Range (cSt)1 | Certificate |
| K0002434M001 | Elcometer 2434/1 DIN Dip Cup | 2 | 2mm | – | ◊ |
| K0002434M002 | Elcometer 2434/2 DIN Dip Cup | 4 | 4mm | 96-683 | ◊ |
| K0002434M003 | Elcometer 2434/3 DIN Dip Cup | 6 | 6mm | – | ◊ |
| K0002434M004 | Elcometer 2434/4 DIN Dip Cup | 8 | 8mm | – | ◊ |
| K0002434M001C | Elcometer 2434/1 with calibration certificate | 2(d) | 2mm | – | •(d) |
| K0002434M002C | Elcometer 2434/2 with calibration certificate | 4(e) | 4mm | 96-683 | •(e) |
| K0002434M003C | Elcometer 2434/3 with calibration certificate | 6(d) | 6mm | – | •(d) |
| K0002434M004C | Elcometer 2434/4 with calibration certificate | 8(d) | 8mm | – | •(d) |
STANDARDS:
DIN 53211 (Cup 4 only)
| FORD/ASTM VISCOSITY DIP CUPS | |||||
| Part Number | Description | Cup Number | Orifice Diameter |
Range (cSt)1 | Certificate |
| K0002435M001 | Elcometer 2435/1 FORD/ASTM Dip Cup | 4 | 4.12mm | 70-370 | ◊ |
| K0002435M001C | Elcometer 2435/1 with calibration certificate | 4(e) | 4.12mm | 70-370 | •(e) |
STANDARDS:
ASTM D 1200, ASTM D 5125
| ISO VISCOSITY DIP CUPS | |||||
| Part Number | Description | Cup Number | Orifice Diameter |
Range (cSt)1 | Certificate |
| K0002437M002 | Elcometer 2437/2 ISO Dip Cup | 3 | 3mm | 7-42 | ◊ |
| K0002437M003 | Elcometer 2437/3 ISO Dip Cup | 4 | 4mm | 34-135 | ◊ |
| K0002437M006 | Elcometer 2437/6 ISO Dip Cup | 5 | 5mm | 91-326 | ◊ |
| K0002437M004 | Elcometer 2437/4 ISO Dip Cup | 6 | 6mm | 188-684 | ◊ |
| K0002437M005 | Elcometer 2437/5 ISO Dip Cup | 8 | 8mm | – | |
| K0002437M002C | Elcometer 2437/2 with calibration certificate | 3(e) | 3mm | 7-42 | •(e) |
| K0002437M003C | Elcometer 2437/3 with calibration certificate | 4(e) | 4mm | 34-135 | •(e) |
| K0002437M006C | Elcometer 2437/6 with calibration certificate | 5(e) | 5mm | 91-326 | •(e) |
| K0002437M004C | Elcometer 2437/4 with calibration certificate | 6(e) | 6mm | 188-684 | •(e) |
| K0002437M005C | Elcometer 2437/5 with calibration certificate | 8(d) | 8mm | – | •(d) |
STANDARDS:
AS/NZS 1580.214.6:1995, ISO 2431
| AFNOR VISCOSITY DIP CUPS | |||||
| Part Number | Description | Cup Number | Orifice Diameter |
Range (cSt)1 | Certificate |
| K0002436M001 | Elcometer 2436/1 AFNOR Dip Cup | 4 | 3.99mm | 50-1100 | |
| K0002436M001C | Elcometer 2436/1 with calibration certificate | 4(d) | 3.99mm | 50-1100 | •(d) |
STANDARDS:
NF T30-014
1 For information only
(d) Dimensional certificate
(e) Efflux Time Certificate
• Calibration Certificate supplied as standard
◊ Batch Calibration Certificate supplied as standard
Data Sheet
Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Data Sheet
Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle Data Sheet
Standards
Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Standards
The DIN Frikmar Viscosity Cups can be used in accordance with:
- DIN 53211 (Cup 4 only)
The Ford/ASTM Viscosity Dip Cups can be used in accordance with:
- ASTM D 1200
- ASTM D 5125
The ISO Viscosity Dip Cups can be used in accordance with:
- AS/NZS 1580.214.6:1995
- ISO 2431
The AFNOR Viscosity Dip Cups can be used in accordance with:
- NF T30-014
Standards in not in bold have been superseded but are still recognised in some industries.
Accessories
Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Accessories
 |

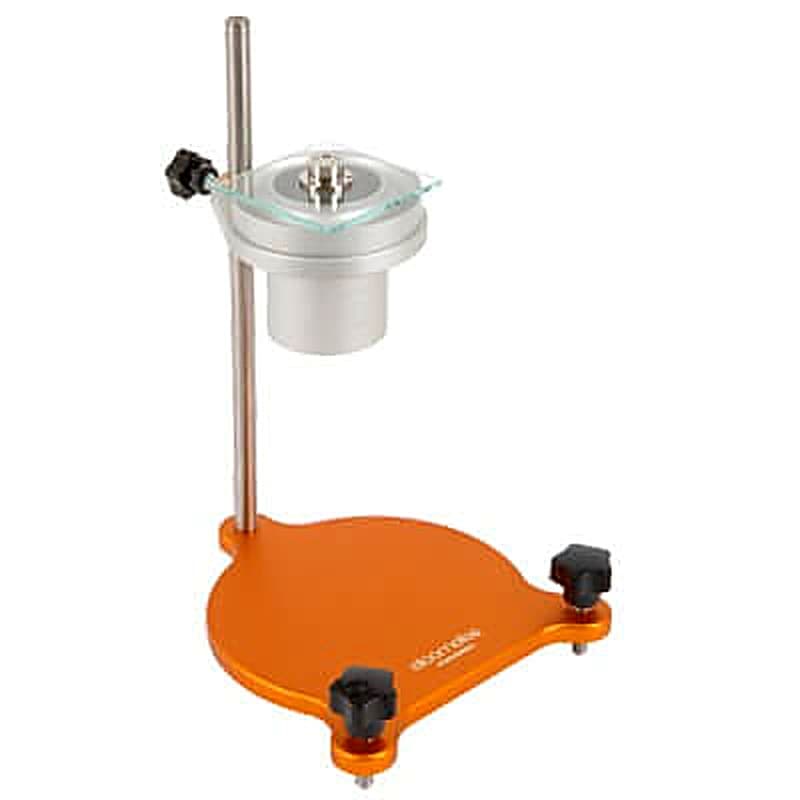

KT002400N001 | Stand with Bubble Level for Cup and Glass Draw Plate |
| KT002400P001 | Bubble Level for Viscosity Cup | |
| KT002400P999 | Viscosity Glass Draw Plate | |
 |

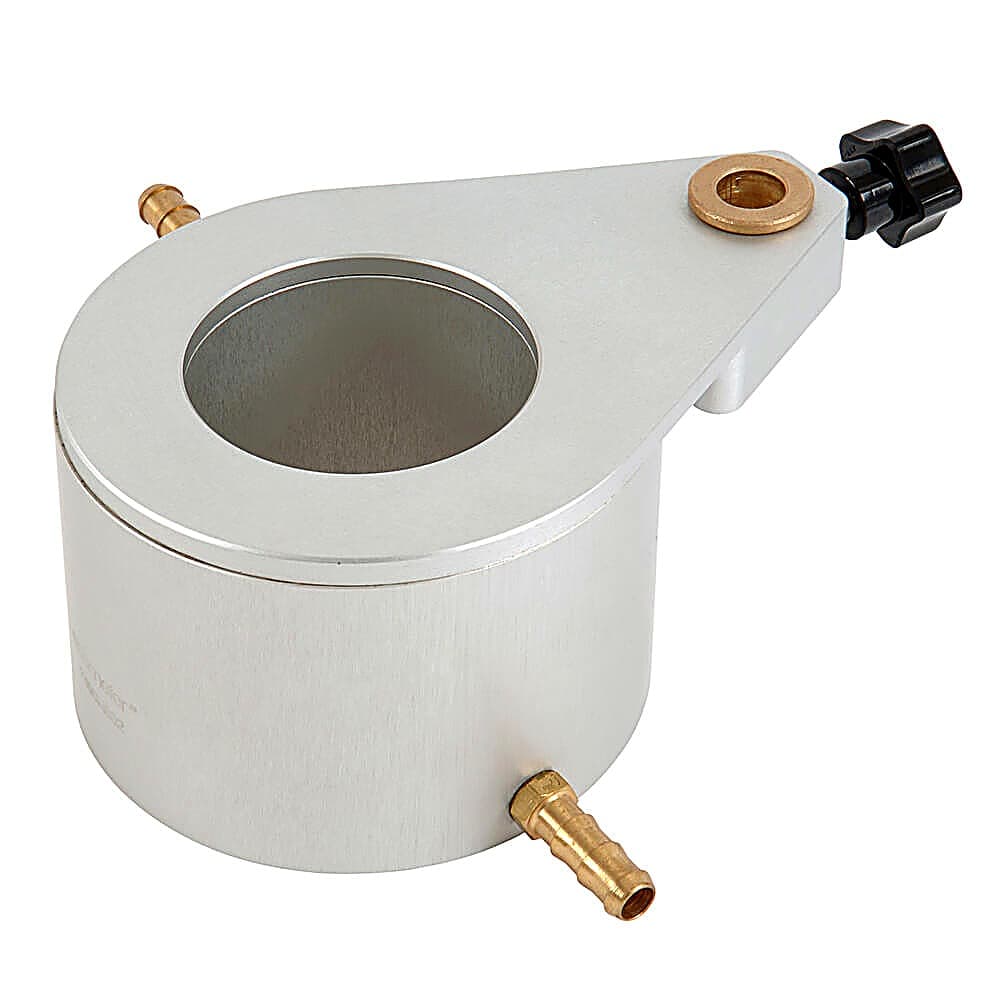

KT002400N002 | Double-walled Stand with Thermojacket |
 |

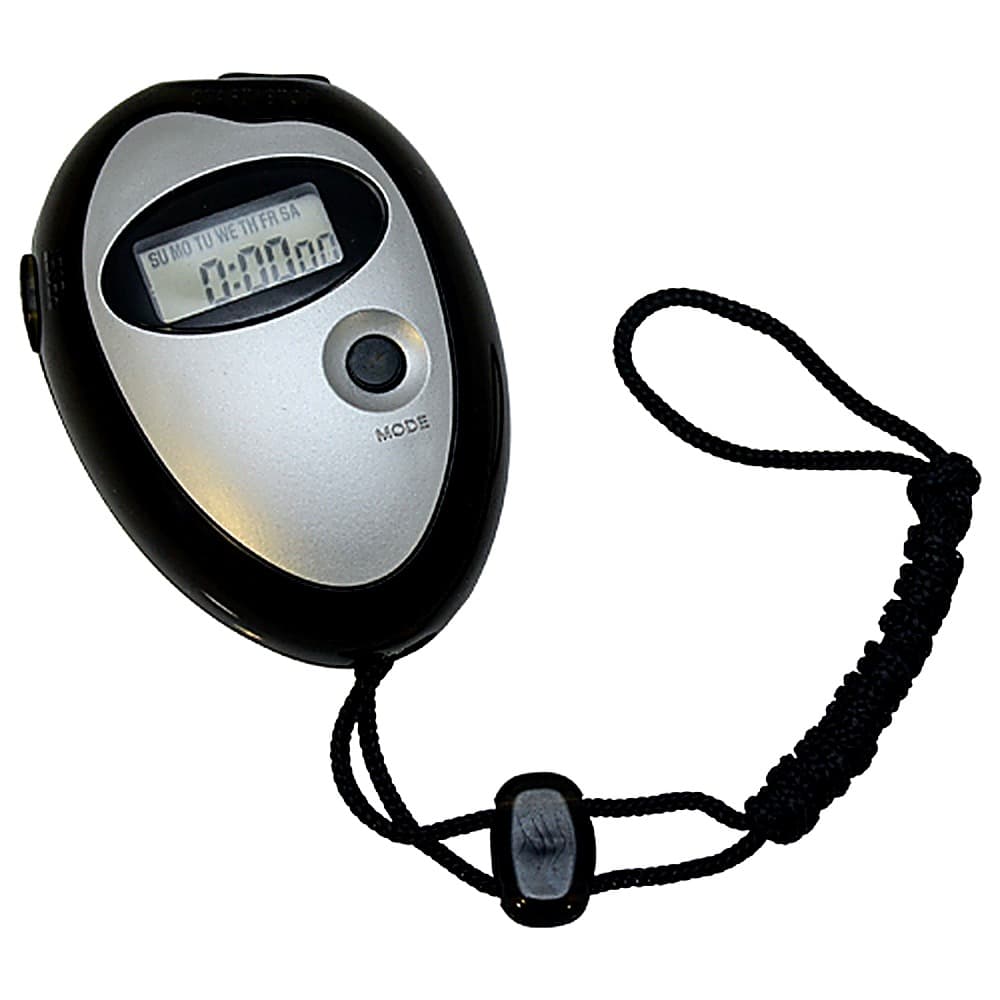

K0007300M201 | Elcometer 7300 High precision stopwatch. |
| Measuring intervals: 1/100 second for 30 minutes and 1 second for 24 hours. | ||
| Time calendar display, 12/24 hour mode. | ||
 |

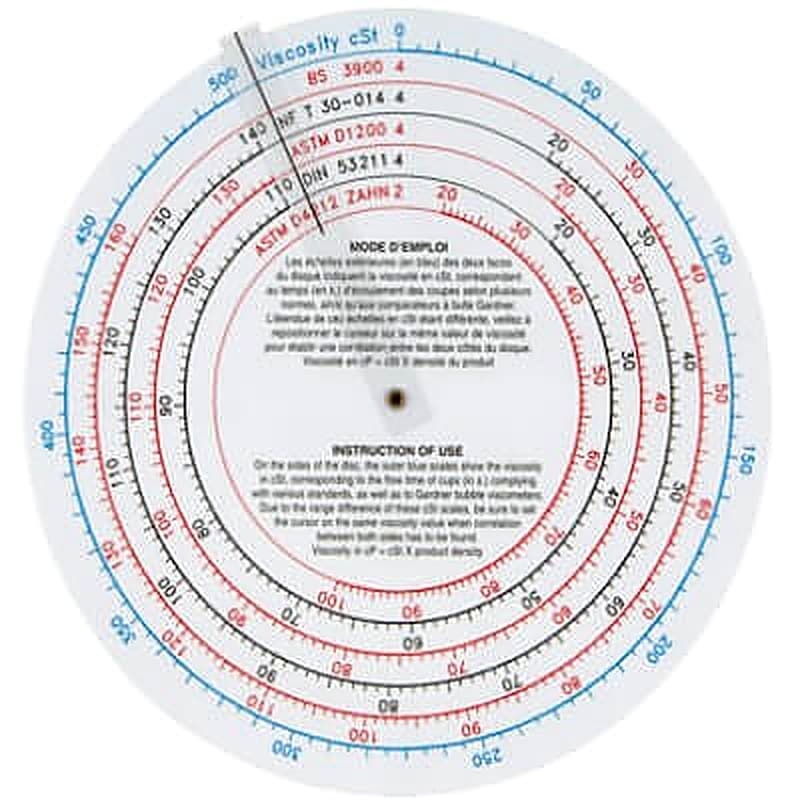

KT002400N003 | Elcometer 2400 Conversion Disc allowing viscosity (cSt) and flow times of different cups to be compared. |
| Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2 | ||
| Back: No. 3-4-5-6 cups according to ISO and Zahn 3 | ||
 |

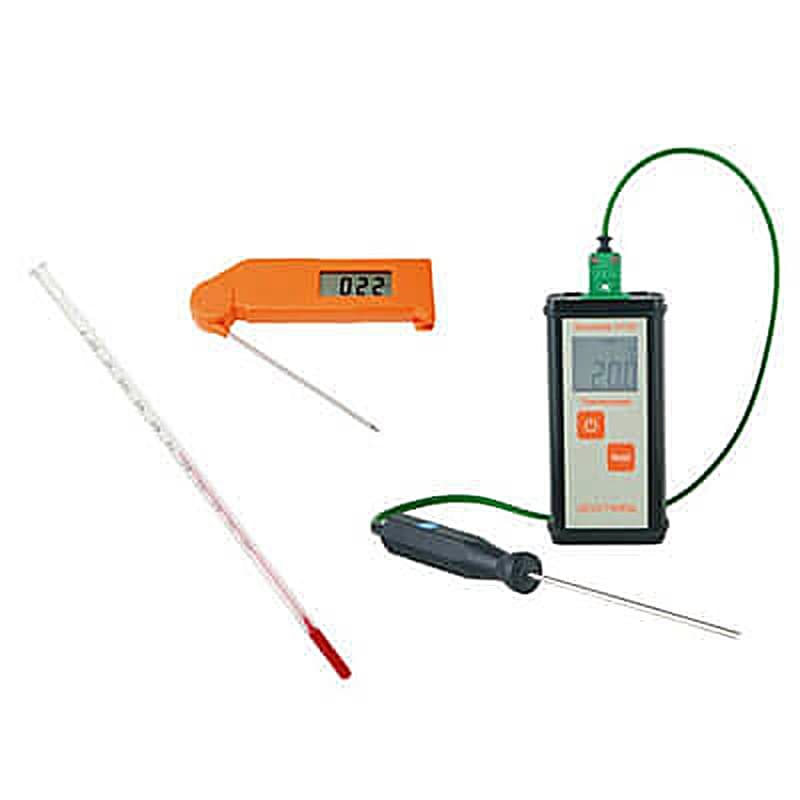

G212—-1 | Elcometer 212/1 Digital Pocket Thermometer (°C) with Needle/Liquid Probe |
| G213—-2 | Elcometer 213/2 Digital Thermometer (°C/°F) | |
| T1164441- | Spirit Thermometer in °C | |
| T9996390- | Elcometer 213/2 Liquid Probe |
