Elcometer 4360 4361 Spiral Bar Coaters
Product Description

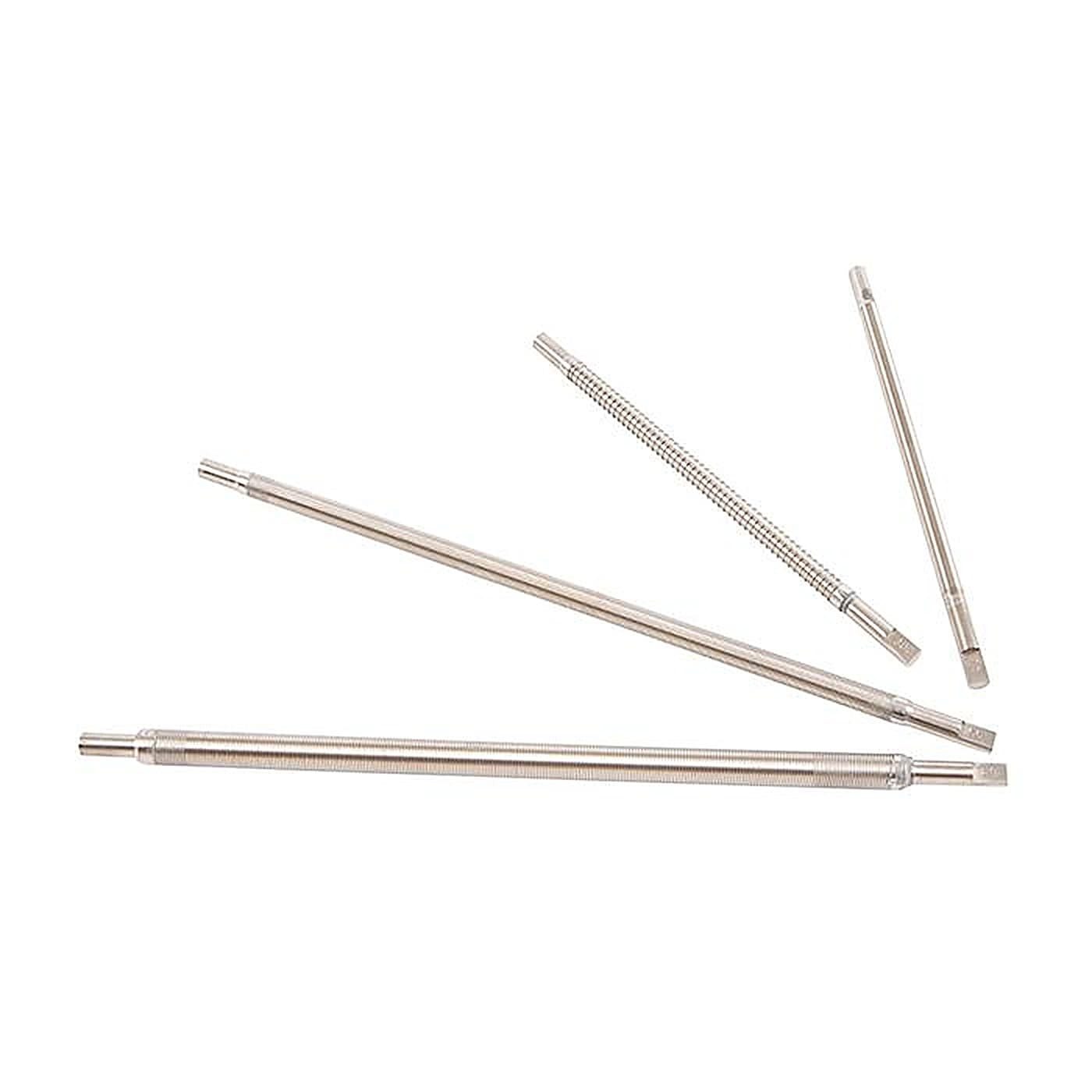

The Elcometer 4360 4361 Spiral Bar Coaters are made of stainless steel and consisting of a cylindrical bar wound with stainless steel wire, these spiral bar coaters are used to apply a predetermined thickness for coatings with high leveling characteristics.
A wide range of different wire diameters provides a range of measures for coating thicknesses from 4 to 500µm.
Two standard bar widths are available,140mm or 250mm, allowing the user to apply the correct film width dependent on the substrate or test chart width. Other widths are available on request.

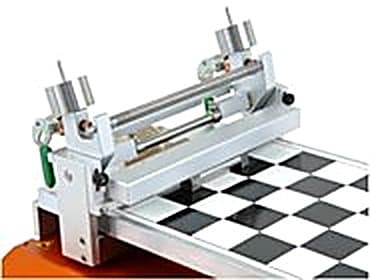

Ideal for use with the Elcometer 4340 Motorised Film Applicator.
The Elcometer 4360 4361 Spiral Bar Coaters can be used in accordance with:
• ASTM D 4147
Specifications
Elcometer 4360 Spiral Bar Coaters – Specifications
| Bar Width 140mm | Bar Width 250mm | ||||
| Part Number | Model | Coating Thickness µm | Part Number | Model | Coating Thickness µm |
| K0004361P001 | Elcometer 4361/1 | 4 | K0004360P001 | Elcometer 4360/1 | 4 |
| K0004361P002 | Elcometer 4361/2 | 6 | K0004360P002 | Elcometer 4360/2 | 6 |
| K0004361P003 | Elcometer 4361/3 | 8 | K0004360P003 | Elcometer 4360/3 | 8 |
| K0004361P004 | Elcometer 4361/4 | 10 | K0004360P004 | Elcometer 4360/4 | 10 |
| K0004361P005 | Elcometer 4361/5 | 12 | K0004360P005 | Elcometer 4360/5 | 12 |
| K0004361P006 | Elcometer 4361/6 | 16 | K0004360P006 | Elcometer 4360/6 | 16 |
| K0004361P007 | Elcometer 4361/7 | 20 | K0004360P007 | Elcometer 4360/7 | 20 |
| K0004361P008 | Elcometer 4361/8 | 26 | K0004360P008 | Elcometer 4360/8 | 26 |
| K0004361P009 | Elcometer 4361/9 | 30 | K0004360P009 | Elcometer 4360/9 | 30 |
| K0004361P010 | Elcometer 4361/10 | 34 | K0004360P010 | Elcometer 4360/10 | 34 |
| K0004361P011 | Elcometer 4361/11 | 38 | K0004360P011 | Elcometer 4360/11 | 38 |
| K0004361P012 | Elcometer 4361/12 | 40 | K0004360P012 | Elcometer 4360/12 | 40 |
| Bar Width 140mm | Bar Width 250mm | ||||
| Part Number | Model | Coating Thickness µm | Part Number | Model | Coating Thickness µm |
| K0004361P013 | Elcometer 4361/13 | 46 | K0004360P013 | Elcometer 4360/13 | 46 |
| K0004361P014 | Elcometer 4361/14 | 50 | K0004360P014 | Elcometer 4360/14 | 50 |
| K0004361P015 | Elcometer 4361/15 | 56 | K0004360P015 | Elcometer 4360/15 | 56 |
| K0004361P016 | Elcometer 4361/16 | 60 | K0004360P016 | Elcometer 4360/16 | 60 |
| K0004361P017 | Elcometer 4361/17 | 66 | K0004360P017 | Elcometer 4360/17 | 66 |
| K0004361P018 | Elcometer 4361/18 | 70 | K0004360P018 | Elcometer 4360/18 | 70 |
| K0004361P019 | Elcometer 4361/19 | 76 | K0004360P019 | Elcometer 4360/19 | 76 |
| K0004361P020 | Elcometer 4361/20 | 80 | K0004360P020 | Elcometer 4360/20 | 80 |
| K0004361P021 | Elcometer 4361/21 | 90 | K0004360P021 | Elcometer 4360/21 | 90 |
| K0004361P022 | Elcometer 4361/22 | 100 | K0004360P022 | Elcometer 4360/22 | 100 |
| K0004361P023 | Elcometer 4361/23 | 110 | K0004360P023 | Elcometer 4360/23 | 110 |
| K0004361P024 | Elcometer 4361/24 | 120 | K0004360P024 | Elcometer 4360/24 | 120 |
| K0004361P025 | Elcometer 4361/25 | 130 | K0004360P025 | Elcometer 4360/25 | 130 |
| K0004361P026 | Elcometer 4361/26 | 140 | K0004360P026 | Elcometer 4360/26 | 140 |
| K0004361P027 | Elcometer 4361/27 | 150 | K0004360P027 | Elcometer 4360/27 | 150 |
| K0004361P029 | Elcometer 4361/29 | 175 | K0004360P029 | Elcometer 4360/28 | 175 |
| K0004361P030 | Elcometer 4361/30 | 200 | K0004360P030 | Elcometer 4360/30 | 200 |
| K0004361P031 | Elcometer 4361/31 | 300 | K0004360P031 | Elcometer 4360/31 | 300 |
| K0004361P032 | Elcometer 4361/32 | 400 | K0004360P032 | Elcometer 4360/32 | 400 |
| K0004361P033 | Elcometer 4361/33 | 500 | K0004360P033 | Elcometer 4360/33 | 500 |
Data Sheet
Standards
Elcometer 4360 Spiral Bar Coaters – Standards
The Elcometer 4360 4361 Spiral Bar Coaters can be used in accordance with:
• ASTM D 4147
Video
Elcometer 4360/4361 Spiral Bar Coaters – Video
The Differences Between Film Applicators
Testing the properties of products such as paints, varnishes, cosmetics, or glues for example; is an important part of their development. In order to test them, consistent and reproducible samples need to be made in order to undertake fair, accurate, and comparable tests. This is where film applicators and spiral bar coaters come in.
In this video, we’re going to show you each applicator, how they work, and the sort of applications they’re designed for. Unless otherwise stated, all of the applicators we are about to show you can either be used manually or with the Elcometer 4340 Automatic Film Applicator.
Contents
0:00 – Introduction to Film Applicators
1:15 – Baker Film Applicators
3:30 – Bird-Type Applicators
4:08 – Spiral Bar Coaters
5:38 – Reservoir Applicators
7:27 – Micrometric Applicators
8:59 – Sag Testing
Whether using manually or with the Elcometer 4340 Automatic Film Applicator, film applicators and spiral bar coaters are designed to help you create reproducible films of a defined thickness. Elcometer has a wide range of applicators and bar coaters available, perfect for creating films with a variety of products.
In this video we will cover:
• Baker Film Applicators

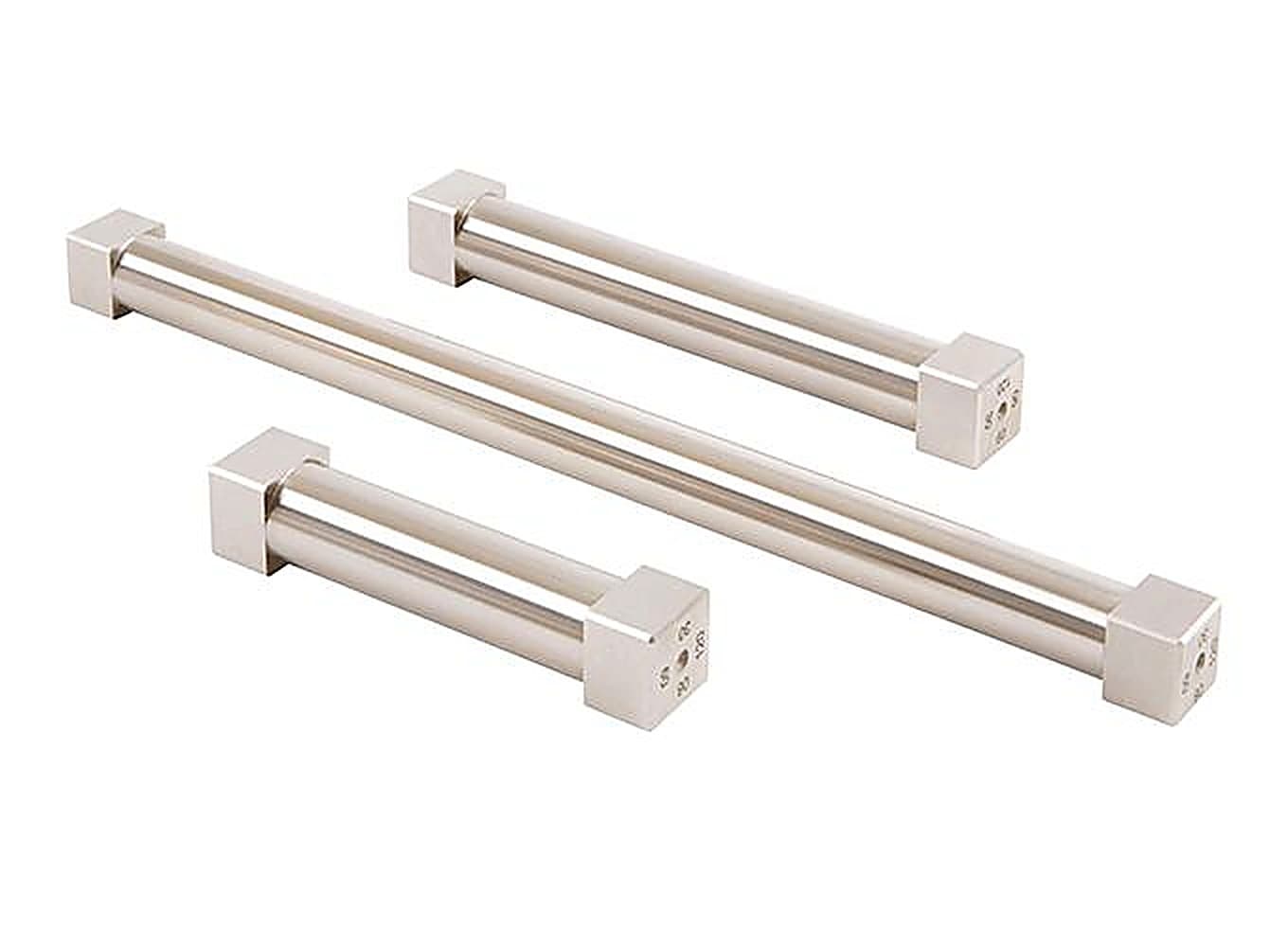

– Elcometer 3520 Baker Film Applicators

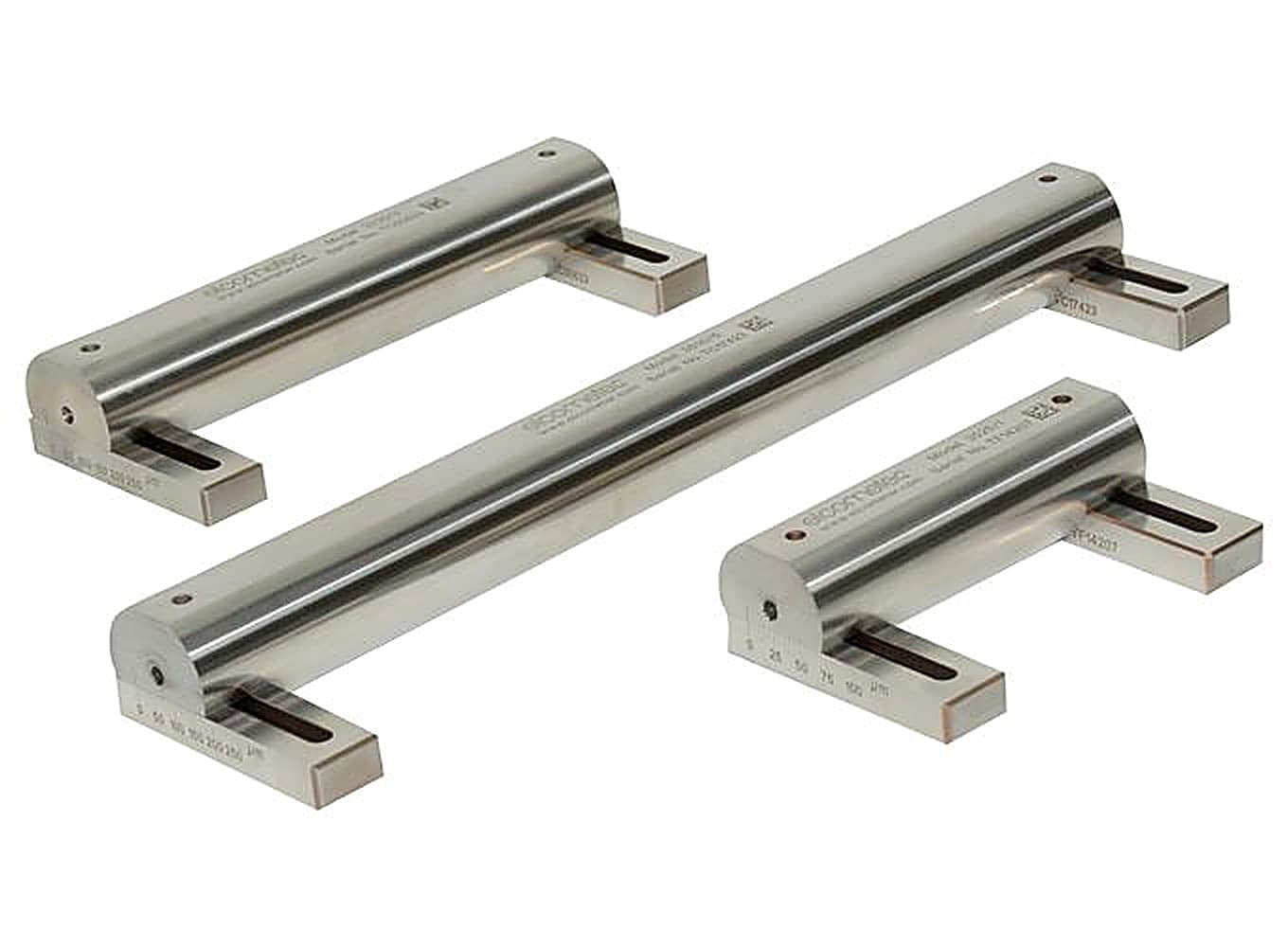

– Elcometer 3525 & 3530 Adjustable Baker Film Applicators
• Bird-Type Applicators

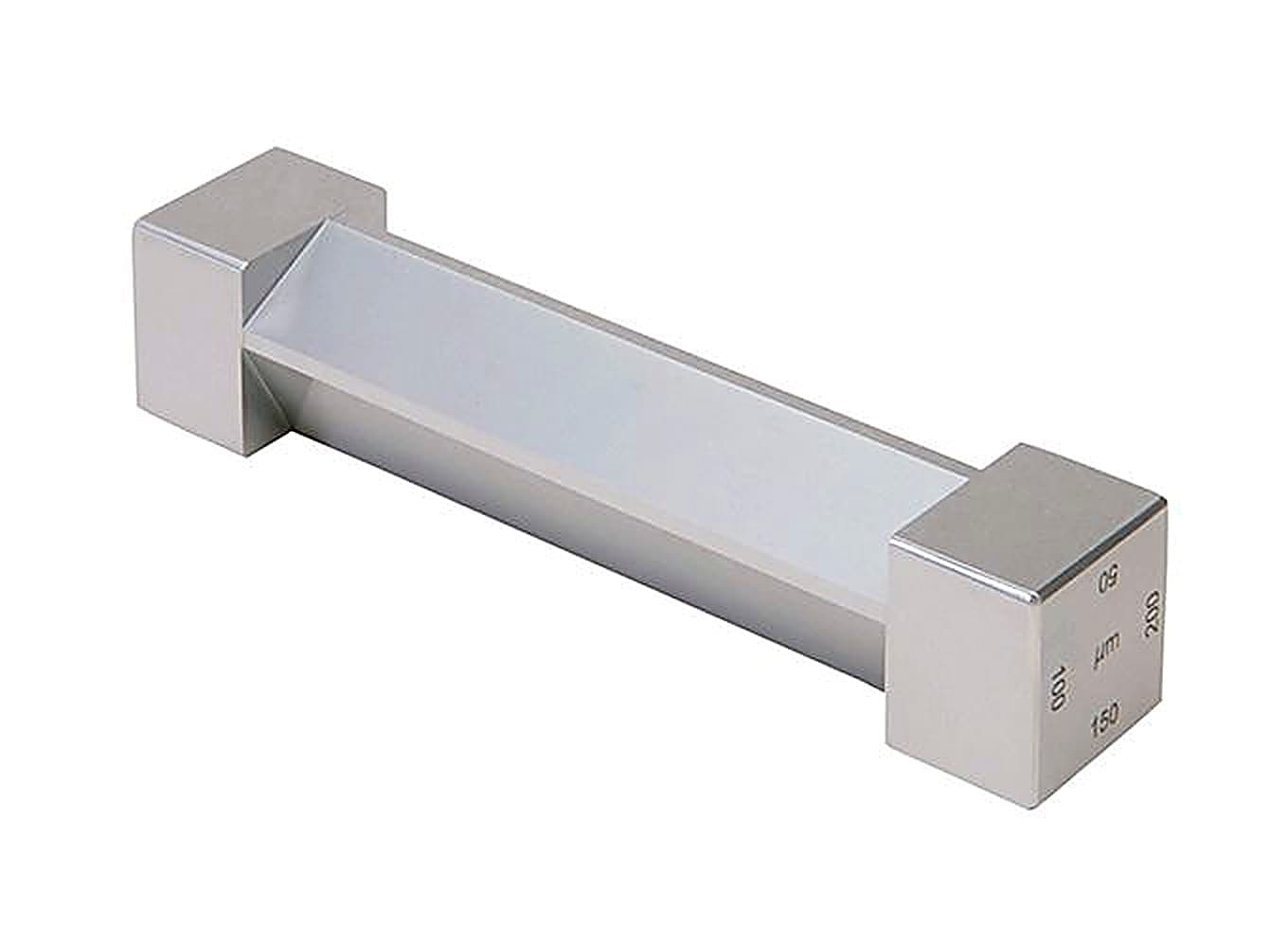

– Elcometer 3550 Single Sided & Elcometer 3540 Four Sided Film Applicators
• Spiral Bar Coaters
– Elcometer 4360 & 4361 Spiral Bar Coaters
• Reservoir Applicators

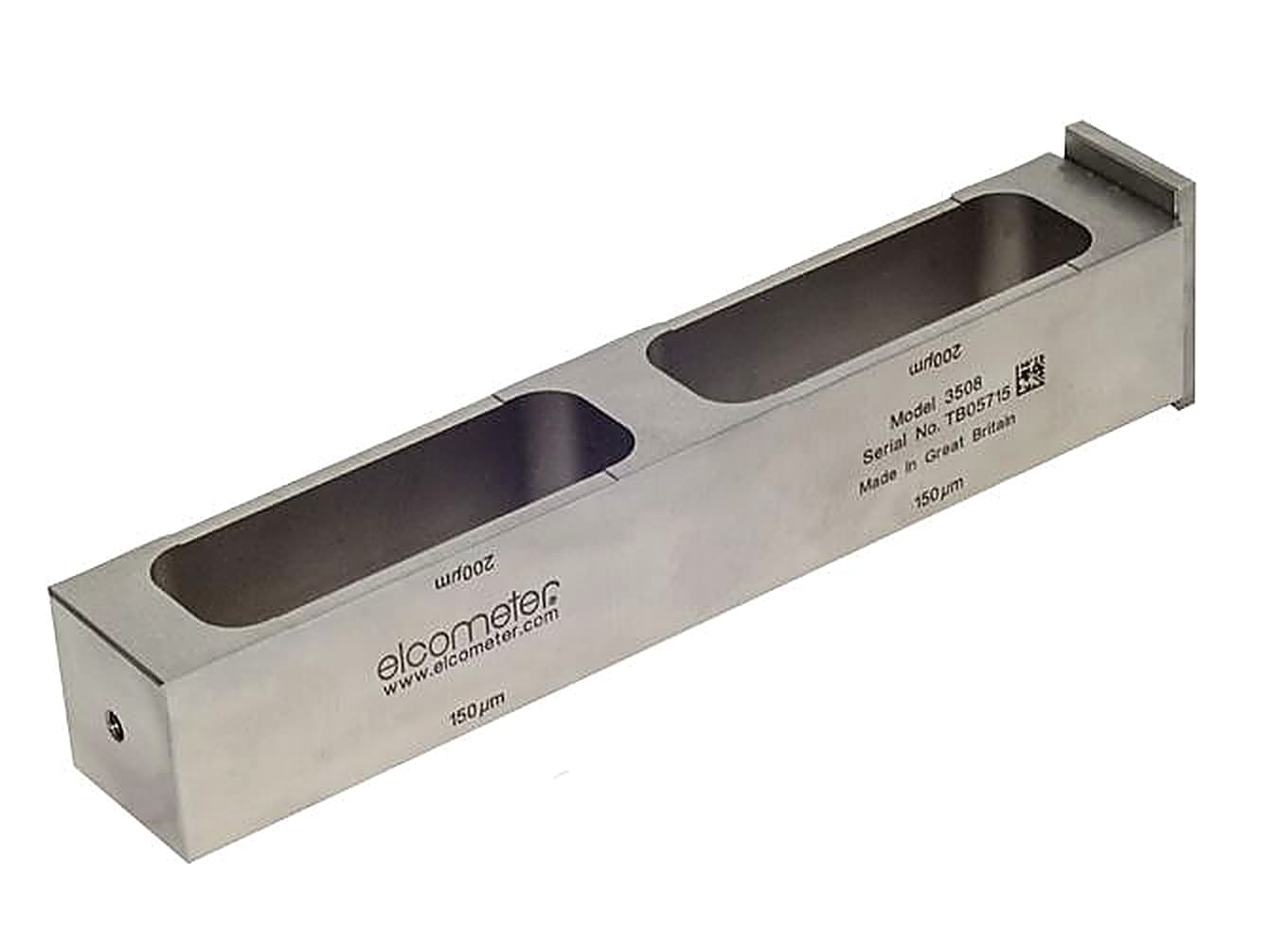

– Elcometer 3508 & 3560 4 Gap Applicators with Reservoir

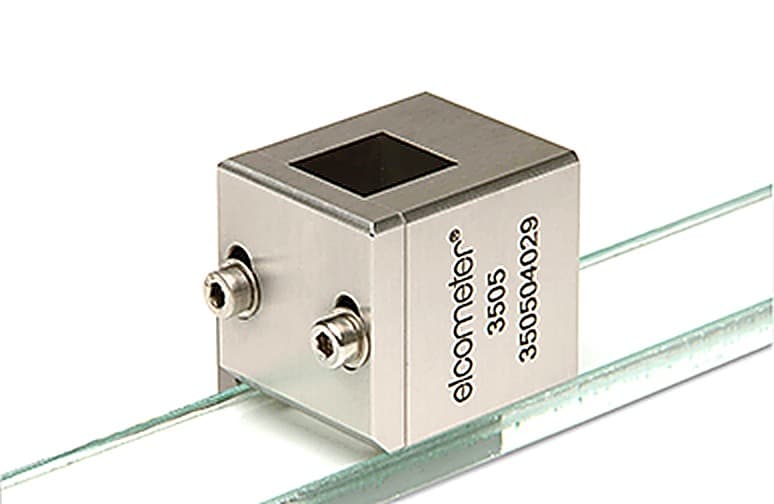

– Elcometer 3505 Cube Applicators
• Micrometric Applicators

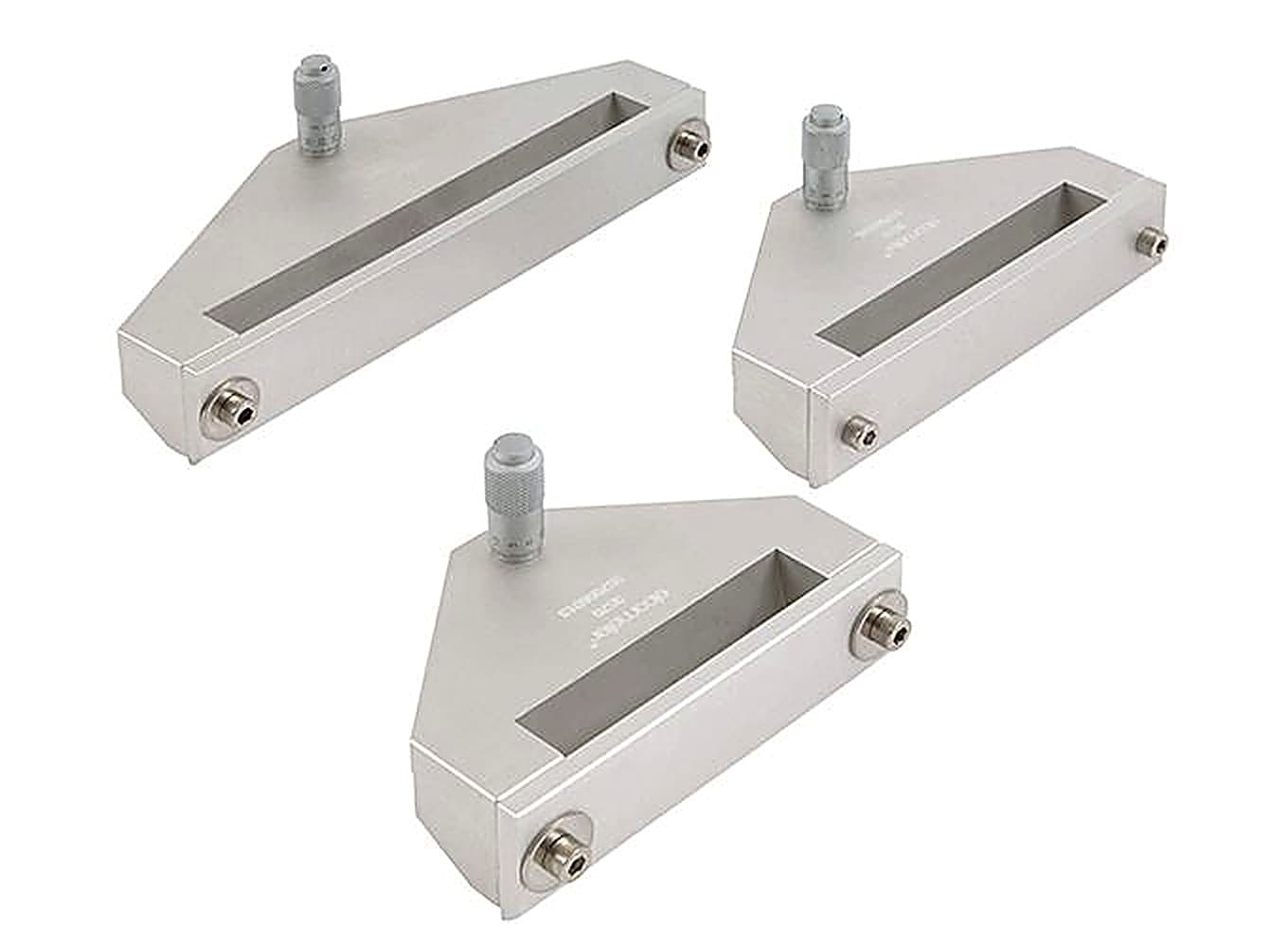

– Elcometer 3570 Micrometric Film Applicator

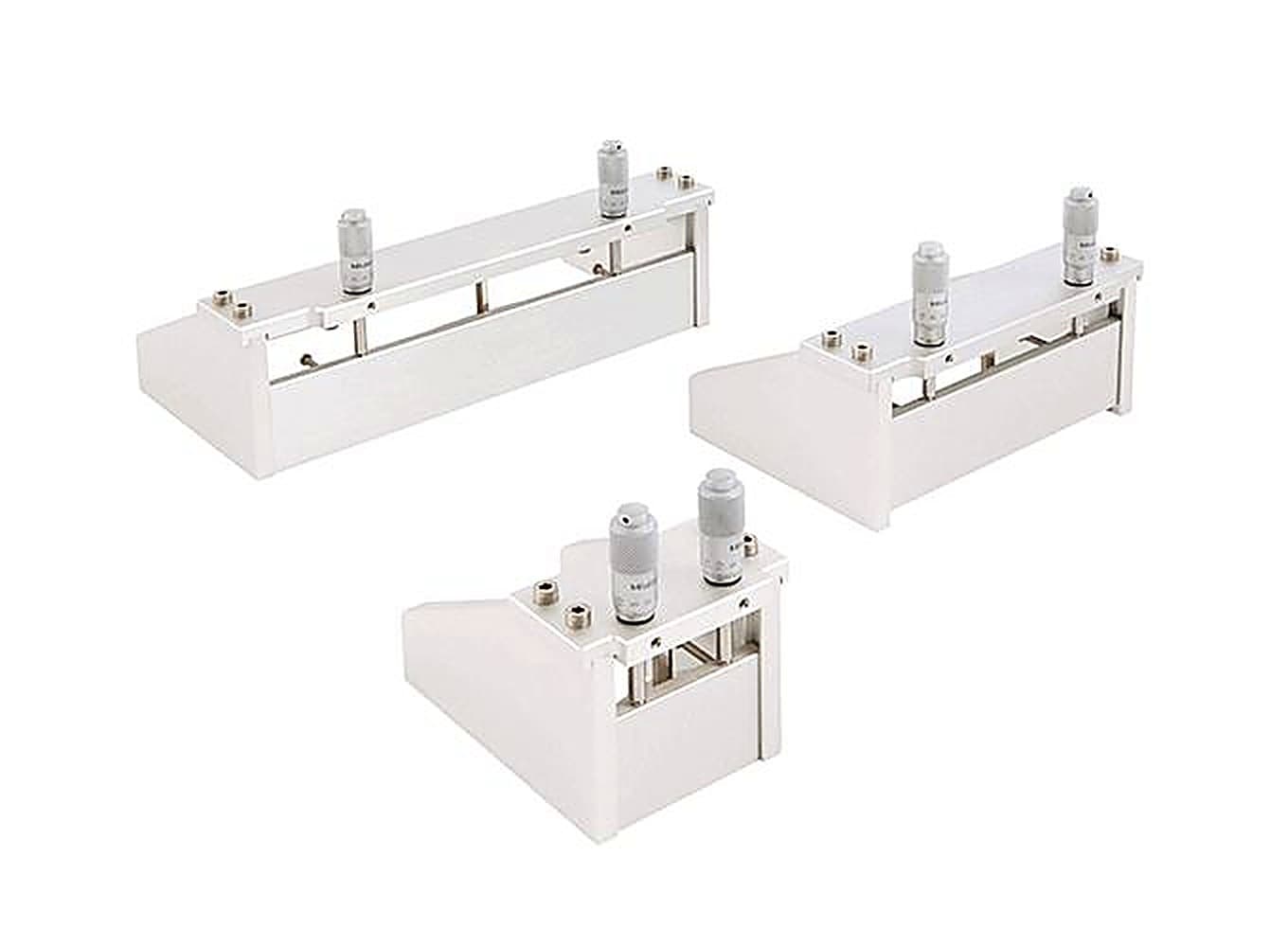

– Elcometer 3580 Casting Knife Film Applicator
• Sag Testing

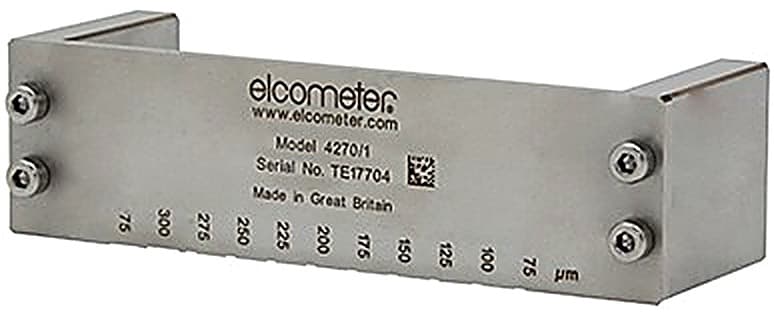

– Elcometer 4270 Sag Tester
