Product Description

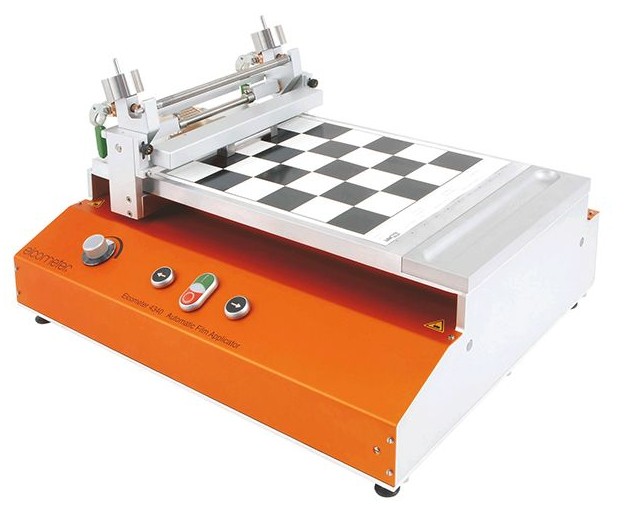

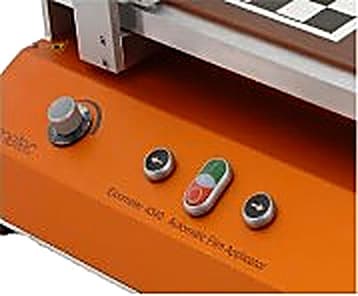

The Elcometer 4340 Motorised Film Applicator is the essential machine for preparing a wide variety of product samples including paint, varnish, cosmetics and glue.
The Features of Elcometer 4340 Motorised Film Applicator
• Ideal for testing liquids including paint, varnish, cosmetics, glue • Precision engineered flat aluminium table for better repeatability – 5 times flatter than glass • Heavy base unit to minimise vibration and to produce high quality samples, without “Vibration ridges” • Standard table & perforated or channelled vacuum tables available • Can be used with a full range of Elcometer Film Applicators
The Elcometer 4340 provides total consistency and reproducibility on various substrates including contrast charts, sheet steel, plastic foils and glass.
Durable & Rugged
• Sturdy rigid design to eliminate vibration during film application
• Up to 15 years of standard use
Choice of Bed
• Standard flat table
• Single and double channelled vacuum tables
• Perforated and heated vacuum tables
• Electrically heated sample tables available for temperature control
Smooth & Repeatable Tests
• Use up to 3 film applicators simultaneously
• Test up to 2 test charts simultaneously
• 11 pre-set transverse speeds from 0.2 – 3.9 inches per second

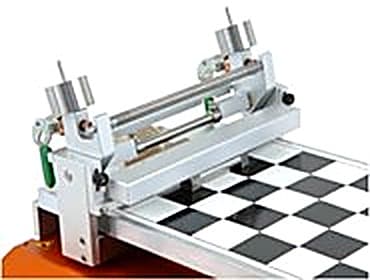

A range of applicator head attachments is available separately, allowing the user to select the most appropriate for their specific use and Standard (if applicable). The Elcometer 4340 range of motorised Film Applicators comes as one universal base with the combined attachment of both the film applicator (filmographs) and spiral bar attachment supplied as standard.
The Elcometer 4340 Motorised Automatic Film Applicator can be used in accordance with:
• ASTM D 823 Method C
Specifications
Elcometer 4340 Range of Motorised Automatic Film Applicators – Specifications
Part Number
Test Chart Clip
Standard Table
Perforated Vacuum Table1
Double Channel Vacuum Table1
Electrically Heated Ambientto 200°C
Certificate
K4340M10-
■
■
ο
K4340M12-2
■
■
■
ο
K4340M100
■
■
ο
K4340M102
■
■
ο
K4340M1202
■
■
■
ο
Dimensions
780 x 490 x 320mm
Table Dimensions3
600 x 305mm4 / 521.75 x 305mm
Weight
29kg
1 Vacuum Pump supplied separately 2 For 110V unit, add D to end of part number, e.g.K4340M120D 3 Excluding run-off tray 4 Table dimension size only applies to part numbers K4340M10- ο Optional Calibration Certificate available
Packing List
Elcometer 4340 Film Applicator
Combined Film Applicator & Spiral Bar Coater Attachment
3 x mains leads (UK, EUR & US) and operating instructions
Data Sheet
Elcometer 4340 Range of Motorised Automatic Film Applicators – Data Sheet
Elcometer 4340 Range of Motorised Automatic Film Applicators – Video
When it comes to the development of products; such as paints, varnishes, cosmetics, or glues for example; manufacturers will typically test various properties of their product to ensure they know exactly how it will perform when used by customers.
This is why manufacturers need be able to create repeatable and reproducible sample films of a defined thickness – in order to perform meaningful, comparable tests on their products.
These sample films are typically created using a film applicator.
Contents 0:00 – Introduction to Film Application 0:57 – How a film applicator works 2:04 – Why use an automatic film applicator 2:42 – Introducing the Elcometer 4340 5:02 – What samples can you create?
While there are many different designs of applicator, they all work in essentially the same way. The applicator is placed on a flat substrate – this is often done on a test chart, but it could applied to a wide range of materials such as metal, glass, or polythene to name a few – then the product you wish make a sample film of is added either into either the applicator’s reservoir (if it has one) or in front of the applicator. The applicator is then moved across the substrate at a steady speed, guiding the product through a precision engineered gap, which creates a film of a defined thickness.
In order to undertake fair and accurate tests on these films, they all have to be the same, and when creating these films manually, human error can create inconsistencies between films. Differences in how smoothly you complete the drawdown, how quickly you move the applicator, or how much downward force you place on the applicator while moving it, can all affect the resulting film. And these are differences that could come from just one person creating the films, let alone different people.
So, in order to remove that human error, and ensure repeatable and reproducible films are made, every time; a motorised, automatic film applicator can be used.
This is where the Elcometer 4340 Motorised Automatic Film Applicator comes in.
With a precision engineered aluminium table that’s 5 times flatter than glass, and mounted on a heavy base unit designed to minimise vibrations and produce high quality samples without “vibration ridges”; the Elcometer 4340 Automatic Film Applicator provides total consistency and reproducibility when applying films on various substrates – including contrast charts, steel sheet, glass, and more.
The sturdy, rigid design, which can provide up to 15 years of standard use, not only eliminates the variation in samples usually caused by human error, but also eliminates the variation that comes from smaller, more lightweight motorised film applicators, that are susceptible to “vibration ridges”.
The Elcometer 4340’s larger size not only helps with the quality of your samples, but the quantity too, as the large testing table makes it possible to test 2 charts simultaneously. Not only that, there’s a choice of tables available. In addition to the standard flat table, where you simply clip the substrate to the testing table, there’s a choice of two vacuum tables.
The perforated vacuum table is ideal for a wide range of test pieces including glass, plastic sheets and contrast charts, including thicker more substantial test pieces; while the double channel vacuum table, is designed for thinner test pieces such as polythene for example, as the table creates a vacuum from the edges rather than through perforations, keeping the thin material flat and secure without creating irregularities.
Not only are all of Elcometer’s vacuum tables engineered to be flat and precise with little variation, but they are powered by a separate vacuum pump. By keeping the vacuum separate from the main unit, this again helps keep vibrations down to a minimum.
The Elcometer 4340 can also be fitted with an electrically heated table, so you can simulate the application of your film in hotter climates, from ambient room temperature up to 200°C.
With 11 pre-set transverse speeds, from 5 to 100mm per second, and the ability to set your transverse length, the Elcometer 4340 makes it easy for you to repeatedly create precisely the films you need in order to test your product.
As for what samples you can create, the Elcometer 4340 works with a full range of Elcometer Film Applicators and Spiral Bar Coaters, and it’s even possible to use up to three film applicators at the same time.
