Elcometer 1615 Variable Impact Testers
Product Description

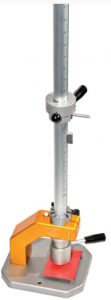

The Elcometer 1615 Variable Impact Tester is a simple to use gauge ideal for evaluating the resistance of a coating to impact (elongation, cracking or peeling).
• Heavy-duty passivated base plate and anodised arm for long life
• Graduated tube with engraved markings
• Quick, safe weight release mechanism
• Integrated bubble level to ensure the tester is perpendicular for accurate results
• Stop collar with 10 settings between 2mm and 15mm to change the depth of impact when working in accordance with ISO Standards, supplied with Kits A, D and F

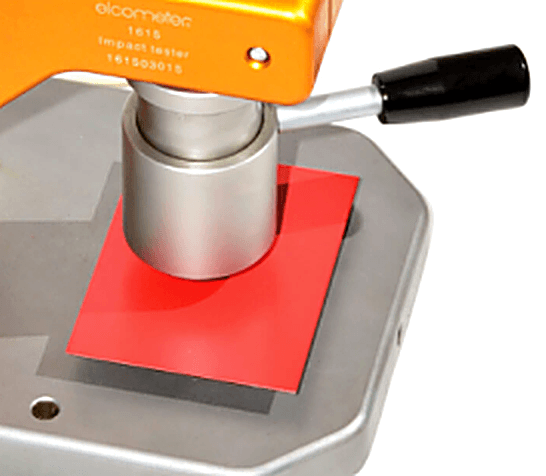

• Easy fix sample clamp – the test sample can be secured or released by a simple twist of the clamp handle supplied with Kits A, D and F
• Magnifier 10X
There are two impact test methods: either a weight with a hemispherical punch attached falls on a coated metal sheet or a weight falls on to a hemispherical punch which is resting on the coated metal sheet.
The Elcometer 1615 Impact Tester comes as one universal assembly with the option of six different kits providing the functionality for various impact testing methods.
The test specimen is fixed into position by the quick release clamp. The weight is lifted to the predetermined height and can be set by the adjustable collar device. The weight is then released, and the resulting deformation is observed.
The base unit is common to all tests. Simply select the appropriate impact tester kit to meet your requirements.
 |

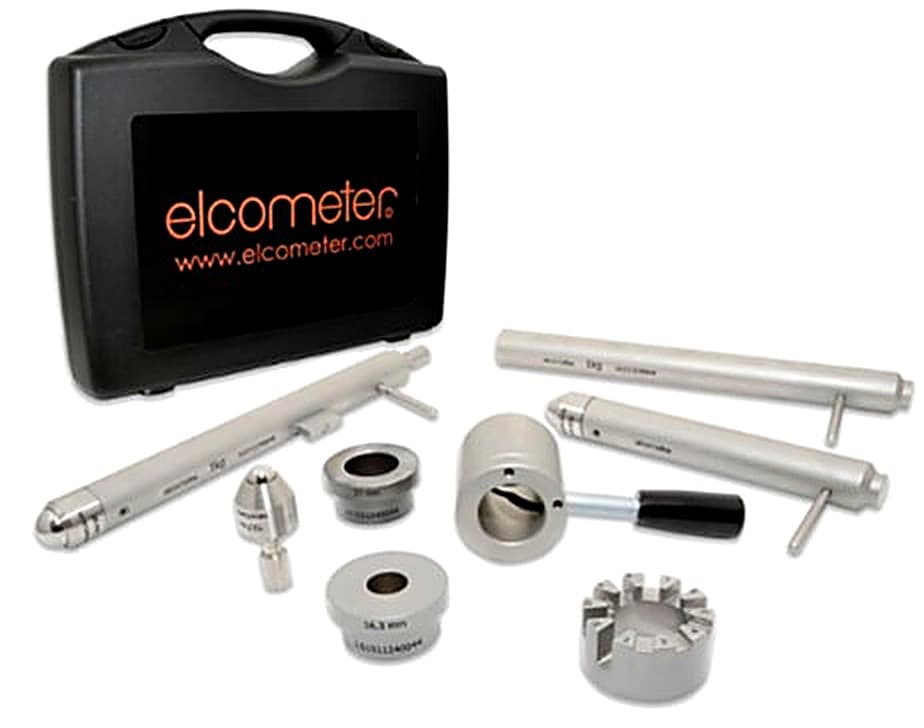

Variable Impact Tester Kits In order to test a sample in accordance with a specified standard, a number of kits have been created to provide a single Impact Tester which, by using the appropriate kit allows, the user to work in accordance with a wide range of National and International standards. |
 |

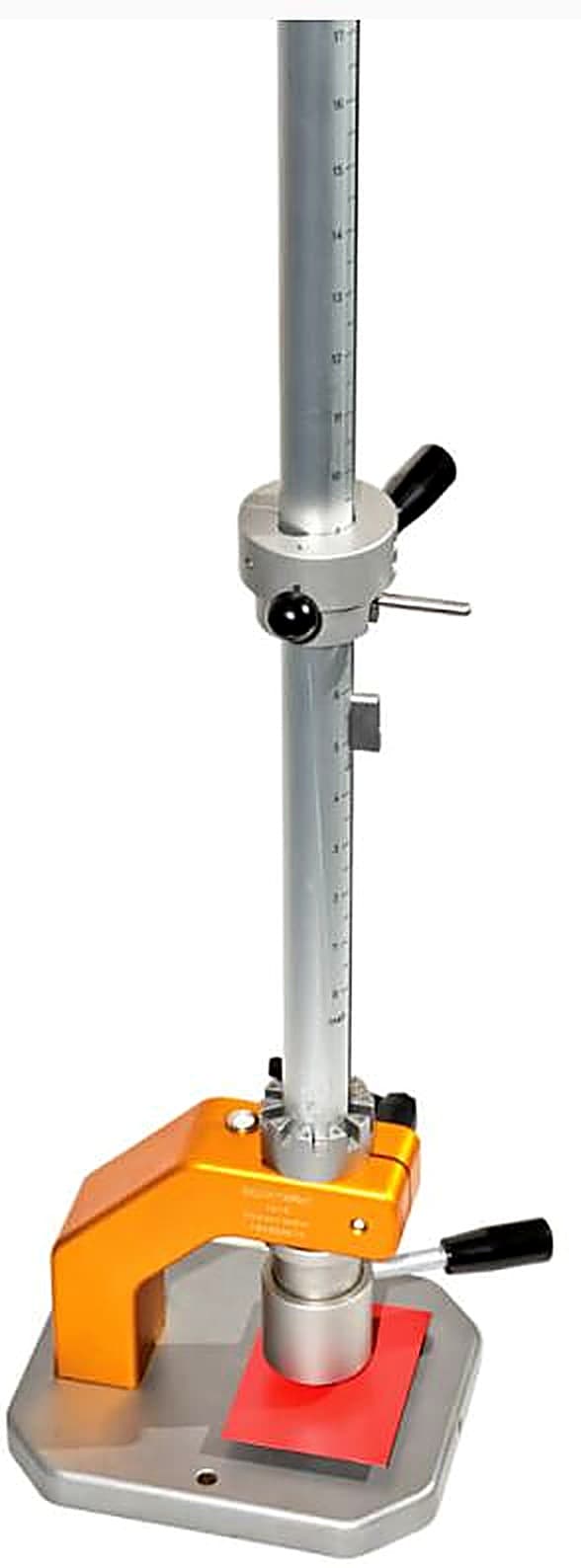

Graduated Tube The tube has clearly engraved, graduated markings in both kg-c and lb-inch to ensure accuracy and a quick, safe weight release mechanism which holds the weight safely and allows a smooth release. Tube height: 1000mm. |
 |

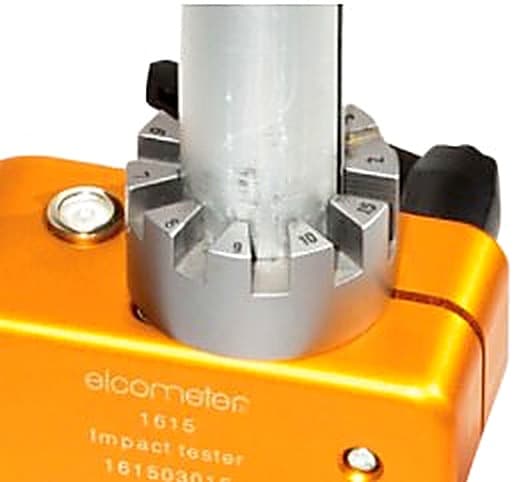

Stop Collar The stop collar, supplied with Kits A, D and F or as an optional accessory, allows the penetration depth to be limited. By rotating the stop collar, the user can select the depth required between 2-15mm. Values: 2,3,4,5,6,7,8,9,10 and 15mm. Each Impact Tester is supplied with an integrated bubble level ensuring accurate setup prior to anytest. |
 |
Base Unit The Elcometer 1615 Variable Impact Testers are designed to meet a wide range of National and International Standards. Simply select the appropriate kit and attach the punch, die and accessories to the base unit. Interchangeable die – enables the user to match the die to the size of the relevant punch to conform to the required Standard or method. The optional easy to fix sample clamp enables the user to quickly and safely secure the sample. |
The Elcometer 1615 Variable Impact Testers can work in accordance with:
- ASTM D 279
- ASTM D 5420
- AS/NZS 1580.406.1
- BS 6496:1984
- BS 3900-E13*
- ECCA*T5
- EN 12206-1:2004
- EN 13523-5
- ISO 6272:1993
- ISO 6272-1
- ISO 6272-2
- JIS K 5600-5-3:1999
- NFT30-017:1989
*Standards not in bold have been superseded but are still recognised in some industries.
Specifications
Variable Impact Tester |
||
| Part Number | Description | |
| K0001615M201 | Elcometer 1615 Impact Tester Universal Base Unit and Tube | |
| Weight | 10.6kg | |
| Dimensions | 1460 x 200 x 165mm | |
Impact Tester Kits |
||
| Part Number | Description | Certificate |
| KT001615KITA | Elcometer 1615 Impact Tester Kit A to meet ISO 6272:1993 Standard | ο |
| KT001615KITB | Elcometer 1615 Impact Tester Kit B to meet ISO 6272 Part 2:2002 Standard | ο |
| KT001615KITC | Elcometer 1615 Impact Tester Kit C to meet ASTM D2794 Method 2, BS6496:1984, EN 12206-1 Standards | ο |
| KT001615KITD | Elcometer 1615 Impact Tester Kit D to meet ISO 6272 Part 1:2002, BS EN ISO 6272-1:2004 Standards |
ο |
| KT001615KITE | Elcometer 1615 Impact Tester Kit E to meet NF T30-017:1989 Standard | ο |
| KT001615KITF | Elcometer 1615 Impact Tester Kit F to meet ISO 6272:1993, ISO 6272- 2:2002 Standards | ο |
| KT001615KITG | Elcometer 1615 Kit G to meet BS EN ISO 6272-2:2011 | ο |
ο Optional Calibration Certificate available
Packing List
Elcometer 1615 Impact Tester Universal Base Unit and Tube
- Base Plate
- Guide tube supporting arm
- Guided Tube
- Release Collar (fitted to guide tube)
- 4mm Hexagonal Wrench
- Magnifier 10X
- Operating Instructions
Kit A: Elcometer 1615 Impact Tester Kit A to meet ISO 6272:1993 Standard
- Falling 1kg weight with a 20mm punch
- 27mm die with fixing screw
- Sample clamp with two fixing screws
- Stop Collar*
- 3mm and 4mm Hexagonal Wrench
- Operating Instructions
Kit B: Elcometer 1615 Impact Tester Kit B to meet ISO 6272 Part 2:2002 Standard
- Falling 1kg weight with static indenter with 15.9mm
- 12.7mm Punch
- 16.3mm die with fixing screw
- 3mm Hexagonal Wrench
- Operating Instructions
- Kit C: Elcometer 1615 Impact Tester Kit C to meet ASTM D2794 Method 2, BS6496:1984,EN 12206-1 Standards
- Falling 908g weight with static indenter with 15.9mm
- 16.3mm die with fixing screw
- 3mm Hexagonal Wrench
- Operating Instructions
Kit D: Elcometer 1615 Impact Tester Kit D to meet ISO 6272 Part 1:2002, BS EN ISO 6272-1:2004 Standards
- Falling 1kg weight with a 20mm punch and stop key
- 27mm die with fixing screw
- Sample clamp with two fixing screws
- Stop Collar*
- 3mm and 4mm Hexagonal Wrench
- Operating Instructions
Kit E: Elcometer 1615 Impact Tester Kit E to meet NF T30-017:1989 Standard
- Falling 400g weight with 23mm punch
- 22mm die with fixing screw
- 3mm Hexagonal Wrench
- Operating Instructions
Kit F: Elcometer 1615 Impact Tester Kit F to meet ISO 6272:1993, ISO 6272- 2:2002 Standards
- Sample clamp
- Stop Collar
- 27mm die
- Falling 1kg indenter with a 20mm punch
- Indenter with 15.9mm punch
- Indenter with 12.7mm punch
- Indenter with 16.3mm die
- Falling 1kg weight
- 2 x Hexagonal Wrenc
- Operating Instructions
Kit G: Elcometer 1615 Kit G to meet BS EN ISO 6272-2:2011 Standard
- Falling 1kg weight with a 15.9mm static indenter with handle and punch
- 12.7mm static indenter with handle and punch
- 16.3mm die with fixing screw
- Guide bracket with two fixing screws
- 3mm and 4mm Hexagonal Wrench
- Operating Instructions
* Values: 2, 3, 4, 5, 6, 7, 8, 9, 10 & 15mm
Data Sheet
Elcometer 1615 Variable Impact Testers – Data Sheet
Elcometer 1615 Variable Impact Testers Data Sheet
Standards
Elcometer 1615 Variable Impact Testers – Standards
The Elcometer 1615 Variable Impact Testers can work in accordance with:
- ASTM D 279
- ASTM D 5420
- AS/NZS 1580.406.1
- BS 6496:1984
- BS 3900-E13*
- ECCA*T5
- EN 12206-1:2004
- EN 13523-5
- ISO 6272:1993
- ISO 6272-1
- ISO 6272-2
- JIS K 5600-5-3:1999
- NFT30-017:1989
*Standards not in bold have been superseded but are still recognised in some industries.
Accessories
Elcometer 1615 Variable Impact Testers – Accessories
The following range of accessories have been designed to help you evaluate the resistance of a coating to impact (elongation, cracking or peeling) when used in conjunction with the Elcometer 1615 Variable Impact Tester. Punches are universal and can be used either fitted to a falling weight or as a punch resting on the sample
| Part Number | Description | Suitable for Kit | ||||||
| A | B | C | D | E | F | G | ||
| KT001615N201 | Additional 1kg Falling Weight, 24.6mm Diameter | ■ | ||||||
| KT001615N221 | Additional 1kg Falling Weight, 25.0mm Diameter | ■ | ■ | ■ | ||||
| KT001615N226 | 20mm Diameter Punch (Outside Diameter 25mm) | ■ | ■ | |||||
| KT001615N215 | 12.7mm Diameter Punch | ■ | ■ | |||||
| KT001615N205 | 15.9mm Diameter Punch | ■ | ■ | ■ | ||||
| KT001615N206 | 20mm Diameter Punch | ■ | ||||||
| KT001615N207 | 23mm Diameter Punch | ■ | ||||||
| KT001615N216 | Static Indenter with 12.7mm Diameter Punch | ■ | ||||||
| Part Number | Description | A | B | C | D | D | F | G |
| KT001615N217 | Static Indenter with 15.9mm Diameter Punch | ■ | ||||||
| KT001615N208 | Stop Ring Collar | ■ | ■ | ■ | ||||
| KT001615N209 | Sample Clamp Mechanism | ■ | ■ | ■ | ||||
| KT001615N210 | Weight Release Mechanism | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| KT001615N211 | Replacement Graduated Tube | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| KT001615N212 | 16.3mm Die | ■ | ■ | ■ | ||||
| KT001615N232 | 16.3mm Die (with 1.5mm Radius) | ■ | ||||||
| KT001615N213 | 22mm Die | ■ | ||||||
| KT001615N214 | 27mm Die | ■ | ■ | ■ | ||||
