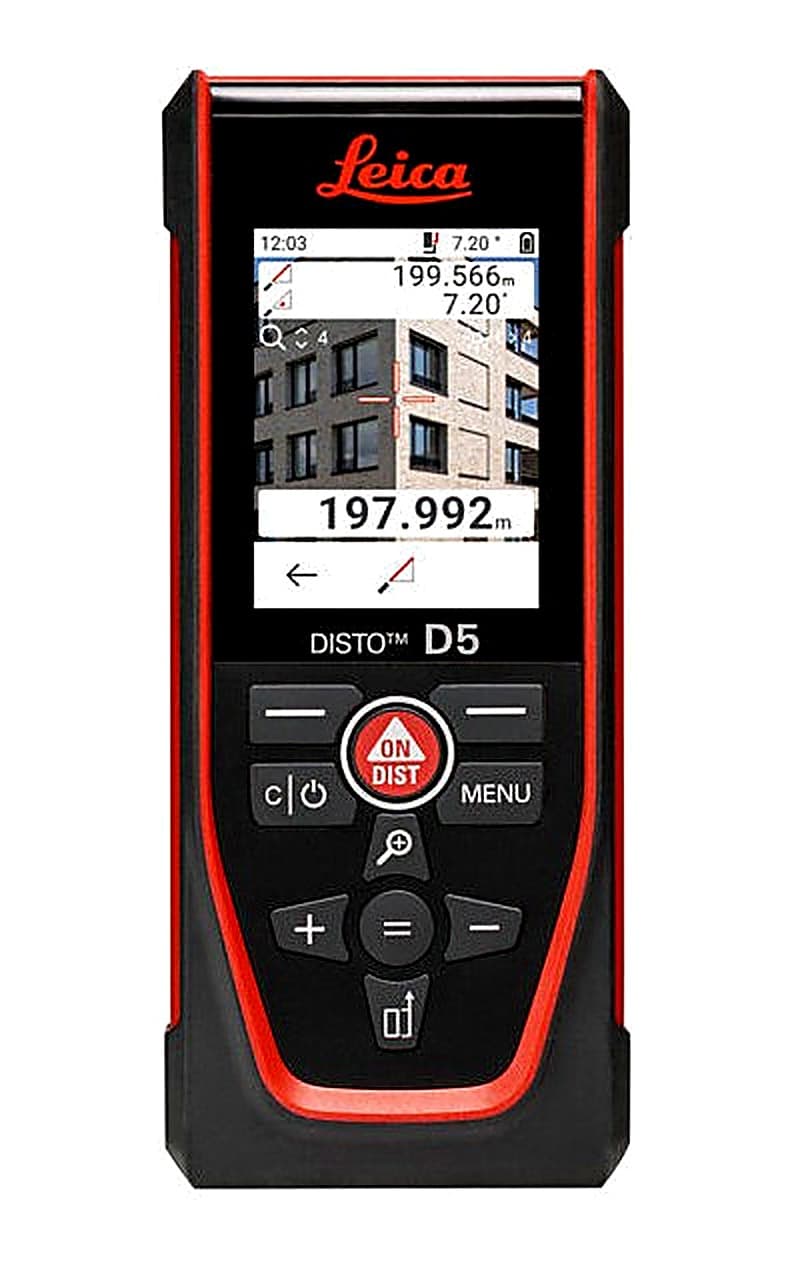

Leica Disto D5 Laser Distance Meter

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology.

For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements.

This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.





Accuracy with favourable conditions *	1.0 mm  ***
Accuracy with unfavourable conditions **	2.0 mm ***
Range with favourable conditions *	0.05 – 200 m  ***
Range with unfavourable conditions **	0.05 – 120 m  ***
Accuracy and Range according to ISO 16331-1	Yes
Smallest unit displayed	0.1 mm
X-Range Power Technology	Yes
Laser	Class 2, 635 nm,
Digital Pointfinder with 4-fold zoom	Yes
Tilt measuring range ****	360°
Tilt measuring tolerance	± 0.2°
ø laser point | at distances	6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class	IP54 (dust- and splash water protected)
Auto. laser switch off after	90 s
Auto. power switch off after	180 s
Bluetooth® Smart	Bluetooth v5.0
Range of Bluetooth Smart	up to 10 m
Battery durability (Li-Ion 2 000 mAh)	up to 5’000 measurements, up to 10 hours operation time
Dimension (L x W x H)	144 x 60 x 24 mm
Weight	180 g
Temperature range storage | operation	-25 to 70°C | -10 to 50°C

Packing List



• Leica DISTO D5
• Pouch
• USB-C to USB-A Cable
• Hand Loop
• Quick Start Guide
• Warranty Card
• Safety Manual
• Calibration Certificate Silver
