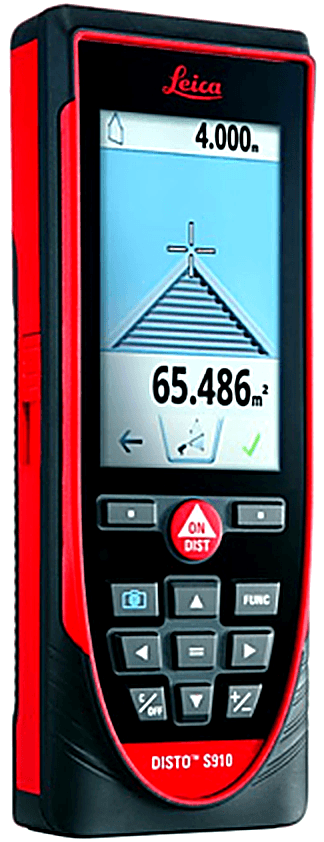

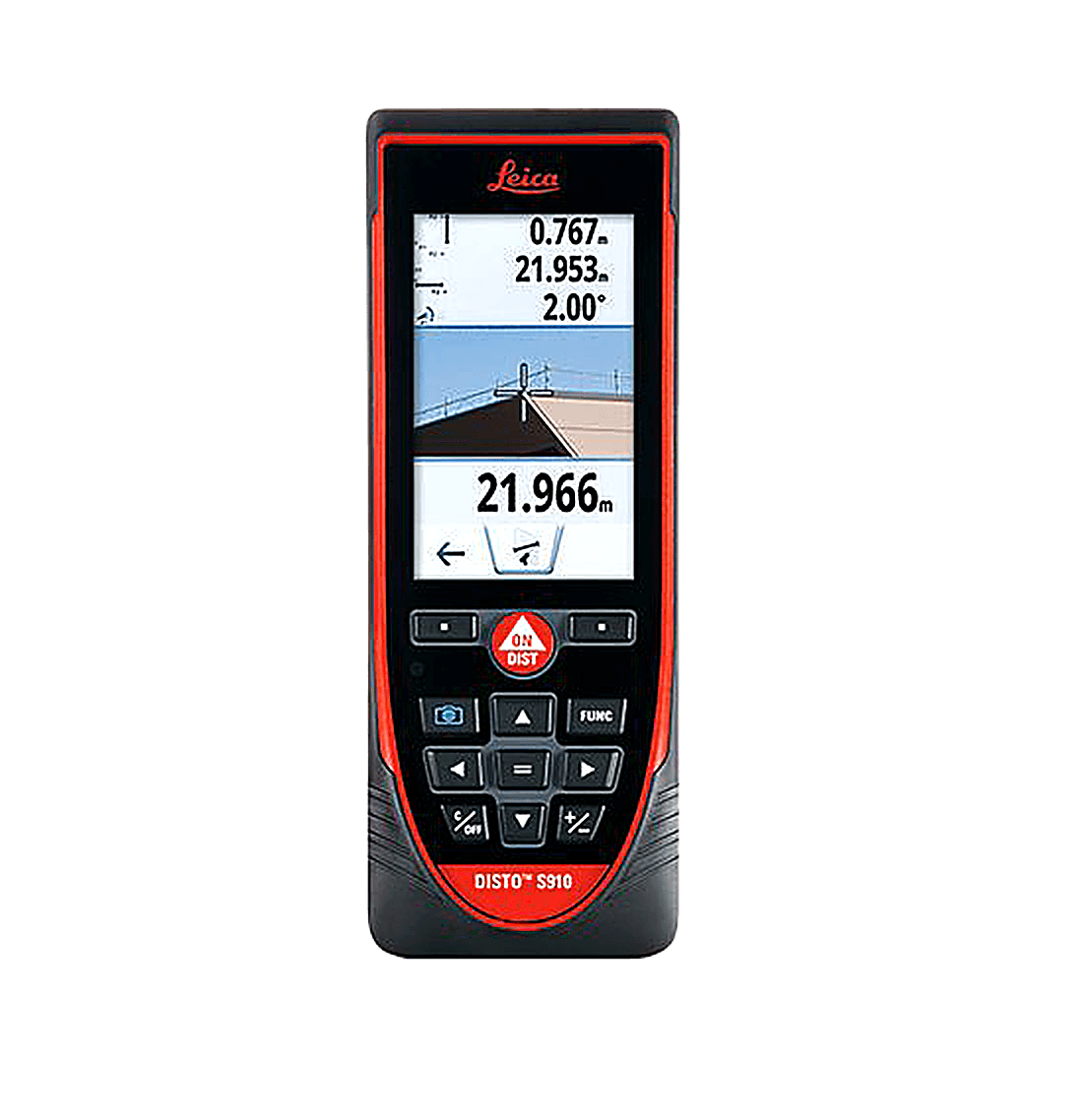

Leica Disto S910 Laser Distance Meter
Product Description
Leica Disto S910 Laser Distance Meter – Measure fast and precise distances between any two points from one location with the Leica Disto S910 Laser Distance Meter. Easily create as built documentation, calculate roof dimensions and integrate data into BIM or CAD software to create 3D visualizations. This improved workflow saves valuable time and money – all this at a range of up to 300 m. The Leica DISTO S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks. SmartBase Smart Base — a biaxial pivot integrated with the circuit board — is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software –SmartBase enables the S910 to measure the distances and angles between multiple points. SmartBase facilitates three new remote measurement functions:
Use a Tripod For maximum accuracy the SmartBase requires a simple level check. This guarantees the electronic level of the S910 is within ± 0.1° of true level. For the highest measuring accuracy you will want to use a tripod for the majority of P2P, Smart Angle and Smart Area functions. The S910 includes a metal insert for a ¼” tripod thread, found at the bottom of the SmartBase (and a 5/8” adaptor is available). FTA 360-S Tripod Adpator Even with a tripod and outdoor pointfinder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adaptor. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimeters. Capture and Export Measurement Data The S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi. Leica DISTO S910 Shown with SmartBase A pivotal base and stand, integrated with the circuit board, to allow measurement between two points for distance and angle. Multiple charging options Whether you are measuring across town or across the world the Leica S910 offers different charging options to keep you ready for that next job. Accuracy & Range Standards This standard sets benchmarks for range and accuracy of laser distance meters. Only Leica LDMs meets these tough standards, not only in the lab but outstanding performance on the jobsite. Tripod Adapter FTA 360-S With the addition of an adjustable tripod adapter (FTA 360-S) and traditional tripod this unit can be used on any terrain and any conditions. ..period! |
Specifications
| ISO 16331-1 certified measuring accuracy (favorable conditions) | 1.0mm |
| ISO 16331-1 certified measuring accuracy (unfavorable conditions) | 2.0mm |
| ISO 16331-1 certified range (favorable conditions) | 0.05m – 300m |
| ISO 16331-1 certified range (unfavorable conditions) | 0.05m – 150m |
| Smart Base vertical range | -40° to 80° |
| Smart Base vertical sensor tolerance | up to +/- 0.1° |
| Smart Base horizontal range | 360° |
| Smart Base horizontal tolerance | up to +/- 0.1° |
| Tolerance P2P function at distances (combination of sensors and distance measuring) | approx. :+/- 2 mm / 2 m |
| +/- 5 mm / 5 m | |
| +/- 10 mm /10 m | |
| Measuring units | 0.000 m, 0.0000 m, 0.00 m |
| X-Range Technology | Yes |
Data Sheet
Instruction Manual
Comparison Table
Which instrument is the right one for me?
| Technical Data | D1 | D110 | D2 | X310 | D410 | D510 | D810 | S910 |
| touch | ||||||||
| Distance measurement | 40m | 60m | 100m | 120m | 150m | 200m | 200m | 300m |
| Minimum/maximum measurements | – | – | Y | Y | Y | Y | Y | Y |
| Area / volume measurements | – | Area | Y | Y | Y | Y | Y | Y |
| Triangle/room angle function | – | – | – | Y | – | Y | Y | Y |
| Painter function | – | – | Y | Y | Y | Y | Y | Y |
| Trapezium function | – | – | – | – | – | Y | Y | Y |
| Pythagoras functions | – | – | Y | Y | Y | Y | Y | Y |
| Tilt measurement | – | – | – | 360° | – | 360° | 360° | 360° |
| Smart Horizontal Mode | – | – | – | Y | Y | Y | Y | Y |
| Sloped object measurement | – | – | – | – | – | Y | Y | Y |
| Height tracking | – | – | – | Y | – | Y | Y | Y |
| Height profile measurements | – | – | – | – | – | Y | Y | Y |
| Stake-out function | – | – | a/a | a/b | a/b | a/b | a/b | a/b |
| Subtraction/addition | – | – | Y | Y | Y | Y | Y | Y |
| Pointfinder with 4x zoom | – | – | – | – | Y | Y | Y | Y |
| Camera function | – | – | – | – | – | – | Y | Y |
| Measure with the picture | – | – | – | – | – | – | Y | Y |
| Timer | – | – | Y | Y | Y | Y | Y | Y |
| Personalised favourites | – | – | – | – | Y | Y | Y | Y |
| Touch screen | – | – | – | – | – | – | Y | Y |
| Compass | – | – | – | – | – | – | Y | Y |
| Point-to-Point measurements | – | – | – | – | – | – | – | Y |
| Smart angle measurement | – | – | – | – | – | – | – | Y |
| Smart area measurement | – | – | – | – | – | – | – | Y |
| DXF data capture | – | – | – | – | – | – | – | Y |
| WLAN data transmission | – | – | – | – | – | – | – | Y |
| Bluetooth Smart | Y | Y | Y | – | – | Y | Y | Y |
Distance Meter Specifications
| Technical Data | D1 | D110 | D2 | X310 |
| Measuring Accuracy | ± 2.0 mm | ± 2.0 mm | ± 1.5 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.2 to 40m | 0.2 to 60m | 0.2 to 100m | 0.05 to 120m |
| Power Range Technology | – | – | – | Y |
| X-Range Power Technology | Y | Y | Y | – |
| Distance in m | 10 m | 10, 50 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6 mm | 6, 30 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | – | – | 360° |
| Tilt sensor – Accuracy to the laser beam | – | – | – | ±0.2° |
| Tilt sensor – Accuracy to the housing | – | – | – | ±0.3° |
| Units in tilt sensor | – | – | – | 0.0°, 0.0% |
| Smart Base Measuring Range – Horizontal | – | – | – | – |
| Smart Base Measuring Range – Vertical | – | – | – | – |
| Distance in m | – | – | – | – |
| Typical Tolerance of the P2P function | – | – | – | – |
| Levelling range | – | – | – | – |
| Levelling accuracy | – | – | – | – |
| Pointfinder with 4x zoom | – | – | – | – |
| Overview camera | – | – | – | – |
| Picture file format | – | – | – | – |
| Memory | – | – | 10 results | 20 displays |
| Memory for pictures | – | – | – | – |
| CAD data format | – | – | – | – |
| Memory for CAD files | – | – | – | – |
| Time delay release (timer) | – | – | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | Y | Y | Y | – |
| Free App | IOS / Android | IOS / Android | IOS / Android | – |
| Data interface* | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART | – |
| Measurements per set of batteries | up to 10,000 | up to 10,000 | up to 10,000 | up to 5,000 |
| Service life of battery | up to 20 hours | up to 20 hours | up to 20 hours | up to 10 hours |
| Multifunctional end-piece | – | – | Y | Y |
| Tripod thread | – | – | – | Y |
| Batteries | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V |
| Charging time | – | – | – | – |
| Protection class | IP54 | IP54 | IP54 | IP65 |
| Dimensions | 115×43.5×23.5mm | 120x37x23mm | 116x44x26mm | 122x55x31mm |
| Weight with batteries | 87g | 92g | 100g | 155g |
| Technical Data | D410 | D510 | D810 touch | S910 |
| Measuring Accuracy | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.05 to 150m | 0.05 to 200m | 0.05 to 200m | 0.05 to 300m |
| Power Range Technology | Y | Y | Y | |
| X-Range Power Technology | Y | |||
| Distance in m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | 360° | 360° | 360° |
| Tilt sensor – Accuracy to the laser beam | – | +0.2° | -0.1° / +0.2° | -0.1° / +0.2° |
| Tilt sensor – Accuracy to the housing | – | ±0.2° | ±0.1° | ±0.1° |
| Units in tilt sensor | – | 0.0°, 0.00% | 0.0°, 0.00% | 0.0°, 0.00% |
| Smart Base Measuring Range – Horizontal | – | – | – | 360° |
| Smart Base Measuring Range – Vertical | – | – | – | -40° to 80° |
| Distance in m | – | – | – | 2, 5, 10m |
| Typical Tolerance of the P2P function | – | – | – | 2, 5, 10mm |
| Levelling range | – | – | – | ±5° |
| Levelling accuracy | – | – | – | ±0.05° |
| Pointfinder with 4x zoom | Y | Y | Y | Y |
| Overview camera | – | – | Y | Y |
| Picture file format | – | – | .jpg | .jpg |
| Memory | 30 displays | 30 displays | 30 displays | 50 displays |
| Memory for pictures | – | – | 80 Photos | 80 Photos |
| CAD data format | – | – | – | .dxf |
| Memory for CAD files | – | – | – | 20 files, 30 points ea |
| Time delay release (timer) | Y | Y | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | – | – | Y | Y |
| Free App | – | IOS / Android | IOS / Android | IOS / Android |
| Data interface* | – | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART, WLAN |
| Measurements per set of batteries | up to 5,000 | up to 5,000 | up to 4,000 | up to 4,000 |
| Service life of battery | up to 10 hours | up to 10 hours | up to 8 hours | up to 8 hours |
| Multifunctional end-piece | Y | Y | Y | – |
| Tripod thread | Y | Y | Y | Smart Base |
| Batteries | AA 2×1.5V | AA 2×1.5V | Li-ion rechargeable | Li-ion rechargeable |
| Charging time | – | – | 4h | 4h |
| Protection class | IP65 | IP65 | IP54 | IP54 |
| Dimensions | 143x58x29mm | 143x58x29mm | 164x61x31mm | 164x61x32mm |
| Weight with batteries | 198g | 198g | 238g | 290g |
