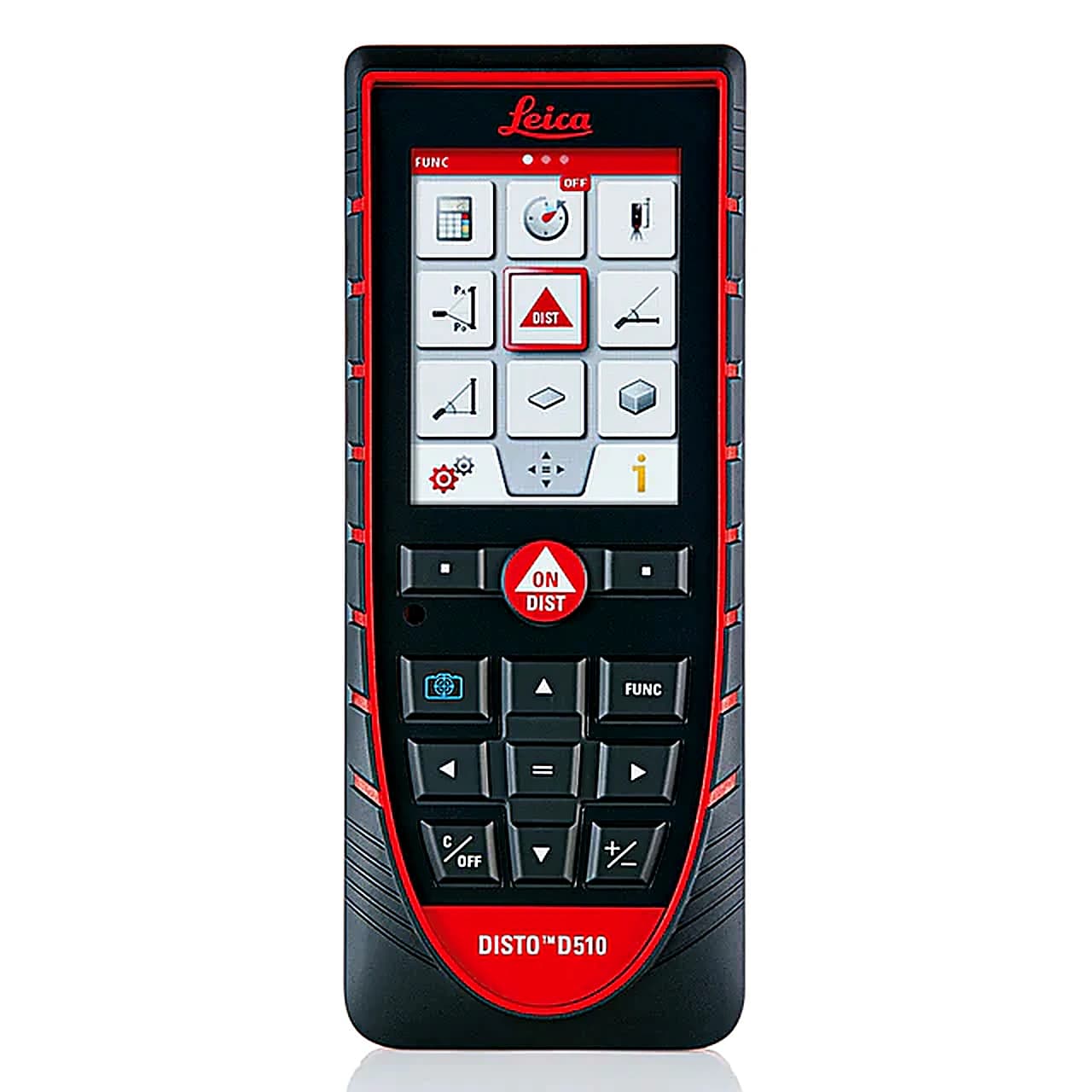

Leica Disto D510 Laser Distance Meter
Product Description
Buy it online here
The Leica Disto D510 Laser Distance Meter for easy and effortless outdoor distance measurement up tp 200m.
The unique combo of digital Pointfinder & 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart & attractive free apps, you are prepared for the future.
Features
- Pointfinder with 4X zoom
- IP65 water jet protection and dust-tight
- 360° tilt sensor
- Smart Horizontal Mode™
- Height tracking
- Bluetooth® Smart
- Free App – Leica DISTO™ sketch

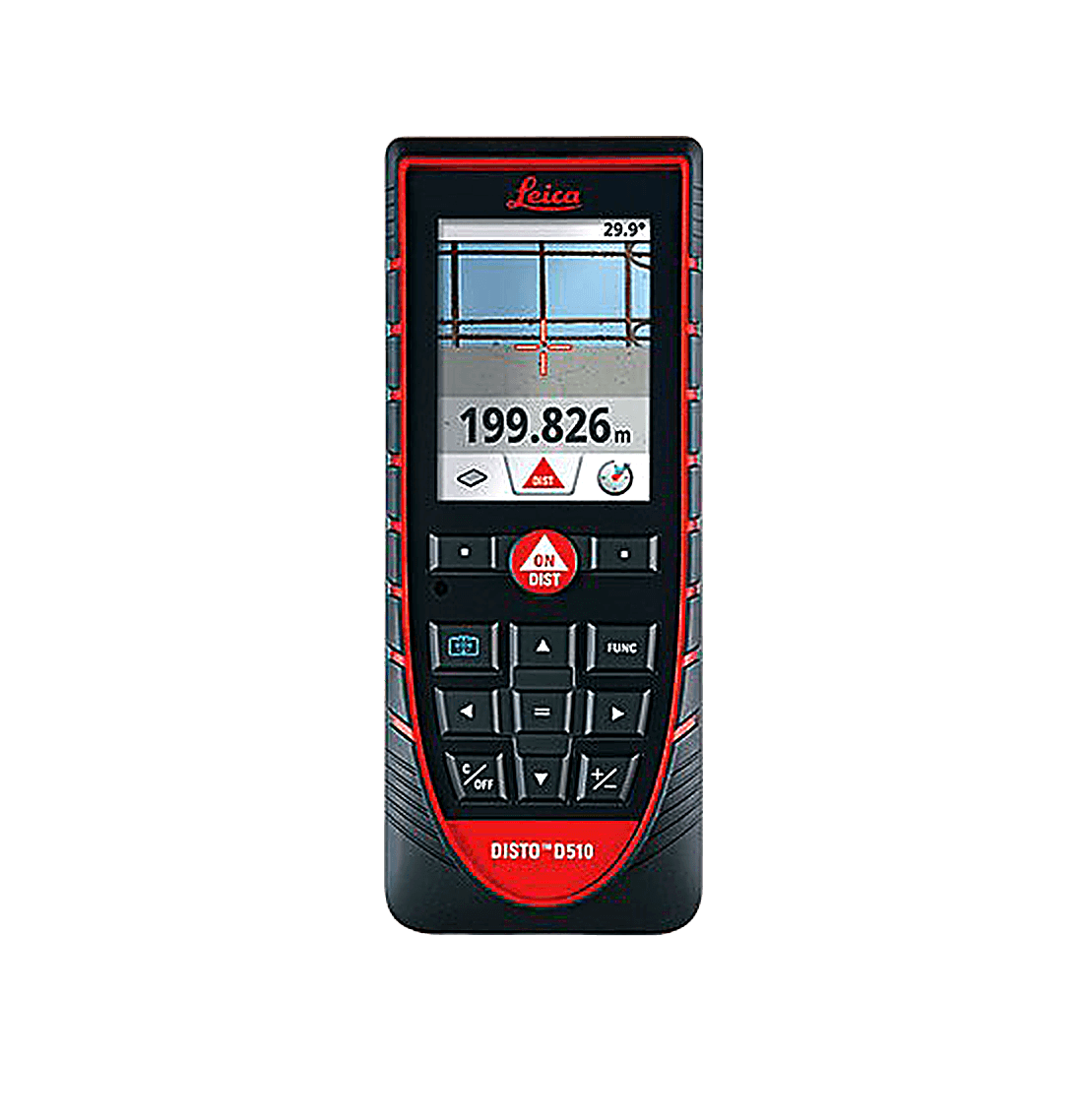

Simple and precise targeting – Pointfinder with 4X zoom
With the Pointfinder, the Leica DISTO™ D510 takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.
Unlimited number of measuring options – 360° tilt sensor
The Leica DISTO™ D510 is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.
Efficient height profile measurement
Using this function, the Leica DISTO™ D510 displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.
Quick sketching – Bluetooth® Smart with app
The Leica DISTO™ D510 is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.
Modern ergonomics
Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO™ D510 has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site.CD with Leica
Tough and easy to clean – IP65
The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.
Specifications
Leica Disto D510 Laser Distance Meter – Specifications
| Technical Specifications | |
| Typical measuring accuracy | ± 1 mm |
| Range | up to 200 m |
| Measuring units | m, ft, in, yd |
| Power Range Technology™ | • |
| Distance in m | 10, 50, 100 m |
| Ø of the laser dot in mm | 6, 30, 60 mm |
| Tilt sensor measuring range | 360° |
| Pointfinder with 4x zoom | • |
| Memory | 30 displays |
| Free App | • |
| Data interface* | Bluetooth® Smart |
| Measurements per set of batteries | up to 5000** |
| Multifunctional end-piece | automatic recognition |
| Batteries | type AA 2 × 1,5 V |
| Tripod thread | • |
| Protection class | IP65 – water jet protection and dust-tight |
| Dimensions | 143 × 58 × 29 mm |
| Weight with batteries | 198 g |
| Functions | |
| Minimum / maximum measurements | • |
| Area / volume measurement | • |
| Triangle / room angle function | • |
| Painter function | • |
| Trapezium measurements | • |
| Pythagoras functions | 2 points and 3 points |
| Inclination tracking | • |
| Smart Horizontal Mode™ | • |
| Sloped object measurement | • |
| Height tracking | • |
| Height profile measurements | • |
| Stake-out function | a/b |
| Subtraction / addition | • |
Leica Disto D510 Laser Distance Meter Packing List :
- Leica DISTO™ D510
- holster
- hand loop
- batteries
- manual
- safety instructions
- producer certificate
Data Sheet
Instruction Manual
Leica Disto D510 Laser Distance Meter – Instruction Manual
Leica Disto D510 Laser Distance Meter Instruction Manual
Comparison Table
Leica Disto Laser Distance Meters – Comparison Table
Which instrument is the right one for me?
| Technical Data | D1 | D110 | D2 | X310 | D410 | D510 | D810 | S910 |
| touch | ||||||||
| Distance measurement | 40m | 60m | 100m | 120m | 150m | 200m | 200m | 300m |
| Minimum/maximum measurements | – | – | Y | Y | Y | Y | Y | Y |
| Area / volume measurements | – | Area | Y | Y | Y | Y | Y | Y |
| Triangle/room angle function | – | – | – | Y | – | Y | Y | Y |
| Painter function | – | – | Y | Y | Y | Y | Y | Y |
| Trapezium function | – | – | – | – | – | Y | Y | Y |
| Pythagoras functions | – | – | Y | Y | Y | Y | Y | Y |
| Tilt measurement | – | – | – | 360° | – | 360° | 360° | 360° |
| Smart Horizontal Mode | – | – | – | Y | Y | Y | Y | Y |
| Sloped object measurement | – | – | – | – | – | Y | Y | Y |
| Height tracking | – | – | – | Y | – | Y | Y | Y |
| Height profile measurements | – | – | – | – | – | Y | Y | Y |
| Stake-out function | – | – | a/a | a/b | a/b | a/b | a/b | a/b |
| Subtraction/addition | – | – | Y | Y | Y | Y | Y | Y |
| Pointfinder with 4x zoom | – | – | – | – | Y | Y | Y | Y |
| Camera function | – | – | – | – | – | – | Y | Y |
| Measure with the picture | – | – | – | – | – | – | Y | Y |
| Timer | – | – | Y | Y | Y | Y | Y | Y |
| Personalised favourites | – | – | – | – | Y | Y | Y | Y |
| Touch screen | – | – | – | – | – | – | Y | Y |
| Compass | – | – | – | – | – | – | Y | Y |
| Point-to-Point measurements | – | – | – | – | – | – | – | Y |
| Smart angle measurement | – | – | – | – | – | – | – | Y |
| Smart area measurement | – | – | – | – | – | – | – | Y |
| DXF data capture | – | – | – | – | – | – | – | Y |
| WLAN data transmission | – | – | – | – | – | – | – | Y |
| Bluetooth Smart | Y | Y | Y | – | – | Y | Y | Y |
Distance Meter Specifications

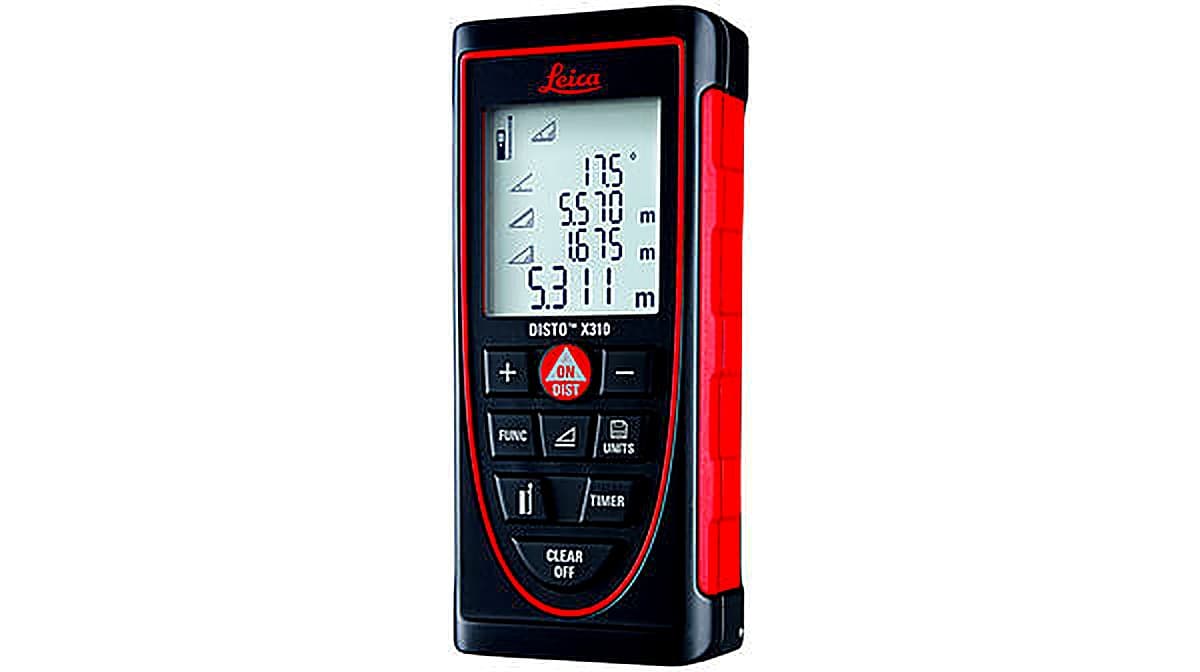

| Technical Data | D1 | D110 | D2 | X310 |
| Measuring Accuracy | ± 2.0 mm | ± 2.0 mm | ± 1.5 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.2 to 40m | 0.2 to 60m | 0.2 to 100m | 0.05 to 120m |
| Power Range Technology | – | – | – | Y |
| X-Range Power Technology | Y | Y | Y | – |
| Distance in m | 10 m | 10, 50 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6 mm | 6, 30 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | – | – | 360° |
| Tilt sensor – Accuracy to the laser beam | – | – | – | ±0.2° |
| Tilt sensor – Accuracy to the housing | – | – | – | ±0.3° |
| Units in tilt sensor | – | – | – | 0.0°, 0.0% |
| Smart Base Measuring Range – Horizontal | – | – | – | – |
| Smart Base Measuring Range – Vertical | – | – | – | – |
| Distance in m | – | – | – | – |
| Typical Tolerance of the P2P function | – | – | – | – |
| Levelling range | – | – | – | – |
| Levelling accuracy | – | – | – | – |
| Pointfinder with 4x zoom | – | – | – | – |
| Overview camera | – | – | – | – |
| Picture file format | – | – | – | – |
| Memory | – | – | 10 results | 20 displays |
| Memory for pictures | – | – | – | – |
| CAD data format | – | – | – | – |
| Memory for CAD files | – | – | – | – |
| Time delay release (timer) | – | – | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | Y | Y | Y | – |
| Free App | IOS / Android | IOS / Android | IOS / Android | – |
| Data interface* | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART | – |
| Measurements per set of batteries | up to 10,000 | up to 10,000 | up to 10,000 | up to 5,000 |
| Service life of battery | up to 20 hours | up to 20 hours | up to 20 hours | up to 10 hours |
| Multifunctional end-piece | – | – | Y | Y |
| Tripod thread | – | – | – | Y |
| Batteries | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V |
| Charging time | – | – | – | – |
| Protection class | IP54 | IP54 | IP54 | IP65 |
| Dimensions | 115×43.5×23.5mm | 120x37x23mm | 116x44x26mm | 122x55x31mm |
| Weight with batteries | 87g | 92g | 100g | 155g |
| Technical Data | D410 | D510 | D810 touch | S910 |
| Measuring Accuracy | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.05 to 150m | 0.05 to 200m | 0.05 to 200m | 0.05 to 300m |
| Power Range Technology | Y | Y | Y | |
| X-Range Power Technology | Y | |||
| Distance in m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | 360° | 360° | 360° |
| Tilt sensor – Accuracy to the laser beam | – | +0.2° | -0.1° / +0.2° | -0.1° / +0.2° |
| Tilt sensor – Accuracy to the housing | – | ±0.2° | ±0.1° | ±0.1° |
| Units in tilt sensor | – | 0.0°, 0.00% | 0.0°, 0.00% | 0.0°, 0.00% |
| Smart Base Measuring Range – Horizontal | – | – | – | 360° |
| Smart Base Measuring Range – Vertical | – | – | – | -40° to 80° |
| Distance in m | – | – | – | 2, 5, 10m |
| Typical Tolerance of the P2P function | – | – | – | 2, 5, 10mm |
| Levelling range | – | – | – | ±5° |
| Levelling accuracy | – | – | – | ±0.05° |
| Pointfinder with 4x zoom | Y | Y | Y | Y |
| Overview camera | – | – | Y | Y |
| Picture file format | – | – | .jpg | .jpg |
| Memory | 30 displays | 30 displays | 30 displays | 50 displays |
| Memory for pictures | – | – | 80 Photos | 80 Photos |
| CAD data format | – | – | – | .dxf |
| Memory for CAD files | – | – | – | 20 files, 30 points ea |
| Time delay release (timer) | Y | Y | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | – | – | Y | Y |
| Free App | – | IOS / Android | IOS / Android | IOS / Android |
| Data interface* | – | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART, WLAN |
| Measurements per set of batteries | up to 5,000 | up to 5,000 | up to 4,000 | up to 4,000 |
| Service life of battery | up to 10 hours | up to 10 hours | up to 8 hours | up to 8 hours |
| Multifunctional end-piece | Y | Y | Y | – |
| Tripod thread | Y | Y | Y | Smart Base |
| Batteries | AA 2×1.5V | AA 2×1.5V | Li-ion rechargeable | Li-ion rechargeable |
| Charging time | – | – | 4h | 4h |
| Protection class | IP65 | IP65 | IP54 | IP54 |
| Dimensions | 143x58x29mm | 143x58x29mm | 164x61x31mm | 164x61x32mm |
| Weight with batteries | 198g | 198g | 238g | 290g |
