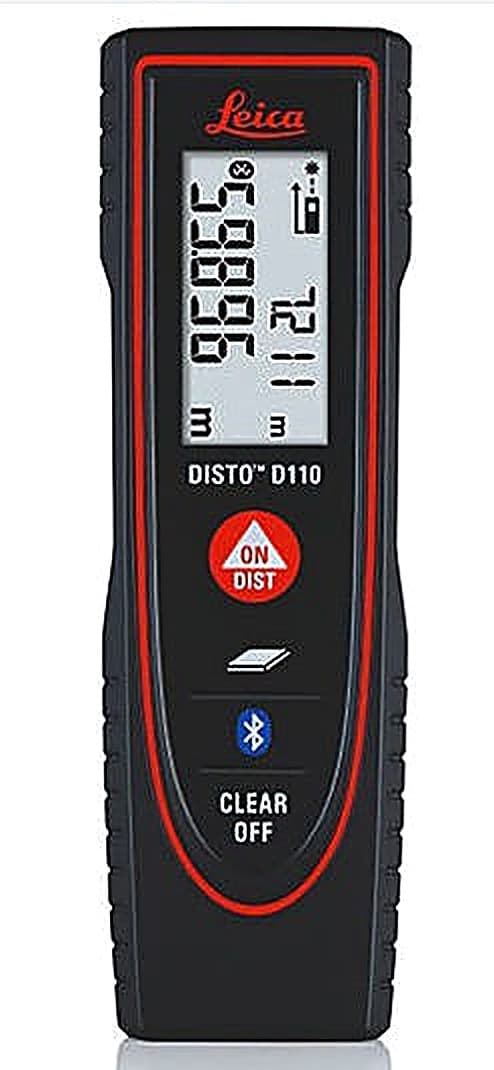

Leica Disto D110 Laser Distance Meter
Product Description
The Leica Disto D110 Laser Distance Meter is the first laser distance meter with Bluetooth® Smart that fits to a pocket. Its handy design with a pocket clip and simple functions make it a perfect tool for anyone who wants to take effortless measurements. Whether you need a quick material estimation or you work on a home improvement project, the Leica DISTO™ D110 with integrated Bluetooth® Smart and the free Leica DISTO™ sketch app offers you endless possibilities to create sketches, generate floor plans, document your measurements with pictures using a smartphone or a tablet.
Your benefits
- New handy shape and unmatched ease of use
- Extended functionality with built-in
- Bluetooth® Smart and Leica DISTO™ sketch app
- Ideal for quick distance and area measurements
- Removable pocket clip for easy carrying
- Leica Geosystems technology, quality and precision
Features
Compact shape and intuitive ease of use
The Leica DISTO™ D110 is the smallest and the lightest laser distance metre in the DISTO™ product range. Its ergonomic design guarantees that the device fits perfectly in a hand and is comfortable to use. The self-explanatory buttons allow quick and intuitive operation. Measuring has never been easier!
Bluetooth® Smart and Leica DISTO™ sketch app
The latest Leica DISTO™ sketch app is the ideal link between the Leica DISTO™ D110 and a smartphone or a tablet. Once connected to compatible devices, users can instantly start creating floor plans, sketches and photo-documentation with precise measurements.
Quick distance and area measurements
The Leica DISTO™ D110 is the perfect device to take effortless distance and area measurements. Whether an interior designer, painter or building contractor, the Leica DISTO™ D110 will make it easier to get the job done right.
Removable pocket clip
The removable pocket clip guarantees quick attachment, easy carrying and direct access to the Leica DISTO™ D110.
ISO Standard 16331-1 – The new benchmark for reliability
With an ISO-certified Leica DISTO™ D110 it is guaranteed that the accuracy and range mentioned on the package can be achieved on the construction site.
Pocket clip for quick attachment, easy carrying, and direct access to the device.
Dust and splash water protection ensures that DISTO™ D110 will even measure in the toughest jobsite conditions.
Quick distance and area measurements bring productivity and convenience to daily work.
Free Leica DISTO™ sketch app for creating and sharing floor plans and photo documentation.
Specifications
| ISO 16331-1 certified typical measuring range | 0.2 – 60m |
| ISO 16331-1 certified typical measuring accuracy | ± 1.5 mm |
| Measuring Units | m, ft, in |
| Power Range Technology | Yes |
| Display Illumination | Yes |
| Free Sketch App | Yes |
| Data Interface | Bluetooth Smart V4.0 |
| Measurements per set of batteries | Up to 5000 |
| Batteries | Type AAA, 2 x1.5v |
| Protection class | IP54 – dust and splash protected |
| Dimensions (HxDxW) | 120 × 37 × 23 mm |
| Weight with batteries | 92g |
Functions
| Distance measuring | yes |
| Permanent measuring | yes |
| Area | yes |
| Beep | yes |
| Bluetooth® Smart | yes |
| Illuminated display | yes |

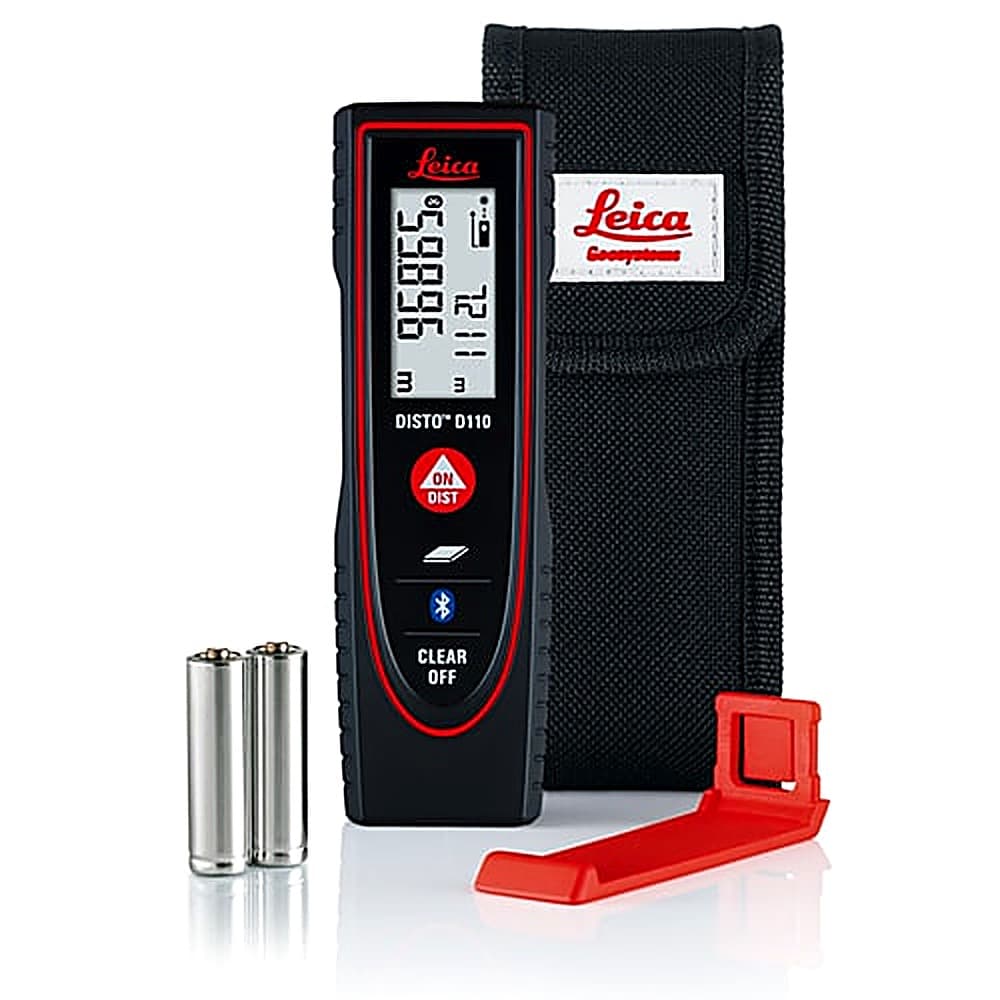

Packing List
- Leica DISTO™ D110 laser distance meter
- Batteries
Data Sheet
Instruction Manual
Comparison Table
Which instrument is the right one for me?
| Technical Data | D1 | D110 | D2 | X310 | D410 | D510 | D810 | S910 |
| touch | ||||||||
| Distance measurement | 40m | 60m | 100m | 120m | 150m | 200m | 200m | 300m |
| Minimum/maximum measurements | – | – | Y | Y | Y | Y | Y | Y |
| Area / volume measurements | – | Area | Y | Y | Y | Y | Y | Y |
| Triangle/room angle function | – | – | – | Y | – | Y | Y | Y |
| Painter function | – | – | Y | Y | Y | Y | Y | Y |
| Trapezium function | – | – | – | – | – | Y | Y | Y |
| Pythagoras functions | – | – | Y | Y | Y | Y | Y | Y |
| Tilt measurement | – | – | – | 360° | – | 360° | 360° | 360° |
| Smart Horizontal Mode | – | – | – | Y | Y | Y | Y | Y |
| Sloped object measurement | – | – | – | – | – | Y | Y | Y |
| Height tracking | – | – | – | Y | – | Y | Y | Y |
| Height profile measurements | – | – | – | – | – | Y | Y | Y |
| Stake-out function | – | – | a/a | a/b | a/b | a/b | a/b | a/b |
| Subtraction/addition | – | – | Y | Y | Y | Y | Y | Y |
| Pointfinder with 4x zoom | – | – | – | – | Y | Y | Y | Y |
| Camera function | – | – | – | – | – | – | Y | Y |
| Measure with the picture | – | – | – | – | – | – | Y | Y |
| Timer | – | – | Y | Y | Y | Y | Y | Y |
| Personalised favourites | – | – | – | – | Y | Y | Y | Y |
| Touch screen | – | – | – | – | – | – | Y | Y |
| Compass | – | – | – | – | – | – | Y | Y |
| Point-to-Point measurements | – | – | – | – | – | – | – | Y |
| Smart angle measurement | – | – | – | – | – | – | – | Y |
| Smart area measurement | – | – | – | – | – | – | – | Y |
| DXF data capture | – | – | – | – | – | – | – | Y |
| WLAN data transmission | – | – | – | – | – | – | – | Y |
| Bluetooth Smart | Y | Y | Y | – | – | Y | Y | Y |
Distance Meter Specifications
| Technical Data | D1 | D110 | D2 | X310 |
| Measuring Accuracy | ± 2.0 mm | ± 2.0 mm | ± 1.5 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.2 to 40m | 0.2 to 60m | 0.2 to 100m | 0.05 to 120m |
| Power Range Technology | – | – | – | Y |
| X-Range Power Technology | Y | Y | Y | – |
| Distance in m | 10 m | 10, 50 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6 mm | 6, 30 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | – | – | 360° |
| Tilt sensor – Accuracy to the laser beam | – | – | – | ±0.2° |
| Tilt sensor – Accuracy to the housing | – | – | – | ±0.3° |
| Units in tilt sensor | – | – | – | 0.0°, 0.0% |
| Smart Base Measuring Range – Horizontal | – | – | – | – |
| Smart Base Measuring Range – Vertical | – | – | – | – |
| Distance in m | – | – | – | – |
| Typical Tolerance of the P2P function | – | – | – | – |
| Levelling range | – | – | – | – |
| Levelling accuracy | – | – | – | – |
| Pointfinder with 4x zoom | – | – | – | – |
| Overview camera | – | – | – | – |
| Picture file format | – | – | – | – |
| Memory | – | – | 10 results | 20 displays |
| Memory for pictures | – | – | – | – |
| CAD data format | – | – | – | – |
| Memory for CAD files | – | – | – | – |
| Time delay release (timer) | – | – | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | Y | Y | Y | – |
| Free App | IOS / Android | IOS / Android | IOS / Android | – |
| Data interface* | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART | – |
| Measurements per set of batteries | up to 10,000 | up to 10,000 | up to 10,000 | up to 5,000 |
| Service life of battery | up to 20 hours | up to 20 hours | up to 20 hours | up to 10 hours |
| Multifunctional end-piece | – | – | Y | Y |
| Tripod thread | – | – | – | Y |
| Batteries | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V | AAA 2×1.5V |
| Charging time | – | – | – | – |
| Protection class | IP54 | IP54 | IP54 | IP65 |
| Dimensions | 115×43.5×23.5mm | 120x37x23mm | 116x44x26mm | 122x55x31mm |
| Weight with batteries | 87g | 92g | 100g | 155g |
| Technical Data | D410 | D510 | D810 touch | S910 |
| Measuring Accuracy | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm |
| Range (From about 80 m, use target plate) | 0.05 to 150m | 0.05 to 200m | 0.05 to 200m | 0.05 to 300m |
| Power Range Technology | Y | Y | Y | |
| X-Range Power Technology | Y | |||
| Distance in m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m | 10, 50, 100 m |
| Diameter of laser dot in mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm | 6, 30, 60 mm |
| Tilt sensor – Measuring Range | – | 360° | 360° | 360° |
| Tilt sensor – Accuracy to the laser beam | – | +0.2° | -0.1° / +0.2° | -0.1° / +0.2° |
| Tilt sensor – Accuracy to the housing | – | ±0.2° | ±0.1° | ±0.1° |
| Units in tilt sensor | – | 0.0°, 0.00% | 0.0°, 0.00% | 0.0°, 0.00% |
| Smart Base Measuring Range – Horizontal | – | – | – | 360° |
| Smart Base Measuring Range – Vertical | – | – | – | -40° to 80° |
| Distance in m | – | – | – | 2, 5, 10m |
| Typical Tolerance of the P2P function | – | – | – | 2, 5, 10mm |
| Levelling range | – | – | – | ±5° |
| Levelling accuracy | – | – | – | ±0.05° |
| Pointfinder with 4x zoom | Y | Y | Y | Y |
| Overview camera | – | – | Y | Y |
| Picture file format | – | – | .jpg | .jpg |
| Memory | 30 displays | 30 displays | 30 displays | 50 displays |
| Memory for pictures | – | – | 80 Photos | 80 Photos |
| CAD data format | – | – | – | .dxf |
| Memory for CAD files | – | – | – | 20 files, 30 points ea |
| Time delay release (timer) | Y | Y | Y | Y |
| Display illumination | Y | Y | Y | Y |
| Free software for Windows | – | – | Y | Y |
| Free App | – | IOS / Android | IOS / Android | IOS / Android |
| Data interface* | – | Bluetooth SMART | Bluetooth SMART | Bluetooth SMART, WLAN |
| Measurements per set of batteries | up to 5,000 | up to 5,000 | up to 4,000 | up to 4,000 |
| Service life of battery | up to 10 hours | up to 10 hours | up to 8 hours | up to 8 hours |
| Multifunctional end-piece | Y | Y | Y | – |
| Tripod thread | Y | Y | Y | Smart Base |
| Batteries | AA 2×1.5V | AA 2×1.5V | Li-ion rechargeable | Li-ion rechargeable |
| Charging time | – | – | 4h | 4h |
| Protection class | IP65 | IP65 | IP54 | IP54 |
| Dimensions | 143x58x29mm | 143x58x29mm | 164x61x31mm | 164x61x32mm |
| Weight with batteries | 198g | 198g | 238g | 290g |
