Elcometer 142 ISO 8502-3 Dust Tape Test kit


Product Description


The Elcometer 142 Dust Tape Test kit allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish.

Used in conjunction with the Elcometer 145 Dust Tape Roller the kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust.

The Elcometer 142 ISO 8502-3 Dust Tape Test Kit can be used in accordance with:

• AS3894.6-C
• IMO MSC.215 (82)
• IMO MSC.244 (83)
• ISO 8502-3
• US Navy PPI 63101-000


Specifications

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Specifications

Part Number Description
E142—-1 Elcometer 142 ISO 8502-3 Dust Tape Test Kit
Measurement Range Chart with dust classes ranging from 0 – 5 with descriptions for accurate class placement
Weight 250g
Dimensions 210 x 297mm

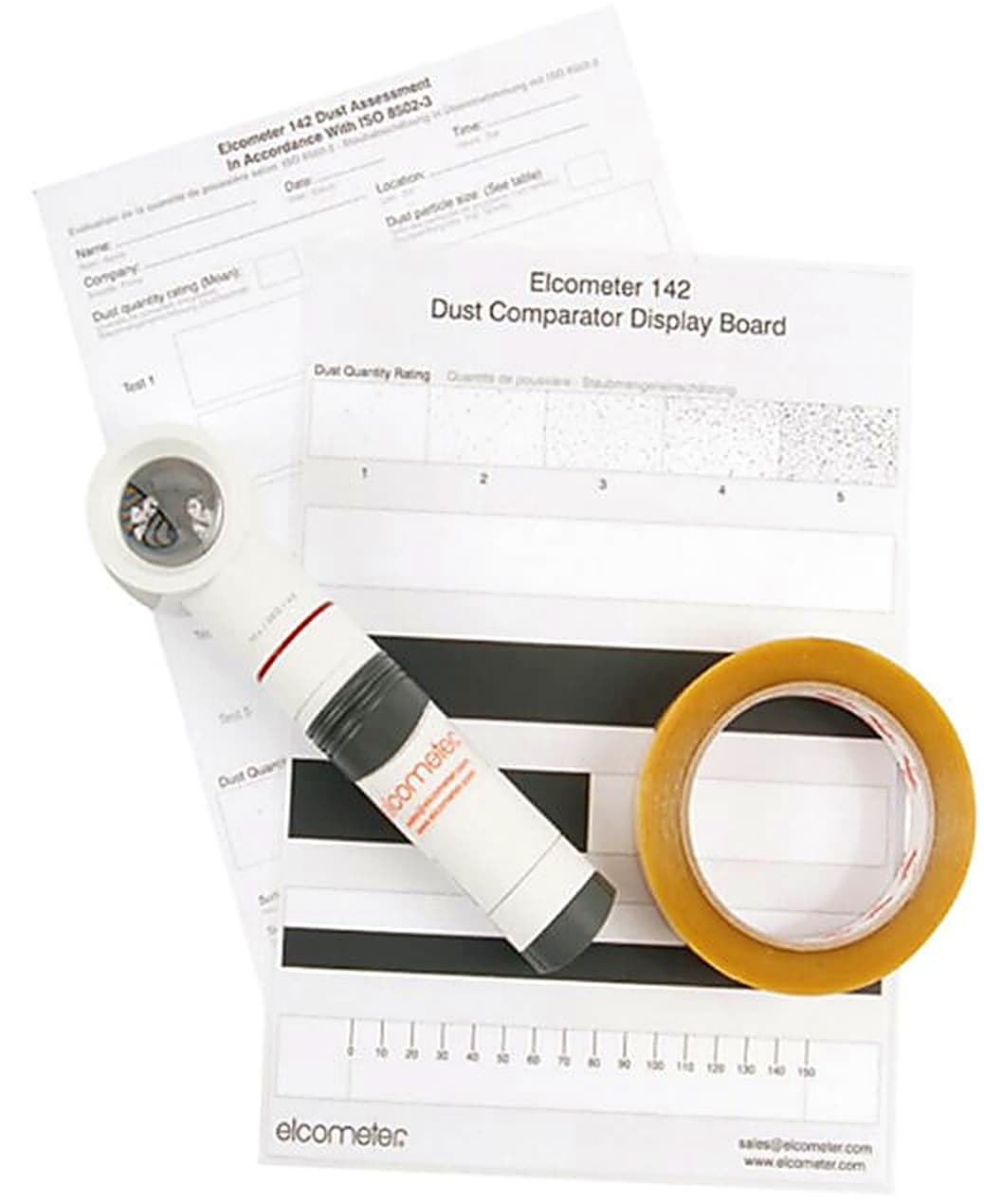

Packing List

  • Microscope with 10x magnifier
  • 2 batteries (LR14)
  • Graticule
  • Adhesive tape to specification ISO 8502-3
  • Comparator display board
  • Dust assessment plate
  • Test record sheets (pack of 25)
  • Operating Instructions

Data Sheet

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Data Sheet

Elcometer 142 ISO 8502-3 Dust Tape Test kit Data Sheet

Standards

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Standards

The Elcometer 142 ISO 8502-3 Dust Tape Test Kit can be used in accordance with:

• AS3894.6-C
• IMO MSC.215 (82)
• IMO MSC.244 (83)
• ISO 8502-3
• US Navy PPI 63101-000

Accessories

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Accessories

Part Number Description
T14219451 Test Record Sheet
T14219454 Display Board
T9999358-1 Adhesive Tape 1 Roll Pack – ISO 8502-3
T9999358-2 Adhesive Tape 2 Roll Pack – ISO 8502-3
T14219525 Dust Assessment Plate

Instruction Manual

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Instruction Manual

Elcometer 142 ISO 8502-3 Dust Tape Test kit – Instruction Manual
