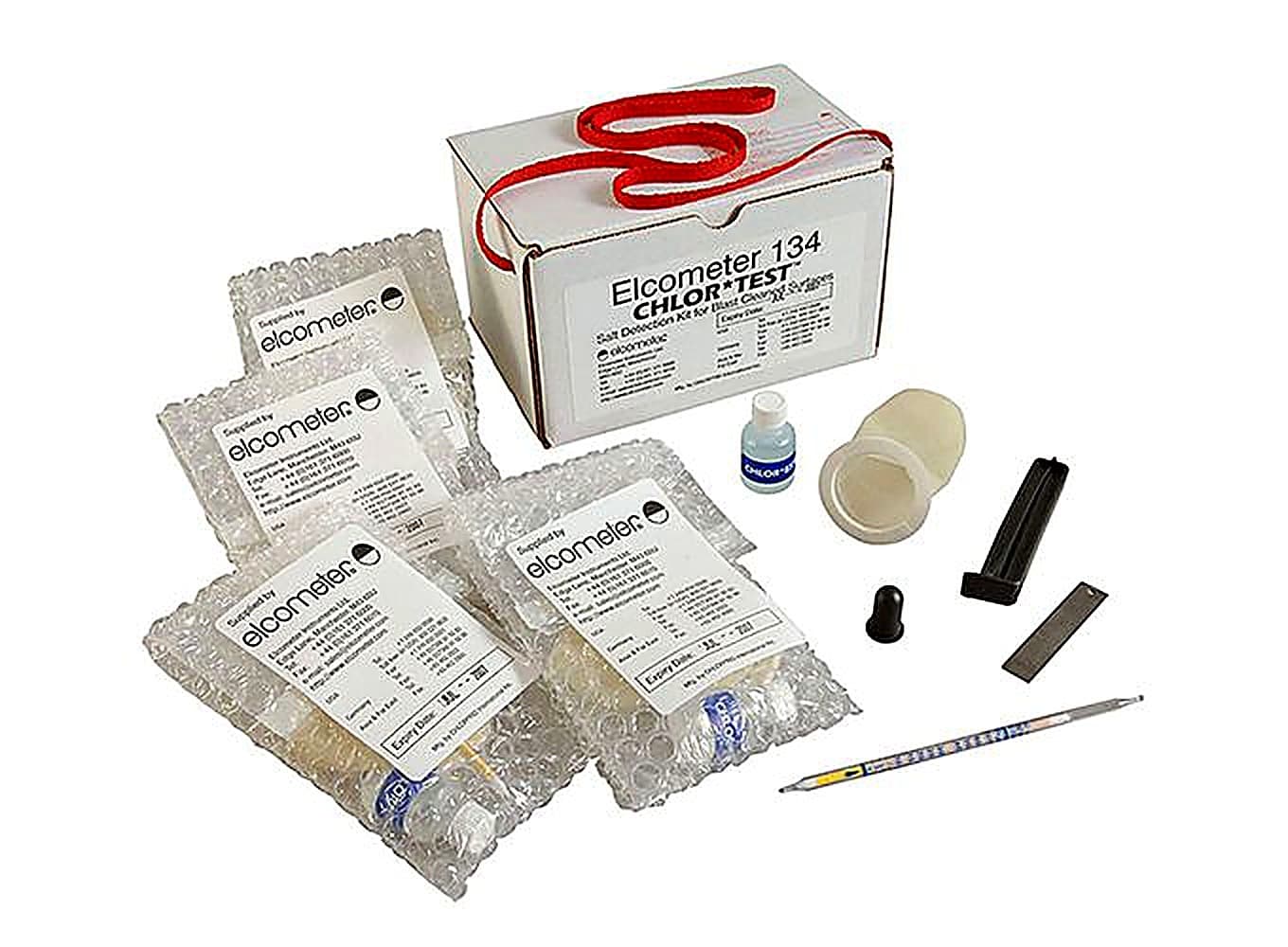

Elcometer 134S Chloride Detection Kit for Blast Cleaned Surfaces
Product Description
|
The Elcometer 134S Chlor Test for Blast Cleaned Surfaces allows the surface to be tested for chloride salts prior to application of a coating. To ensure that the chloride has been removed it is essential that the surface is tested before the coating is applied. Elcometer 134S test method: a latex sleeve is filled with a Chlor*Rid extract solution and stuck to the test surface where the solution is worked against the surface to extract the salts. The titration tube is inserted, and the results can be recorded. is used to ensure that the chloride has been removed as it is essential that the surface is tested before the coating is applied. Chloride salts left on the surface before the first coat is applied can result in the coating system being forced off the surface by corrosion or blistering before the full life of the coating has been reached.Elcometer 134S Chloride Detection Kit for Blast Cleaned Surfaces test method:A latex sleeve is filled with a Chlor*Rid extract solution and stuck to the test surface where the solution is worked against the surface to extract the salts. The titration tube is inserted and the results can be recorded.The Elcometer 134S can be used in accordance with:
|
Specifications
Specifications
| Part Number | Description |
| E134—-1 | Elcometer 134S Salt Detection Kit for Blast Cleaned Surfaces |
| Measurement Range | 1 – 60µg/cm² (1 – 60ppm) |
| Scale Resolution | 1µg/cm² (1ppm) |
| Tests per kit | 5 |
| Storage Conditions | Not exceeding 25°C |
| Weight | 250g |
| Dimensions | 185 x 125 x 110mm |

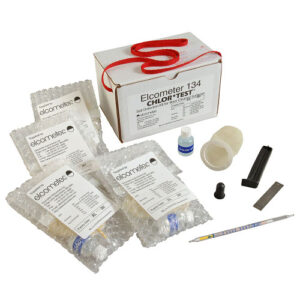

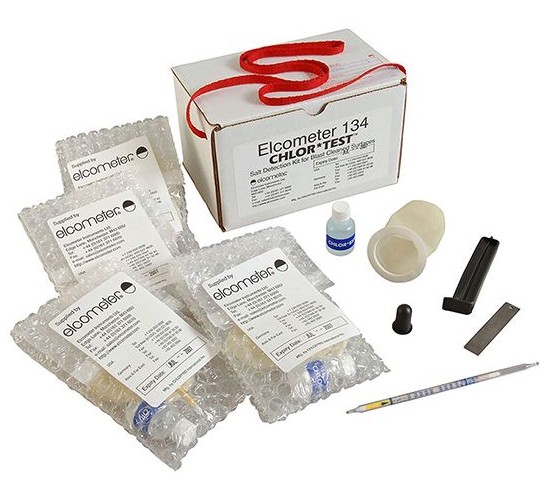

Elcometer 134S Chloride Detection Kit for Blast Cleaned Surfaces Packing list:
5 x test kits each containing:
- Titration tube snapper
- Strap
- Clip
- Pre-measured bottle of Chlor*Rid extract solution
- Sleeve
- Titration tube
- Operating instructions
Data Sheet
Standards
Standards
The Elcometer 134S Chloride Detection Kit for Blast Cleaned Surfaces can be used in accordance with:
- ISO 8502-5
- SSPC Guide 15
Test Method
Test Method
The Elcometer 134S Chloride Detection Kit for Blast Cleaned Surfaces is simple and convenient to use with its three-step process
1. Pour CHLOR*EXTRACT™ solution into the latex tube.
2. Peel the protective backing off the flange of the tube, pinch to tube to retain the CHLOR*EXTRACT™ and stick the flange to the surface to be tested and work the solution against the surface to extract the salts.
3. Peel the flange off. Insert the glass titration tube into the solution in the tube and read the results.
