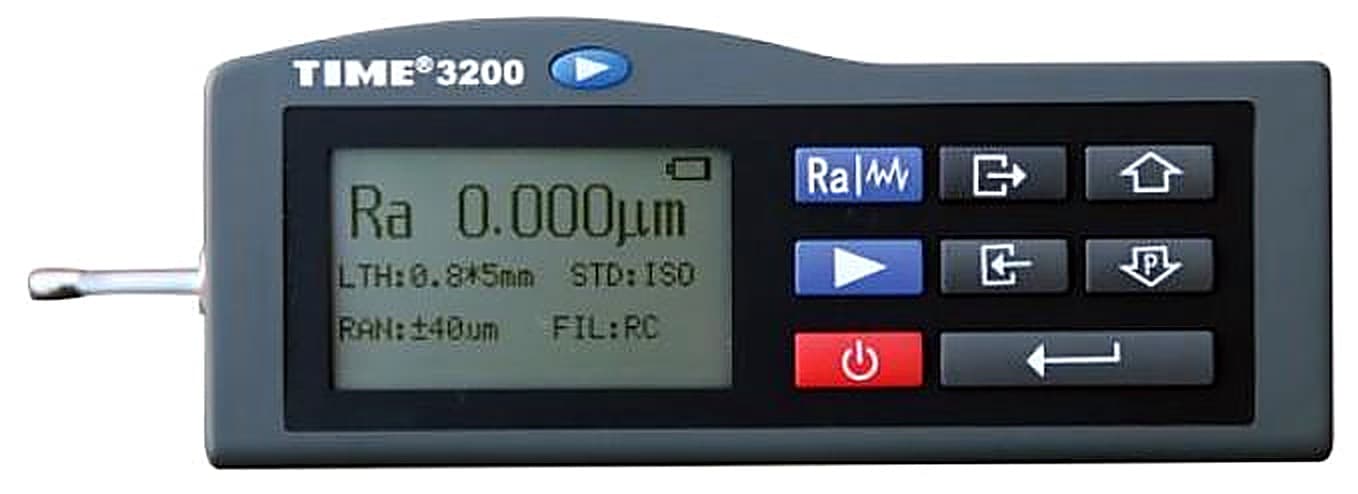

The TIME TR3200 / TR3202 Surface Roughness Tester (TR200) is a cost-effective roughness measuring instrument which supports a dozen of different parameters. It is small & light with high accuracy.

The TIME TR3200 / TR3202 can be equipped with several optional pickup styluses for different applications and is well suited for on-site roughness testing.

Features of the TIME Portable Roughness Tester TR3200 / TR3202

• Over a dozen measurement parameters applicable for roughness tests of various mechanical manufacturing processes in production lines, workshops and labs.
• High accuracy inductive pickup
• Easy operation manual and large LCD display with backlight
• Pickup stylus position indicator
• Transfer to PC via RS232 with advanced PC Software TIMESurf for more analysing management
• Connected with printer to print the data and graphs on-site.
• Storage and review function for up to 15 groups data and graphs
• Rk data and graphic are available.
• Digital filter: RC, PC-RC, Gauss, D-P
• Optional delicate accessories for more accurate results and easier operation e.g., measuring platform, steel support etc.
• Conforms to ISO Standard, as well as compatible with DIN, ANSI and JIS Standards
• Top quality Li-ion rechargeable battery

TIME Portable Roughness Tester TR3200 / TR3202 – Specifications

Model	TIME 3200	TIME 3202
Roughness parameters	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk, Rmr	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2
Assessed profiles	Roughness profile (R) Primary profile (P)	Roughness profile (R) Primary profile (P)
Measuring system	Metric, Imperial	Metric, Imperial
Display resolution	0.001 μ m	0.001 μ m
Data output	RS232	RS232
Pickup measuring range	±20μ m, ±40μ m, ±80μ m	±20μ m, ±40μ m, ±80μ m
Cut-off length (L)	0.25mm / 0.8mm / 2.5mm/Auto	0.25mm / 0.8mm / 2.5mm/Auto
Evaluation length	1~5L (selectable)	1~5L (selectable)
Tracing length	3-7L (selectable)	3-7L (selectable)
Digital filter	RC, PC-RC, Gauss, D-P	RC, PC-RC, Gauss, D-P
Max. tracing length	17.5mm	17.5mm
Min. tracing length	1.3mm	1.3mm
Pick-up	Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°	Standard pickup TS100, inductive, diamond stylus radius  5μm, angle of stylus 90°
Accuracy	≤±10%	≤±10%
Repeatability	≤6%	≤6%
Power	Li-ion battery rechargeable	Li-ion battery rechargeable
Dimensions (mm)	140 x 52 x 48	140 x 52 x 48
Weight (g)	440	440

TIME Portable Roughness Tester TR3200 / TR3202 – Data Sheet

TIME Portable Roughness Tester TR3200 / TR3202 Data Sheet

TIME Portable Roughness Tester TR3200 / TR3202 – Accessories

TS110 pickup for curved surface
TS120 pickup for small holes
TS130 pickup for deep grooves
TS140 right-angled pickup

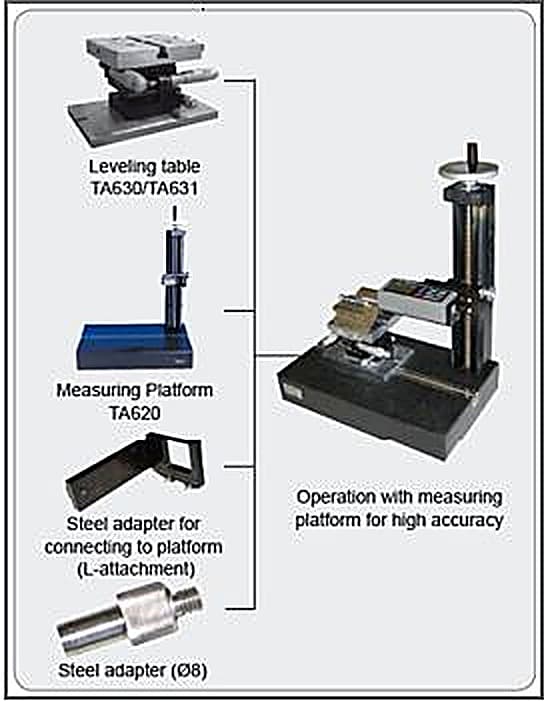

Measuring platform TA620
Levelling table TA630/TA631
Magnetic stand
Steel adapter (Φ8)
Steel adapter (L-attachment)
Printer TA230



Optional Pickup Styluses

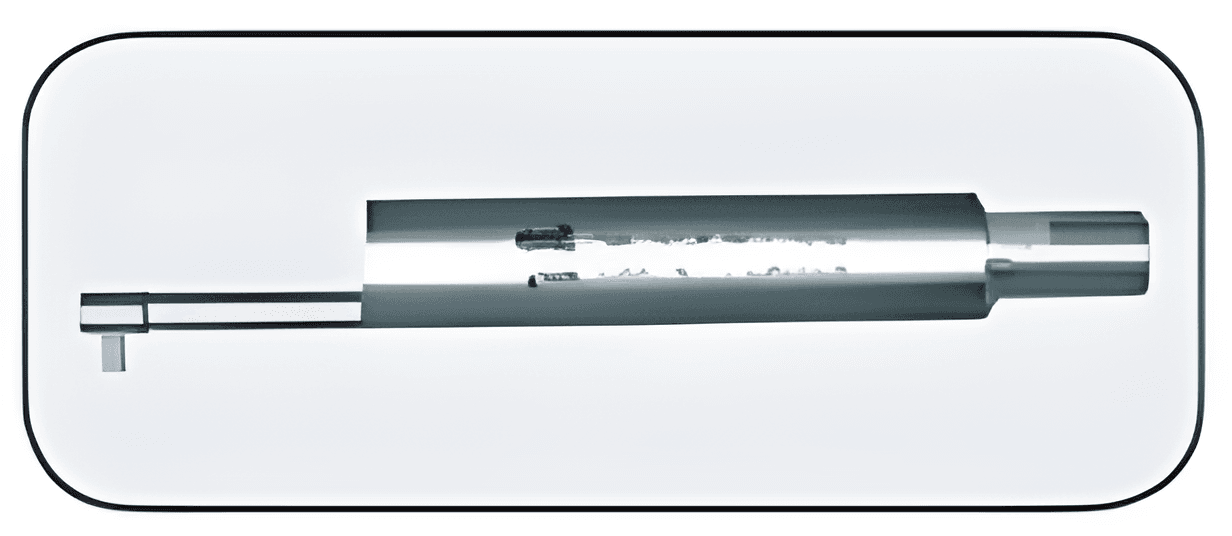

	TS130/131 Pickup for deep grooves TS130 used for roughness testing of deep groove with min. width 2mm, max depth 3mm or of step with max height 3mm. TS131 used for roughness testing of deep groove with min width 3mm, max depth 10mm or of step with meax height 10mm, working with measuring platform TA620

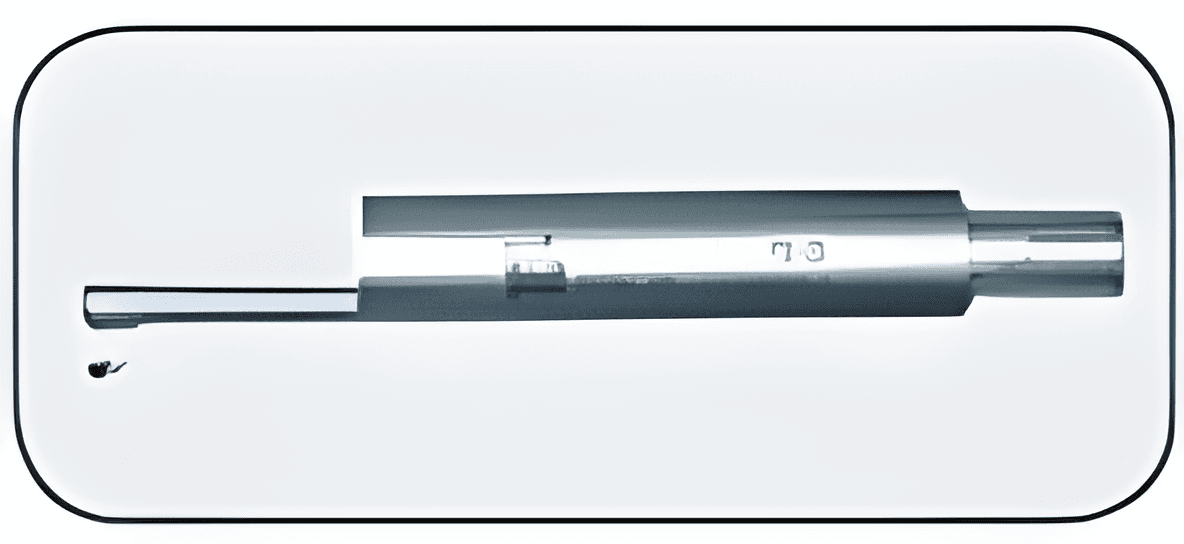

	TS100 standard pickup With skid for roughness test on plane surface, shaft and inner surface of holes with meax depth of 22mm, min diameter 5mm

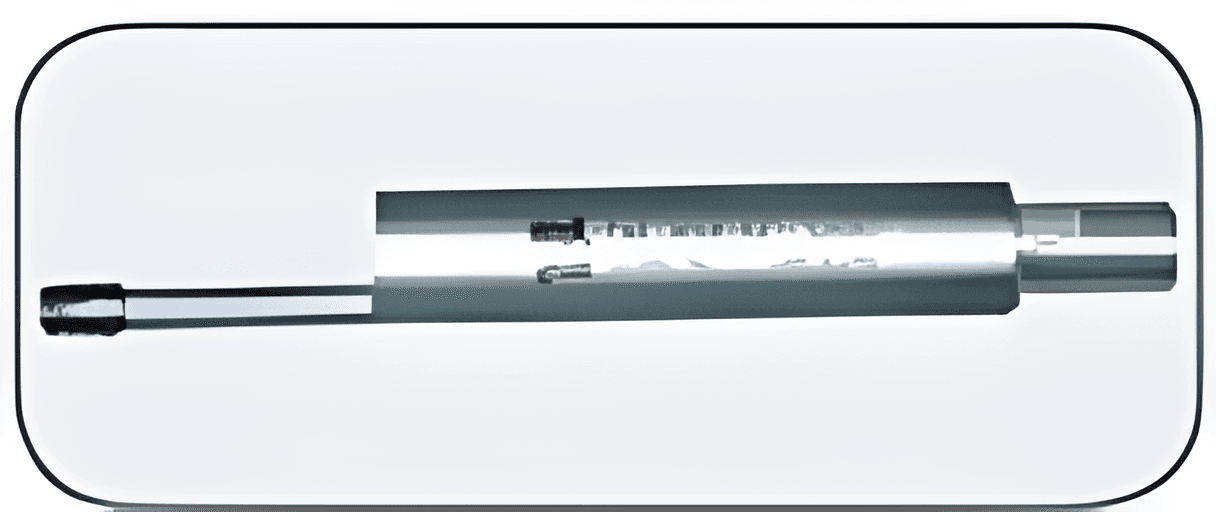

	TS110 pickup for curved surfaces Used for roughness testing fo curved surceas with min curvature radius of 3mm, working with measuring platform TA620
	TS120 pickup for small holes Used for roughness testing of small holes with min 2mm diameter of inner surface, max depth 9mm

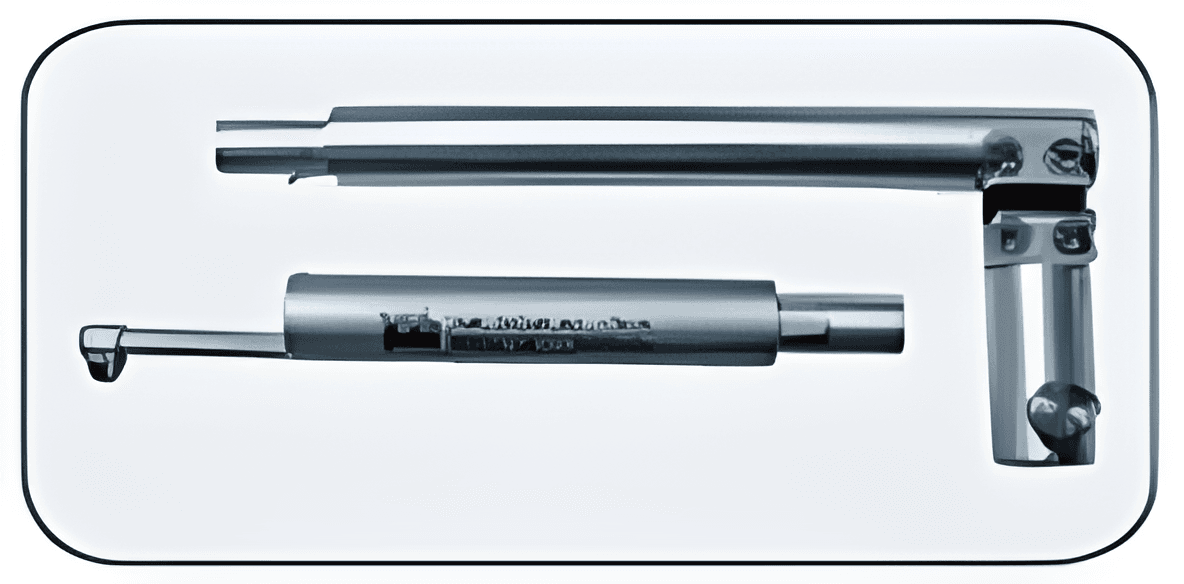

	TS140 right-angled pickup Comprising right-angled pickup and right-angeled transmitting rod, used for roughness testing of groove and crack with min widt 7.5mm – 20mm, and steps with max height of 2.5mm, working with measuring platform TA620
