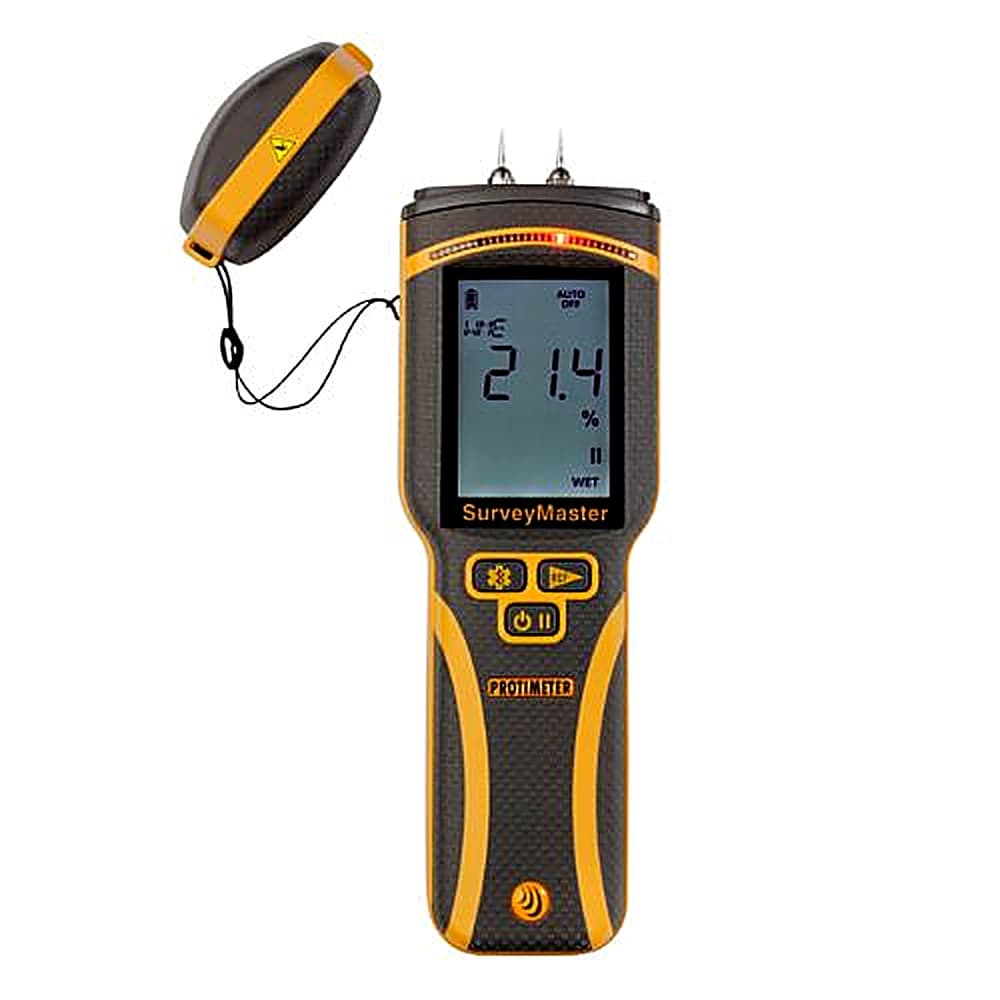

Surveymaster Moisture Meter

Product Description

The world’s original and best-selling dual-function moisture meter with both pin and non-invasive measurement capabilities.

The right moisture meter makes all the difference! And we’ve made even more improvements to enhance the Protimeter Surveymaster. This versatile pin and non-invasive moisture meter is ergonomically designed for easy, one-handed operation to measure moisture in buildings, and other related structures, both on and below the surface. This allows you to assess moisture levels for both new and refurbishing activities, as well as to diagnose moisture-related problems in existing buildings.

Our new model features a larger display for easy reading, automatic calibration checks every 50 power cycles, and user field calibration of the non-invasive mode.

Additionally, the batter life is now 3 times longer!

The SurveyMaster moisture meter has Bluetooth capabilities to connect to our Protimeter Connect app. This allows you to save and download readings with the time and date stamp.

Features

Features
  • Bluetooth Connectivity for data recording
  • Auto shut off 0-10 min
  • Hold feature
  • Backlight On/Off
  • Buzzer On/Off
  • Dry, At Risk, and Wet Indicator On/Off
  • In-built WME auto calibration check
  • Periodic WME auto calibration check
  • Field calibration for non-invasive mode
  • Over the air firmware upgrade
  • Multilingual UI

Benefits
  • Easy-to-use
  • Allows rapid assessment of building moisture
  • Instant readings in a wide range of building materials
  • Non-invasive measurement not adversely affected by surface moisture
  • Two meters in one

Specifications




Range Relative (non-invasive) 70 to 999
    Dry (green) 70-169
    At risk (yellow) 170-199
    Wet (red) 200-999
  Pin Measurement 7.9% to 99% WME
    Dry (green) 7-16.9
    At Risk (yellow) 17-19.9
    Wet (red) 20-99.9
Display Display 1 Digital LCD backlit
  Display 2 60 LEDs green (dry), yellow (at risk) and red (wet)
Depth of moisture Non-invasive up to 20 mm
  Pin up to 12.5 mm
Case Pouch with belt loop
Power 2x AA (supplied)
Warranty 2 years on mechanical or manufacturing defects.
  Does not include wearing part or accessories.
Part Number BLD5375
Weight 225g (including Batteries)
Dimensions 190 mm x 70 mm x 49 mm
Battery 2x AA (supplied)
User adjustable features:
  Auto shut off 1-6 mins.
  Hold feature
  Backlight on/off.
  Audible on/off.
  Dry, At Risk and Wet Indicator on/off.

Packing List


Surveymaster Moisture Meter Packing list:

  • Surveymaster Instrument
  • Calcheck
  • 2 spare pins
  • Pouch
  • Instructions
    •

Data Sheet

Accessories

Optional Accessories both plug into jack plug (adjacent to needles)

Part Number Description
BLD5020 Deep Wall Probes (240 mm) – fits all Protimeter Minis & Timber & Surveymasters
BLD5000 Hammer Electrode – Plugs into Protimeter Minis, Survey and Timber Masters – Penetrates 37 mm into wood
BLD5055 Hammer Electrode – Heavy Duty Design
BLD5070 EIFS Probe


Accessories included with the Surveymaster Moisture Meter – both plug into jack plug (adjacent to needles)

      • Deep Wall Probes (5018) (with insulated stems & bare tips) can detect moisture levels up to 140 mm Length depth. Supplied in a Canvas (Velcro) Pouch.

Note: Hammer Electrode readings are more meaningful and less destructive than an Oven Drying Test. The oven gives an average moisture content. The Hammer Electrode enables the user to measure the highest moisture content (to 37mm) which is the requirement of most users.

Instruction Manual

Video


The Protimeter SurveyMaster uses both pin and non-invasive moisture measurement modes.

This video describes how to use both modes to evaluate moisture in a building.
