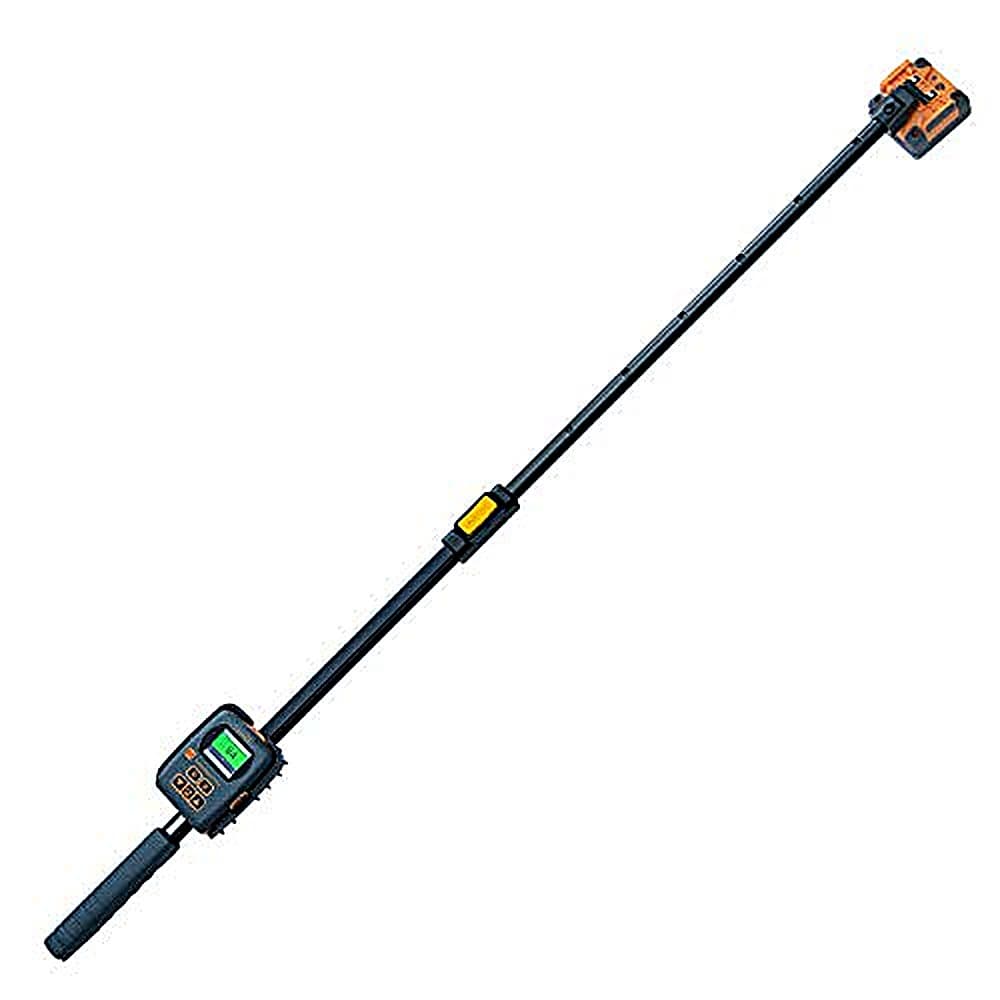

Protimeter BLD5777 Reachmaster Pro
Product Description
No more climbing ladders, or working on your hands and knees, like you would with conventional moisture meters!
The ReachMaster Pro is a non-invasive moisture meter enabling the rapid assessment of moisture conditions in buildings.
Typical initial moisture surveys can increase inspection time by up to 60%, but the ReachMaster Pro makes measurements of floors, hard to reach walls and ceilings quick, safe and easy. Along with unrivaled depth of measurement and sensitivity adjustment.
All Protimeter instruments have a two-year warranty.
Features of the Protimeter BLD5777 Reachmaster Pro
- Non-invasive moisture measurement
- Wireless communication between sensor head and display
- Telescopic handle adjusts from 685mm to 1219mm
- Depth of Measurement: Up to 120cm – Varies with material under test
- Color Display: Tilt-adjustable with red, yellow and green zones
- Measurement Range: 60-999 ppm
- Audible alarm & Auto shut-off
- Adjustable sensitivity to focus in on moisture source
- Multi-language menu & Simple field recalibration
- Replaceable sensor wear plate with wear indicator on abrasion plate (1 spare included)
- Battery Life: 80 hours on continuous operation
- Battery Requirements: 4x AA in display unit, 2x AA batteries in sensor head
- Firmware upgradeable by user as new features become available
Benefits
- Easy and quick moisture detection on floors, walls and ceilings
- Eliminates working on hands and knees, as well as climbing ladders
- Not adversely affected by surface moisture
- Significantly quicker moisture assessment than handheld meters
Applications
- Flood damage restoration
- Flooring inspection
- Home inspection
- EIFS inspection
- Rubber roof leak detection
- Fiberglass marine hull inspection
Specifications
Protimeter BLD5777 Reachmaster Pro – Specifications
| Model | Protimeter BLD5777 Reachmaster Pro |
| Operating Conditions | Temperature: 0°C to 50°C |
| Measurement Specifications | Non-invasive, instantaneous readings |
| Surface moisture is not adversely affected | |
| Measurement Depth | Maximum: 120mm |
| (Varies with Material Under Test) | Minimum: 70mm |
| Measurement Range | 60 ppm to 999 ppm |
| Power Requirements | Sensor Head: 2x AA Alkaline Batteries ~ 2700mAH |
| Display Module: 4x AA Alkaline | |
| Batteries ~ 2700mAH | |
| Battery Indications | Battery level indication on display unit |
| Battery low LED indication on sensor unit | |
| Battery level indication on display | |
| Gross Weight | 700g – Instrument only |
| Regulatory Compliance | CE, RoHS, ETL |
| User Interface | Display Graphical LCD |
| Size: 50mm | |
| Resolution: 176 X 220 | |
| Backlight (with adjustable brightness) | |
| User application profiles | |
| Sticky memory, last used application settings |
Data Sheet
Accessories
| Part Number | Description |
| BLD5777-D | Display Unit – Reachmaster pro with screws |
| BLD5777-S | Sensor Unit – Reachmaster Pro with screws |
| BLD5777-P | Extension Pole – Reachmaster Pro |
| BLD5777-HD | Hinge for Display – Reachmaster Pro with screws |
| BLD5777-HS | Hinge for Sensor – Reachmaster Pro with screws |
| BLD-5777-D-Cap | Battery Cap for Display – Reachmaster Pro |
| BLD-5777-S-Cap | Battery Cap for Sensor – Reachmaster Pro |
| BLD5777-A | Abrasion Plate Kit – Reachmaster Pro with screws |
Video
Protimeter BLD5777 Reachmaster Pro – Video
No more climbing ladders, or working on your hands and knees! The Protimeter ReachMaster Pro is a non-invasive extendable moisture meter enabling the rapid assessment of moisture conditions in buildings, featuring a telescopic handle and wireless communication between the sensor head and display.
Typical initial moisture surveys can increase inspection time by up to 60%, but the ReachMaster Pro makes measurements of floors, hard to reach walls and ceilings quick, safe and easy. Along with unrivaled depth of measurement and sensitivity adjustment.
