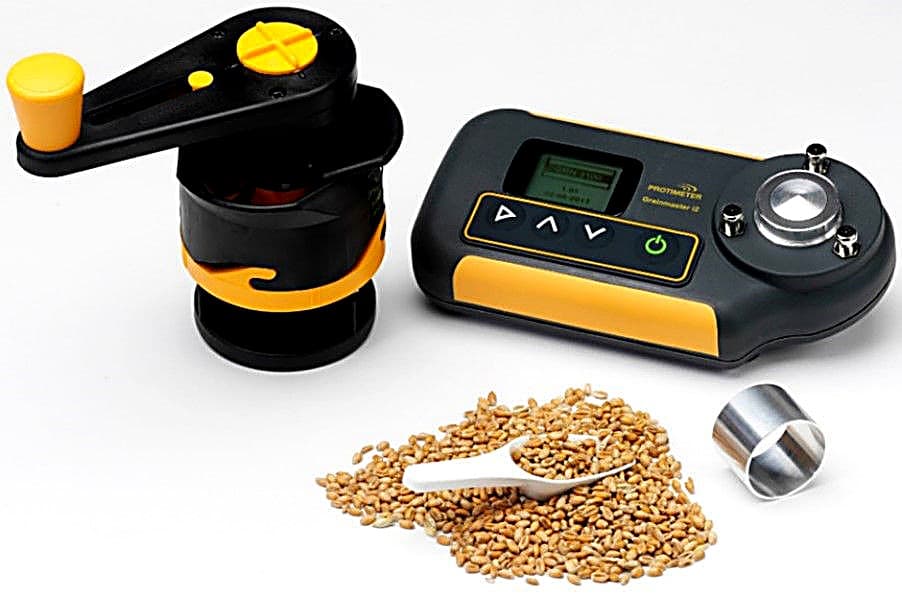

Grainmaster i2 Moisture Meter
Product Description
The Grainmaster i2 Moisture Meter is a highly versatile instrument to measure the moisture and temperature of crops. The meter is pre-programmed with 15 crop calibrations, each of which can be adjusted individually, if required, for matching with respect to commercially used instruments. It is supplied with an integrated grinder-compressor unit that enables the user to take moisture readings in ground samples very quickly and simply.
There is also a range of optional probes for measuring temperature in stored grain and moisture levels in baled hay and straw. The Grainmaster i2 Moisture Meter is supplied in a pouch with grinder-compressor unit, grain cup, sample spoon, brush and ‘Quickcheck’. In addition to the 0-100 relative scale, the 15 pre-programmed calibrations include: Wheat, Barley, Oats, Oilseed, Rape, Canola, Linseed, Peas, Corn, Sunflower, Coffee, Soya, Rice, Sorghum, Paddy and Beans.
Specifications
Grainmaster i2 Moisture Meter – Specifications
| Description | Technical Specifications |
| Weight of Instrument c/w Grinder-Compressor Unit | 1kg |
| Dimensions of Instrument c/w Grinder-Compressor Unit | 195 mm length x 185 mm height x 100 mm width |
| Power | x1 6F22R 9V battery |
| LCD Resolution | 0.1 |
| Operating Temperature Range | 0 °C to 40 °C |
| %H2O Measurement Range | See Table below. |
| Moisture Ranges of the various grains | |
| Wheat | 11.3 to 29.3 |
| Oats | 10.9 to 29.3 |
| OSR | 7.0 to 26.0 |
| Barley | 10.9 to 29.3 |
| Canola | 7.0 to 26.0 |
| Linseed | 7.0 to 16.5 |
| Sunflower | 6.2 to 23.0 |
| Corn | 10.4 to 26.2 |
| Coffee | 9.8 to 23.9 |
| Soya | 7.4 to 22.2 |
| Beans | 12.4 to 25.0 |
| Peas | 12.0 to 30.9 |
| Rice | 13.2 to 26.5 |
| Sorghum | 10.2 to 26.9 |
| Paddy | 10.4 to 26.2 |
| 0-100 relative | |
Packing List
The Grainmaster i2 Moisture Meter is supplied in a pouch with
- Grinder-compressor unit
- Grain cup
- Sample spoon
- Brush
- ‘Quickcheck’
- Instructions Calibration Data Table
Data Sheet
Accessories
Grainmaster i2 Moisture Meter – Accessories
| Part Number | Description |
| GRN6046 | Fast Response Probe for Grainmaster i2 |
| GRN6138 | Bale Probe for Grainmaster i2 |
| GRN3005 | Moisture and Temperature Probe for Grainmaster i2 |
