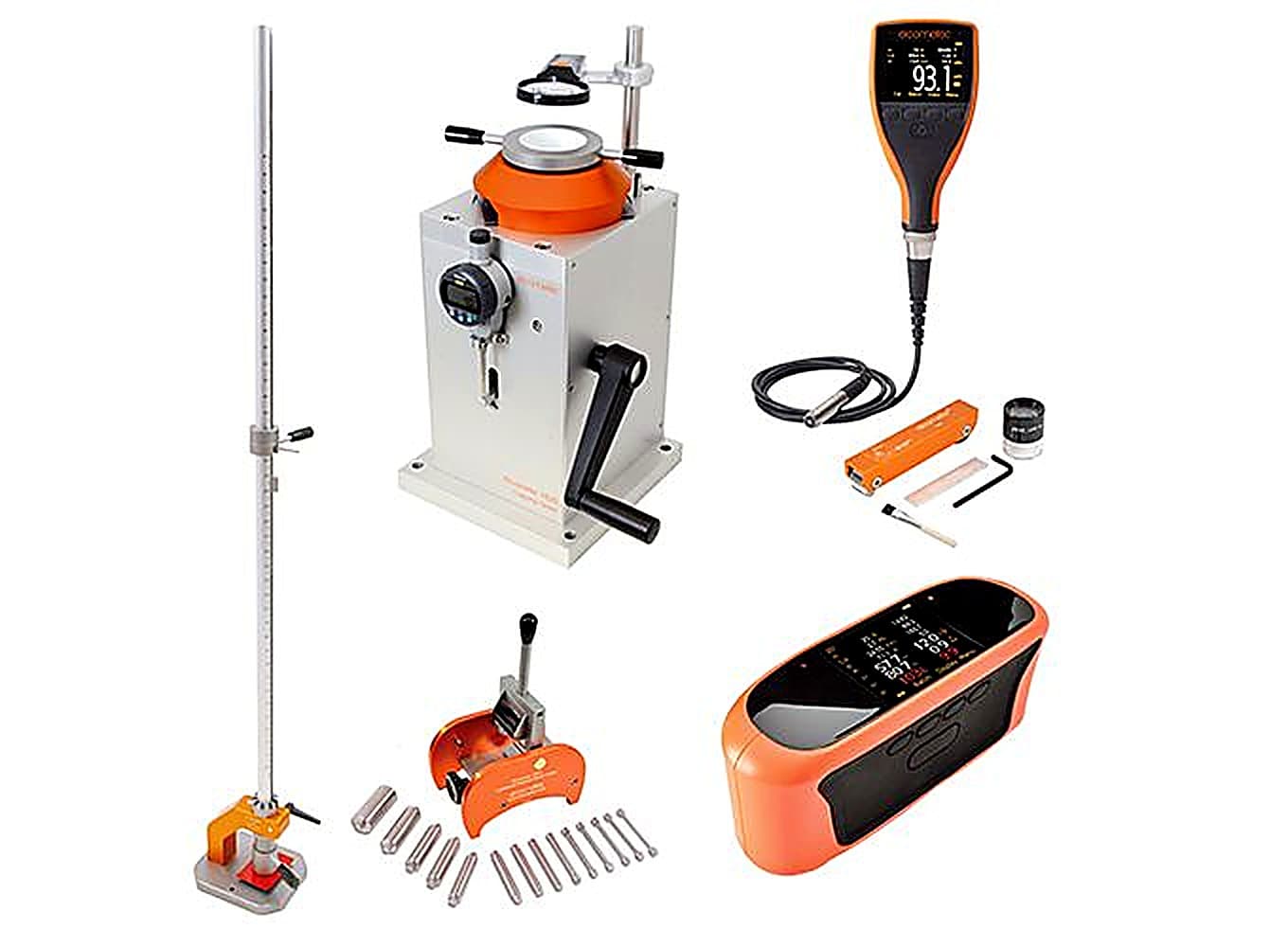

Elcometer Qualicoat Powder Coating Inspection Kit
Product Description
Elcometer Qualicoat Powder Coating Inspection Kit: The Qualicoat Organisation brings together the ideals of several national coating associations into one quality label for the powder coating applied to aluminium architectural applications. The aim of Qualicoat is to establish the minimum standard that plant installations, coating materials and finished products which have been powder coated must meet. Within this quality label, Qualicoat identifies a range of inspection requirements to be undertaken with regards to the quality control of powder coated products. The Elcometer Qualicoat Powder Coating Inspection Kit provides the various test instrumentation required to meet the high standards of this organisation.
Measurement parameters include:
- Appearance
- Oven temperature
- Impact & deformation
- Coating thickness
- Hardness
- Adhesion
Specifications
Elcometer Qualicoat Powder Coating Inspection Kit – Specifications
| Model | Description | Basic | Top |
| Elcometer 480 | Statistical Glossmeter: 60° | Model B | Model T |
| Elcometer 1506 | Mandrel Bend Tester with 5mm and 8mm (0.20 and 0.31”) Mandrels | ■ | ■ |
| Elcometer 1615 | Base Unit and Tube Assembly | ■ | ■ |
| Elcometer 1615 | Kit B: ISO 6272/2 and BS 6496 | ■ | ■ |
| Elcometer 1620 | Manual Cupping Tester with Digital Gauge | ■ | ■ |
| Elcometer 215 | Oven Data Logger & Kit* | Standard | Top |
| Elcometer 415 | FNF Integral Digital Coating Thickness Gauge for smooth surfaces | ■ | |
| Elcometer 456 | FNF Separate Digital Coating Thickness Gauge | Model T | |
| Elcometer 456 | Standard FNF 1 Probe, 0 – 1500μm | ■ | |
| Elcometer 1542 | Cross Cut Set 6 x 1, 2, 3mm with ISO or ASTM Adhesive Tape | ■ | ■ |
| Part Number | Description |
| YKITQUALICOAT-1B | Elcometer Basic Qualicoat Powder Coatings Inspection Kit |
| YKITQUALICOAT-1T | Elcometer Top Qualicoat Powder Coatings Inspection Kit |
