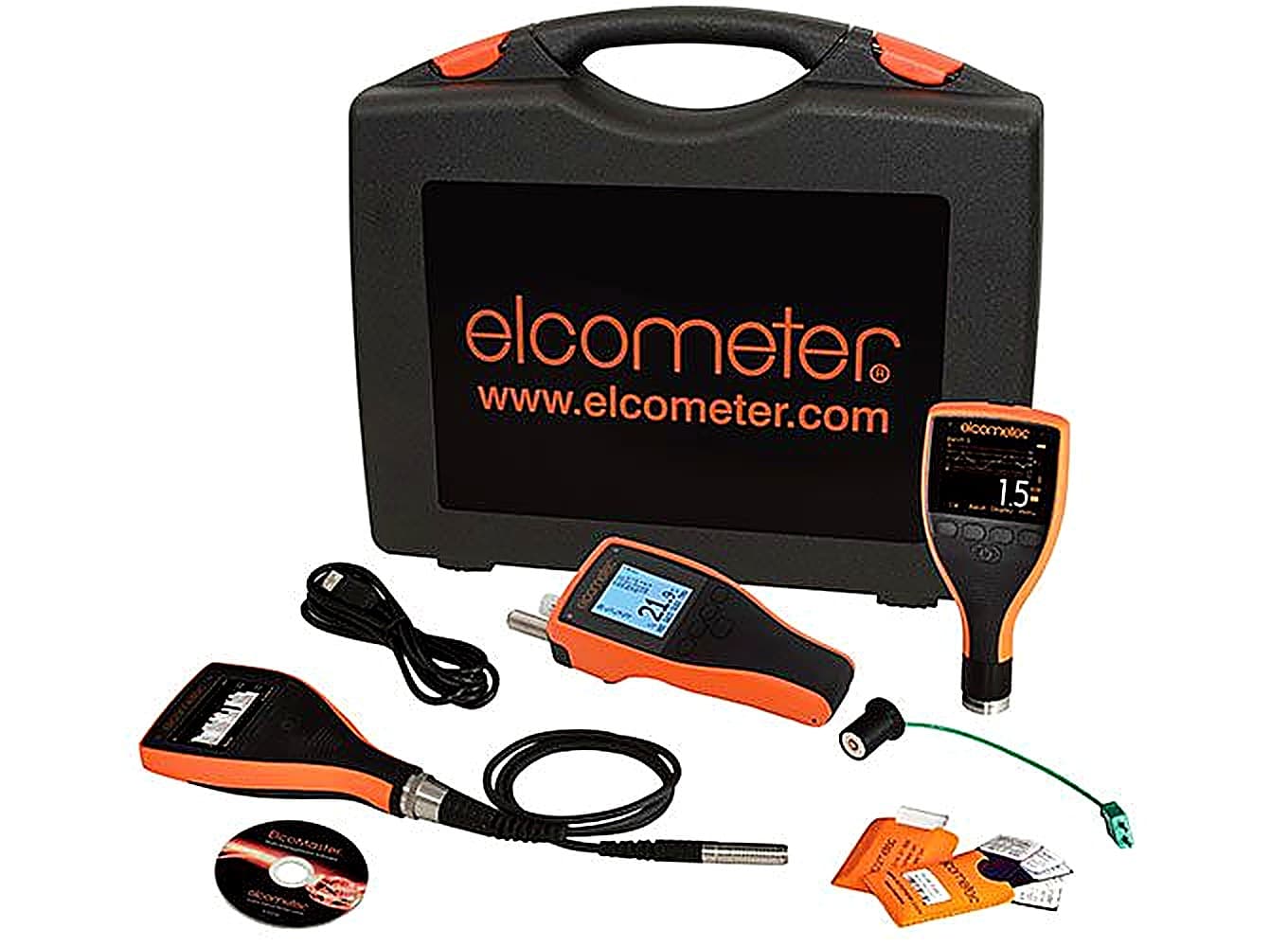

Site inspection requires a range of portable testing equipment. In order to make these products easily available and portable, Elcometer have developed a range of Coating Inspection Kits. All the gauges are conveniently stored in one hard plastic protective carrying case and are supplied with full operating instructions.Available as a Basic or Top version, these digital inspection kits have been specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness.The Elcometer Top Digital Inspection Kit contains entry level digital inspection equipment designed for the less advanced user to carry out inspection tasks. The Elcometer Top Digital Inspection Kit contains :

• Elcometer 224 Model T Integral Digital Surface Profile Gauge, 0 – 500µm
• Elcometer 319 Top Dewpoint Meter
• Elcometer 456 Model T Ferrous Separate Coating Thickness Gauge with standard separate probe; 0- 1500µm.

Gauges have memory which can store up to 150,000^b readings and Bluetooth® technology for cable free data transfer and are compatible with ElcoMaster® Data Management Software, ideal for creating detailed, professional reports.

ElcoMaster® Data Management Software for Android™ can also be used to transfer readings from Elcometer Bluetooth inspection gauges straight to smart phones and tablets running Android 2.1 or above, allowing data analysis immediately on site, without having to turn on a computer.

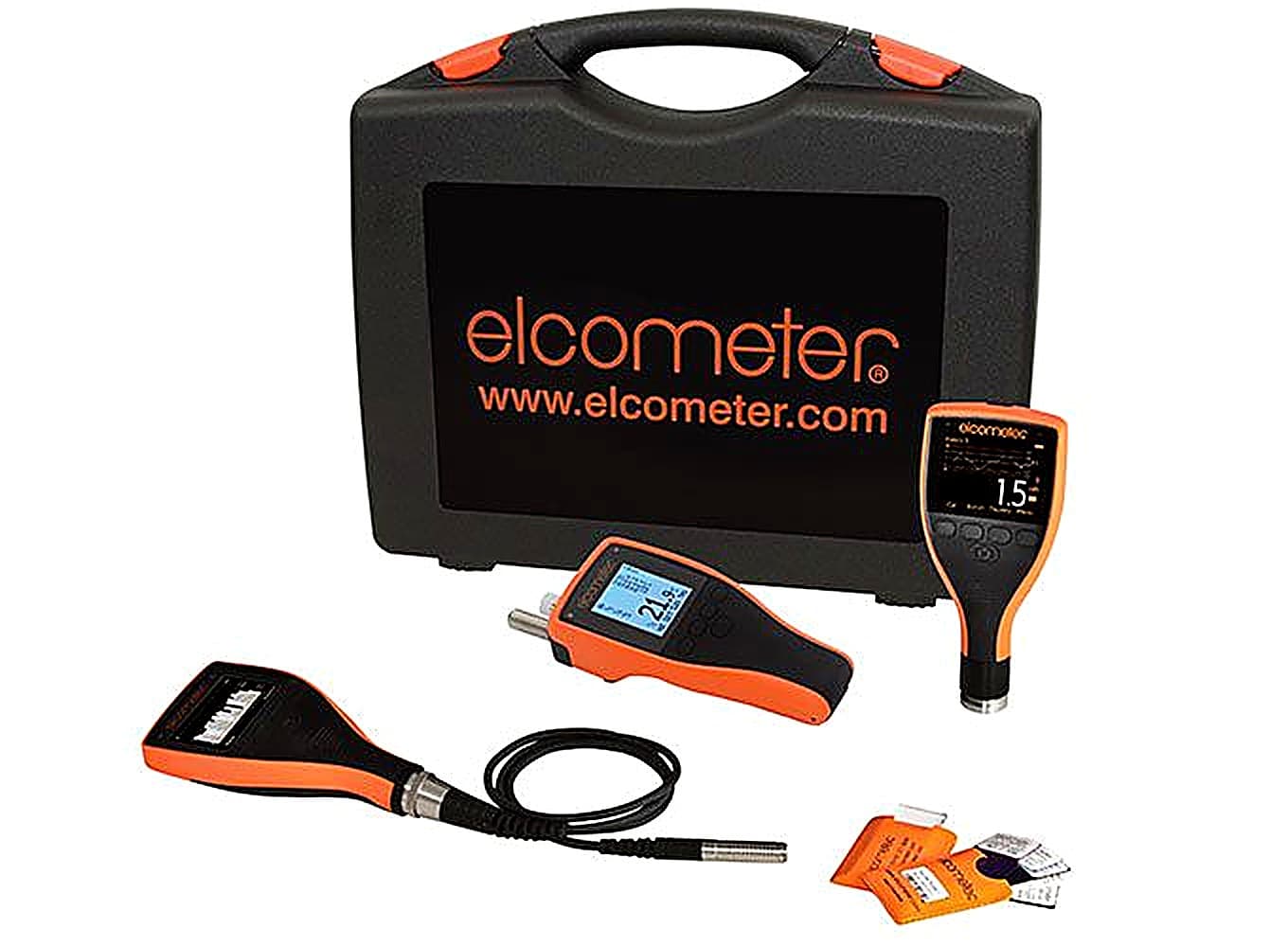

Click here if you are wanting the more simple Basic Digital Inspection Kit with entry level gauges that do not connect to ElcoMaster.

Specifications

Each kit contains a combination of the following digital inspection instruments required to perform the most common daily inspection tasks. Measure:

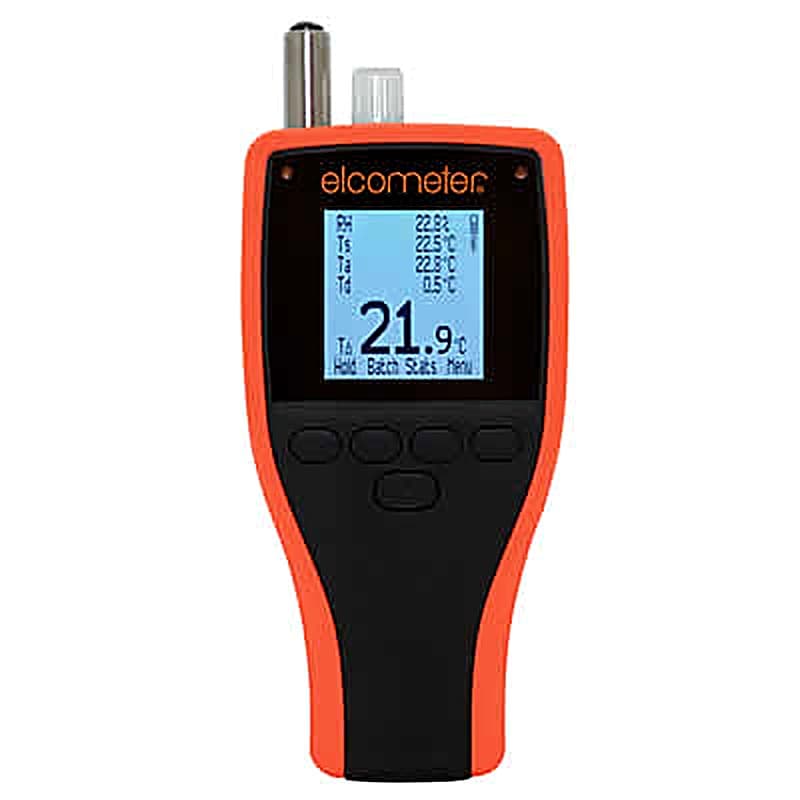

	Climatic conditions using the Elcometer 319 Dewpoint Meter:The Elcometer 319 has been designed to incorporate all the features required for climate condition monitoring in a single gauge with memory and measurement options which make this one of the most versatile digital dewpoint meters available.The clear, illuminated display can show any combination of up to five climatic parameters including: % Relative Humidity, Specific Humidity, Surface Temperature, Ambient Air Temperature, Dewpoint Temperature, Delta T, Dry Bulb Temperature and Wet Bulb Temperature.The Standard Gauge has a 10 reading rolling memory whereas the Top Gauge can store up to 40,000 sets of readings in 999 batches. It also offers USB data output and Bluetooth wireless technology for cable free data transfer.  Used in conjunction with ElcoMaster™ 2.0  software readings can be stored and used to create professional reports.
	Surface profile using the Elcometer 224 Digital Surface Profile Gauge:The Elcometer 224 provides the very latest in surface profile measuring technology. Accurate, fast and very user friendly, the Elcometer 224 Model B displays statistical values as readings are taken. The Model T has the advantage of a large built-in memory to accurately record up to 150,000 readings in 2,500 batches. Fast, accurate reading rate; 60+ readings per minute Tough, impact, water & dust resistant; equivalent to IP64 Automatic rotating display; 0°, 90°, 180° & 270° Gauge software updates; via ElcoMaster™ 2.0 software On screen statistics Limits; user definable audible & visual pass/fail warnings

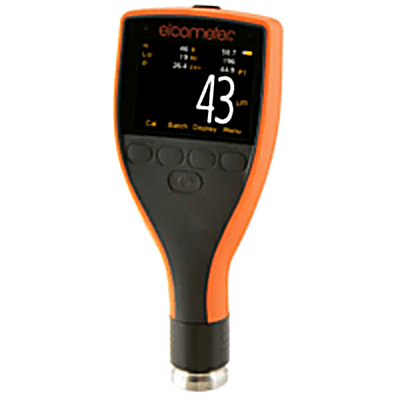

	Dry film thickness using the Elcometer 456 Digital Coating Thickness Gauge:The new Elcometer 456 Coating Thickness Gauge sets new standards making measuring dry film thickness faster, reliable and accurate; helping you to become more efficient. Fast, accurate reading rate; 70+ readings per minute Tough, impact, water & dust resistant; equivalent to IP64 Automatic rotating display;  0°, 90°, 180° & 270° Gauge software updates; via ElcoMaster 2.0 software On screen statistics Multiple calibration methods Limits; user definable audible & visual pass/fail warnings

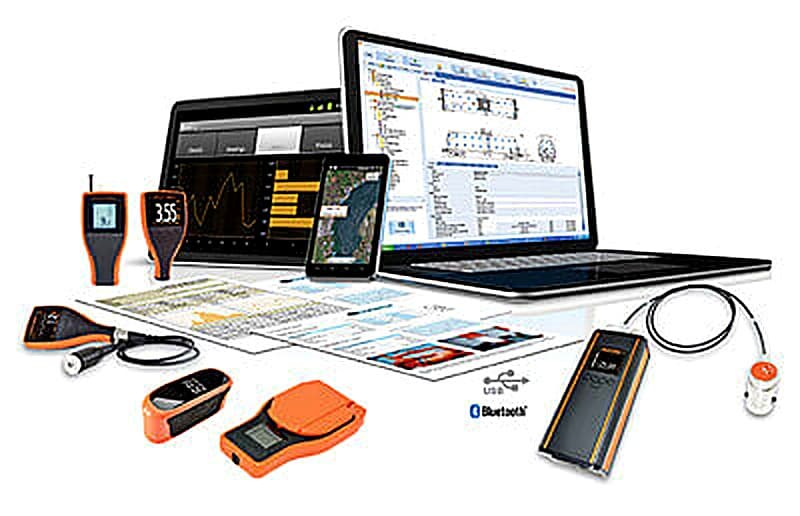

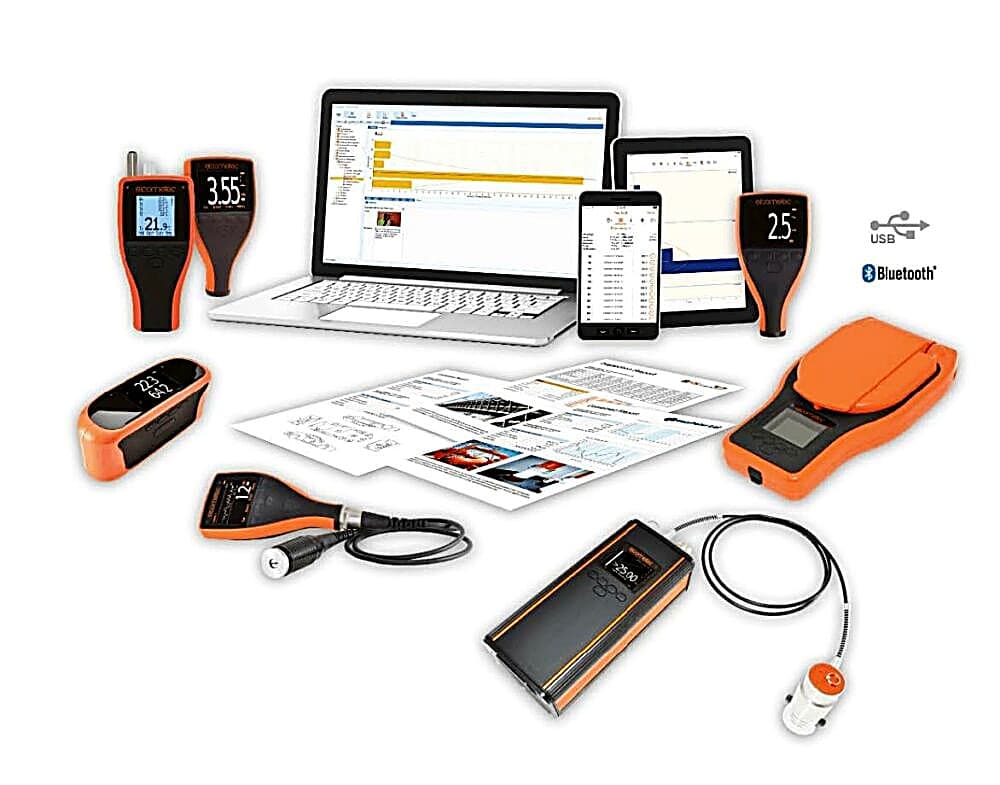

Create professional reports using ElcoMaster® Data Management Software
	Elcometer have designed a series of data management software packages that will link directly with the data collection devices (gauges) and instantly produce professional reports, offering full traceability of the inspection proving compliance to the relevant standard being followed.Our free software package, ElcoMaster® is the most flexible data management software on the market. Designed to meet the demanding needs of the quality inspector whilst offering the ultimate flexibility for managing data into ‘projects’ for ease of use. Producing professional reports is easily achieved using the standard report templates within the software package or by using the customisation options to produce customer specific reports.

Elcometer Top Digital Inspection Kit Data Sheet

Accessories

Elcometer Digital Top Kit ElcoMaster Report Examples

For a particular job you could practically have a report for all the various aspects of the inspection covering the main areas of a project. With the instruments in the Elcometer Top Digital Inspection Kit you would be able to generate the following reports :

Surface Profile Measuring (Elcometer 224T) :
Elcometer 224 Surface Profile ElcoMaster Report Example

Climate Condition Monitoring (Elcometer 319T) :
Elcometer 319 Climate Condition ElcoMaster Report Example

Coating Thickness Measuring (Elcometer 456S & 456T) :
Elcometer 456 Coating Thickness ElcoMaster Report Example

A combined report of the above three batches of readings in one report :
Elcometer Combined ElcoMaster Report Example

As can be noted from these examples all the reports can have the same look and feel and be achieved with the push of a button.
